BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

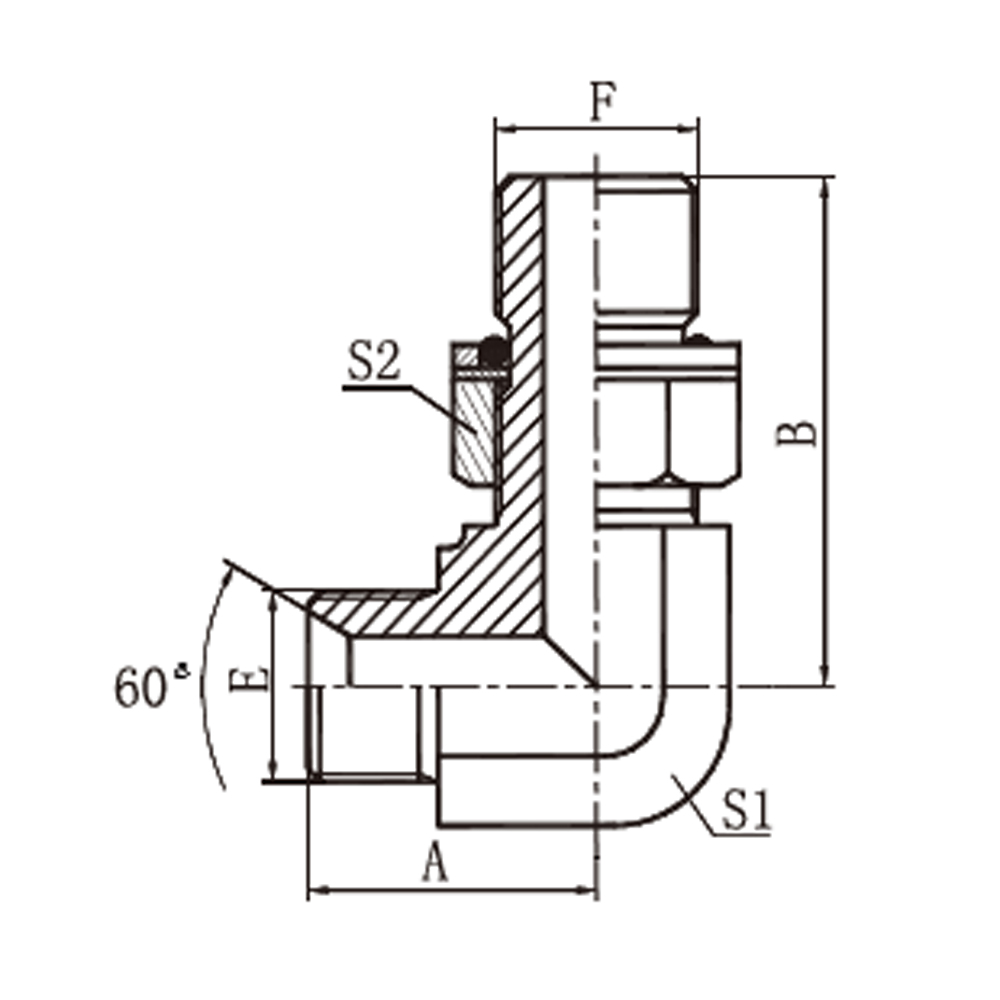

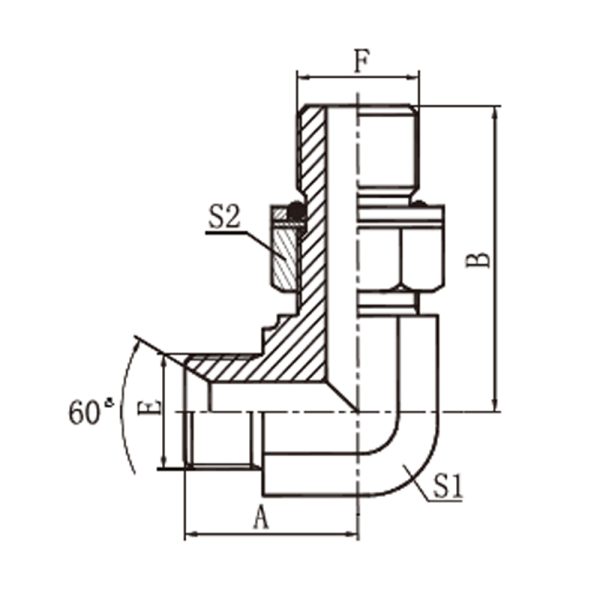

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | F | A | B | S1 | S2 | |
| 1BH9-02-10OG | G1/8″X28 | M10X1 | O08.1X1.6 | 20 | 26.5 | 11 | 14 |
| 1BH9-02-120G | G1/8″X28 | M12X1.5 | O09.3X2.4 | 20 | 30.5 | 11 | 17 |
| 1BH9-04-12OG | G1/4″X19 | M12X1.5 | O09.3X2.4 | 24.5 | 32 | 14 | 17 |
| 1BH9-04-140G | G1/4″X19 | M14X1.5 | O11.3X2.4 | 24.5 | 32.5 | 14 | 19 |
| 1BH9-04-16OG | G1/4″X19 | M16X1.5 | O13.3X2.4 | 26.5 | 34.8 | 16 | 22 |
| 1BH9-06-140G | G3/8″X19 | M14X1.5 | O11.3X2.4 | 27.5 | 34 | 16 | 19 |
| 1BH9-06-16OG | G3/8″X19 | M16X1.5 | O13.3X2.4 | 27.5 | 34.8 | 16 | 22 |
| 1BH9-06-18OG | G3/8″X19 | M18X1.5 | O15.3X2.4 | 28.5 | 37 | 19 | 24 |
| 1BH9-08-180G | G1/2″X14 | M18X1.5 | O15.3X2.4 | 34.5 | 39.5 | 22 | 24 |
| 1BH9-08-220G | G1/2″X14 | M22X1.5 | O19.3X2.4 | 34.5 | 40.2 | 22 | 27 |
| 1BH9-10-22OG | G5/8″X14 | M22X1.5 | O19.3X2.4 | 35 | 40.2 | 22 | 27 |
| 1BH9-12-22OG | G3/4″X14 | M22X1.5 | O19.3X2.4 | 40 | 43.5 | 27 | 27 |
| 1BH9-12-27OG | G3/4″X14 | M27X2 | O23.5X3.0 | 40 | 48.5 | 27 | 32 |
| 1BH9-16-27OG | G1″X11 | M27X2 | O23.5X3.0 | 46 | 52.5 | 33 | 32 |
| 1BH9-16-33OG | G1″X11 | M33X2 | O29.5X3.0 | 46 | 52.5 | 33 | 41 |
