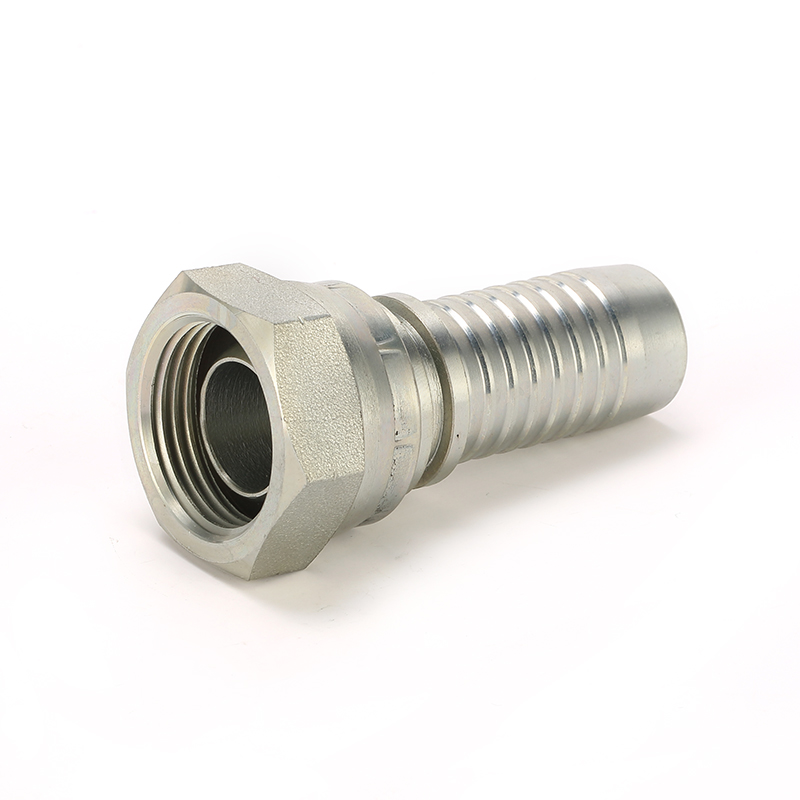

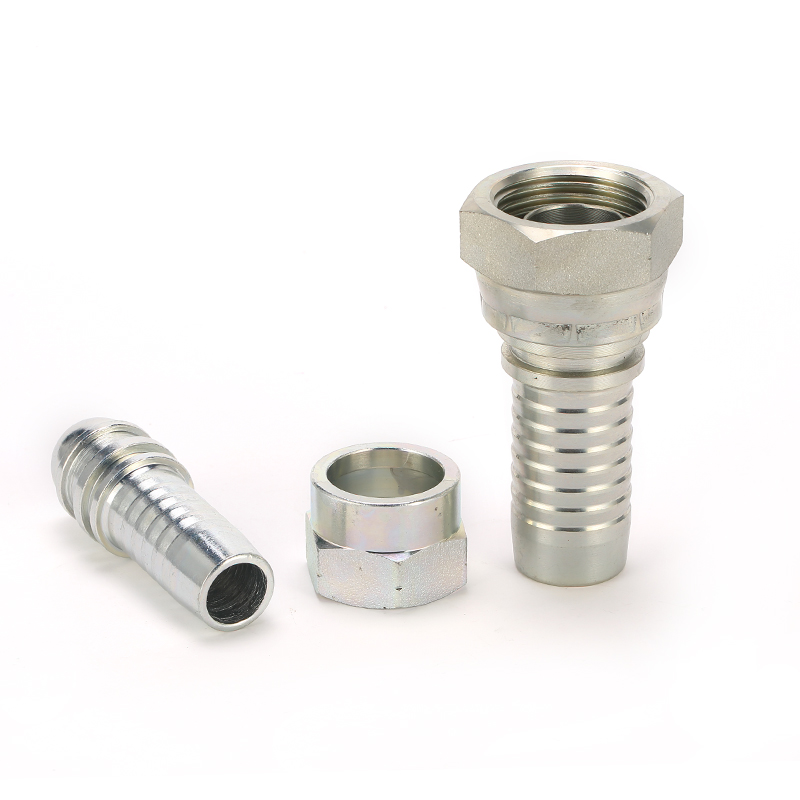

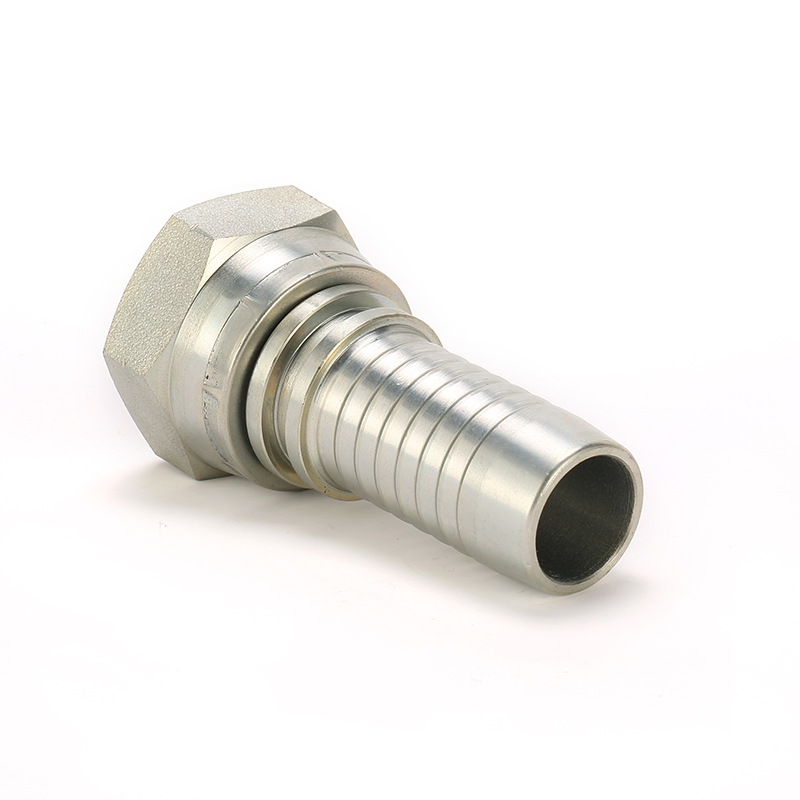

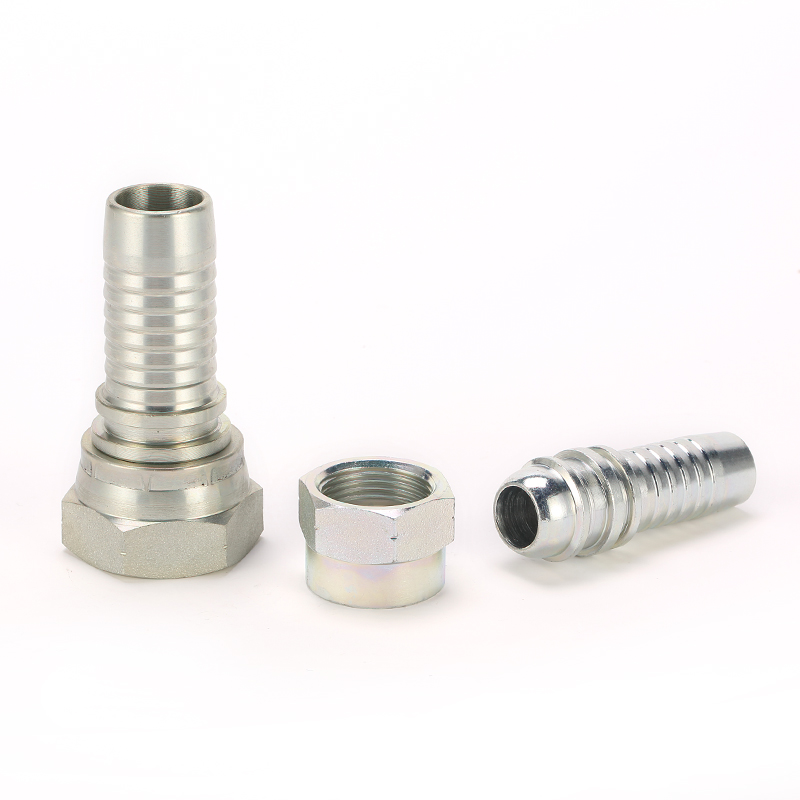

22111 BSP Female Hydraulic Hose Fittings

Description:

The 22111-BSP hydraulic hose fitting is a female fitting that features a ball seat, making it suitable for use in various hydraulic fluid systems. BSP or British Standard Pipe refers to a collection of technical standards that specify a particular type of thread.

"*" indicates required fields

Our BSP fittings feature high-quality stainless steel construction that can withstand strong working conditions. British Fittings are manufactured using British threads such as British Standard Pipe Parallel (BSPP) and British Standard Pipe Tapered (BSPT). Topol Power directly supplies a wide range of stainless steel BSP fittings.

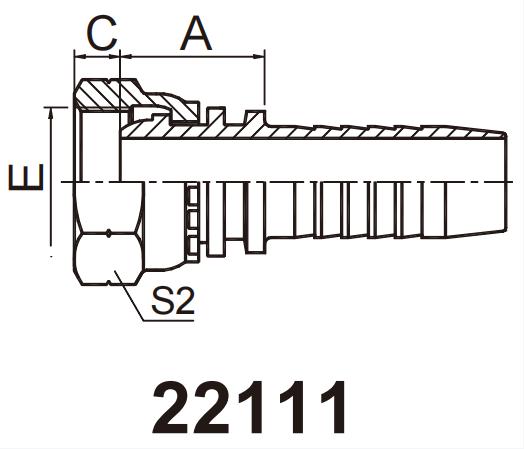

PART NO	THREAD E	HOSEBORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S2
22111-02-04	G1/8″X28	6	04	19	2	14
22111-04-03	G1/4″X19	5	03	19	4	19
22111-04-04	G1/4″X19	6	04	19.5	4	19
22111-06-05	G3/8″X19	8	05	20	5	22
22111-06-06	G3/8″X19	10	06	20.5	5	22
22111-06-08	G3/8″X19	12	08	21	5	22
22111-08-06T	G1/2″X14	10	06	22.5	6	27
22111-08-08	G1/2″X14	12	08	23	6	27
22111-08-10	G1/2″X14	16	10	24	6	27
22111-10-10	G5/8″X14	16	10	25	8	30
22111-10-12	G5/8″X14	20	12	25	8	30
22111-12-08T	G3/4″X14	12	08	25	9.5	32
22111-12-10	G3/4″X14	16	10	26	9.5	32
22111-12-12	G3/4″X14	20	12	26	9.5	32
22111-16-12T	G1″X11	20	12	26.5	11	41
22111-16-14	G1″X11	22	14	26.5	11	41
22111-16-16	G1″X11	25	16	28	11	41
22111-20-16T	G1.1/4″X11	25	16	27.5	11	50
22111-20-20W	G1.1/4″X11	32	20	31.5	10	50
22111-24-24W	G1.1/2″X11	40	24	37	11.5	55
22111-32-32W	G2″X11	50	32	34	15	70

Click to enlarge

Category: BSP Hose Fittings Tags: Female, Carbon Steel, BSP, british pipe fittings

Description
Package& Shipping

Description

PART NO	THREAD E	HOSEBORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	S2
22111-02-04	G1/8″X28	6	04	19	2	14
22111-04-03	G1/4″X19	5	03	19	4	19
22111-04-04	G1/4″X19	6	04	19.5	4	19
22111-06-05	G3/8″X19	8	05	20	5	22
22111-06-06	G3/8″X19	10	06	20.5	5	22
22111-06-08	G3/8″X19	12	08	21	5	22
22111-08-06T	G1/2″X14	10	06	22.5	6	27
22111-08-08	G1/2″X14	12	08	23	6	27
22111-08-10	G1/2″X14	16	10	24	6	27
22111-10-10	G5/8″X14	16	10	25	8	30
22111-10-12	G5/8″X14	20	12	25	8	30
22111-12-08T	G3/4″X14	12	08	25	9.5	32
22111-12-10	G3/4″X14	16	10	26	9.5	32
22111-12-12	G3/4″X14	20	12	26	9.5	32
22111-16-12T	G1″X11	20	12	26.5	11	41
22111-16-14	G1″X11	22	14	26.5	11	41
22111-16-16	G1″X11	25	16	28	11	41
22111-20-16T	G1.1/4″X11	25	16	27.5	11	50
22111-20-20W	G1.1/4″X11	32	20	31.5	10	50
22111-24-24W	G1.1/2″X11	40	24	37	11.5	55
22111-32-32W	G2″X11	50	32	34	15	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
