BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

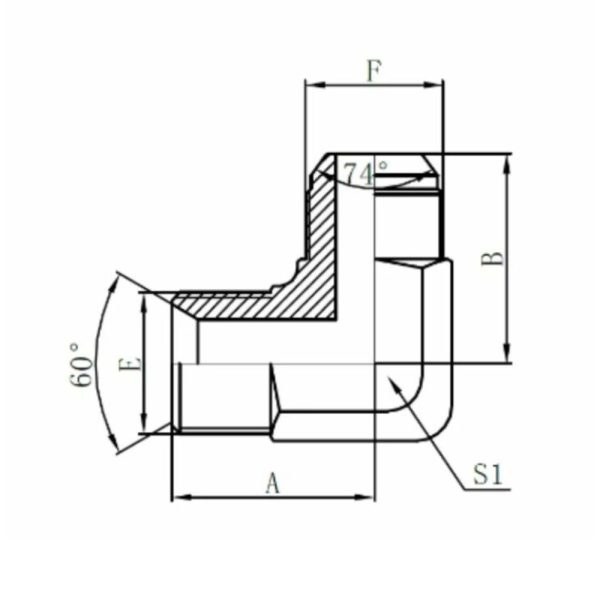

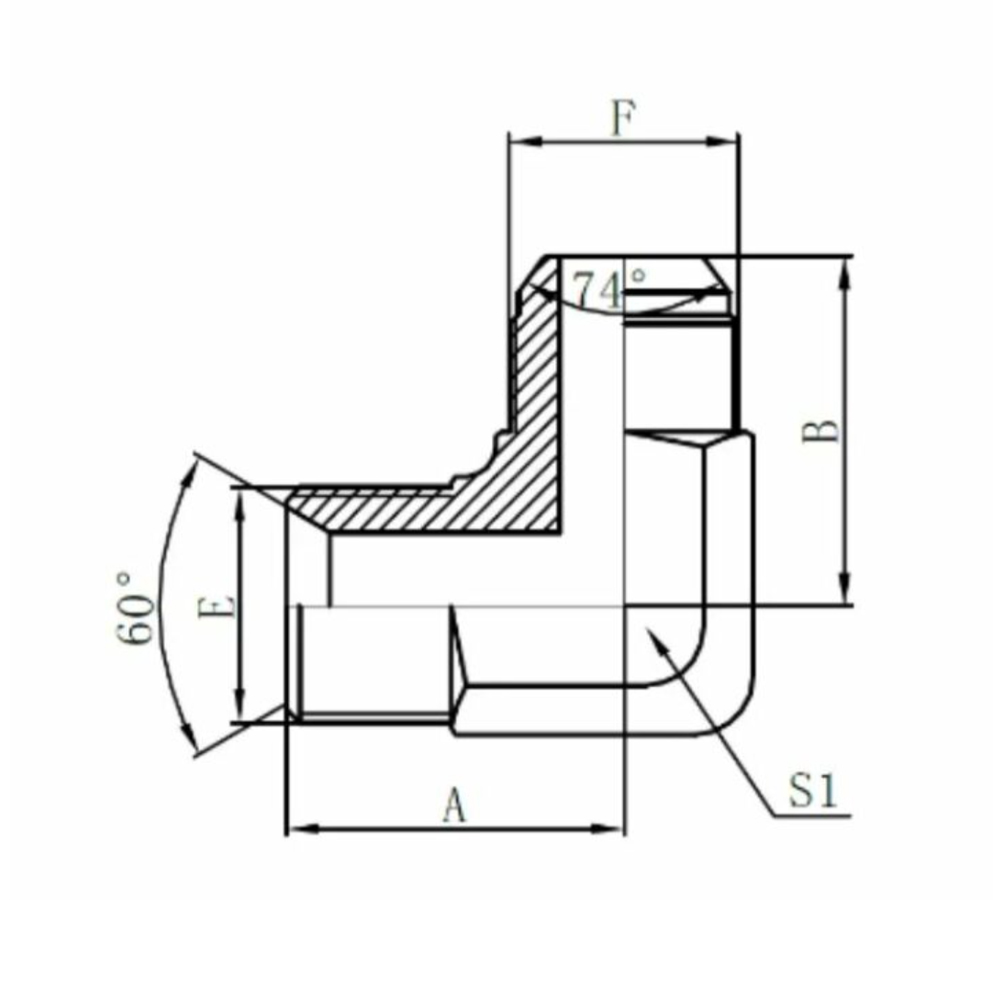

| PART NO. | THREAD | DIMENSION | |||
| E | F | A | B | S1 | |
| 1BJ9-04 | G1/4″X19 | 7/16″X20 | 24.5 | 26.5 | 14 |
| 1BJ9-04-05 | G1/4″X19 | 1/2″X20 | 23.5 | 28 | 14 |
| 1BJ9-04-06 | G1/4″X19 | 9/16″X18 | 24.5 | 26.9 | 14 |
| 1BJ9-06 | G3/8″X19 | 9/16″X18 | 27.5 | 28.5 | 16 |
| 1BJ9-06-08 | G3/8″X19 | 3/4″X16 | 28.5 | 32 | 19 |
| 1BJ9-08 | G1/2″X14 | 3/4″X16 | 32.5 | 35 | 22 |
| 1BJ9-08-10 | G1/2″X14 | 7/8″X14 | 34.5 | 37.8 | 22 |
| 1BJ9-10 | G5/8″X14 | 7/8″X14 | 32.7 | 38.1 | 22 |
| 1BJ9-12 | G3/4″X14 | 1.1/16″X12 | 37 | 44.2 | 27 |
| 1BJ9-16 | G1″X11 | 1.5/16″X12 | 46 | 49 | 33 |
| 1BJ9-16-20 | G1″X11 | 1.5/8″X12 | 50.5 | 55.5 | 41 |
