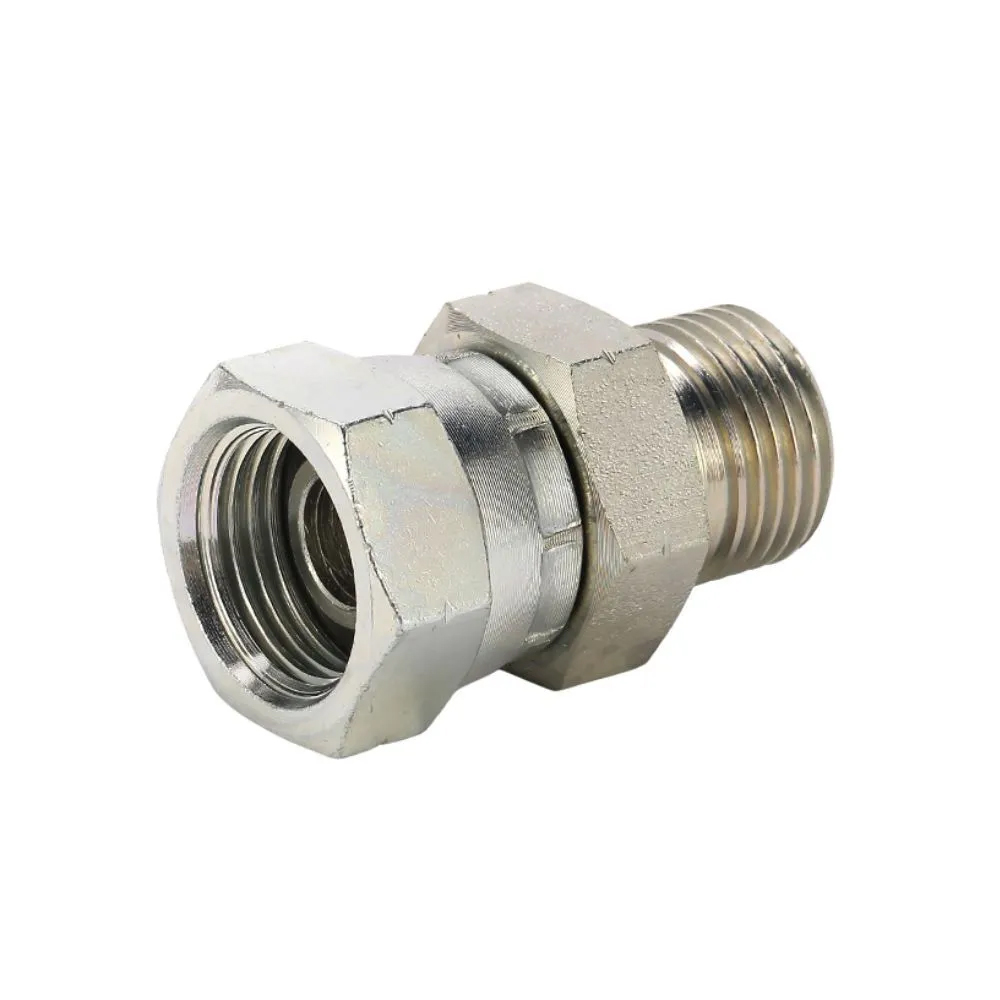

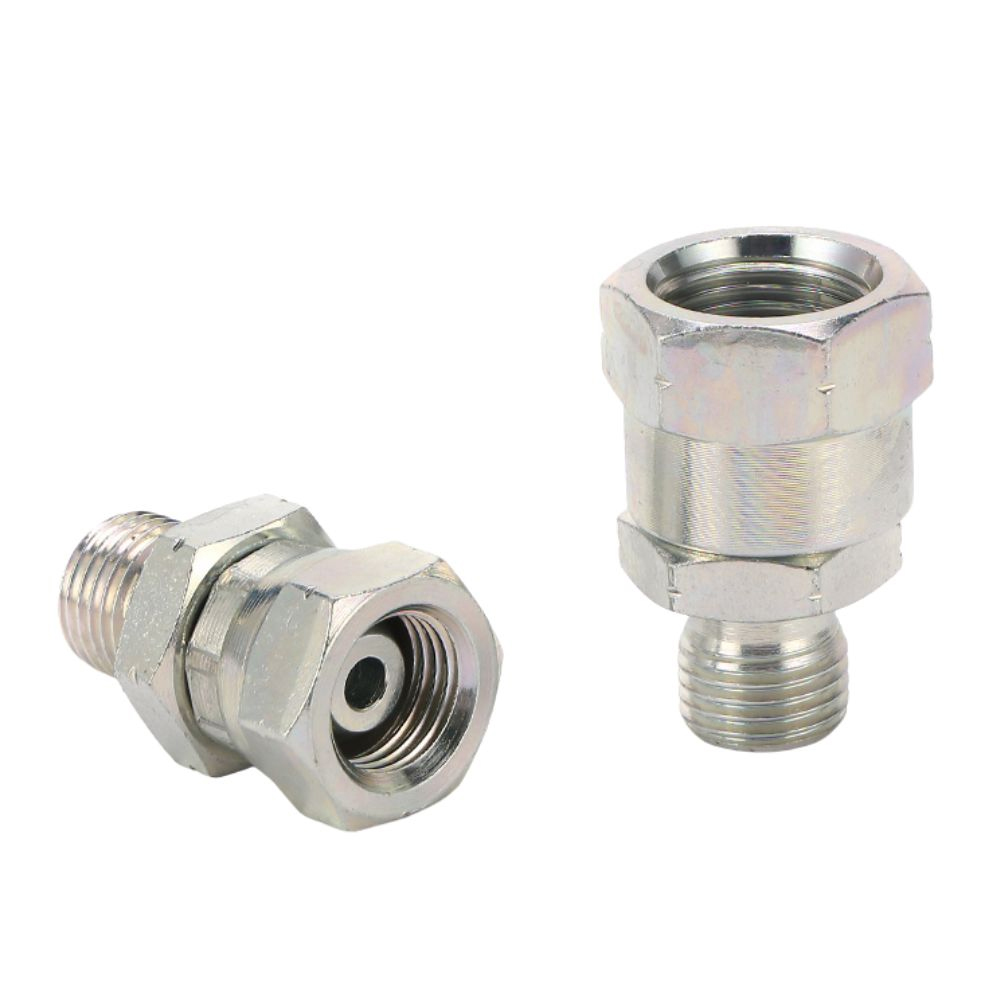

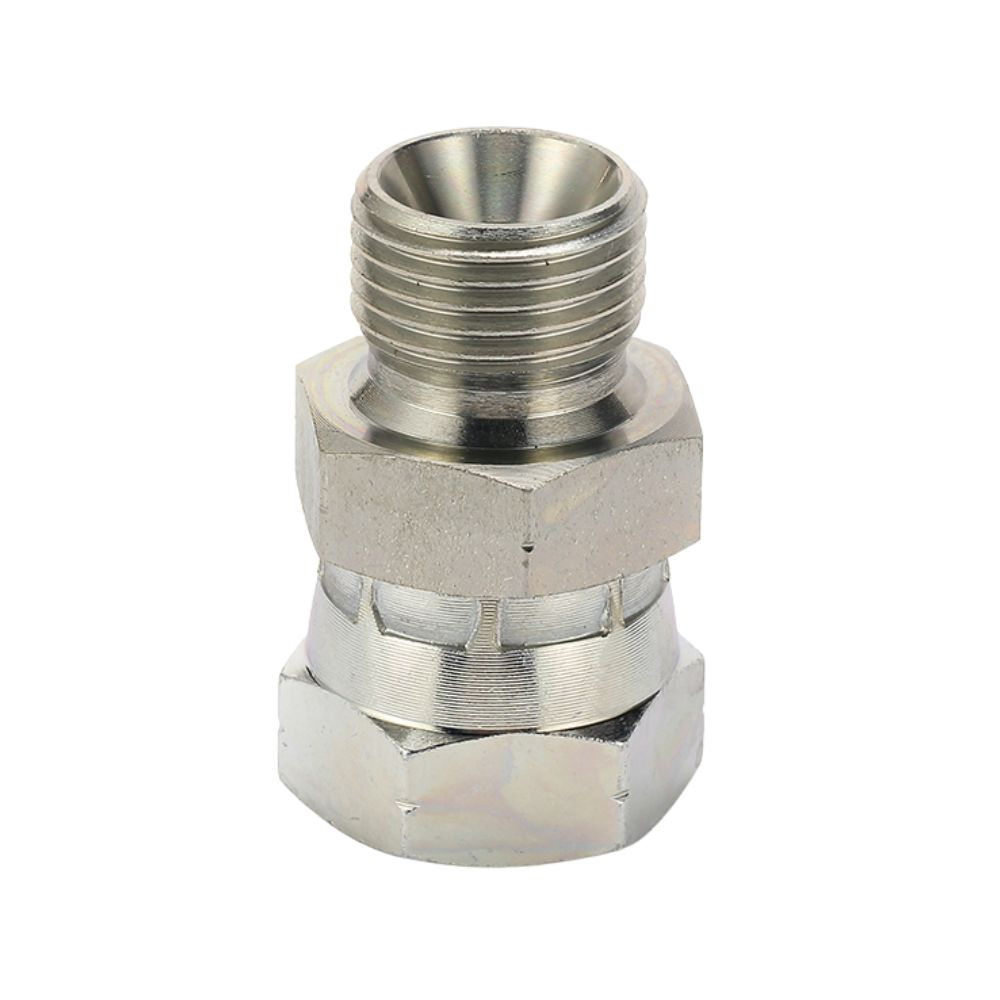

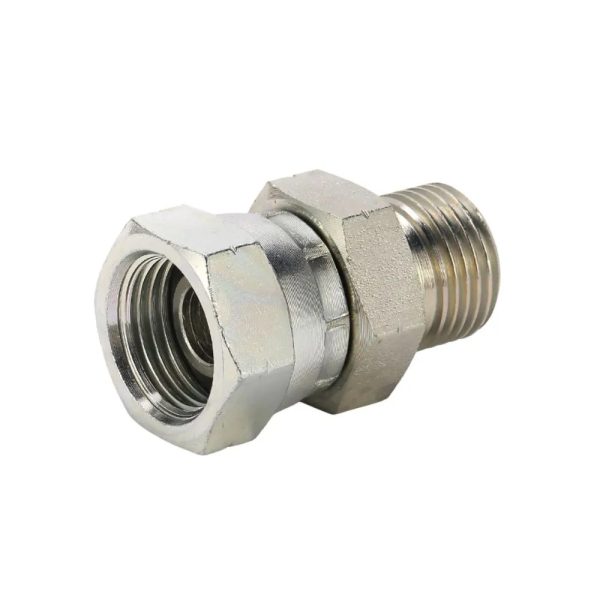

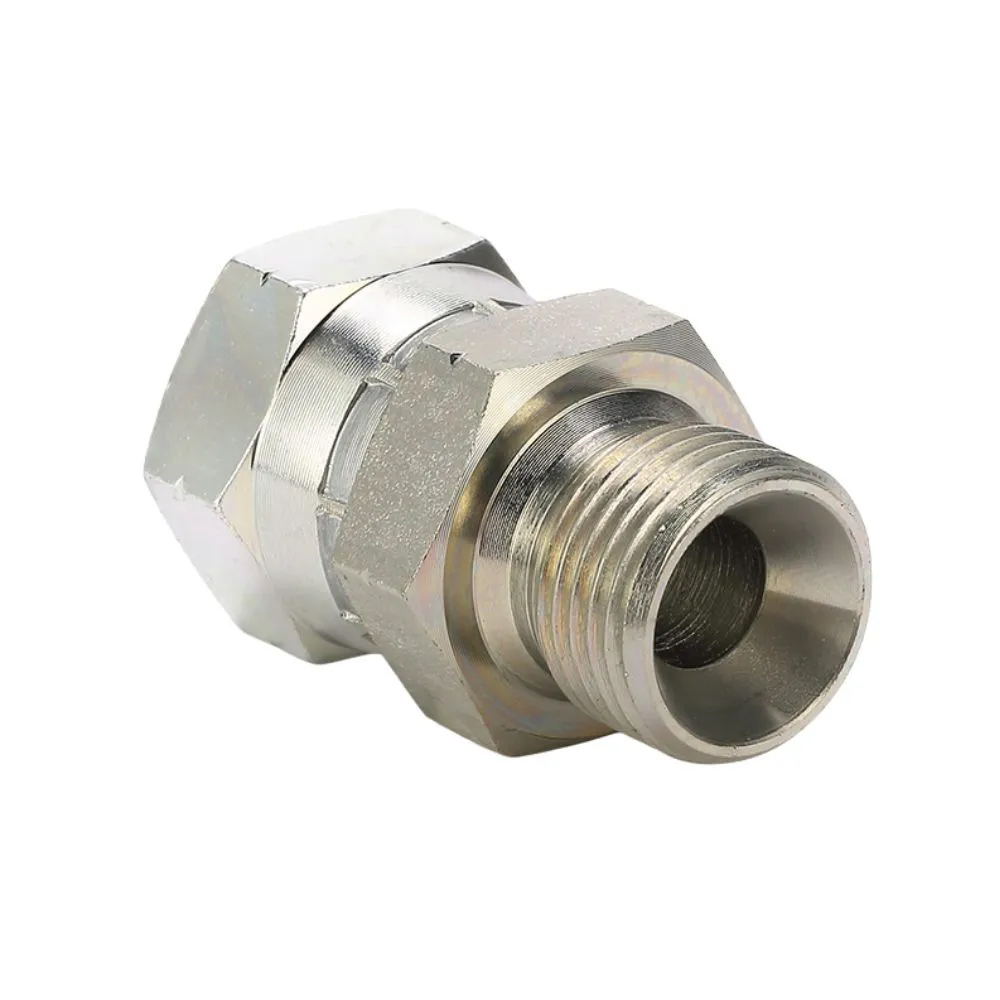

2B BSP Male To Female Hydraulic Fitting

Description:

2B BSP male-to-female hydraulic fittings are straight fittings that have 60-degree cone seat female and male threads.

"*" indicates required fields

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

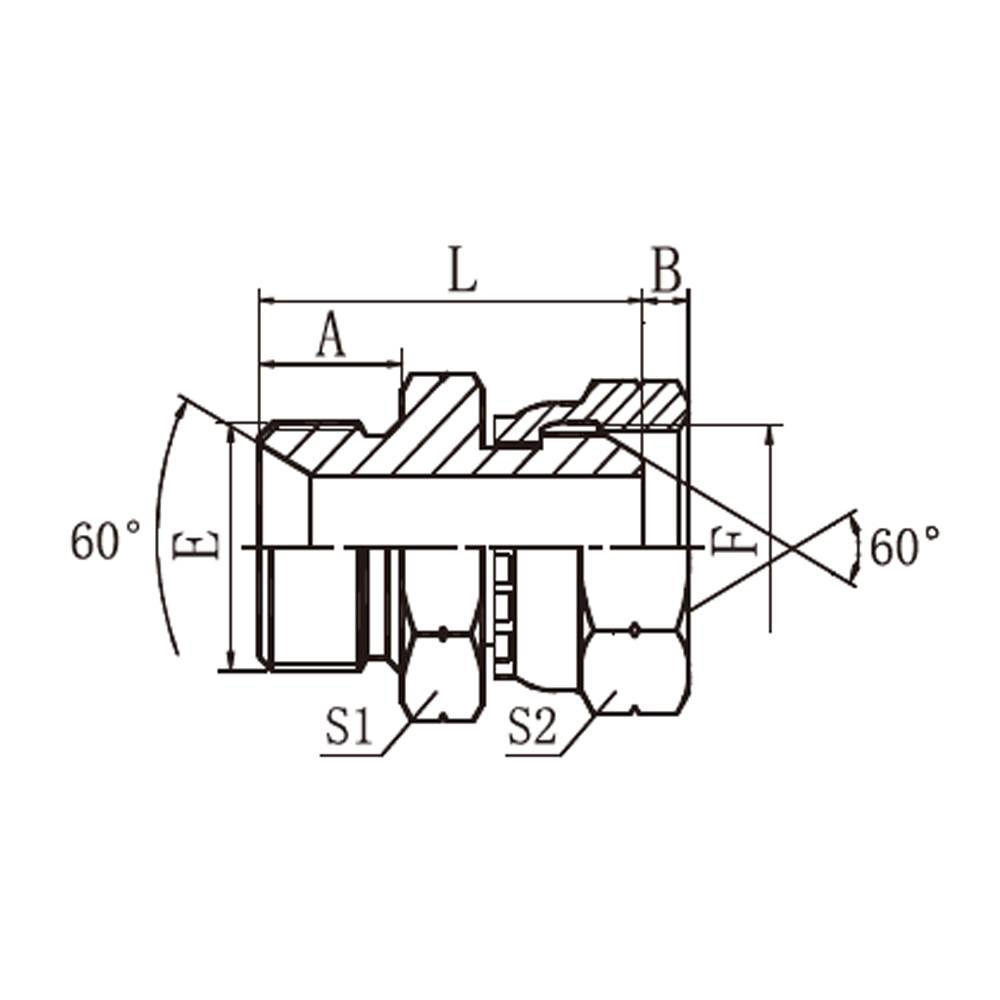

PAPT NO.	THREAD			DIMENSIONS
PAPT NO.	E	F	A	B	L	S1	S2
2B-02	G1/8″X28	G1/8″X28	10	6	25	14	14
2B-02-04	G1/8″X28	G1/4″X19	10	5	27	14	19
2B-04	G1/4″X19	G1/4″X19	12	5	29	19	19
2B-04-06	G1/4″X19	G3/8″X19	12	6.5	30.5	19	22
2B-04-08	G1/4″X19	G1/2″X14	12	7.8	32	19	27
2B-06	G3/8″X19	G3/8″X19	13.5	6.5	34	22	22
2B-06-08	G3/8″X19	G1/2″X14	13.5	7.8	35.5	22	27
2B-06-10	G3/8″X19	G5/8″X14	13.5	9	36	22	30
2B-08	G1/2″X14	G1/2″X14	16	7.8	40	27	27
2B-08-06	G1/2″X14	G3/8″X19	16	6.5	38.5	27	22
2B-08-12	G1/2″X14	G3/4″X14	16	10.5	41	27	32
2B-10	G5/8″X14	G5/8″X14	17.5	9	42	30	30
2B-10-08	G5/8″X14	G1/2″X14	17.5	7.8	41.5	30	27
2B-10-12	G5/8″X14	G3/4″X14	17.5	10.5	42.5	30	32
2B-12	G3/4″X14	G3/4″X14	18.5	10.5	44.5	32	32
2B-12-10	G3/4″X14	G5/8″X14	18.5	9	44	32	30
2B-12-16	G3/4″X14	G1″X11	18.5	11	46	32	41
2B-16	G1″X11	G1″X11	20.5	11	50	41	41
2B-16-12	G1″X11	G3/4″X14	20.5	10.5	49	41	32
2B-16-20	G1″X11	G1.1/4″X11	20.5	11.5	52	41	50
2B-20	G1.1/4″X11	G1.1/4″X11	20.5	11.5	54	50	50
2B-20-16	G1.1/4″X11	G1″X11	20.5	11	52	50	41
2B-20-24	G1.1/4″X11	G1.1/2″X11	20.5	12.5	55.5	50	55
2B-24	G1.1/2″X11	G1.1/2″X11	23	12.5	57.5	55	55
2B-32	G2″X11	G2″X11	25.5	17	64.6	70	70

Click to enlarge

Category: BSP Hydraulic Adapter Tags: 2B, Female, BSP, Male

Description
Package& Shipping

Description

PAPT NO.	THREAD			DIMENSIONS
PAPT NO.	E	F	A	B	L	S1	S2
2B-02	G1/8″X28	G1/8″X28	10	6	25	14	14
2B-02-04	G1/8″X28	G1/4″X19	10	5	27	14	19
2B-04	G1/4″X19	G1/4″X19	12	5	29	19	19
2B-04-06	G1/4″X19	G3/8″X19	12	6.5	30.5	19	22
2B-04-08	G1/4″X19	G1/2″X14	12	7.8	32	19	27
2B-06	G3/8″X19	G3/8″X19	13.5	6.5	34	22	22
2B-06-08	G3/8″X19	G1/2″X14	13.5	7.8	35.5	22	27
2B-06-10	G3/8″X19	G5/8″X14	13.5	9	36	22	30
2B-08	G1/2″X14	G1/2″X14	16	7.8	40	27	27
2B-08-06	G1/2″X14	G3/8″X19	16	6.5	38.5	27	22
2B-08-12	G1/2″X14	G3/4″X14	16	10.5	41	27	32
2B-10	G5/8″X14	G5/8″X14	17.5	9	42	30	30
2B-10-08	G5/8″X14	G1/2″X14	17.5	7.8	41.5	30	27
2B-10-12	G5/8″X14	G3/4″X14	17.5	10.5	42.5	30	32
2B-12	G3/4″X14	G3/4″X14	18.5	10.5	44.5	32	32
2B-12-10	G3/4″X14	G5/8″X14	18.5	9	44	32	30
2B-12-16	G3/4″X14	G1″X11	18.5	11	46	32	41
2B-16	G1″X11	G1″X11	20.5	11	50	41	41
2B-16-12	G1″X11	G3/4″X14	20.5	10.5	49	41	32
2B-16-20	G1″X11	G1.1/4″X11	20.5	11.5	52	41	50
2B-20	G1.1/4″X11	G1.1/4″X11	20.5	11.5	54	50	50
2B-20-16	G1.1/4″X11	G1″X11	20.5	11	52	50	41
2B-20-24	G1.1/4″X11	G1.1/2″X11	20.5	12.5	55.5	50	55
2B-24	G1.1/2″X11	G1.1/2″X11	23	12.5	57.5	55	55
2B-32	G2″X11	G2″X11	25.5	17	64.6	70	70

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
