TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

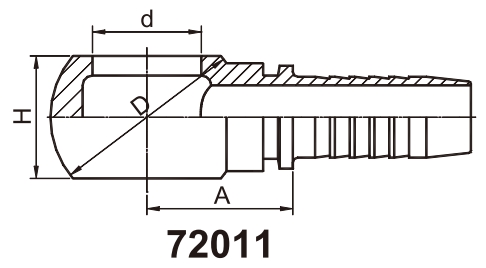

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | d | D | H | ||
| 72011-02-03 | G1/8″X28 | 5 | 03 | 18 | 9.9 | 24 | 16 |
| 72011-02-04 | G1/8″X28 | 6 | 04 | 18.5 | 9.9 | 24 | 16 |
| 72011-04-03 | G1/4″X19 | 5 | 03 | 19 | 13.3 | 24 | 15 |
| 72011-04-04 | G1/4″X19 | 6 | 04 | 19.5 | 13.3 | 24 | 15 |
| 72011-04-05 | G1/4″X19 | 8 | 05 | 19.5 | 13.3 | 24 | 15 |
| 72011-04-06 | G1/4″X19 | 10 | 06 | 19.5 | 13.3 | 24 | 15 |
| 72011-06-04 | G3/8″X19 | 6 | 04 | 22 | 16.7 | 29 | 20 |
| 72011-06-05 | G3/8″X19 | 8 | 05 | 22 | 16.7 | 29 | 20 |
| 72011-06-06 | G3/8″X19 | 10 | 06 | 22 | 16.7 | 29 | 20 |
| 72011-06-08 | G3/8″X19 | 12 | 08 | 23 | 16.7 | 29 | 20 |
| 72011-08-05 | G1/2″X14 | 8 | 05 | 27.5 | 21 | 38 | 25 |
| 72011-08-06 | G1/2″X14 | 10 | 06 | 27.5 | 21 | 38 | 25 |
| 72011-08-08 | G1/2″X14 | 12 | 08 | 28 | 21 | 38 | 25 |
| 72011-08-10 | G1/2″X14 | 16 | 10 | 29 | 21 | 38 | 25 |
| 72011-10-10 | G5/8″X14 | 16 | 10 | 28 | 23 | 40 | 27 |
| 72011-12-10 | G3/4″X14 | 16 | 10 | 32 | 26.5 | 48 | 31 |
| 72011-12-12 | G3/4″X14 | 20 | 12 | 32 | 26.5 | 48 | 31 |
| 72011-16-08 | G1″X11 | 12 | 08 | 40 | 33.3 | 60 | 42 |
| 72011-16-12 | G1″X11 | 20 | 12 | 40 | 33.3 | 60 | 42 |
| 72011-16-16 | G1″X11 | 25 | 16 | 41 | 33.3 | 60 | 42 |
