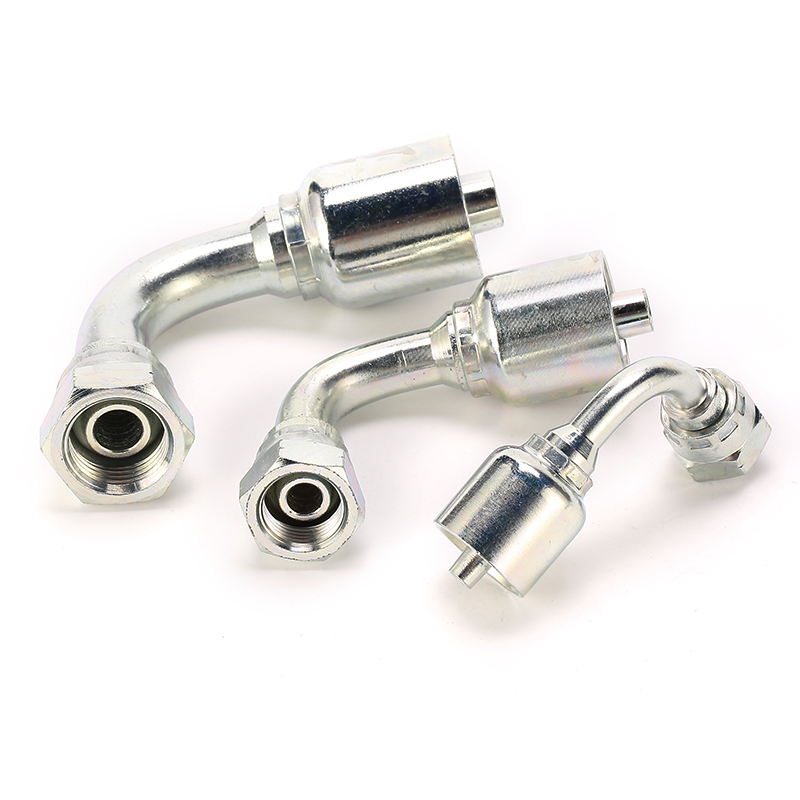

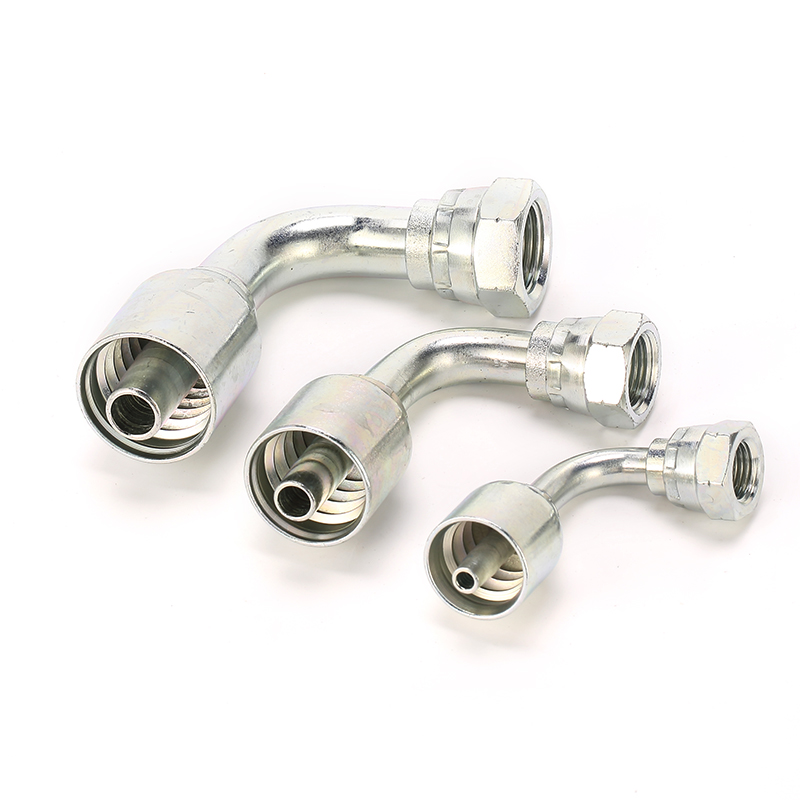

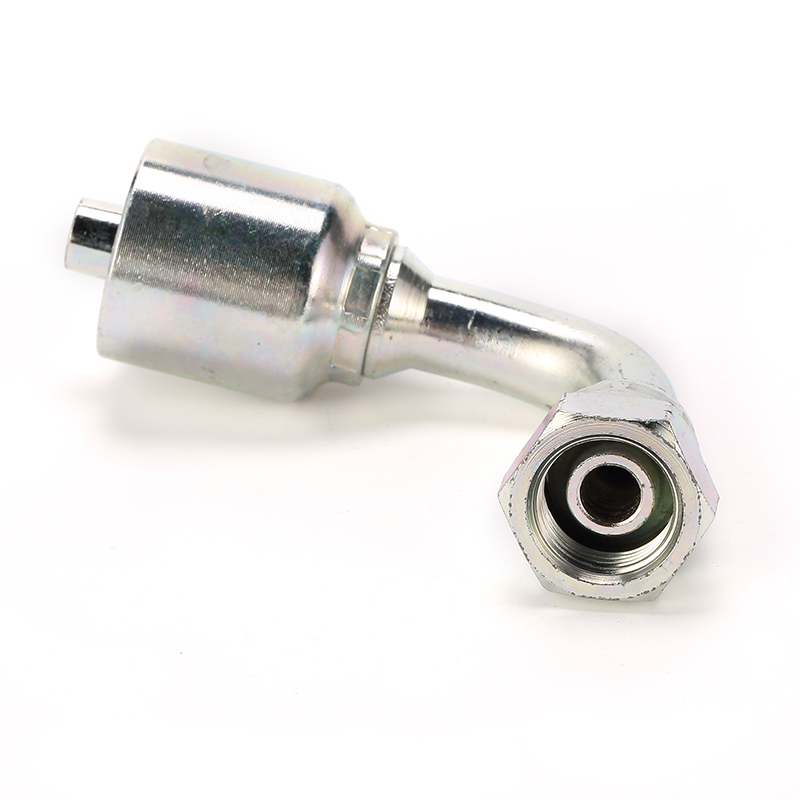

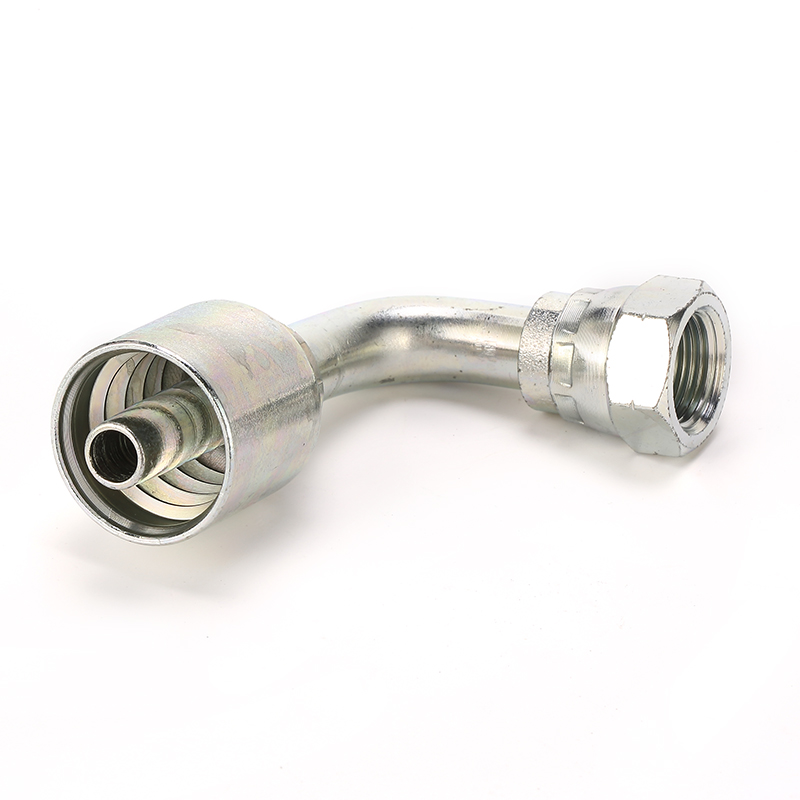

22691PK 90 Deg Elbow BSP Female 60° Cone Fittings

Description:

The 22691pk female BSP 60° cone fittings with 90° elbow are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

Category: One Piece Fittings Tags: Carbon Steel, 90° Elbow, BSP, One Piece

Description
Package& Shipping

Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

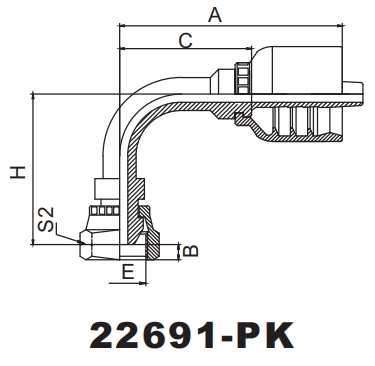

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	C	H	S2
22691-04-04PK AST	G1/4″X19	6	04	53	5	31	34	19
22691-06-06PKAST	G3/8″X19	10	06	65.5	6.5	37	45	22
22691-08-08PKAST	G1/2″X14	12	08	77	7.8	43	54	27
22691-10-10PKAST	G5/8″X14	16	10	94.5	9	55.7	57	30
22691-12-12PK AST	G3/4″X14	20	12	103	10.5	63.9	62.5	36
22691-16-16PK AST	G1″X11	25	16	122	11	77.2	77.5	41

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
