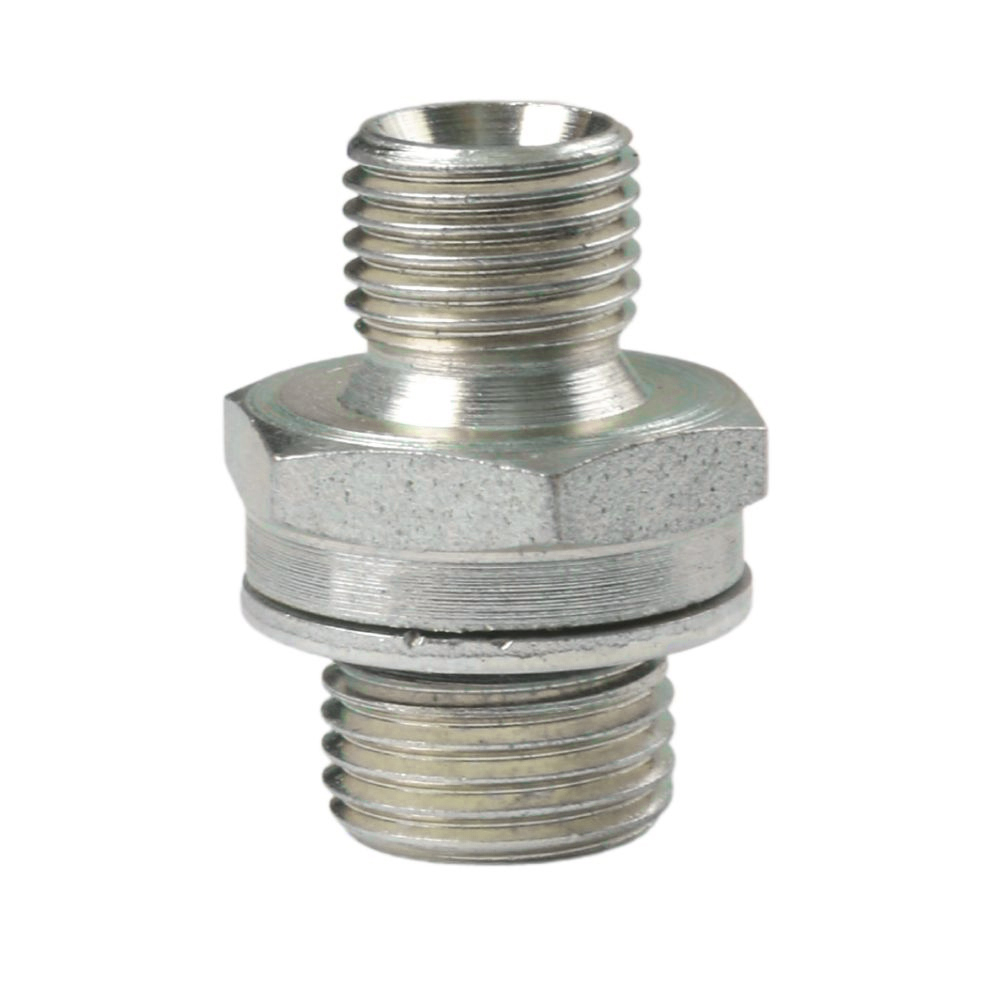

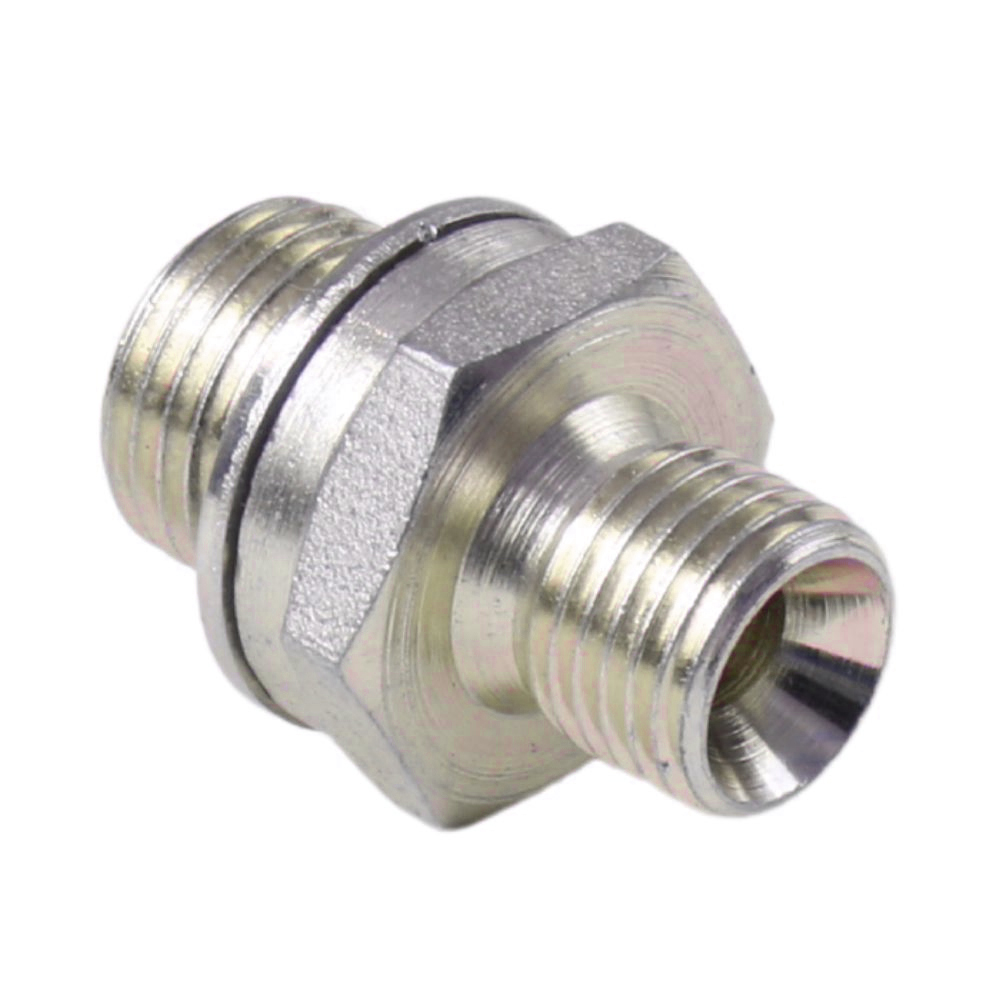

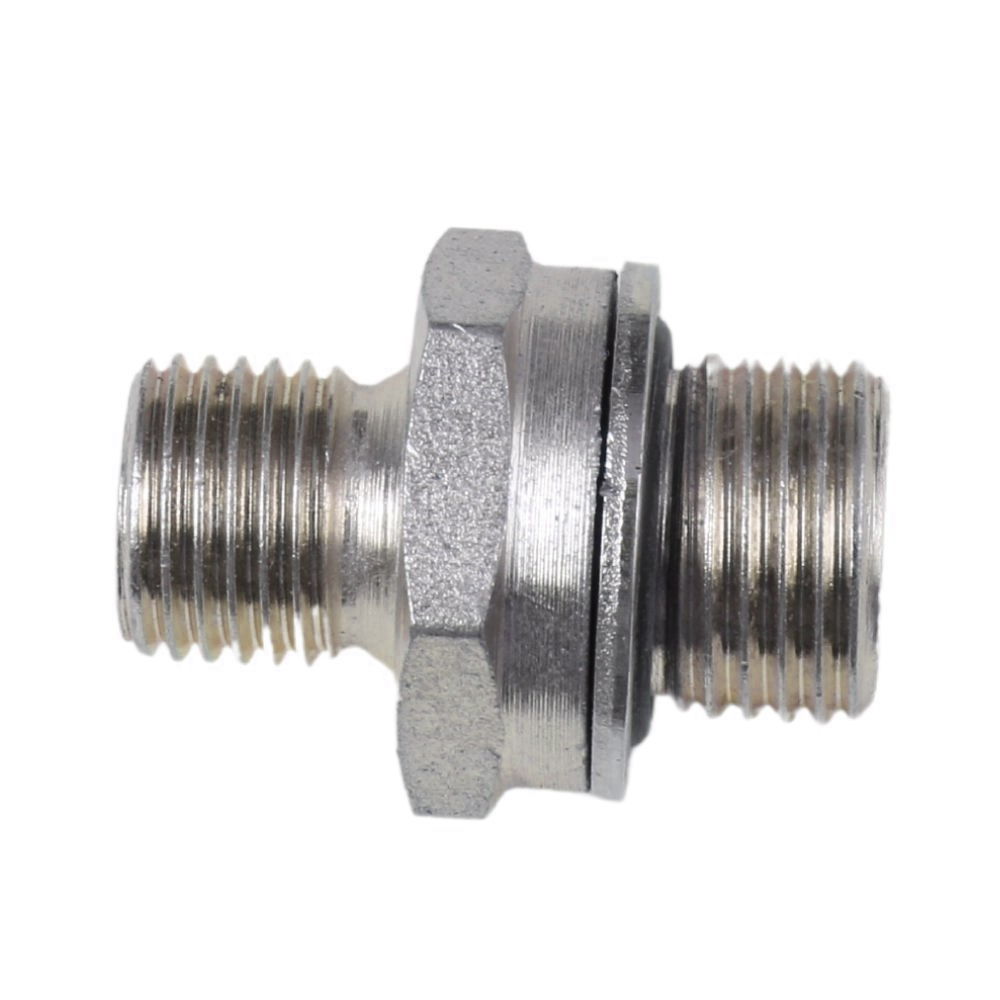

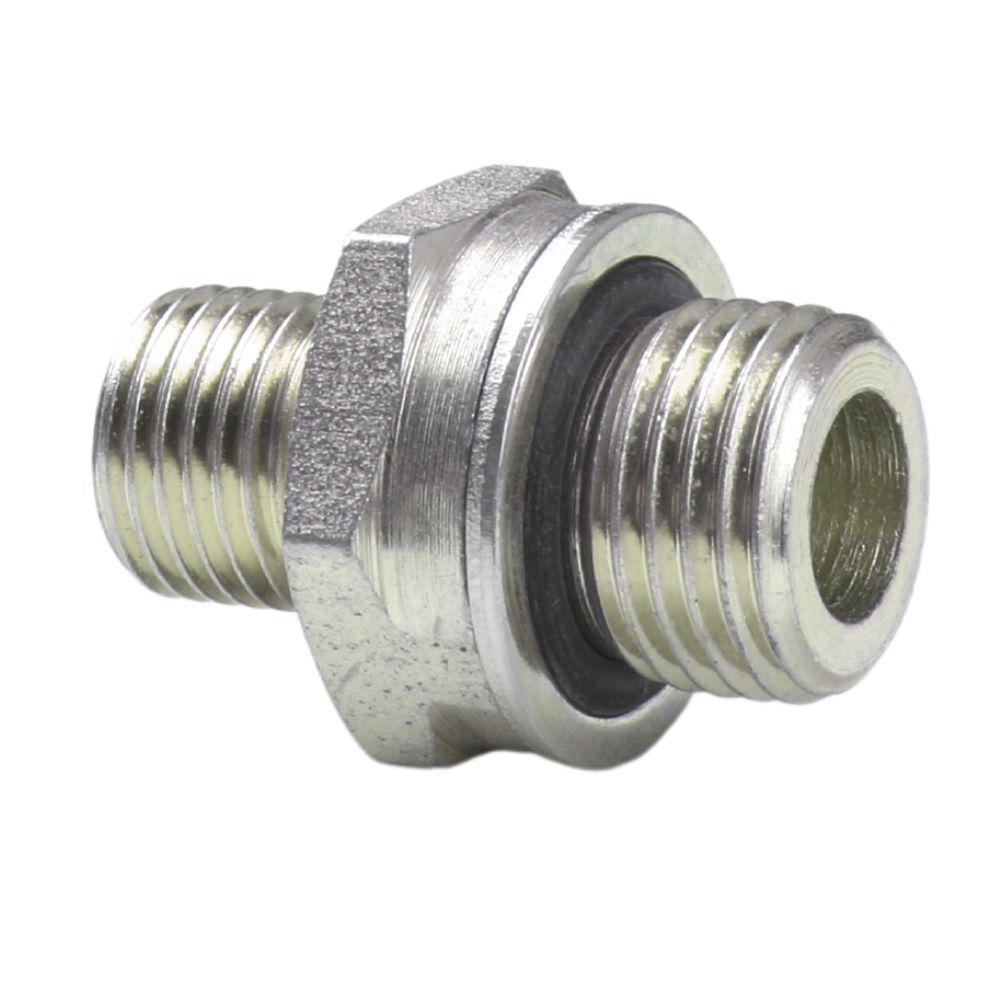

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

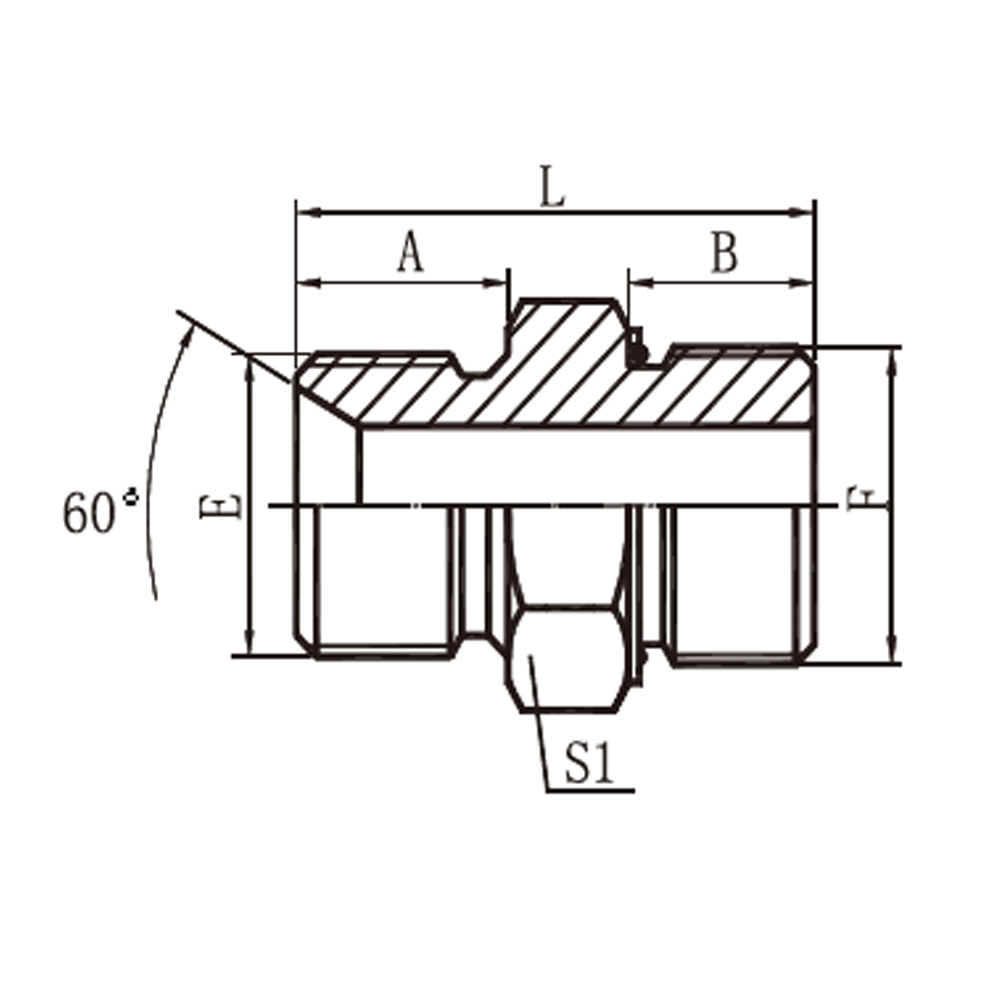

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | F | A | B | S1 | L | |
| 1BH-02-10 | G1/8″X28 | M10X1 | 008.1X1.6 | 10 | 8.5 | 14 | 25 |
| 1BH-02-12 | G1/8″X28 | M12X1.5 | 009.3X2.4 | 10 | 11 | 17 | 28 |
| 1BH-04-12 | G1/4″X19 | M12X1.5 | 009.3X2.4 | 12 | 11 | 19 | 30 |
| 1BH-04-14 | G1/4″X19 | M14X1.5 | 011.3X2.4 | 12 | 11 | 19 | 31.5 |
| 1BH-04-16 | G1/4″X19 | M16X1.5 | 013.3X2.4 | 12 | 11.5 | 22 | 31.5 |
| 1BH-06-14 | G3/8″X19 | M14X1.5 | 011.3X2.4 | 13.5 | 11 | 22 | 35 |
| 1BH-06-16 | G3/8″X19 | M16X1.5 | 013.3X2.4 | 13.5 | 11.5 | 22 | 33 |
| 1BH-06-18 | G3/8″X19 | M18X1.5 | 015.3X2.4 | 13.5 | 12.5 | 24 | 36.5 |
| 1BH-08-18 | G1/2″X14 | M18X1.5 | 015.3X2.4 | 16 | 12.5 | 27 | 41 |
| 1BH-08-22 | G1/2″X14 | M22X1.5 | 019.3X2.4 | 16 | 13 | 27 | 41.5 |
| 1BH-10-22 | G5/8″X14 | M22X1.5 | 019.3X2.4 | 17.5 | 13 | 30 | 43 |
| 1BH-12-16 | G3/4″X14 | M16X1.5 | 013.3X2.4 | 18.5 | 11.5 | 32 | 43.5 |
| 1BH-12-22 | G3/4″X14 | M22X1.5 | 019.3X2.4 | 18.5 | 13 | 32 | 45 |
| 1BH-12-27 | G3/4″X14 | M27X2 | 023.5X3.0 | 18.5 | 16 | 32 | 45.5 |
| 1BH-16-27 | G1″X11 | M27X2 | 023.5X3.0 | 20.5 | 16 | 41 | 49 |
| 1BH-16-33 | G1″X11 | M33X2 | 029.5X3.0 | 20.5 | 16 | 41 | 49.5 |
| 1BH-20-42 | G1.1/4″X11 | M42X2 | 038.5X3.0 | 20.5 | 16 | 50 | 51.5 |
| 1BH-24-48 | G1.1/2″X11 | M48X2 | 044.5X3.0 | 23 | 17.5 | 55 | 55.5 |
