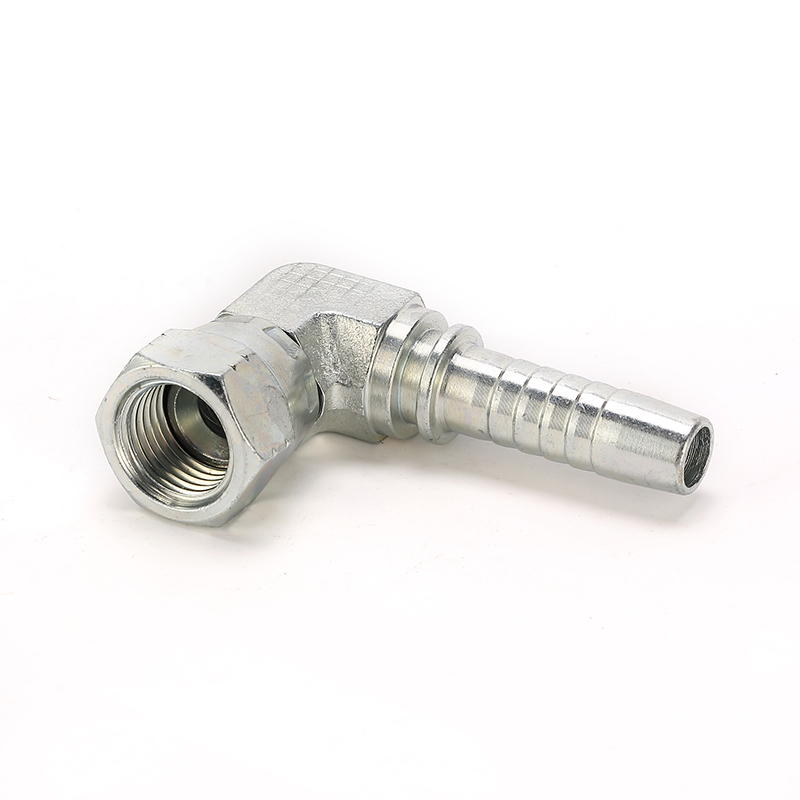

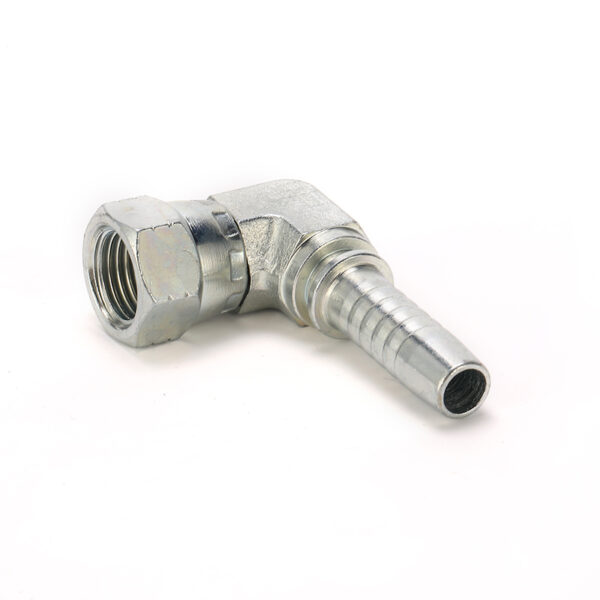

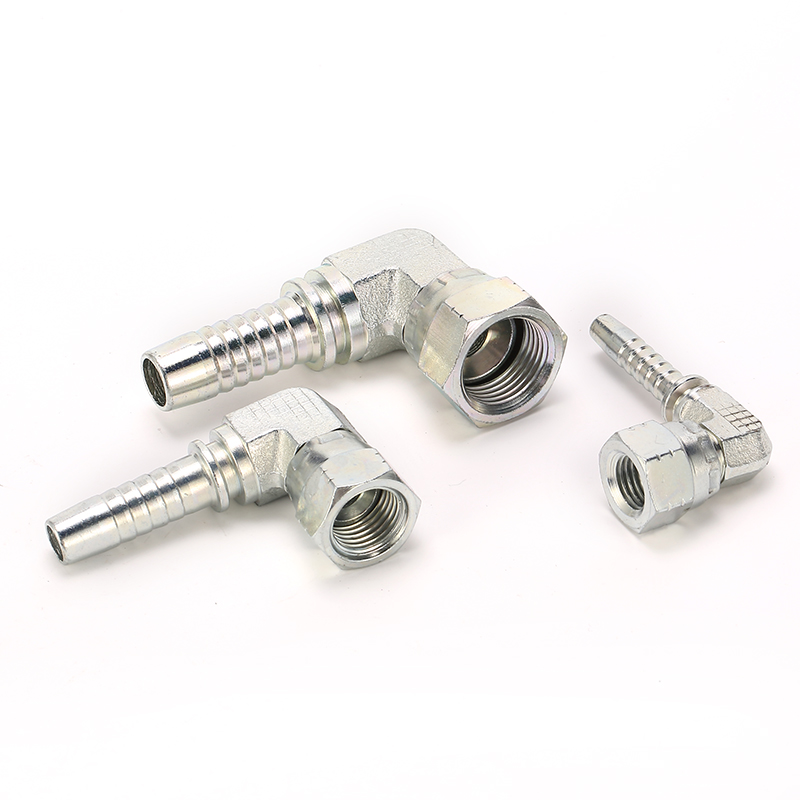

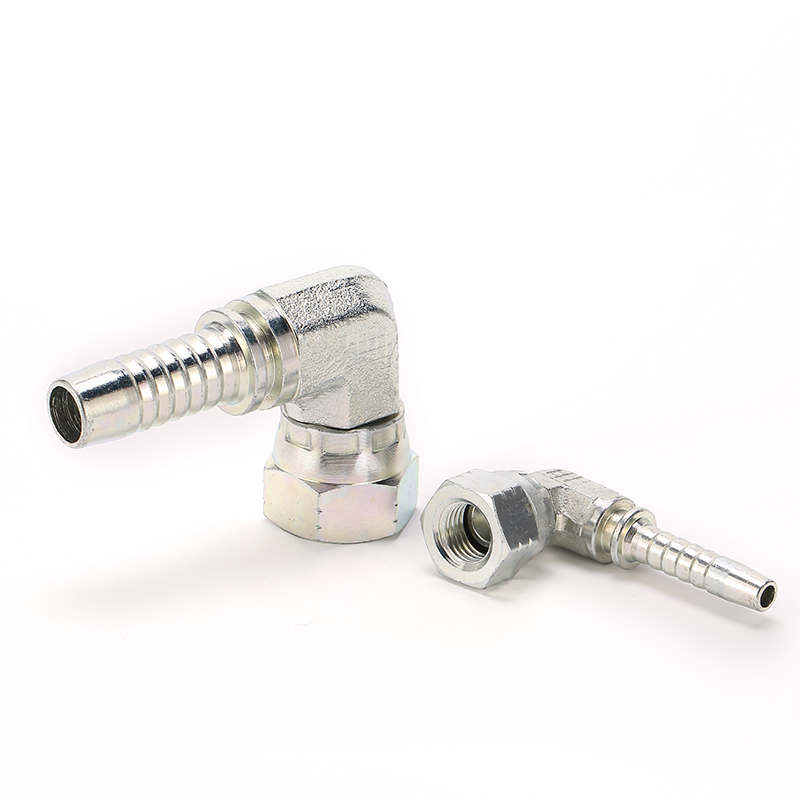

Our JIC hydraulic fittings include female, male, double nut, crimping nut, T nut, K type, straight, 45°, 90°. JIC hydraulic fittings are manufactured by Topol Power and designed according to industry standards and are suitable for high temperature and pressure environments.

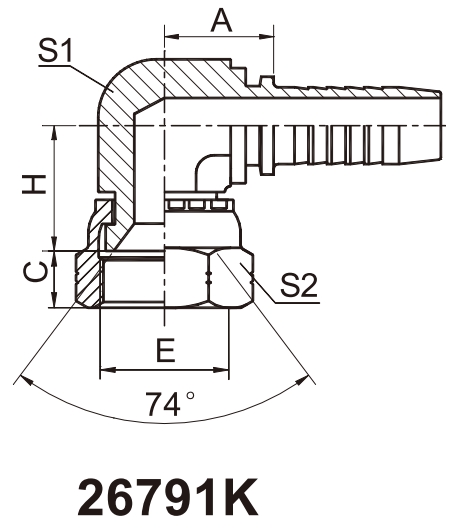

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | |||||
| DN | DASH | A | C | H | S1 | S2 | ||
| 26791K-04-04 | 7/16″X20 | 6 | 04 | 17.5 | 9 | 18 | 11 | 15 |
| 26791K-06-04 | 9/16″X18 | 6 | 04 | 20 | 10.5 | 20.5 | 14 | 19 |
| 26791K-06-06 | 9/16″X18 | 10 | 06 | 20 | 10.5 | 20.5 | 16 | 19 |
| 26791K-08-06 | 3/4″X16 | 10 | 06 | 23 | 11 | 25 | 19 | 24 |
| 26791K-08-08 | 3/4″X16 | 12 | 08 | 23.5 | 11 | 25 | 22 | 24 |
| 26791K-10-08 | 7/8″X14 | 12 | 08 | 25 | 13 | 27 | 22 | 27 |
| 26791K-10-10 | 7/8″X14 | 16 | 10 | 25 | 13 | 27 | 22 | 27 |
| 26791K-12-12 | 1.1/16″X12 | 20 | 12 | 29 | 15 | 31 | 27 | 32 |
| 26791K-16-16 | 1.5/16″X12 | 25 | 16 | 43 | 16 | 34.3 | 33 | 41 |
