TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

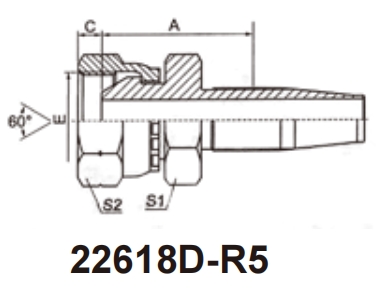

| PART NO | THREAD E | HOSE DASH | DIMENSIONS | |||
| A | C | S1 | S2 | |||
| 22618D-04-04(R5) | G1/4″X19 | 04 | 26 | 5.5 | 14 | 19 |
| 22618D-06-05(R5) | G3/8″X19 | 05 | 29.1 | 6.3 | 17 | 22 |
| 22618D-06-06(R5) | G3/8″X19 | 06 | 30 | 6.3 | 17 | 22 |
| 22618D-08-08(R5) | G1/2″X14 | 08 | 35 | 7.5 | 19 | 27 |
| 22618D-10-10(R5) | G5/8″X14 | 10 | 35.5 | 9.5 | 22 | 30 |
| 22618D-12-12(R5) | G3/4″X14 | 12 | 38.5 | 10.9 | 27 | 32 |
| 22618D-16-16(R5) | G1″X11 | 16 | 37 | 11.7 | 32 | 41 |
| 22618D-20-20(R5)W | G1.1/4″X11 | 20 | 41.5 | 11 | 41 | 50 |
