Home Hydraulic Hose Fittings One Piece Fittings 22641PK 45 Deg Elbow BSP Female 60° Cone Fittings
22611DPK Female 60° Cone Hose Fittings
Back to products
22691PK 90 Deg Elbow BSP Female 60° Cone Fittings
Click to enlarge

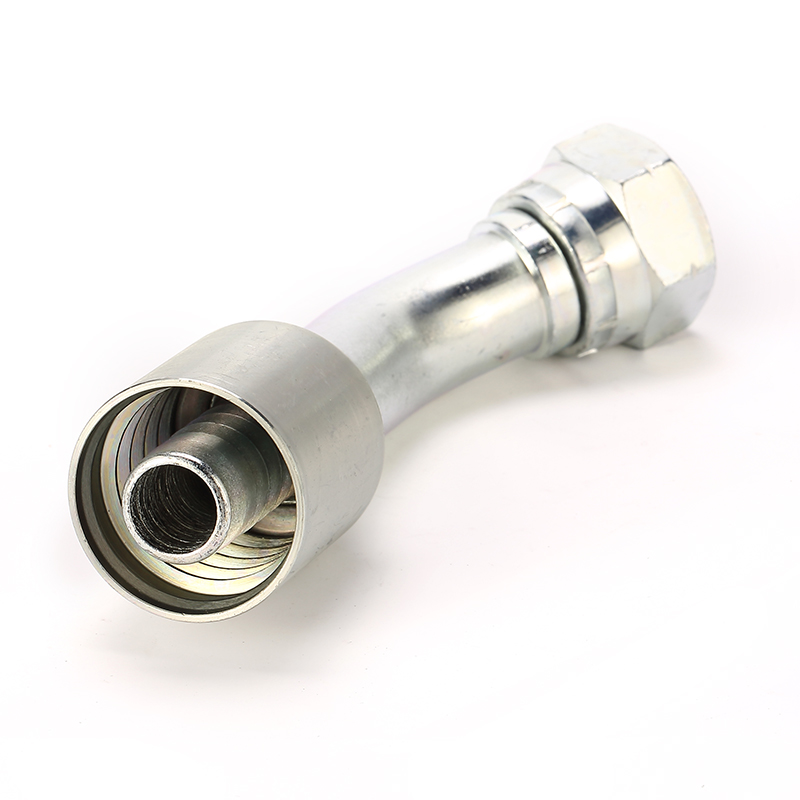

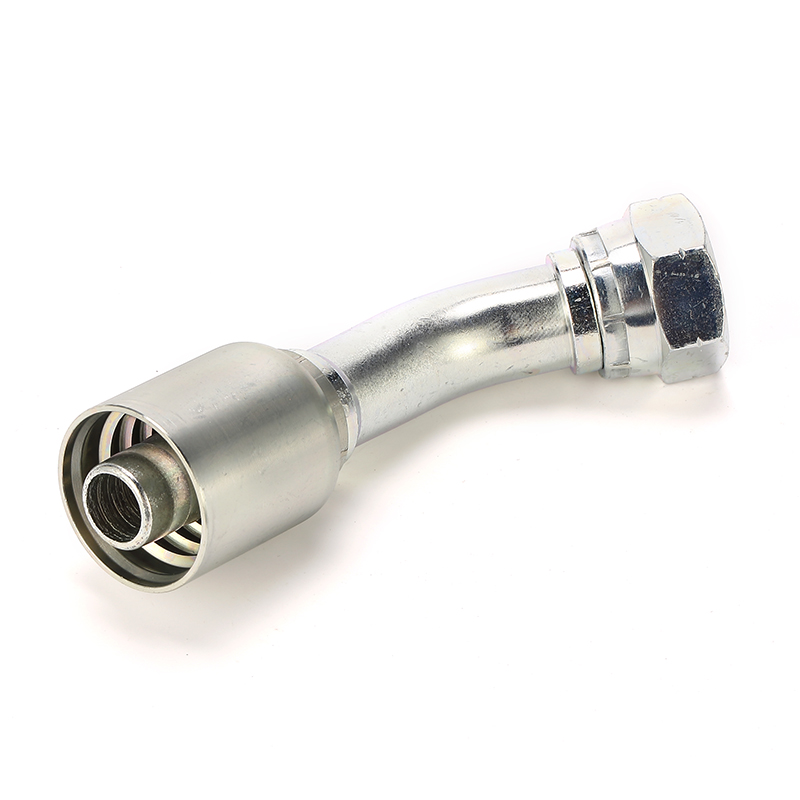

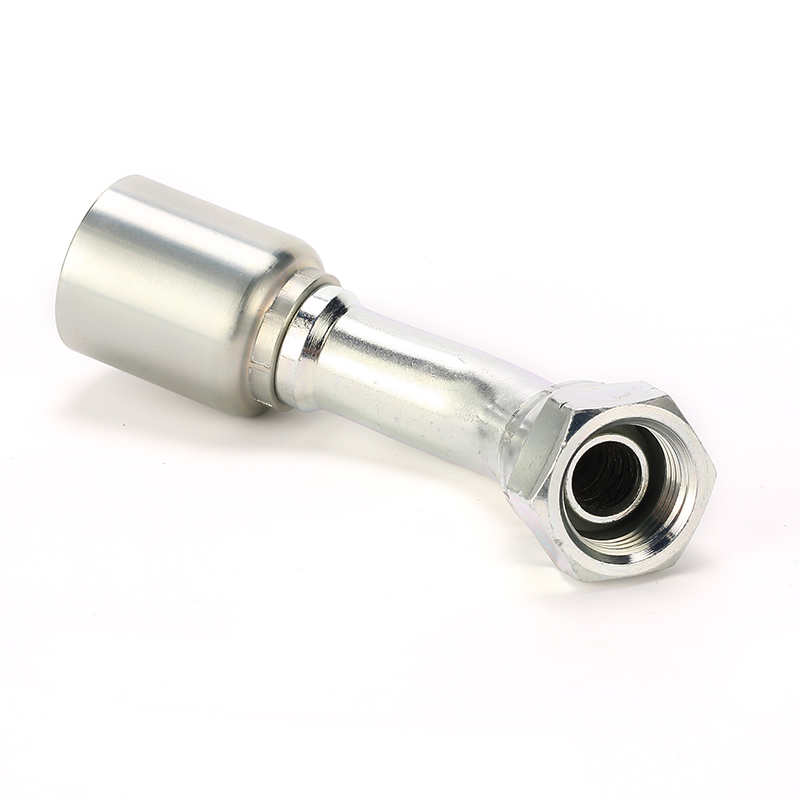

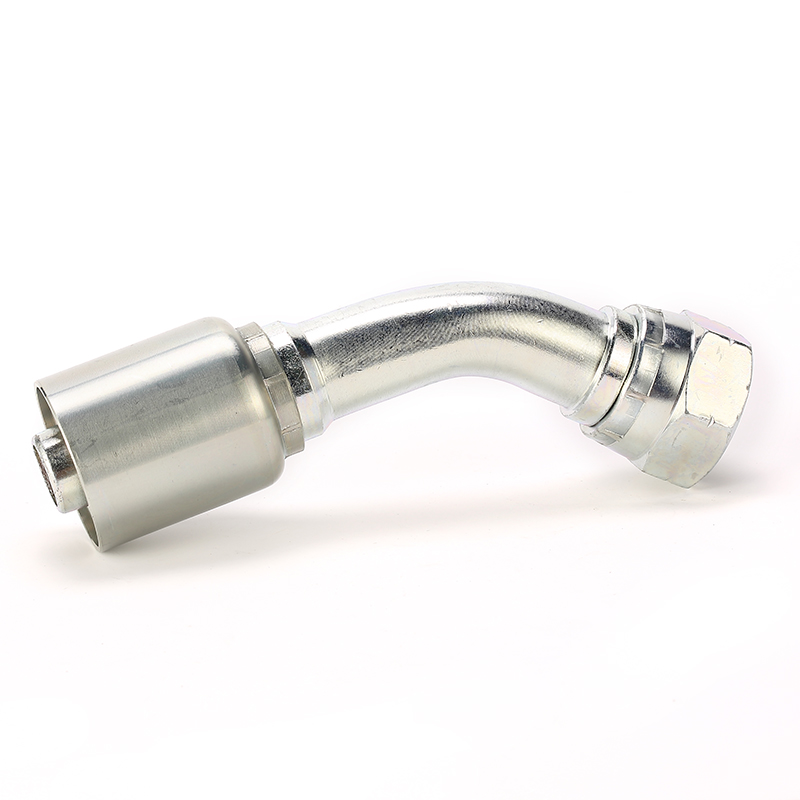

22641PK 45 Deg Elbow BSP Female 60° Cone Fittings

Description:

The 22641pk female BSP 60° cone fittings with 45° elbow are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

INQUIRE NOW

"*" indicates required fields

Category: One Piece Fittings Tags: Carbon Steel, BSP, One Piece
Share:
  • Description
  • Package& Shipping
Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

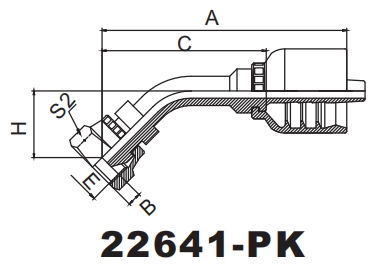

PART  NO THREAD  E HOSE  BORE DIMENSIONS
DN DASH A B C H S2
22641-06-06PKAST G3/8″X19 10 06 77 6.5 48.5 24 22
22641-08-08PK AST G1/2″X14 12 08 96.5 7.8 62.5 27 27
22641-10-10PKAST G5/8″X14 16 10 112.5 9 73.7 29 30
22641-12-12PK AST G3/4″X14 20 12 120 10.5 80.9 33 36
22641-16-16PKAST G1″X11 25 16 13.5 11 90.7 35 41
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
