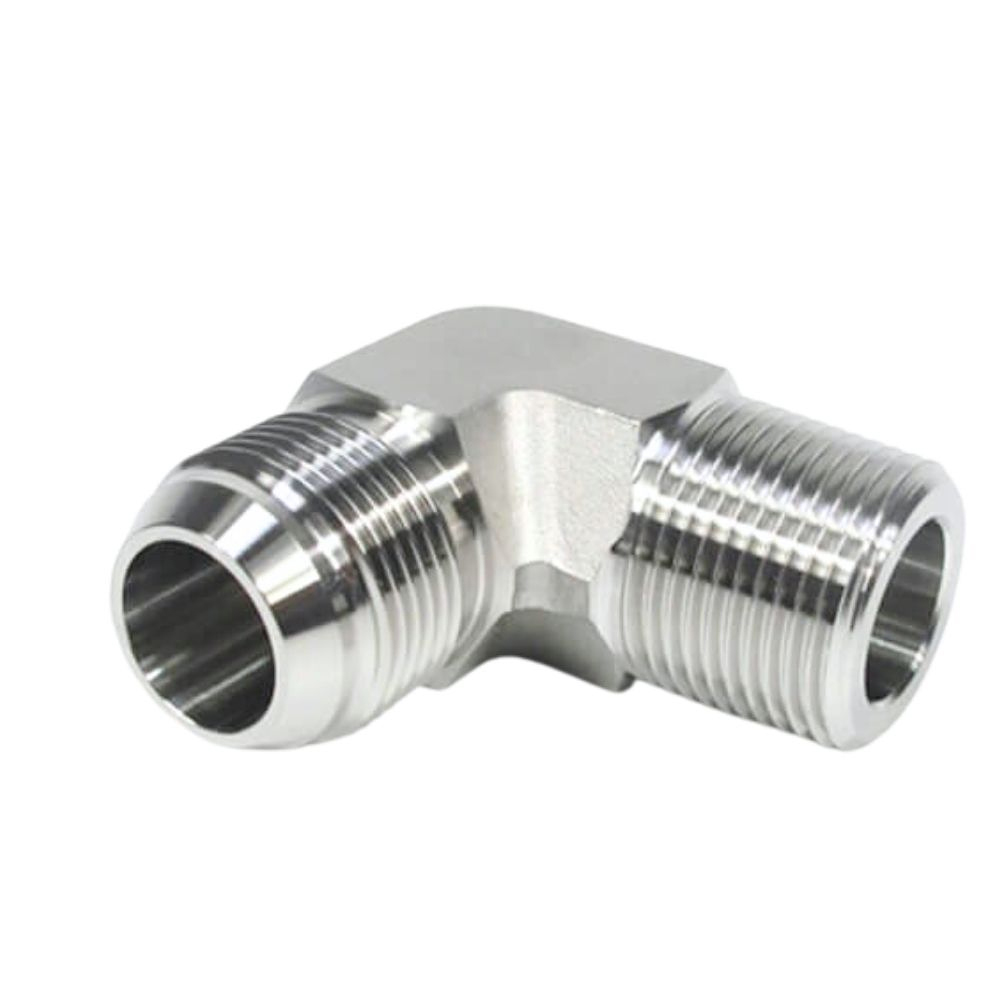

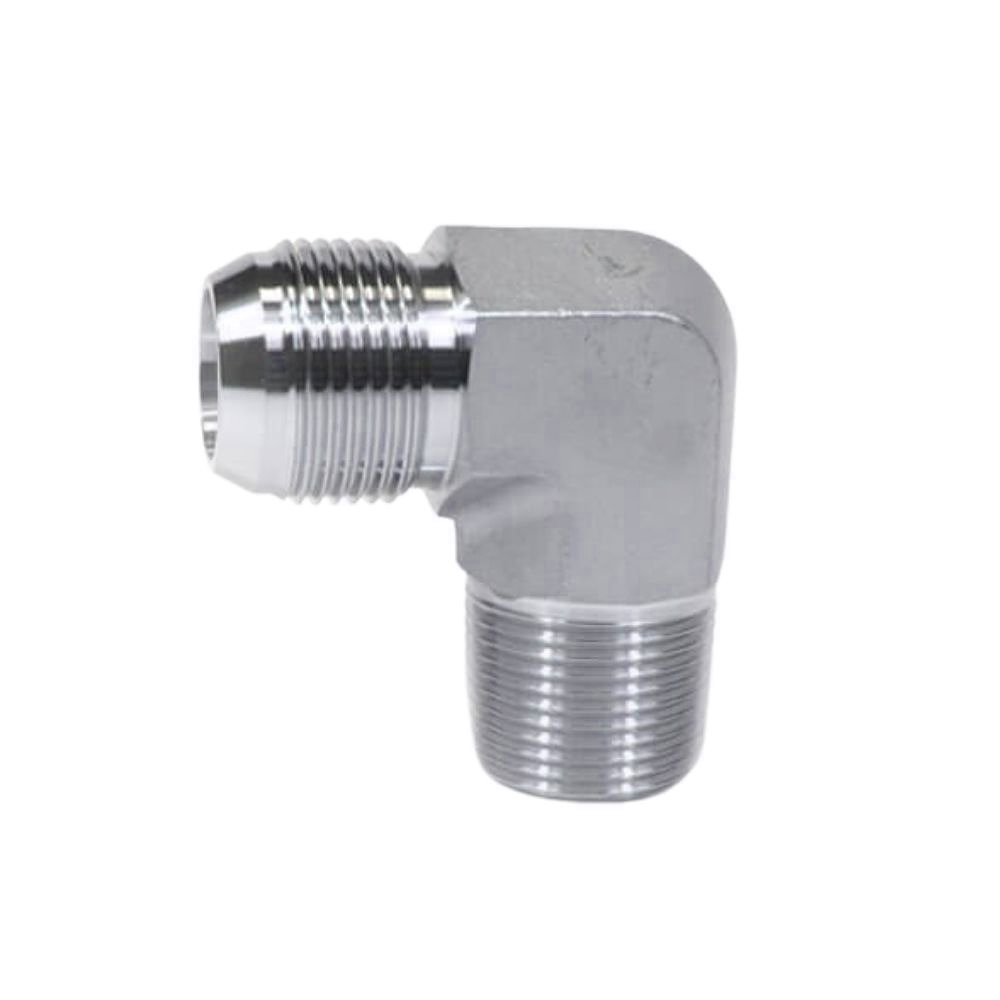

1ST9 90 Degree Elbow JIS to BSPT Adapter

Description:

1ST9-sp 90-degree elbow JIS to BSPT adapter is a male pipe adapter that has a male 60-degree cone JIS thread and a male BSPT tapered thread.

Category: JIS Hydraulic Adapter Tags: BSPT, 1ST9, JIS

Description
Package& Shipping

Description

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

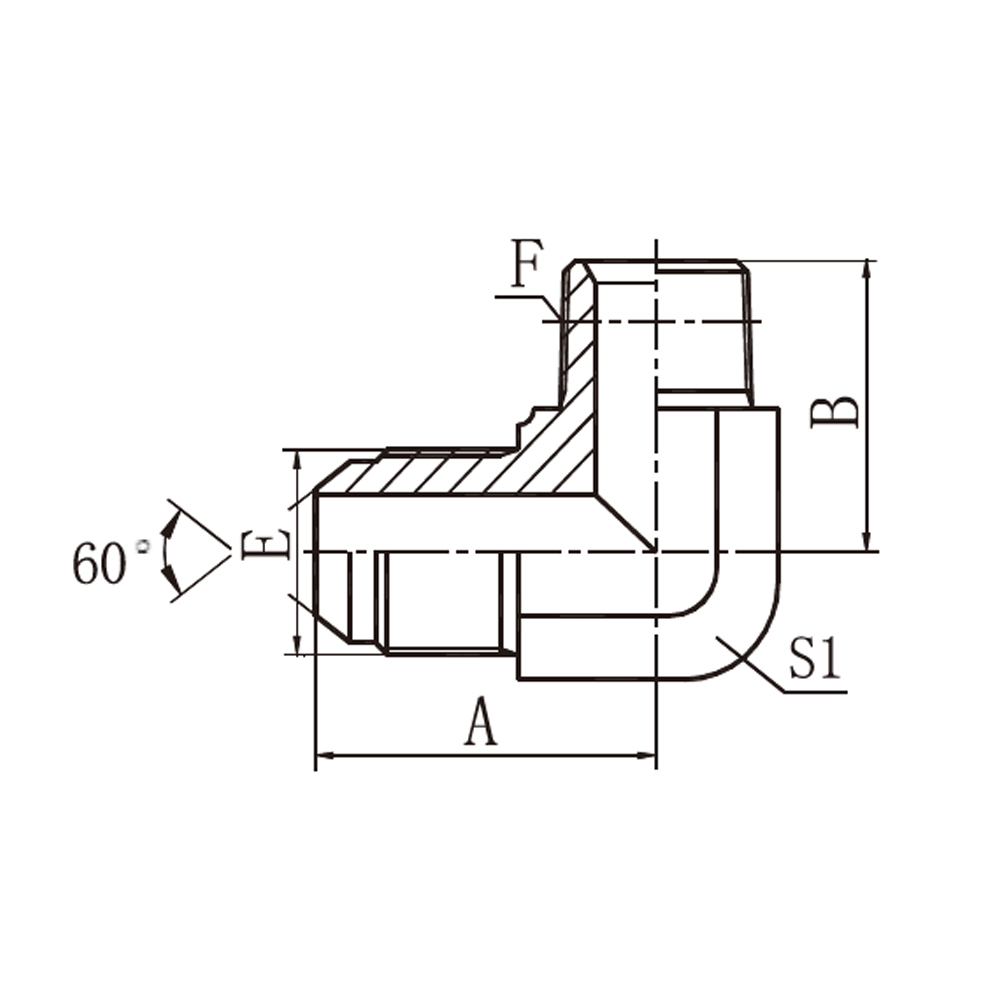

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1
1ST9-02SP	G1/8＂X28	R1/8＂X28	21.8	21	11
1ST9-04SP	G1/4＂X19	R1/4＂X19	25	26	14
1ST9-06SP	G3/8＂X19	R3/8＂X19	28	30	16
1ST9-08SP	G1/2＂X14	R1/2＂X14	32	36	22
1ST9-12SP	G3/4＂X14	R3/4＂X14	37	43	27
1ST9-16SP	G1＂X11	R1＂X11	42	50	33
1ST9-20SP	G1.1/4＂X11	R1.1/4＂X11	50	58	41
1ST9-24SP	G1.1/2＂X11	R1.1/2＂X11	52	63	48
1ST9-32SP	G2＂X11	R2＂X11	63	75	63

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
