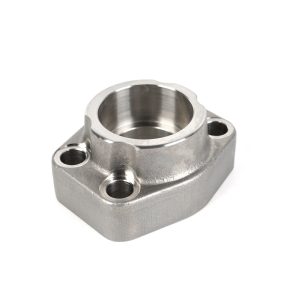

AFA ISO 6161 SAE Split Flange Welding Coupling

Description:

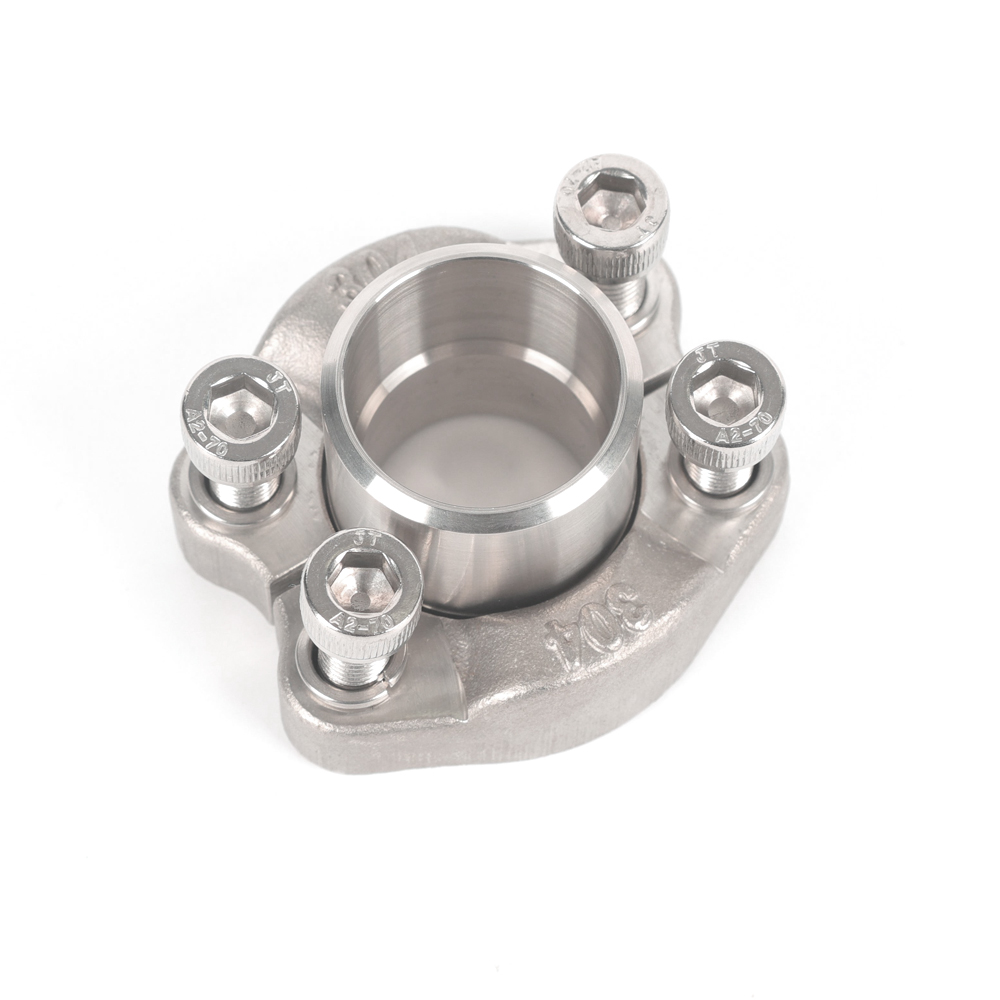

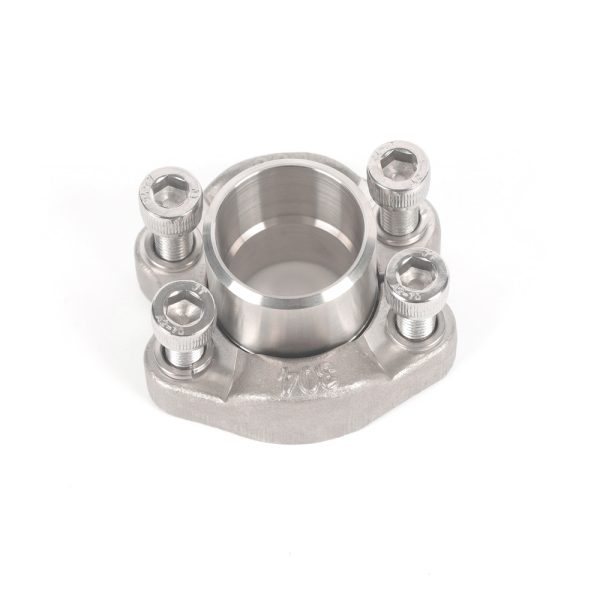

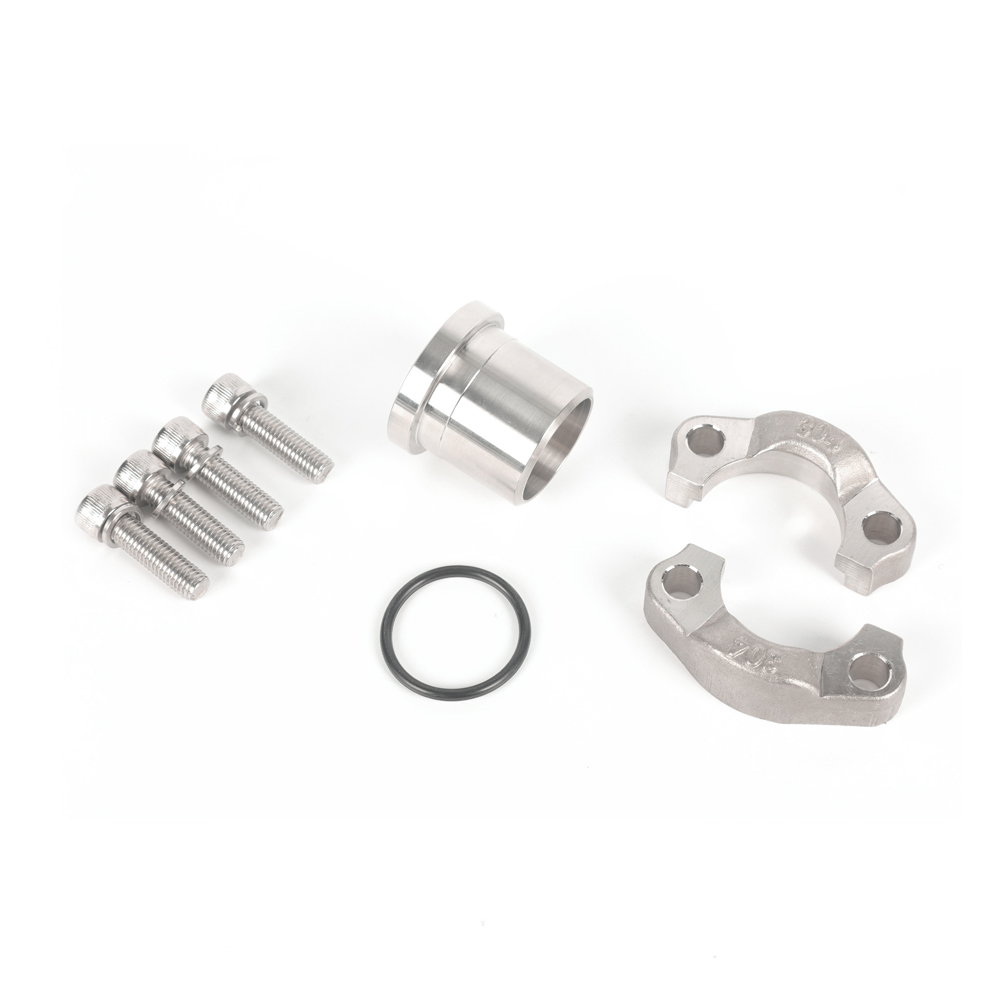

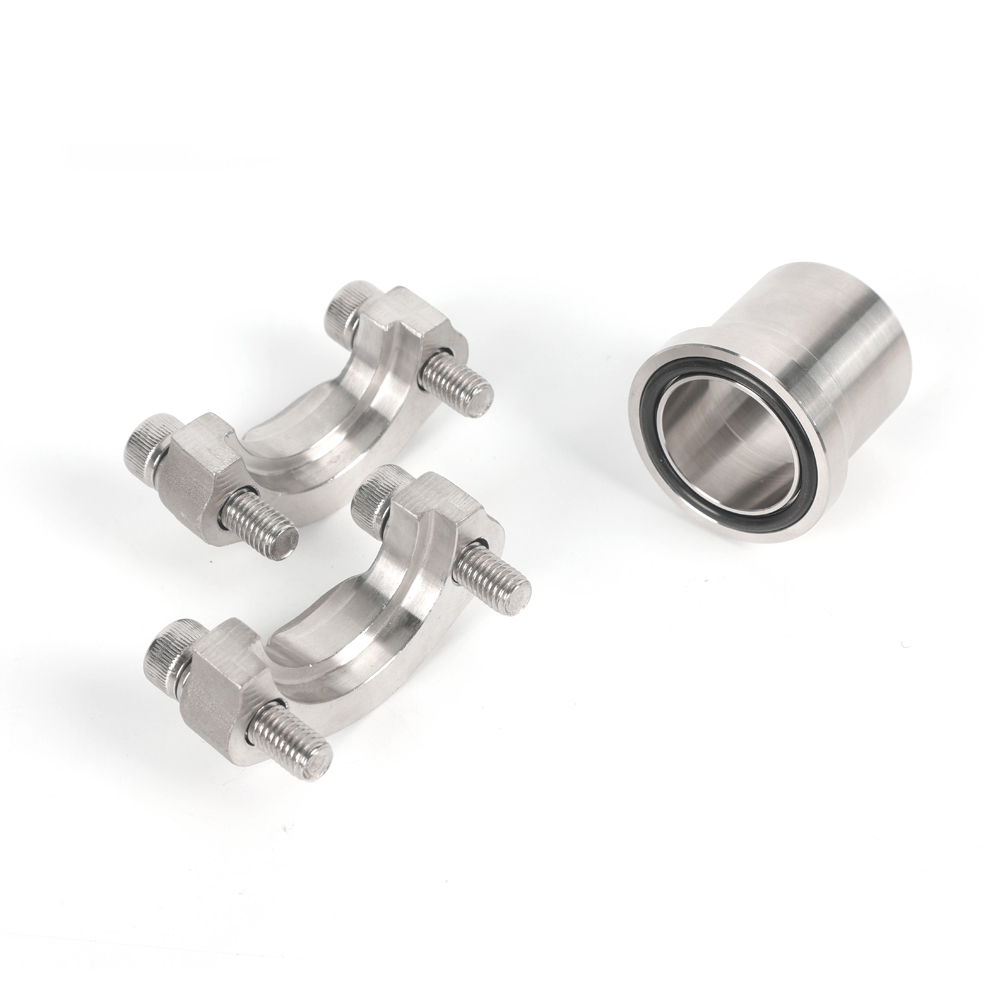

AFA/AFKV hydraulic split flange is a type of split welding coupling manufactured in accordance with ISO 6161 and SAE J518 standards. There are two pressure series for hydraulic SAE Socket Weld Flange: 3000 psi and 6000 psi.

"*" indicates required fields

The Flange adapters are designed for a pressure rating up to 3,000 psi and high-pressure scenarios with a rating of up to 6,000 psi. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

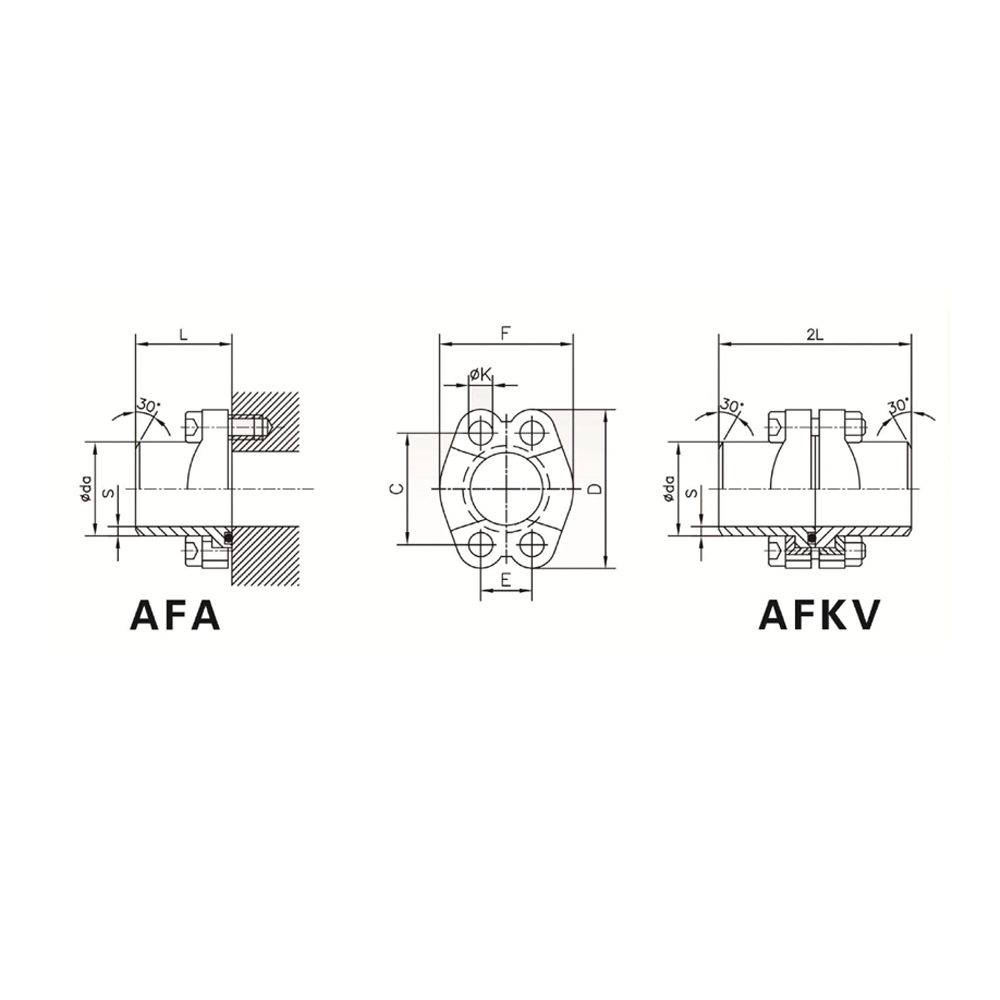

PART NO.	DN	Size	DIMENSION							BOLT	O-RING	W.T.	W.P.
PART NO.	DN	(INCH)	daxs	C	D	E	F	L	K	BOLT	O-RING	(Kg)	(kg/cm2)
3000psi
AFA301	13	1/2″	18×3 20×3 22×3.5	38.1	54	17.48	46	30	8.5	M8X25	18.66×3.53	0.28	350
AFA302	19	3/4″	28×4 22×3 30×4	47.63	65	22.23	52	35	10.5	M10X30	25.00×3.53	0.44	350
AFA303	25	1″	30×4 34×4.5	52.37	70	26.19	59	40	10.5	M10X30	32.92×3.53	0.56	315
AFA304	32	11/4″	42×5 38×4	58.72	79	30.18	73	45	10.5	M10X30	37.70×3.53	0.72	250
AFA305	38	11/2″	42×5 48×4	69.85	94	35.71	83	50	13.5	M12X35	47.22×3.53	0.92	200
AFA306	51	2″	60×4 60×6	77.77	102	42.88	97	60	13.5	M12X35	56.75×3.53	1.3	200
AFA307	64	21/2″	76×6 76×4	88.9	114	50.8	109	70	13.5	M12X40	69.45×3.53	1.8	160
AFA308	76	3″	89×5 89×4	106.38	135	61.93	131	80	17	M16X50	85.32×3.53	2.6	138
AFA309	89	31/2″	102×5 89×5	120.65	152	69.85	140	80	17	M16X50	98.02×3.53	3	35
AFA310	102	4″	114×5	130.18	162	77.77	152	80	17	M16X50	110.72×3.53	3.5	35
AFA311	127	5″	140×5	152.4	184	92.08	181	80	17	M16X55	136.12×3.53	4.5	35
6000psi
AFA601	13	1/2″	16×2.5 20×3	40.49	56	18.24	48	40	8.5	M8X30	18.66X3.53	0.35	400
AFA602	19	3/4″	28×5 25×4 26×4	50.8	71	23.8	60	45	10.5	M10X35	25.00X3.53	0.68	400
AFA603	25	1 “	30×5 34×5 38×5	57.15	81	27.76	70	50	13	M12X45	32.92×3.53	1.06	400
AFA604	32	11/4 “	38×6 42×6	66.68	95	31.75	78	55	14.5	M14X50	37.70×3.53	1.58	400
AFA605	38	1-1/2″	42×6 48×8	79.38	113	36.5	95	60	17	M16X55	47.22×3.53	2.5	400
AFA606	51	2 “	60×6 60×10	96.82	133	44.45	114	70	21	M20X70	56.75×3.53	4.3	400
AFA607	64	2-1/2″	76×12.5 89×10	123.83	180	58.73	152	80	25	M24X80	75.57×5.33	8.5	400
AFA608	76	3 “	89×12 114×14	152.4	215	71.43	198	100	32	M30X90	88.27×5.33	16.8	400
