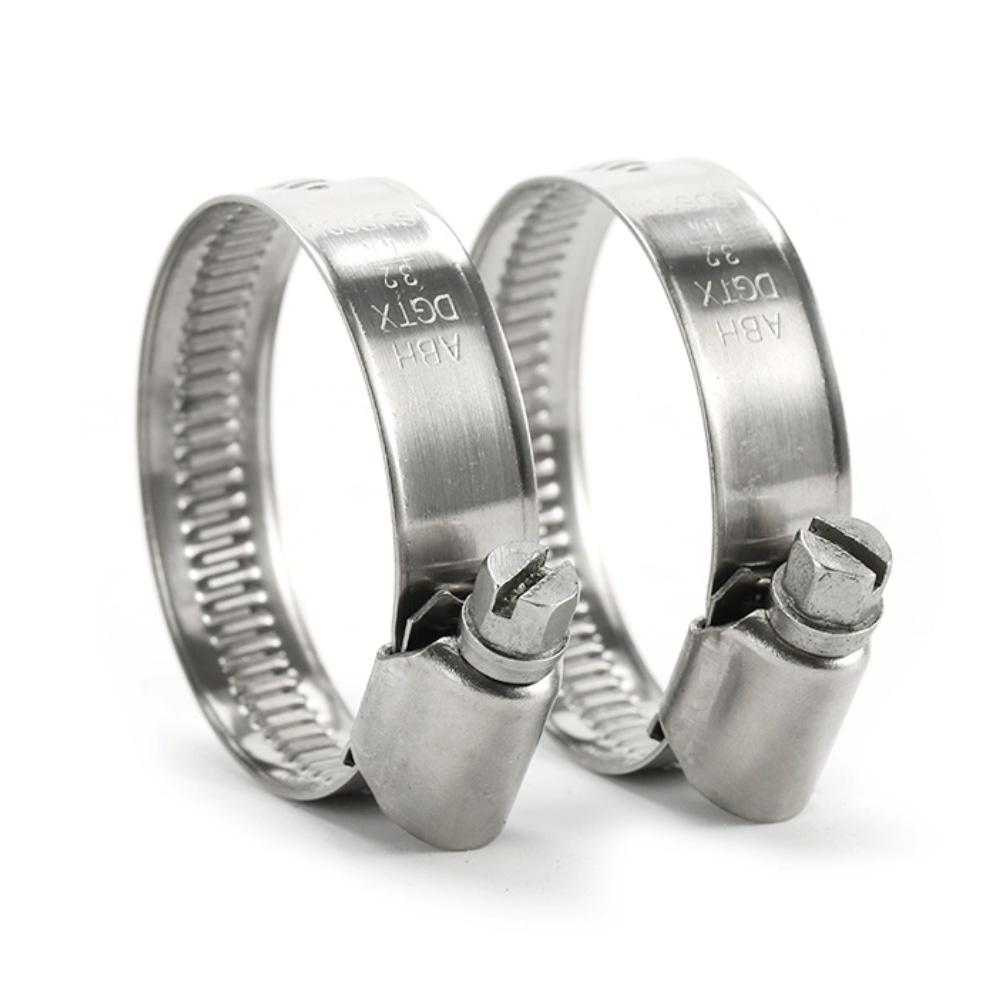

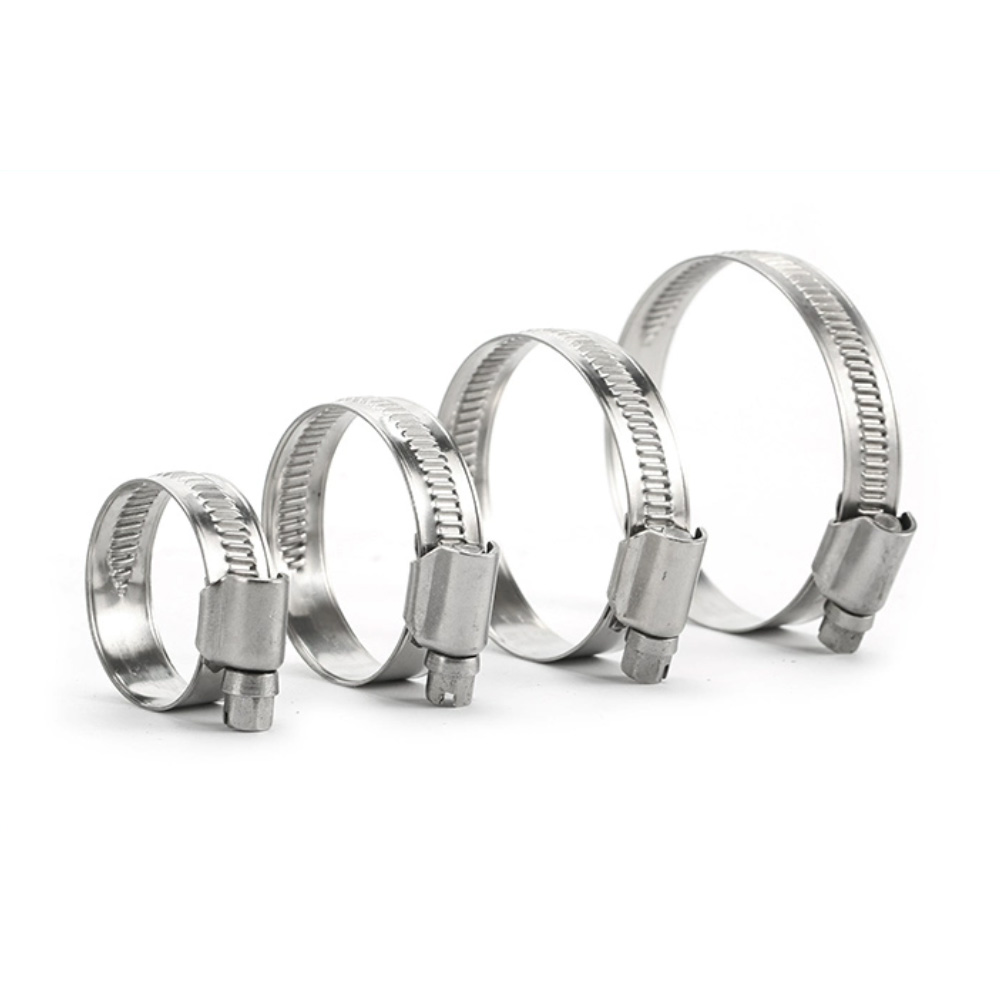

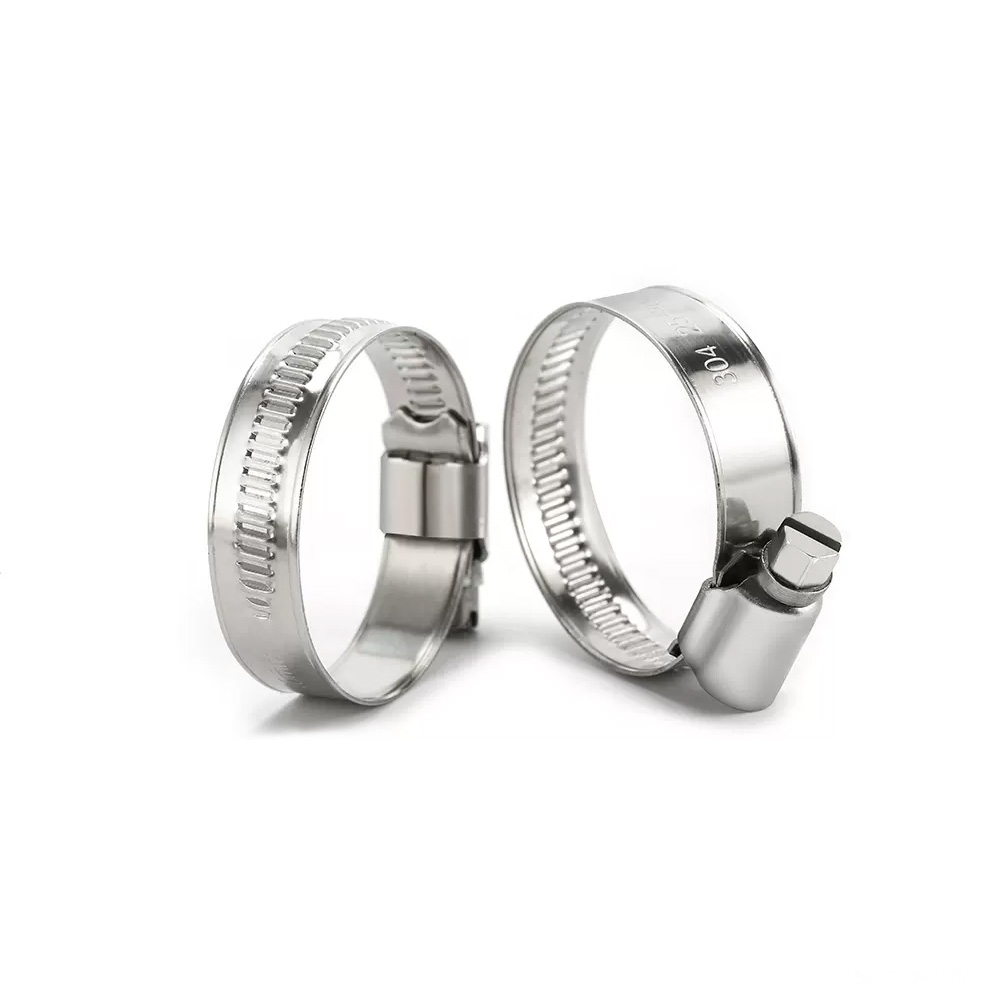

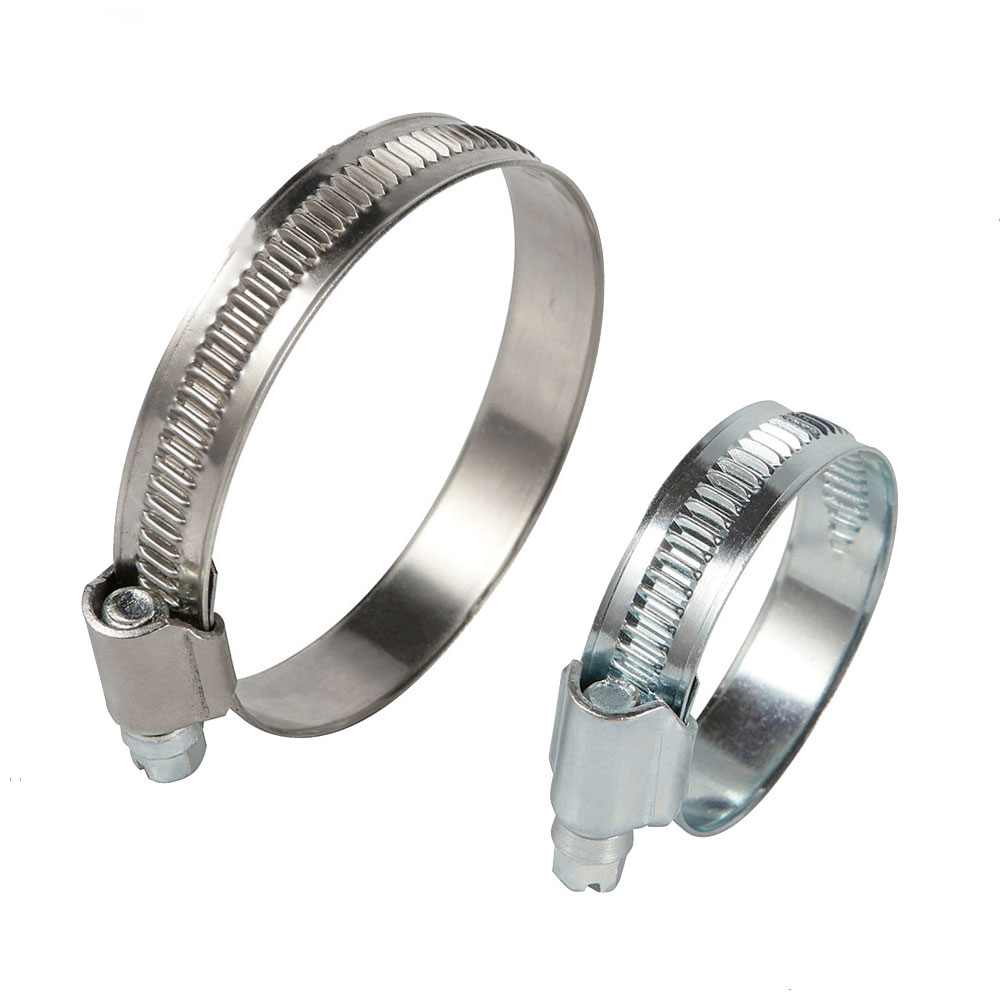

American-style hose clamps, also known as worm-gear hose clamps, are versatile fasteners with a wide range of applications. They are specifically designed to secure hoses to fittings such as barb connectors, threaded fittings, and pipe nozzles. Their distinctive feature lies in the mechanism incorporating a ratchet band and screw, enabling effortless adjustment while ensuring a tight and reliable seal.
| Size | Band Width | Thickness | Install Torque | Pcs/CTN |
| mm | mm | mm | Nm | |
| 8-12 | 9 | 0.7 | 3/3.5 | 1000 |
| 10-16 | 9 | 0.7 | 3/3.5 | 1000 |
| 12-22 | 9 | 0.7 | 3/3.5 | 1000 |
| 16-27 | 9 | 0.7 | 3/3.5 | 1000 |
| 20-32 | 9 | 0.7 | 3/3.5 | 1000 |
| 25-40 | 9 | 0.7 | 3/3.5 | 500 |
| 30-45 | 9 | 0.7 | 3/3.5 | 500 |
| 35-50 | 9 | 0.7 | 3/3.5 | 500 |
| 40-60 | 9 | 0.7 | 3/3.5 | 500 |
| 50-70 | 9 | 0.7 | 3/3.5 | 500 |
| 60-80 | 9 | 0.7 | 3/3.5 | 500 |
| 70-90 | 9 | 0.7 | 3/3.5 | 500 |
| 80-100 | 9 | 0.7 | 3/3.5 | 250 |
| 90-110 | 9 | 0.7 | 3/3.5 | 250 |
| 100-120 | 9 | 0.7 | 3/3.5 | 250 |
| 110-130 | 9 | 0.7 | 3/3.5 | 250 |
| 120-140 | 9 | 0.7 | 3/3.5 | 250 |
| 130-150 | 9 | 0.7 | 3/3.5 | 250 |
| 140-160 | 9 | 0.7 | 3/3.5 | 200 |
Larger sizes are available according to customer’s requirement.
NOTE:
W1: All material Galvanized Carbon Steel, Zinc Plated Steel
W2: All material Stainless steel 201 or 301 or 304 with Galvanized Screw,
W4: All material Stainless steel 201,301,304,
W5: All material Stainless steel 316.
