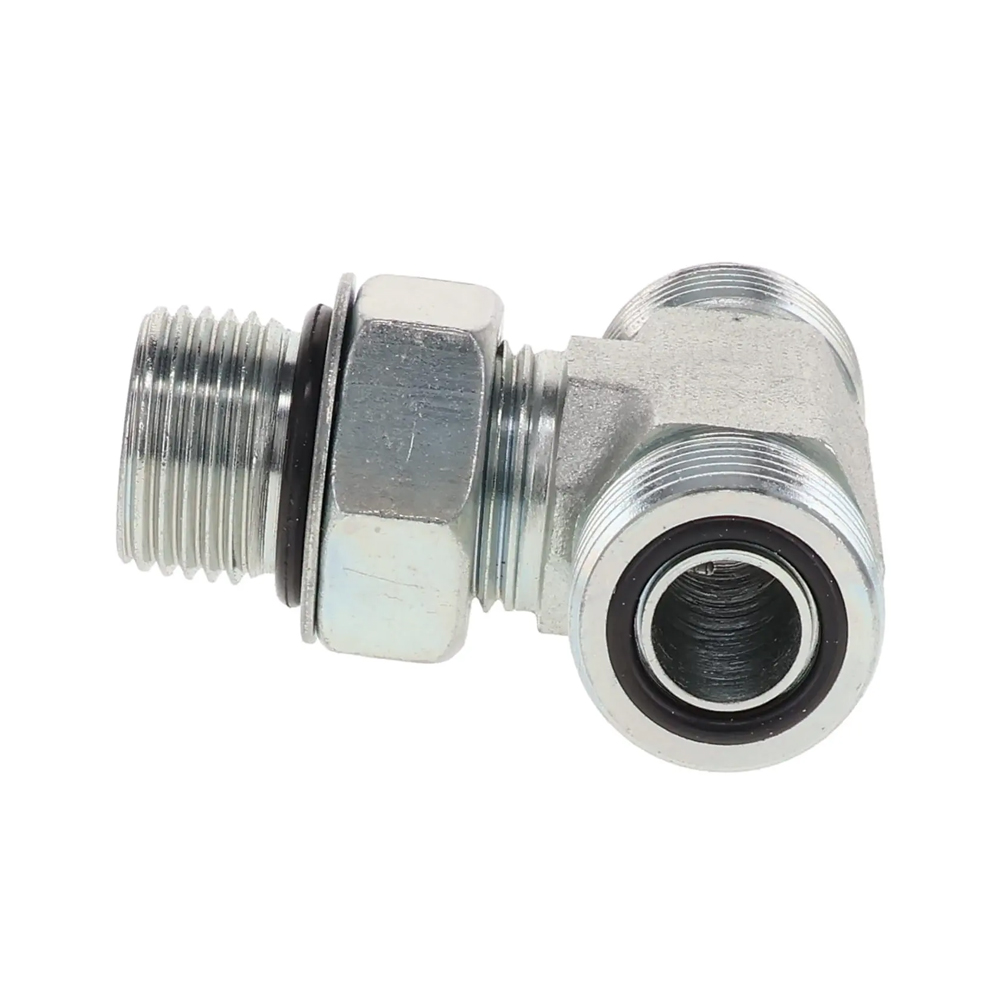

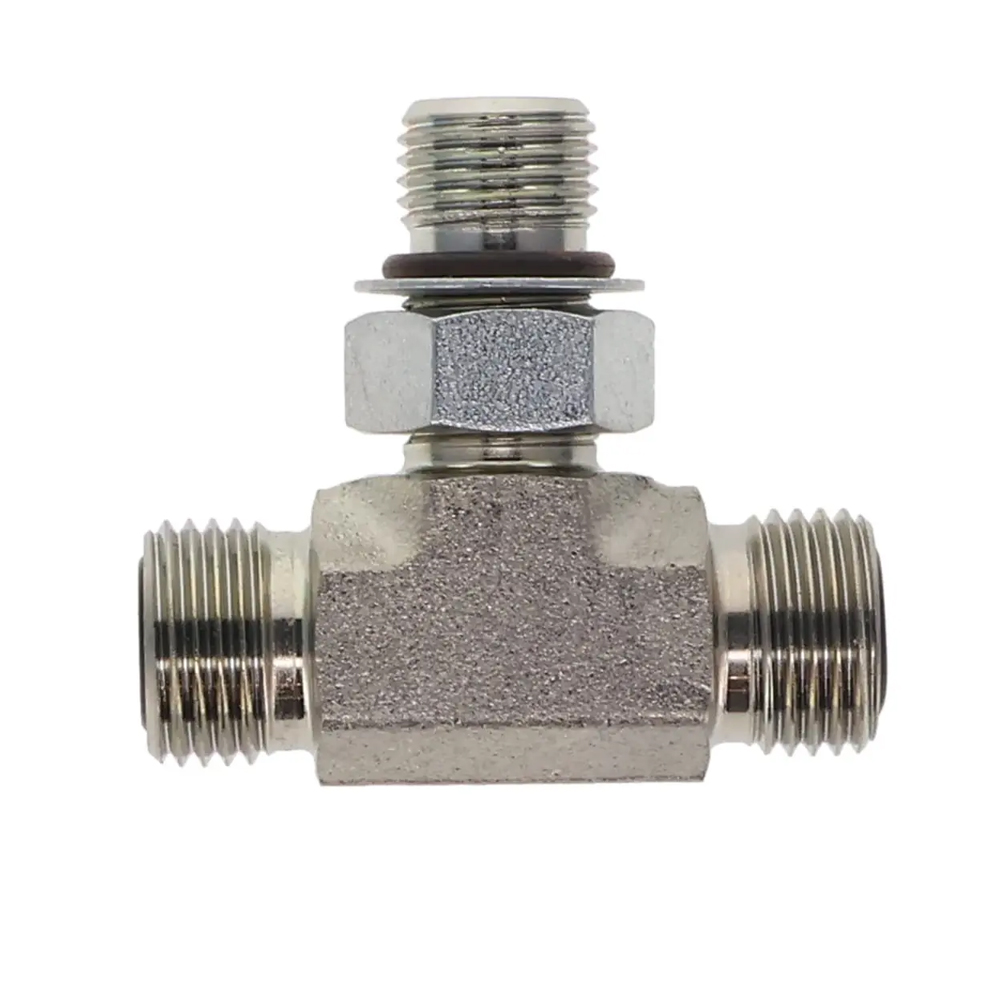

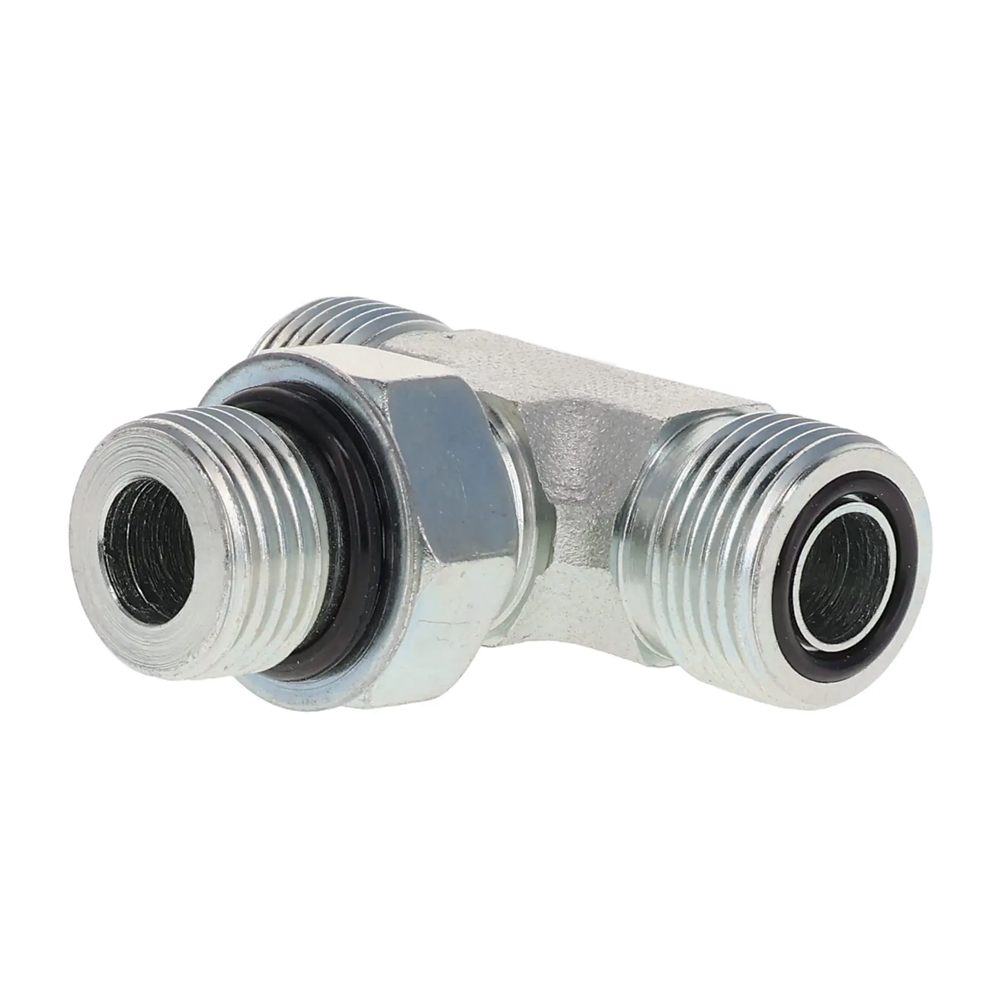

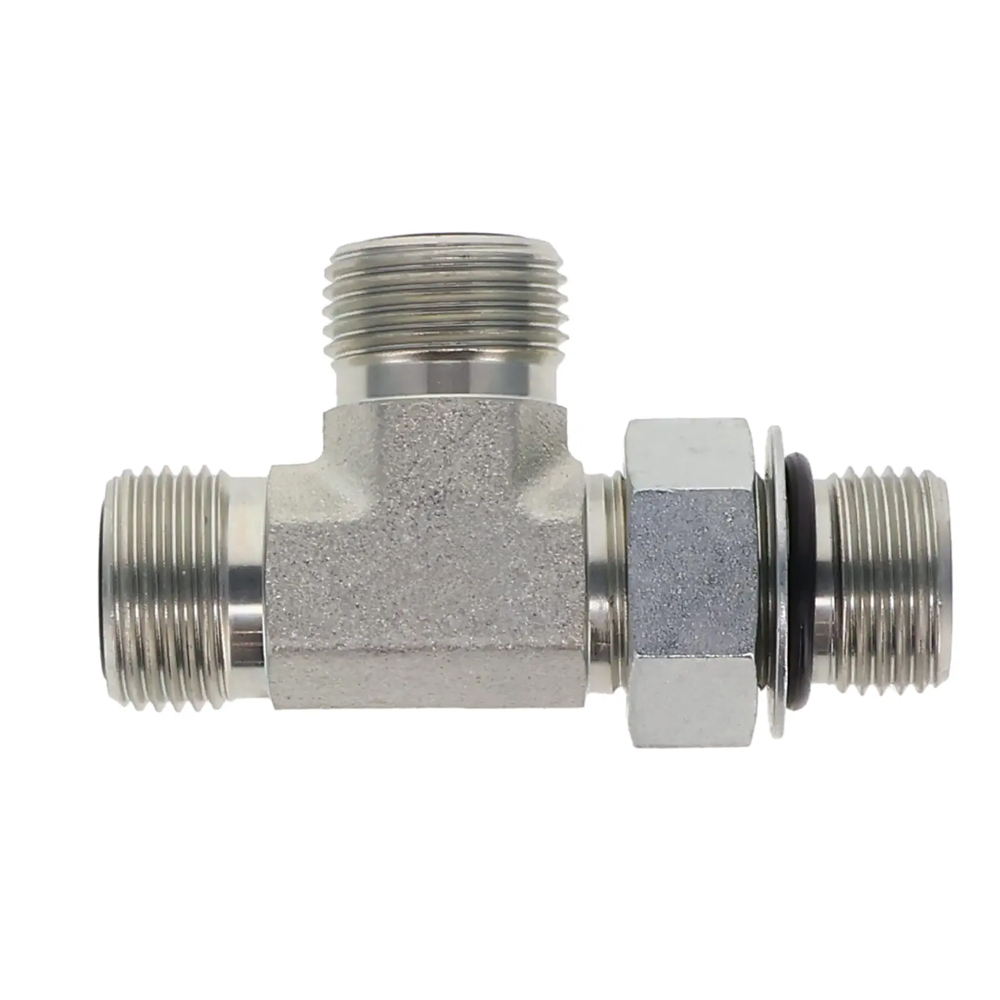

AFOF ORFS Male x O-Ring Boss Male Branch Tee

Description:

AFOF-ORFS hydraulic tee fitting is a 3-way hydraulic branch tee adapter with two female ORFS threads and one male branch O-ring boss thread.

"*" indicates required fields

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

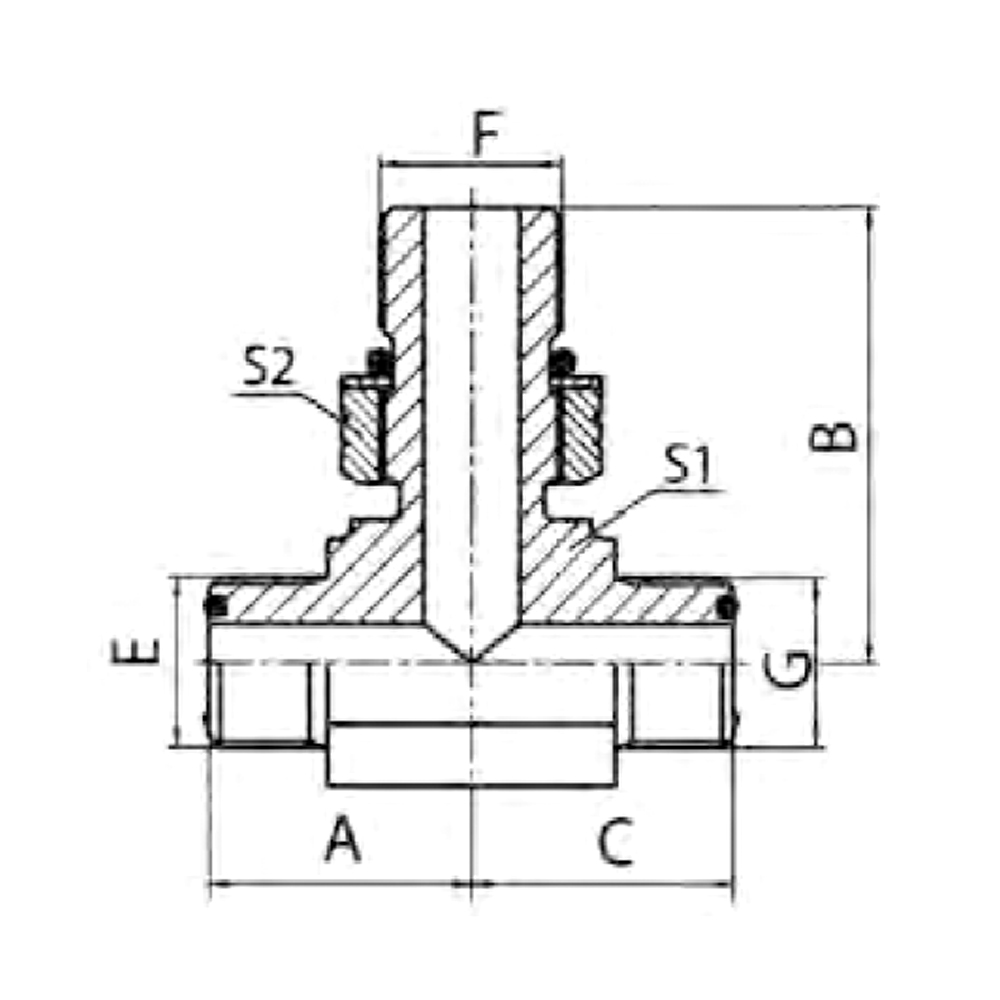

PART NO.	THREAD			O-RING			DIMENSIONS
PART NO.	E	F	G	E	F	G	A	B	C	S1	S2
AFOF-04OG	9/16″X18	7/16″X20	9/16″X18	0011	O904	0011	23	30.3	23	14	17
AFOF-04-06-04OG	9/16″X18	9/16″X18	9/16″X18	0011	O906	0011	23	32	23	14	19
AFOF-06OG	11/16″X16	9/16″X18	11/16″X16	0012	O906	O012	27.5	35.5	27.5	19	19
AFOF-06-08-06OG	11/16″X16	3/4″X16	11/16″X16	O012	O908	O012	27	38	27	19	24
AFOF-08OG	13/16″X16	3/4″X16	13/16″X16	O014	O908	O014	31	40.5	31	22	24
AFOF-08-10-08OG	13/16″X16	7/8″X14	13/16″X16	O014	O910	O014	31	45.3	31	22	27
AFOF-08-12-08OG	13/16″X16	1.1/16″X12	13/16″X16	O014	O912	O014	34.5	54	34.5	27	32
AFOF-10OG	1″X14	7/8″X14	1″X14	O016	O910	O016	36.5	50.8	36.5	27	27
AFOF-10-12-10OG	1″X14	1.1/16″X12	1″X14	O016	O912	O016	36.5	52	36.5	27	32
AFOF-120G	1.3/16″X12	1.1/16″X12	1.3/16″X12	O018	O912	O018	40.3	55.3	40.3	30	32
AFOF-16OG	1.7/16″X12	1.5/16″X12	1.7/16″X12	O021	O916	0021	41.5	59.3	41.5	36	41
AFOF-20OG	1.11/16″X12	1.5/8″X12	1.11/16″X12	O025	O920	O025	47.5	60.5	47.5	41	50
AFOF-24OG	2″X12	1.7/8″X12	2″X12	O029	O924	O029	53.5	68	53.5	50	55
