1BN BSP To NPT Hydraulic Fitting

Description:

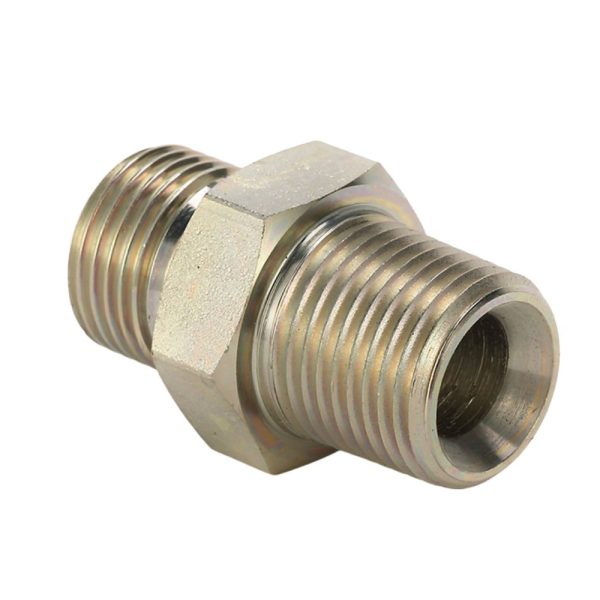

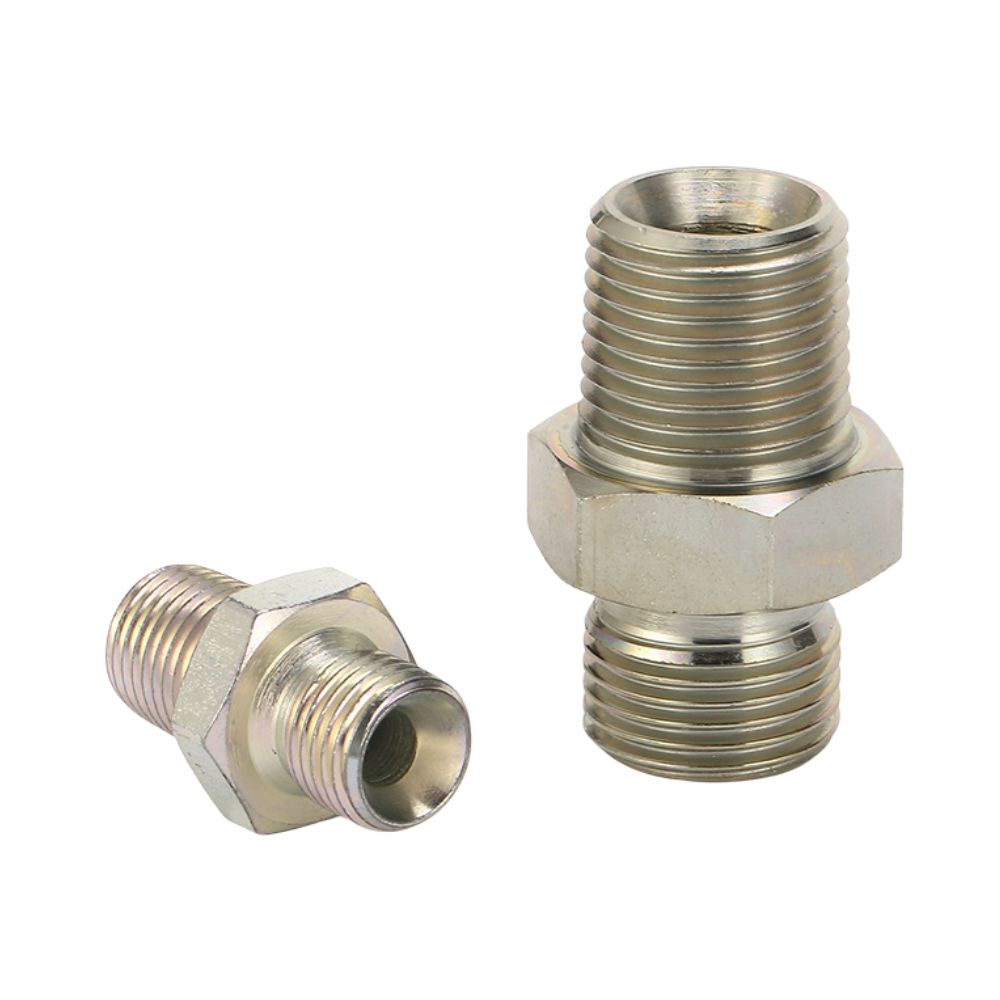

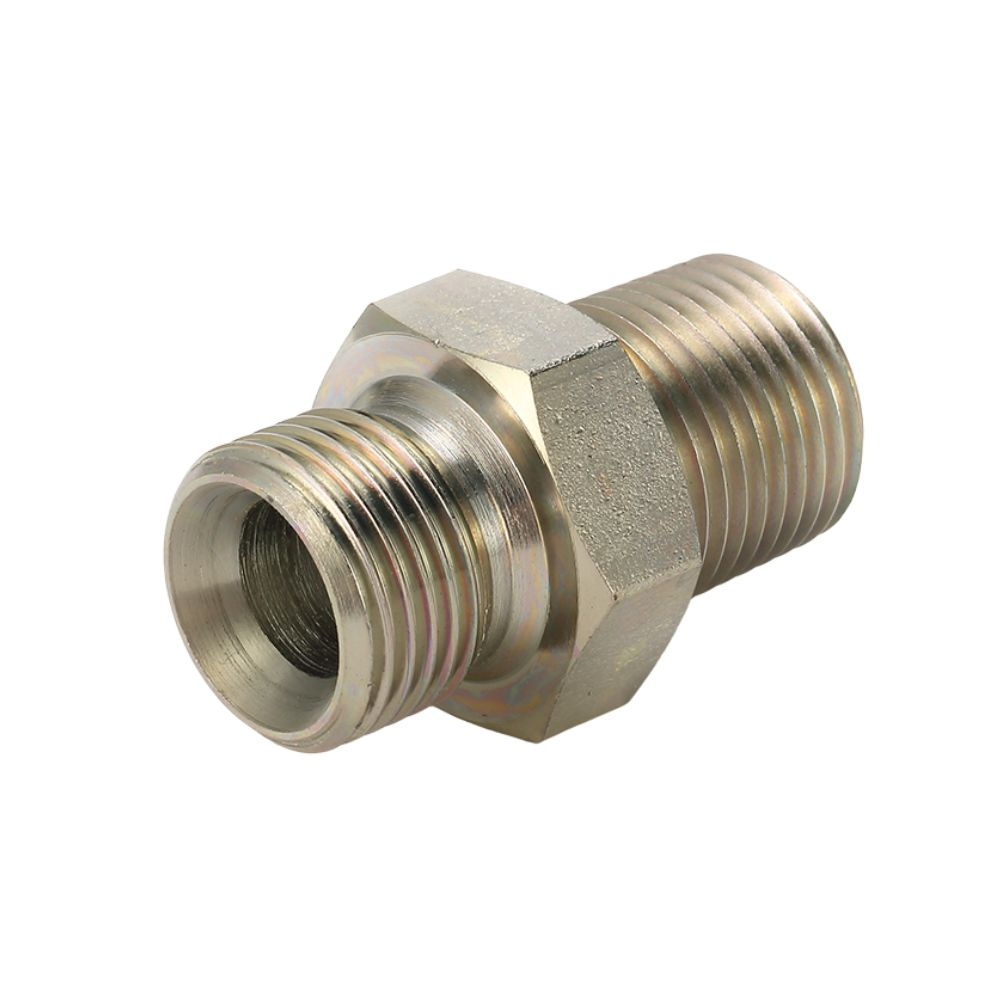

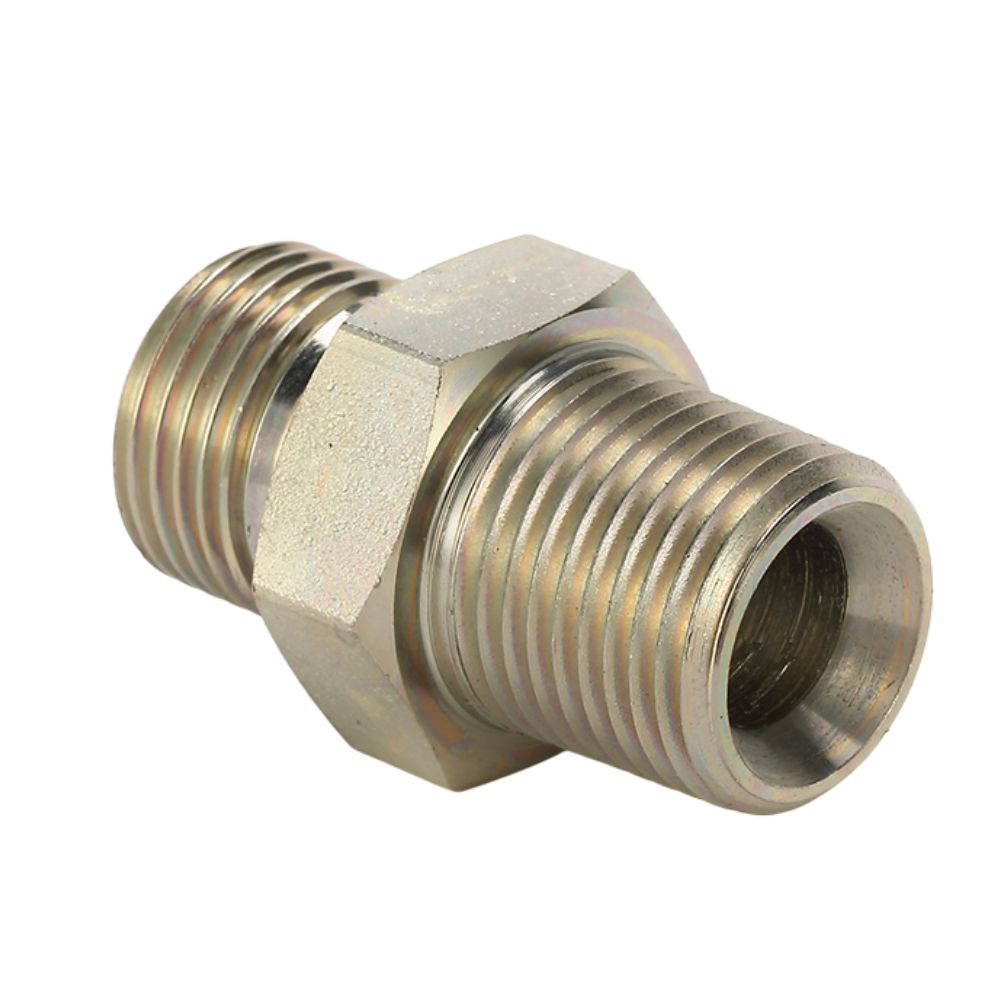

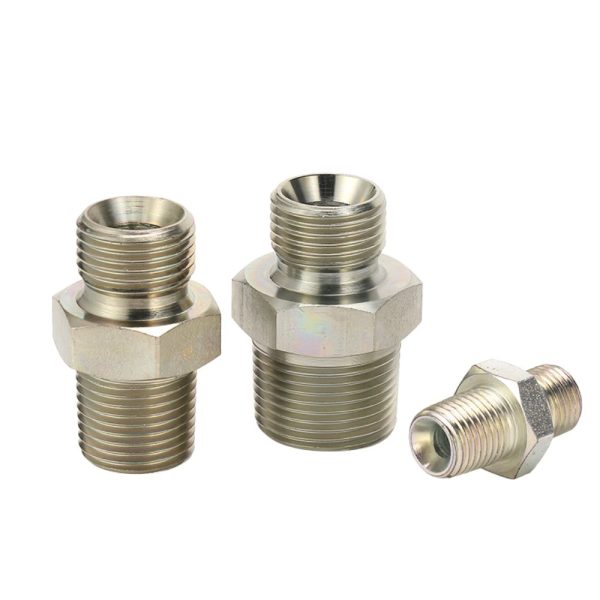

1BN-BSP to NPT hydraulic fitting is the male fitting with a 60-degree cone seat.

"*" indicates required fields

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

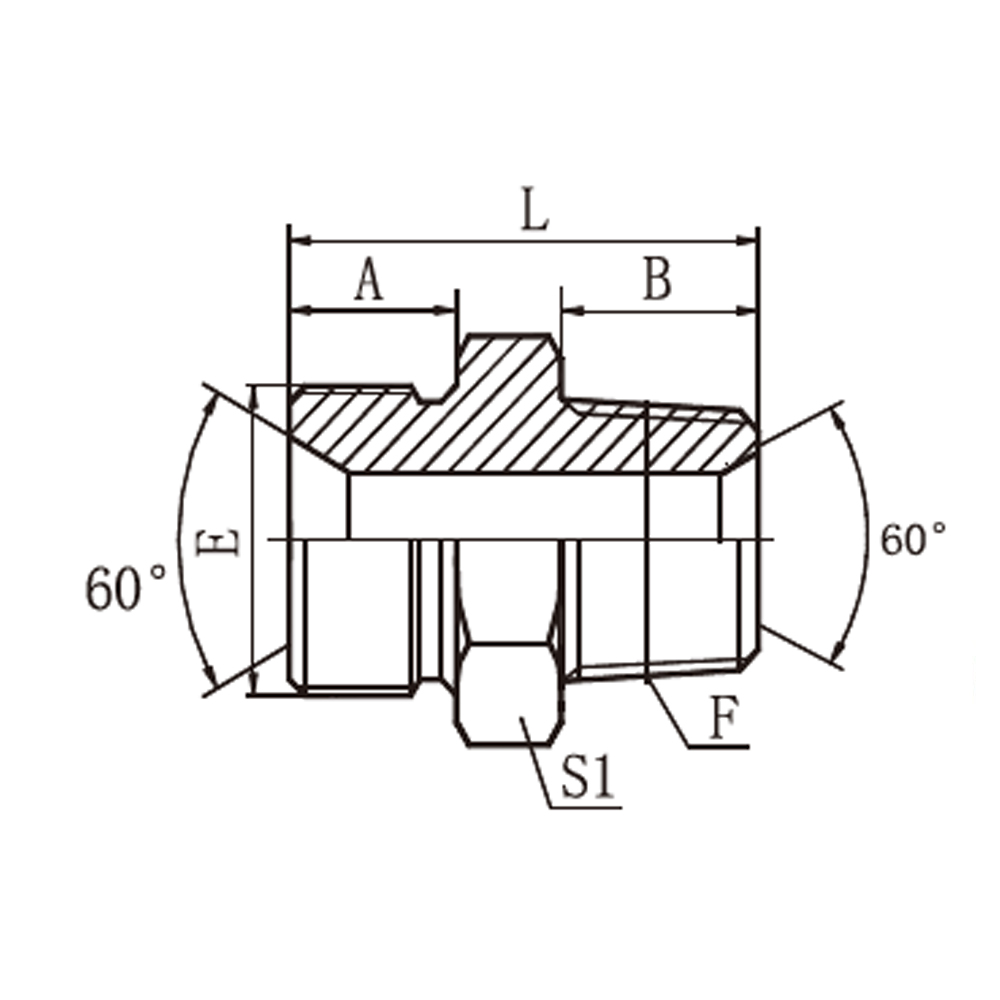

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1	S2
1BN-02	G1/8″X28	Z1/8″X27	10	10.5	26	14
1BN-02-04	G1/8″X28	Z1/4″X18	10	15	31	17
1BN-04	G1/4″X19	Z1/4″X18	12	15	33	19
1BN-04-02	G1/4″X19	Z1/8″X27	12	10.5	28	19
1BN-04-06	G1/4″X19	Z3/8″X18	12	16	34	19
1BN-04-08	G1/4″X19	Z1/2″X14	12	19.5	39.5	22
1BN-06	G3/8″X19	Z3/8″X18	13.5	16	37.5	22
1BN-06-04	G3/8″X19	Z1/4″X19	13.5	15	36	22
1BN-06-08	G3/8″X19	Z1/2″X14	13.5	19.5	41	22
1BN-06-12	G3/8″X19	Z3/4″X14	13.5	19.5	43	30
1BN-08	G1/2″X14	Z1/2″X14	16	19.5	45.5	27
1BN-08-06	G1/2″X14	Z3/8″X18	16	16	42	27
1BN-08-12	G1/2″X14	Z3/4″X14	16	19.5	45.5	30
1BN-08-16	G1/2″X14	Z1″X11.5	16	25.5	52.5	36
1BN-10-08	G5/8″X14	Z1/2″X14	17.5	19.5	47	30
1BN-10-12	G5/8″X14	Z3/4″X14	17.5	19.5	47	30
1BN-12	G3/4″X14	Z3/4″X14	18.5	19.5	49	32
1BN-12-06	G3/4″X14	Z3/8″X18	18.5	16	45.5	32
1BN-12-08	G3/4″X14	Z1/2″X14	18.5	19.5	49	32
1BN-12-16	G3/4″X14	Z1″X11.5	18.5	25.5	55	36
1BN-16	G1″X11	Z1″X11.5	20.5	25.5	59	41
1BN-16-12	G1″X11	Z3/4″X14	20.5	19.5	53	41
1BN-16-20	G1″X11	Z1.1/4″X11.5	20.5	26.5	60	46
1BN-20	G1.1/4″X11	Z1.1/4″X11.5	20.5	26.5	62	50
1BN-20-16	G1.1/4″X11	Z1″X11.5	20.5	25.5	61	50
1BN-20-24	G1.1/4″X11	Z1.1/2″X11.5	20.5	27.5	63	50
1BN-24	G1.1/2″X11	Z1.1/2″X11.5	23	27.5	65.5	55
1BN-24-20	G1.1/2″X11	Z1.1/4″X11.5	23	26.5	64.5	55
1BN-24-32	G1.1/2″X11	Z2″X11.5	23	27.5	67.5	65
1BN-32	G2″X11	Z2″X11.5	25.5	27.5	70	70
1BN-32-20	G2″X11	Z1.1/4″X1.51	25.5	26.5	69	70
1BN-32-24	G2″X11	Z1.1/2″X1.51	25.5	27.5	70	70

Click to enlarge

Category: BSP Hydraulic Adapter Tags: NPT, Male, 1BN, BSP

Description
Package& Shipping

Description

PART NO.	THREAD		DIMENSIONS
PART NO.	E	F	A	B	S1	S2
1BN-02	G1/8″X28	Z1/8″X27	10	10.5	26	14
1BN-02-04	G1/8″X28	Z1/4″X18	10	15	31	17
1BN-04	G1/4″X19	Z1/4″X18	12	15	33	19
1BN-04-02	G1/4″X19	Z1/8″X27	12	10.5	28	19
1BN-04-06	G1/4″X19	Z3/8″X18	12	16	34	19
1BN-04-08	G1/4″X19	Z1/2″X14	12	19.5	39.5	22
1BN-06	G3/8″X19	Z3/8″X18	13.5	16	37.5	22
1BN-06-04	G3/8″X19	Z1/4″X19	13.5	15	36	22
1BN-06-08	G3/8″X19	Z1/2″X14	13.5	19.5	41	22
1BN-06-12	G3/8″X19	Z3/4″X14	13.5	19.5	43	30
1BN-08	G1/2″X14	Z1/2″X14	16	19.5	45.5	27
1BN-08-06	G1/2″X14	Z3/8″X18	16	16	42	27
1BN-08-12	G1/2″X14	Z3/4″X14	16	19.5	45.5	30
1BN-08-16	G1/2″X14	Z1″X11.5	16	25.5	52.5	36
1BN-10-08	G5/8″X14	Z1/2″X14	17.5	19.5	47	30
1BN-10-12	G5/8″X14	Z3/4″X14	17.5	19.5	47	30
1BN-12	G3/4″X14	Z3/4″X14	18.5	19.5	49	32
1BN-12-06	G3/4″X14	Z3/8″X18	18.5	16	45.5	32
1BN-12-08	G3/4″X14	Z1/2″X14	18.5	19.5	49	32
1BN-12-16	G3/4″X14	Z1″X11.5	18.5	25.5	55	36
1BN-16	G1″X11	Z1″X11.5	20.5	25.5	59	41
1BN-16-12	G1″X11	Z3/4″X14	20.5	19.5	53	41
1BN-16-20	G1″X11	Z1.1/4″X11.5	20.5	26.5	60	46
1BN-20	G1.1/4″X11	Z1.1/4″X11.5	20.5	26.5	62	50
1BN-20-16	G1.1/4″X11	Z1″X11.5	20.5	25.5	61	50
1BN-20-24	G1.1/4″X11	Z1.1/2″X11.5	20.5	27.5	63	50
1BN-24	G1.1/2″X11	Z1.1/2″X11.5	23	27.5	65.5	55
1BN-24-20	G1.1/2″X11	Z1.1/4″X11.5	23	26.5	64.5	55
1BN-24-32	G1.1/2″X11	Z2″X11.5	23	27.5	67.5	65
1BN-32	G2″X11	Z2″X11.5	25.5	27.5	70	70
1BN-32-20	G2″X11	Z1.1/4″X1.51	25.5	26.5	69	70
1BN-32-24	G2″X11	Z1.1/2″X1.51	25.5	27.5	70	70
