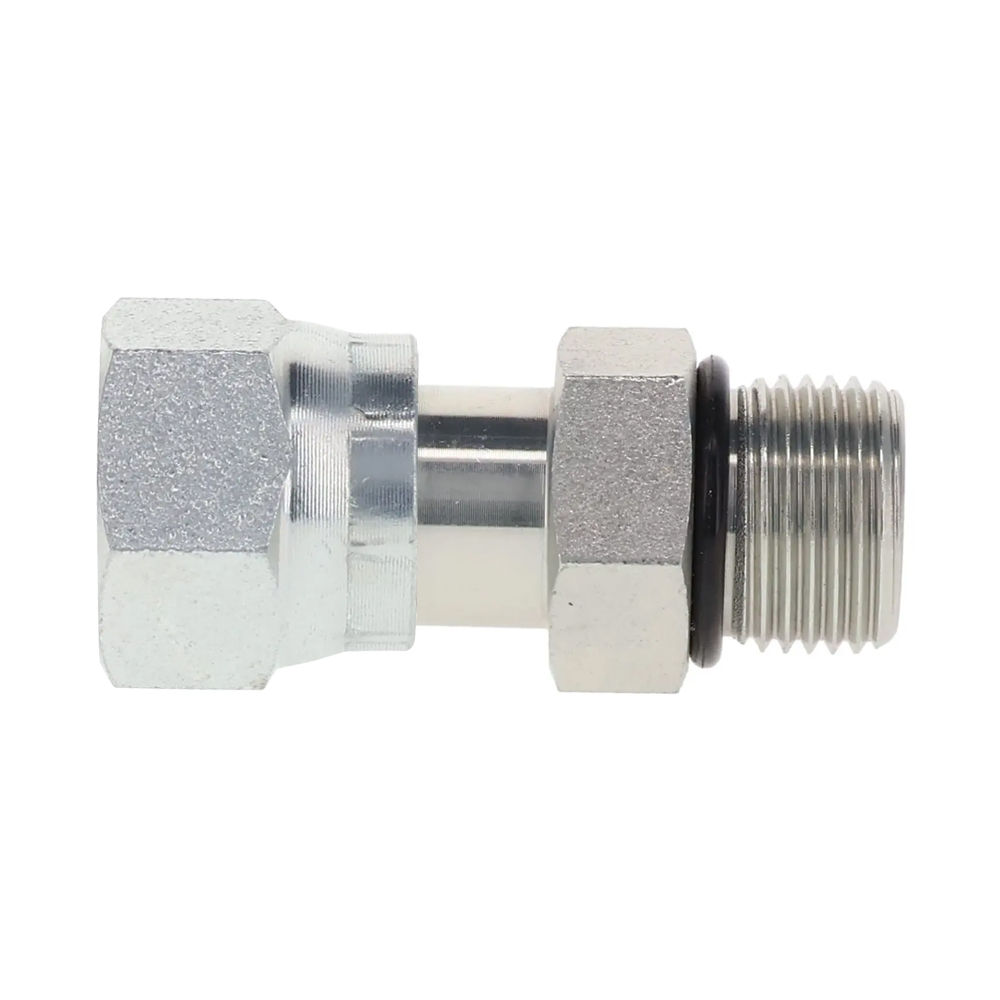

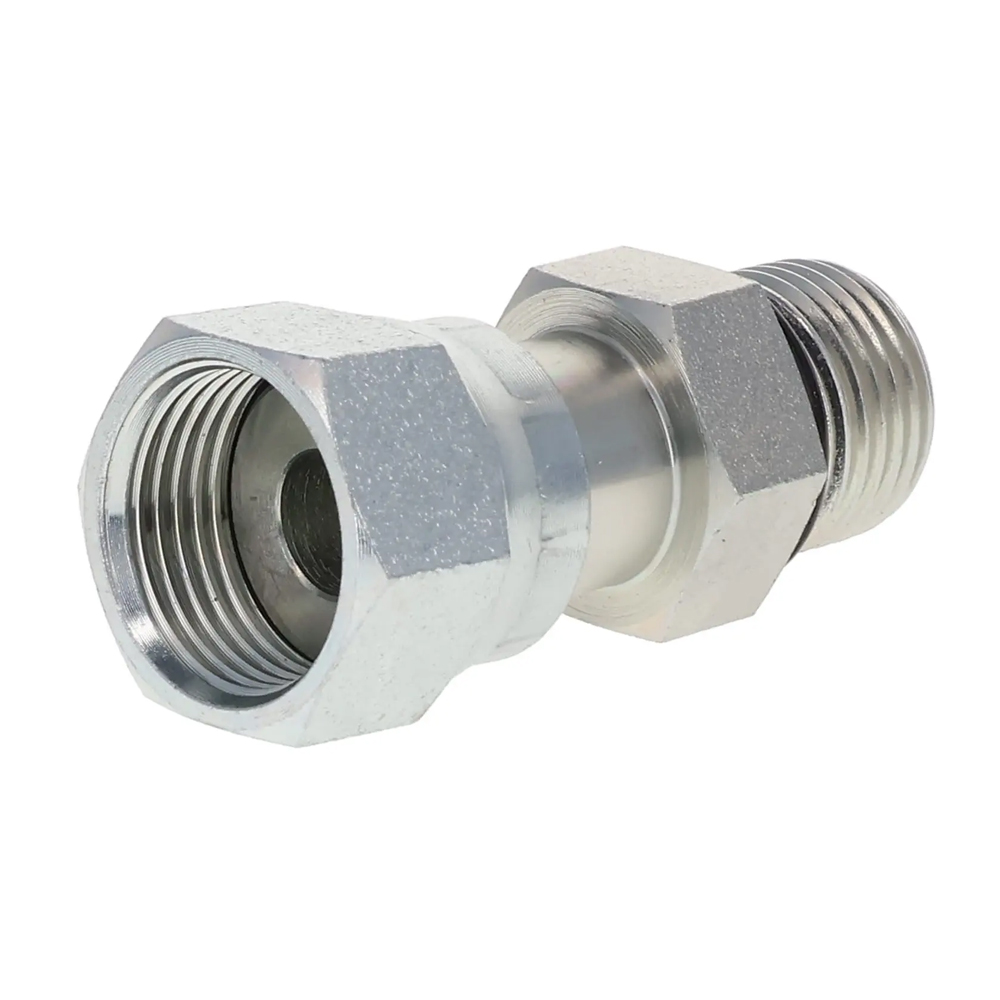

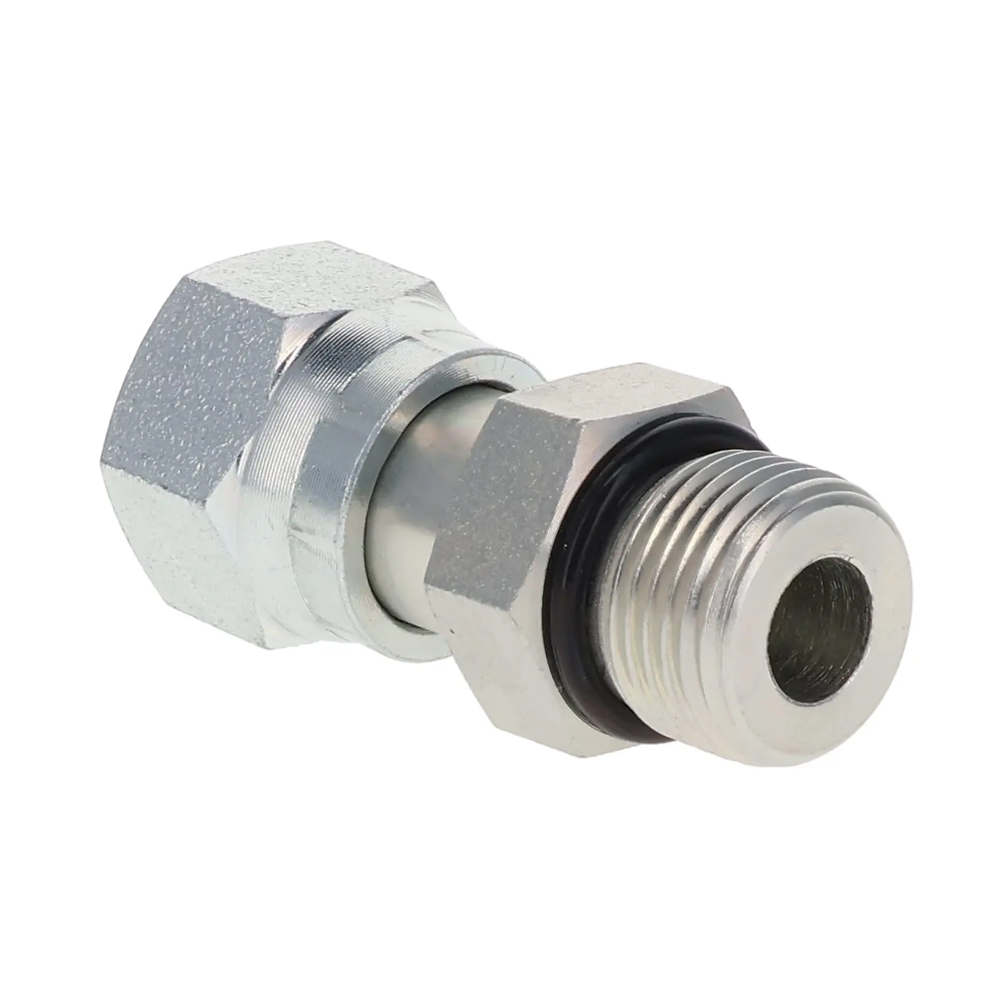

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

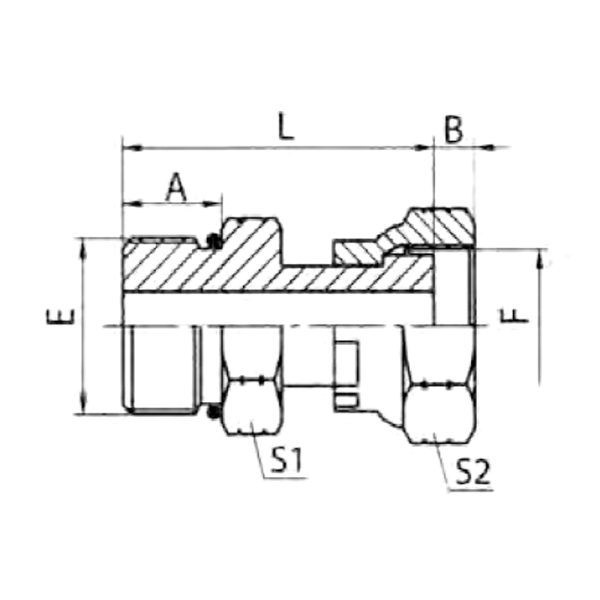

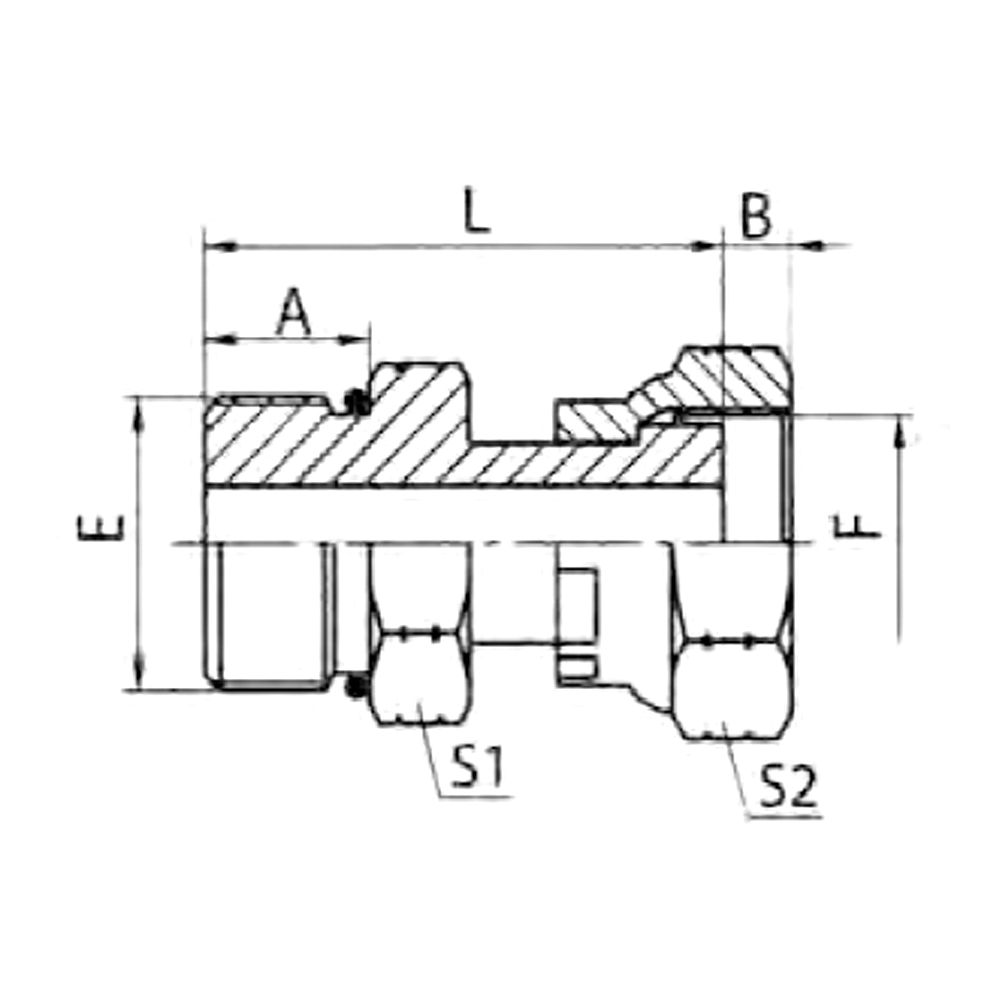

| PART NO. | THREAD | O-RING | DIMENSIONS | |||||
| E | F | E | A | B | L | S1 | S1 | |
| 2OF-04 | 7/16″X20 | 9/16″X18 | O904 | 11 | 7.5 | 32.5 | 17 | 19 |
| 2OF-04-06 | 7/16″X20 | 11/16″X16 | O904 | 11 | 9.5 | 35.5 | 17 | 22 |
| 2OF-06-04 | 9/16″X18 | 9/16″X18 | O906 | 12 | 7.5 | 33.5 | 17 | 19 |
| 2OF-06 | 9/16″X18 | 11/16″X16 | O906 | 12 | 9.5 | 36.5 | 19 | 22 |
| 2OF-06-08 | 9/16″X18 | 13/16″X16 | O906 | 12 | 11.5 | 38.5 | 19 | 27 |
| 2OF-08-06 | 3/4″X16 | 11/16″X16 | O908 | 14 | 9.5 | 40.5 | 22 | 22 |
| 2OF-08 | 3/4″X16 | 13/16″X16 | O908 | 14 | 11.5 | 42.5 | 22 | 27 |
| 2OF-10-08 | 7/8″X14 | 13/16″X16 | O910 | 16 | 11.5 | 46.5 | 27 | 27 |
| 2OF-10 | 7/8″X14 | 1″X14 | O910 | 16 | 12.5 | 50.5 | 27 | 32 |
| 2OF-12-10 | 1.1/16″X12 | 1″X14 | O912 | 18.5 | 12.5 | 54 | 32 | 32 |
| 2OF-12 | 1.1/16″X12 | 1.3/16″X12 | O912 | 18.5 | 13 | 56 | 32 | 36 |
| 2OF-16-12 | 1.5/16″X12 | 1.3/16″X12 | O916 | 18.5 | 13 | 55.5 | 38 | 36 |
| 2OF-16 | 1.5/16″X12 | 1.7/16″X12 | O916 | 18.5 | 14 | 57.5 | 38 | 41 |
| 2OF-20-16 | 1.5/8″X12 | 1.7/16″X12 | O920 | 18.5 | 14 | 61.5 | 50 | 41 |
| 2OF-20 | 1.5/8″X12 | 1.11/16″X12 | O920 | 18.5 | 15 | 65 | 50 | 50 |
