BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

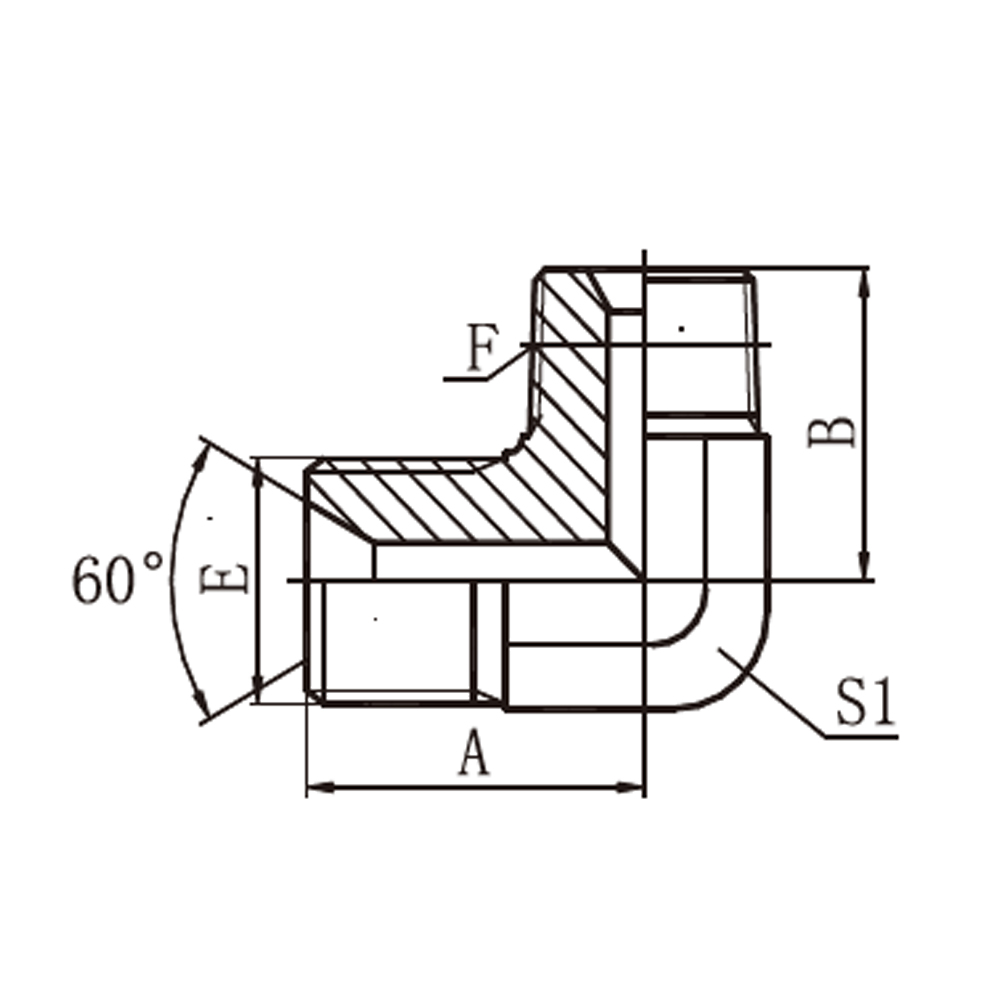

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | B | S1 | |
| 1BN9-04 | G1/4″X19 | Z1/4″X18 | 24.5 | 25.5 | 14 |
| 1BN9-04-02 | G1/4″X19 | Z1/8″X27 | 24.5 | 23.5 | 14 |
| 1BN9-06 | G3/8″X19 | Z3/8″X18 | 28.5 | 31 | 19 |
| 1BN9-06-04 | G3/8″X19 | Z1/4″X18 | 27.5 | 26.5 | 16 |
| 1BN9-06-08 | G3/8″X19 | Z1/2″X14 | 31 | 36.5 | 22 |
| 1BN9-06-12 | G3/8″X19 | Z3/4″X14 | 34.5 | 44 | 27 |
| 1BN9-08 | G1/2″X14 | Z1/2″X14 | 34.5 | 37.5 | 22 |
| 1BN9-08-06 | G1/2″X14 | Z3/8″X18 | 34.5 | 33 | 22 |
| 1BN9-12 | G3/4″X14 | Z3/4″X14 | 38 | 43.5 | 27 |
| 1BN9-12-08 | G3/4″X14 | Z1/2″X14 | 39 | 42 | 27 |
| 1BN9-12-16 | G3/4″X14 | Z1″X11.5 | 43 | 50 | 33 |
| 1BN9-16 | G1″X11 | Z1″X11.5 | 46 | 50 | 33 |
| 1BN9-16-12 | G1″X11 | Z3/4″X14 | 46 | 46.5 | 33 |
