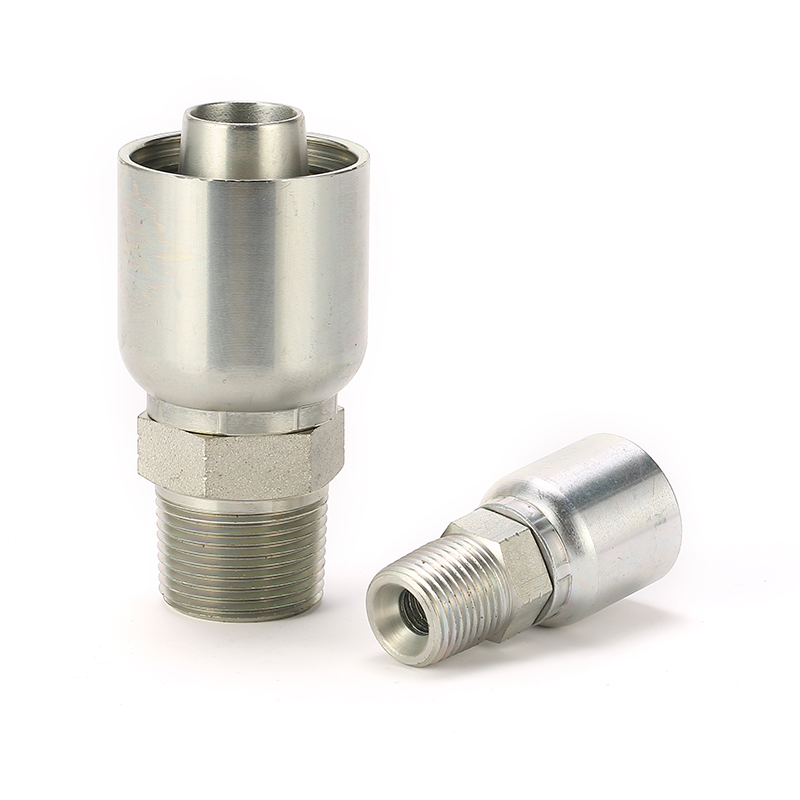

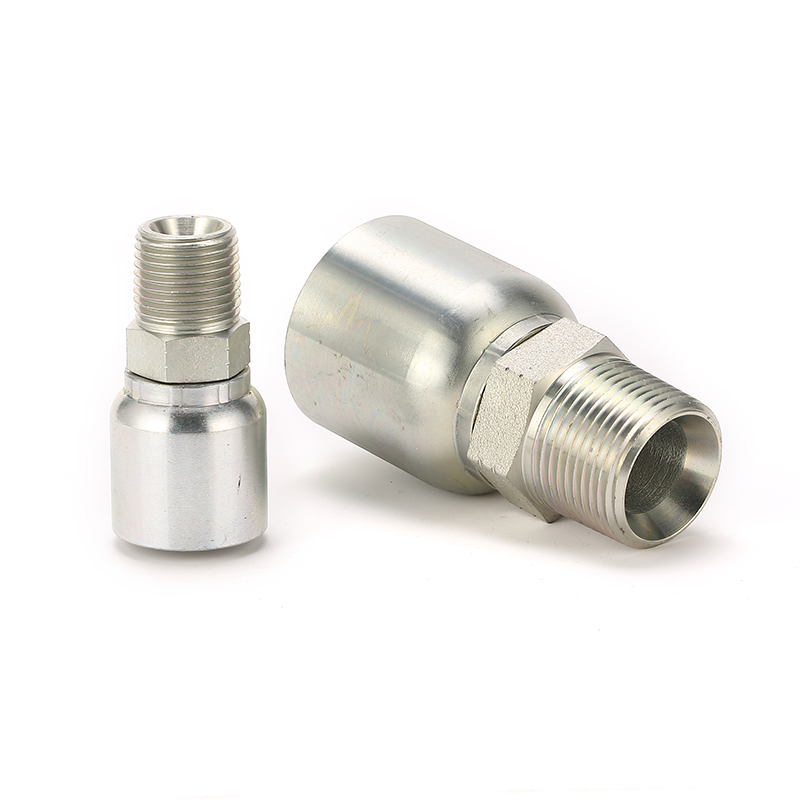

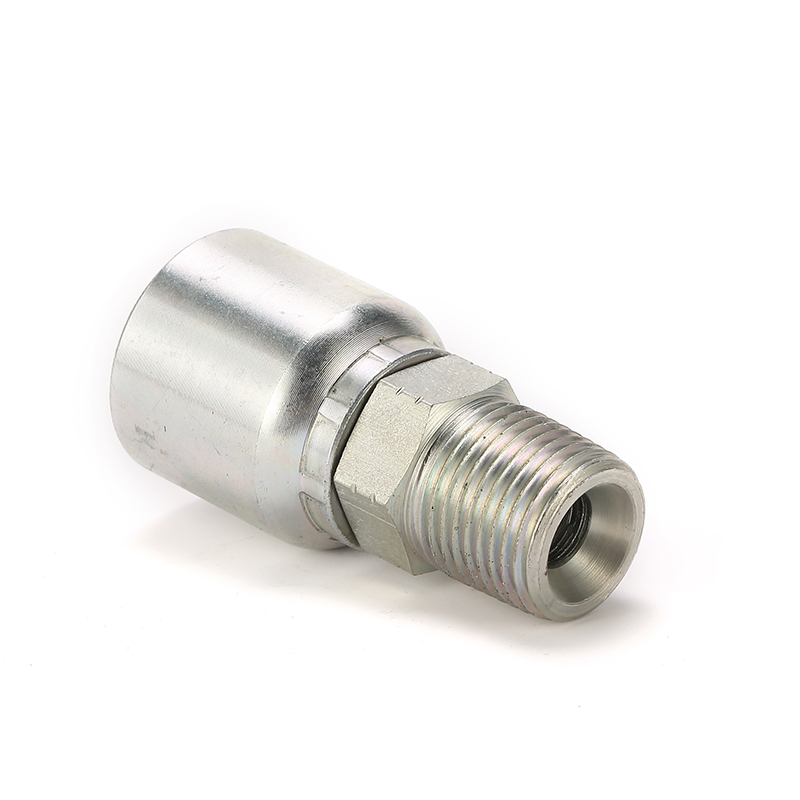

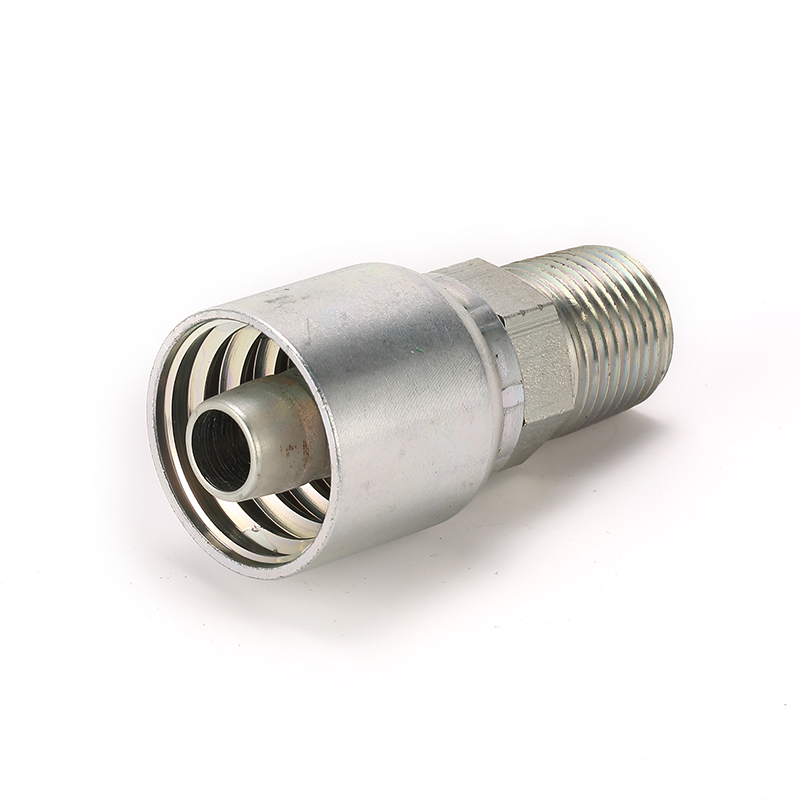

15611PK NPT Male One Piece Fittings

Description:

The 15611pk Male NPT fittings are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

"*" indicates required fields

Topol Power as per the compatible crimped hydraulic fittings manufacturer could provide quality or reliability one piece fittings. We have Metric, JIC, NPTF, ORFS, and flange, we also havethe 43 series, 71 series, 77 series, 91 series and HY series. It could match most the brands of hydraulic hose, such as Parker, Manuli, Gates, and so on.

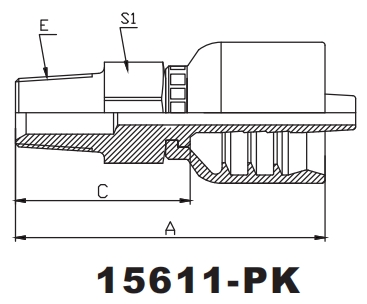

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
15611-02-04PKAST	Z1 /8″X27	6	4	46	24	14.29
15611-04-04PKAST	Z1 /4″X18	6	4	51	29	14.29
15611-04-08PKAST	Z1 /4″X18	12	8	67	33	22.22
15611-06-04PKAST	Z3 /8″X18	6	4	47	25	17.46
15611-06-06PKAST	Z3 /8″X18	10	6	60	31.5	19
15611-08-04PKAST	Z1 /2″X14	6	4	54	32	22.22
15611-08-08PKAST	Z1 /2″X14	12	8	72	38	22.22
15611-10-10PKAST	Z5 /8″X14	16	10	72.5	33.7	24
15611-12-10PKAST	Z3 /4″X14	16	10	72.5	33.7	27
15611-12-12PKAST	Z3 /4″X14	20	12	78	38.9	27
15611-16-16PKAST	Z1 “X11.5	25	16	91	46.2	35
15611-20-20PKAST	Z1.1 /4″X11.5	32	20	104	57	45
15611-24-24PKAST	Z1.1 /2″X11.5	40	24	89	50.6	50
15611-32-32PKAST	Z2 “X11.5	50	32	103	55.8	64

Click to enlarge

Category: NPT Hose Fittings Tags: Carbon Steel, NPT, Male, One Piece

Description
Package& Shipping

Description

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
15611-02-04PKAST	Z1 /8″X27	6	4	46	24	14.29
15611-04-04PKAST	Z1 /4″X18	6	4	51	29	14.29
15611-04-08PKAST	Z1 /4″X18	12	8	67	33	22.22
15611-06-04PKAST	Z3 /8″X18	6	4	47	25	17.46
15611-06-06PKAST	Z3 /8″X18	10	6	60	31.5	19
15611-08-04PKAST	Z1 /2″X14	6	4	54	32	22.22
15611-08-08PKAST	Z1 /2″X14	12	8	72	38	22.22
15611-10-10PKAST	Z5 /8″X14	16	10	72.5	33.7	24
15611-12-10PKAST	Z3 /4″X14	16	10	72.5	33.7	27
15611-12-12PKAST	Z3 /4″X14	20	12	78	38.9	27
15611-16-16PKAST	Z1 “X11.5	25	16	91	46.2	35
15611-20-20PKAST	Z1.1 /4″X11.5	32	20	104	57	45
15611-24-24PKAST	Z1.1 /2″X11.5	40	24	89	50.6	50
15611-32-32PKAST	Z2 “X11.5	50	32	103	55.8	64

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
