Home Hose Assembly Hydraulic Hose Textile Reinforced SAE 100 R3 Hydraulic Hose
SAE 90° elbow Inverted Flare Hydraulic Reusable Fitting
Back to products
SAE 100 R5 Steel Wire Reinforced Hydraulic Braided Hose
Click to enlarge

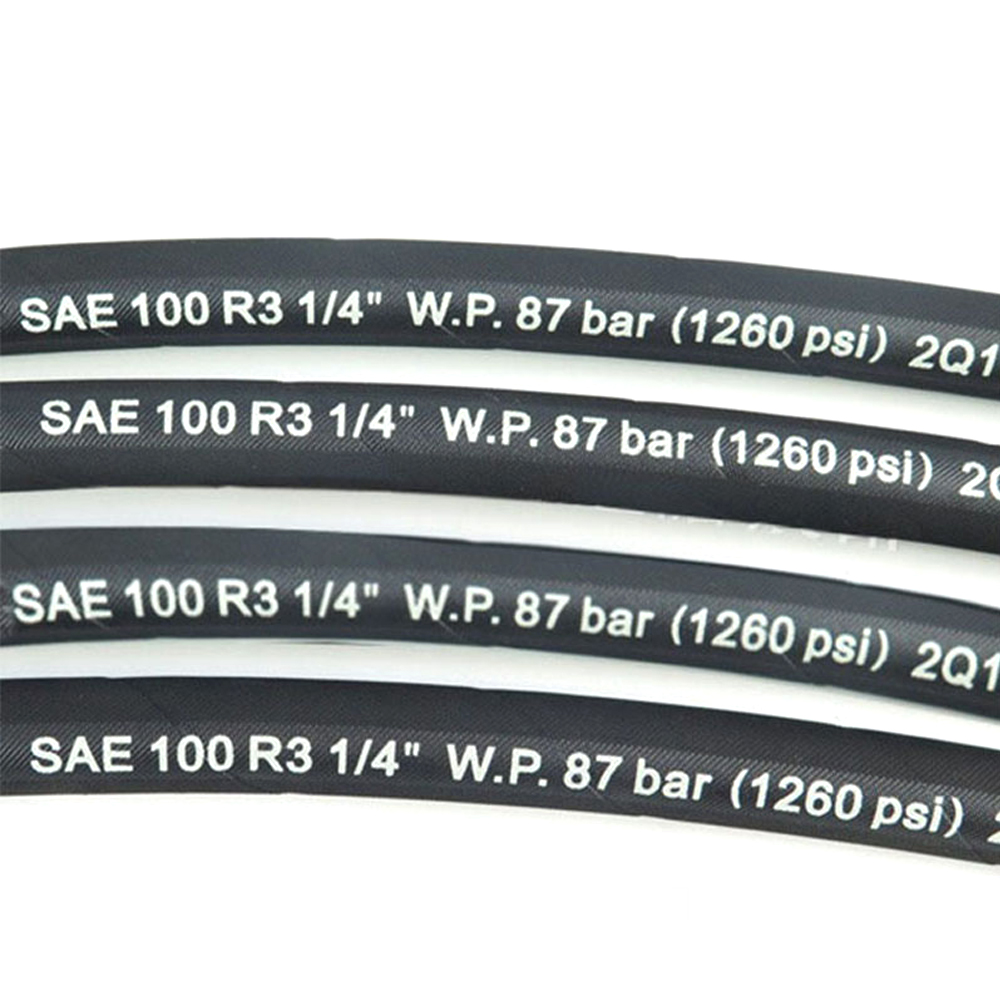

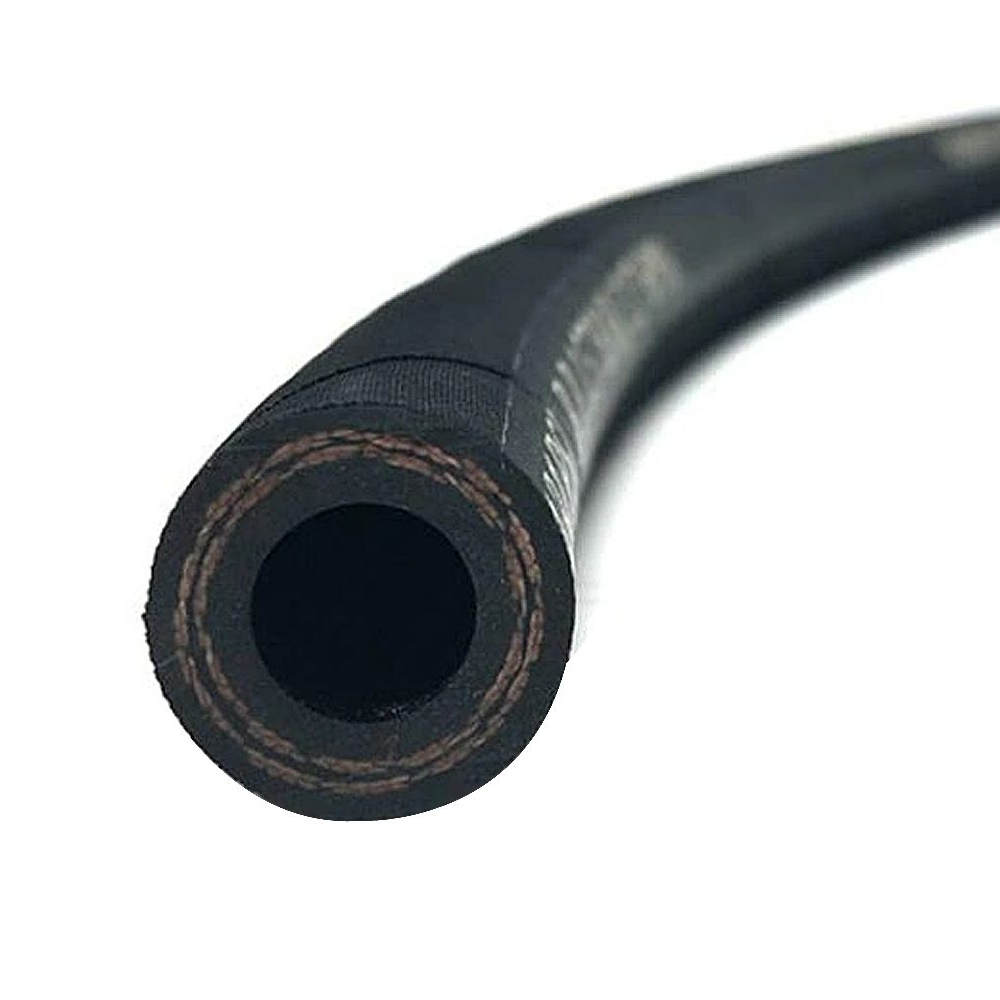

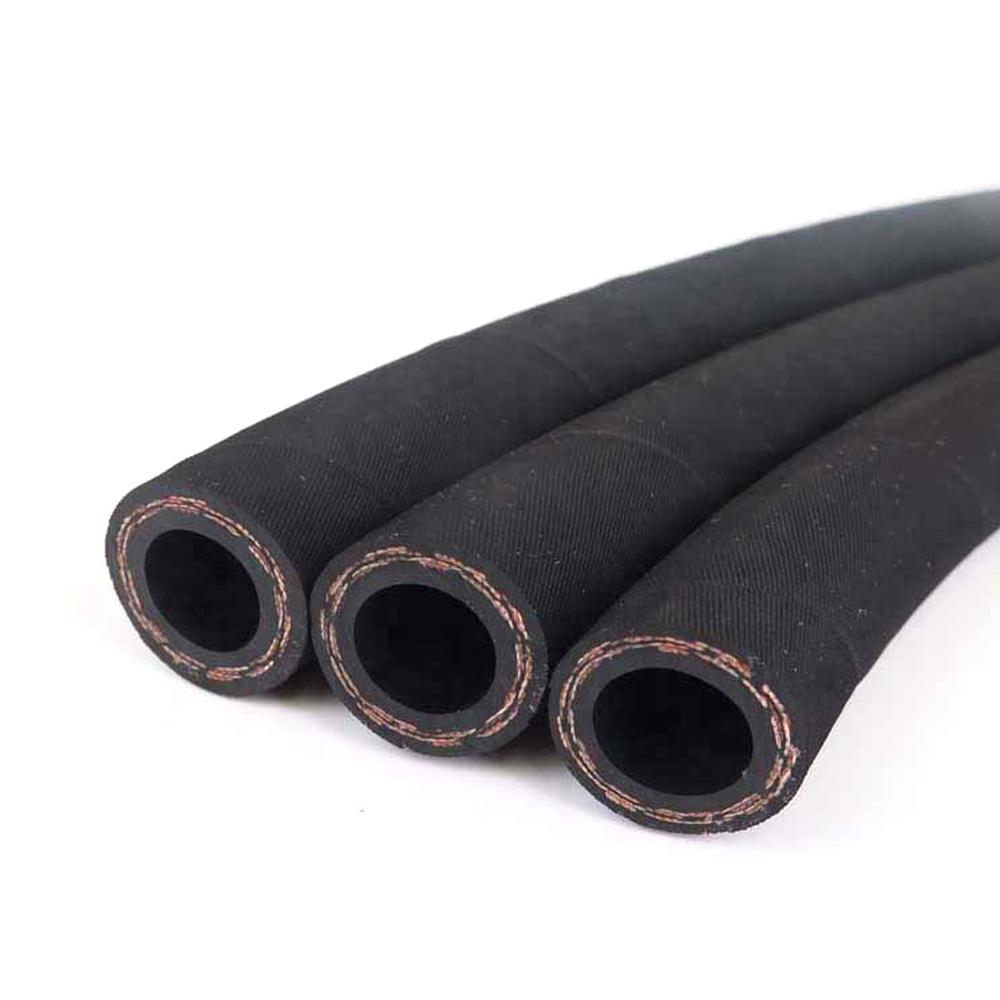

Textile Reinforced SAE 100 R3 Hydraulic Hose

Description:

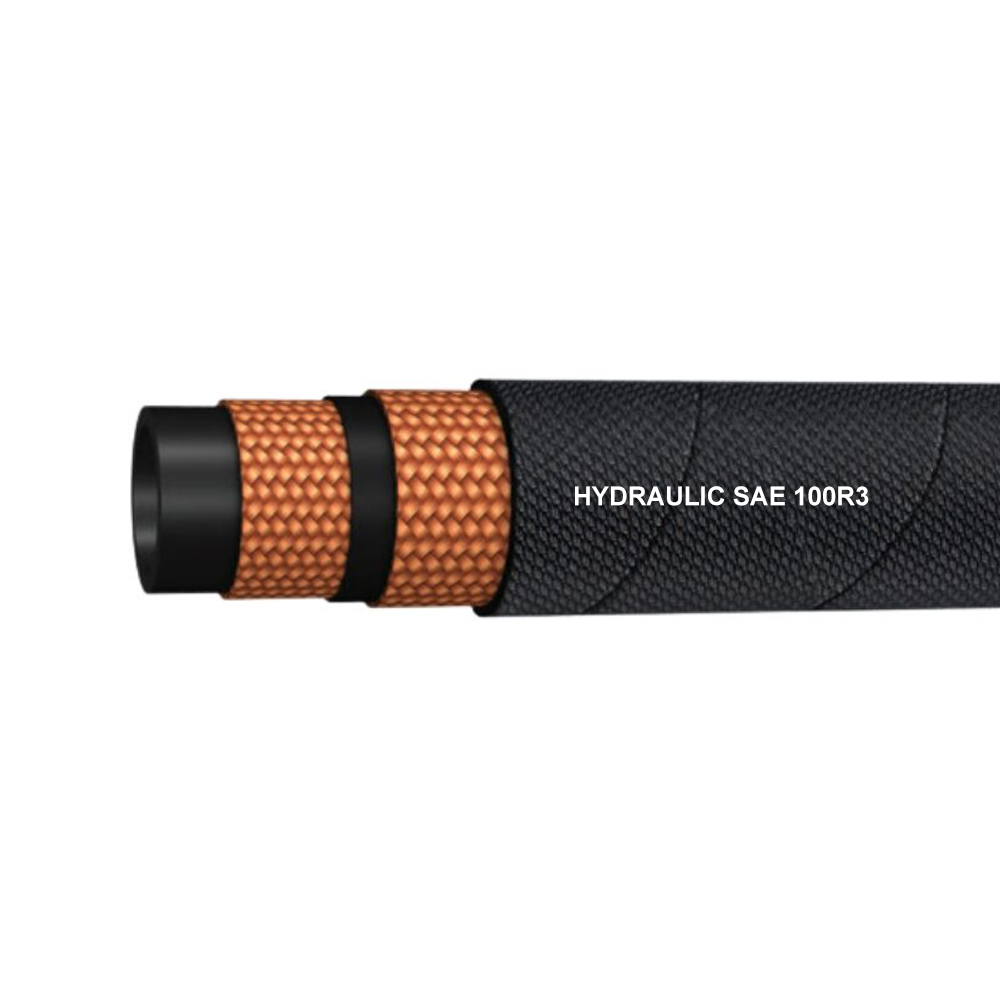

Inner Tube: Oil-resistant synthetic rubber

Reinforcement: Two high tensile textile wire braid

Outer Cover: Abrasion and weather resistant synthetic rubber

Temperature Range: -40°C to +100°C

INQUIRE NOW

"*" indicates required fields

Category: Hydraulic Hose Tags: SAE, Hydraulic Hose, 100R3
Share:
  • Description
  • Package& Shipping
Description

The SAE 100R3 medium-pressure hydraulic hose is specifically engineered for fuel/oil transfer and hydraulic system return/suction applications. Its dual-layer braided textile reinforcement provides secondary protection to the nitrile inner tube even if the outer cover becomes compromised. The oil-resistant compound maintains compatibility with both petroleum-based and water-based hydraulic fluids across a temperature range of -40°C to +100°C.

HOSE PART NO.  DN HOSE SIZE HOSE I.D. HOSE O.D. Working pressure Burst- pressure Bend Radius
mm DASH in mm mm bar bar mm
100R3-03 5 3/16 -3 4.8 13 103 412 80
100R3-04 6.3 1/4 -4 6.4 14.5 86 344 80
100R3-05 8 5/16 -5 7.9 17 83 332 100
100R3-06 10 3/8 -6 9.5 18.7 78 312 100
100R3-08 12.5 1/2 -8 12.7 23 69 276 125
100R3-10 16 5/8 -10 15.9 26.4 60 240 140
100R3-12 19 3/4 -12 19 30.2 52 208 150
100R3-16 25 1 -16 25.4 36.5 39 156 200
100R3-20 31.5 1-1/4 -20 31.8 44.5 26 104 250
100R3-24 38 1-1/2 -24 38.1 52 24 96 280
100R3-32 51 2 -32 50.8 66 20 80 300
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

Related products

SAE 100 R16 Two Steel Wire Braided Hydraulic Hoses

Hydraulic Hose

SAE 100 R12 Four Helical Wire Reinforced Hydraulic Hoses

Hydraulic Hose

SAE 100 R9 4 Wire Hydraulic Hose

Hydraulic Hose

SAE 100 R8 Thermoplastic Hydraulic Nylon Tube Hose

Hydraulic Hose

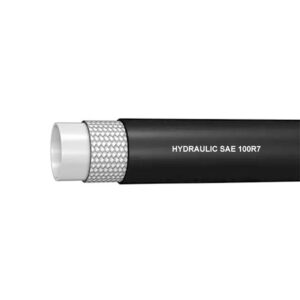

SAE 100 R7 Thermoplastic Hydraulic Hose
