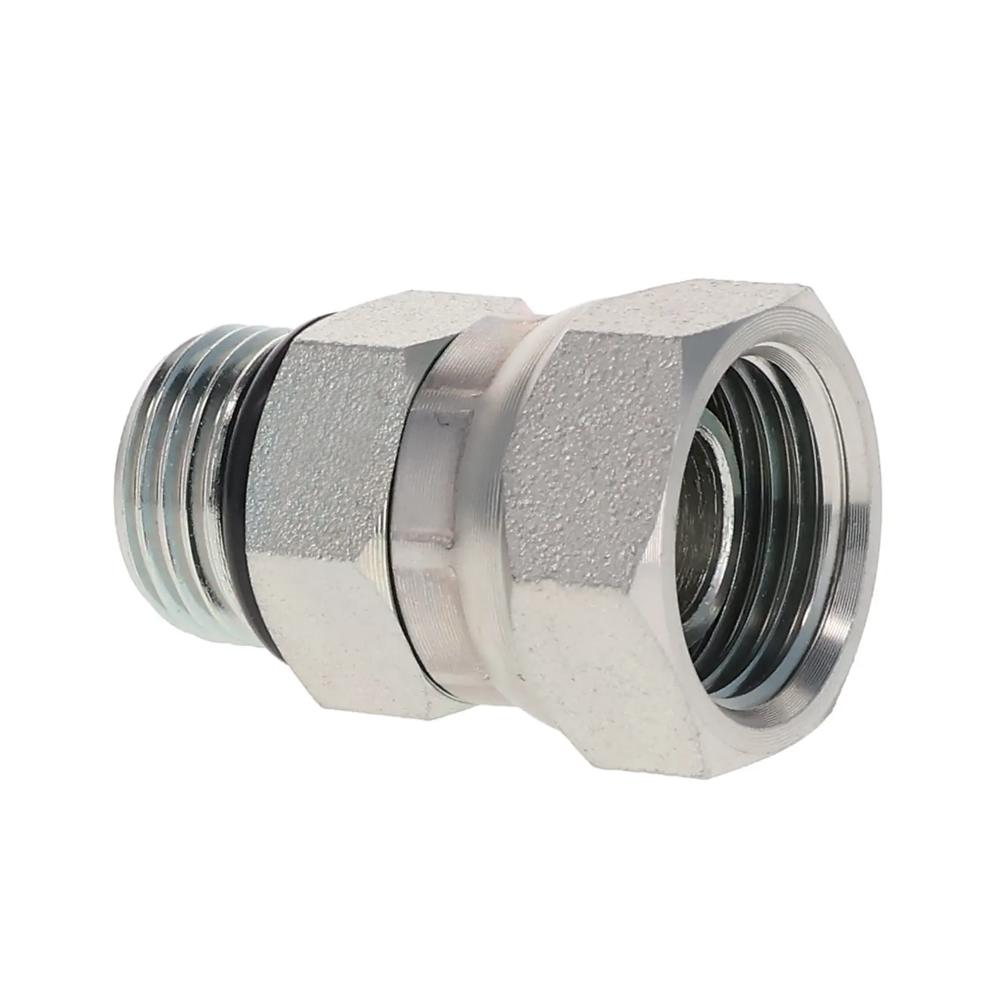

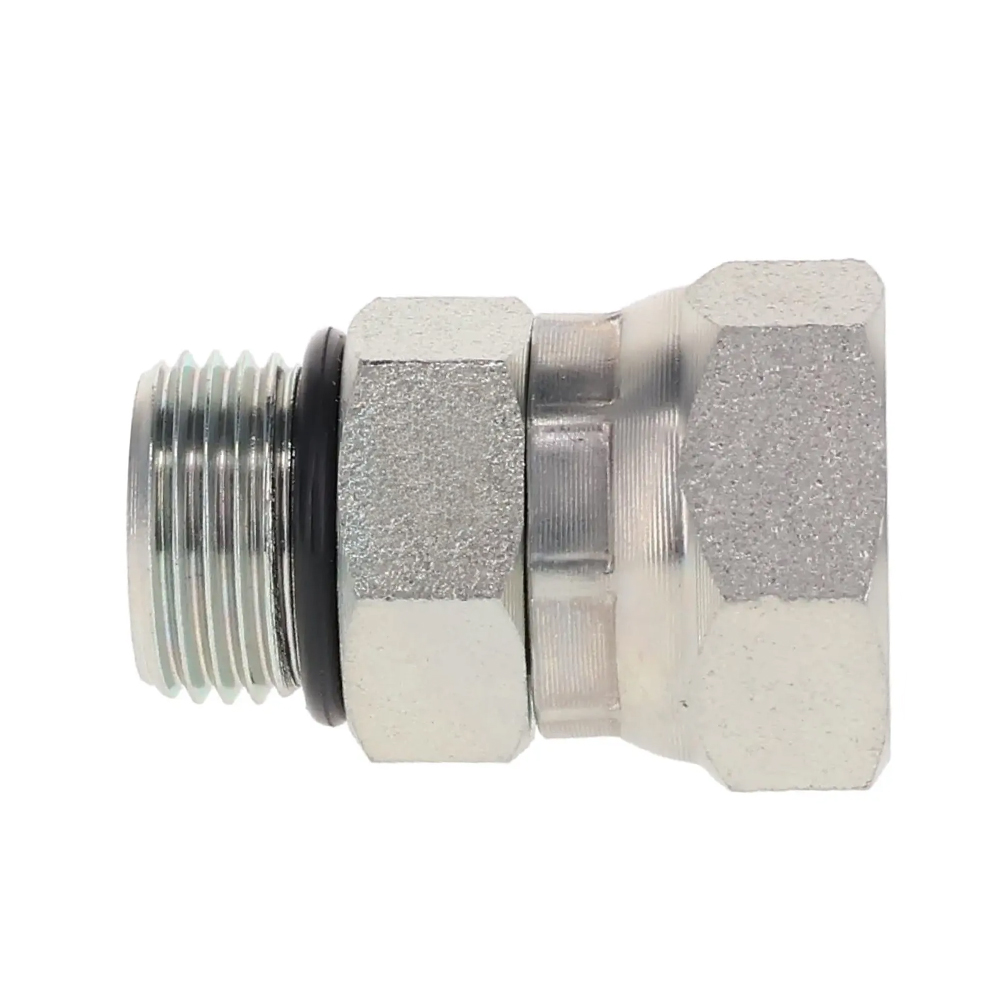

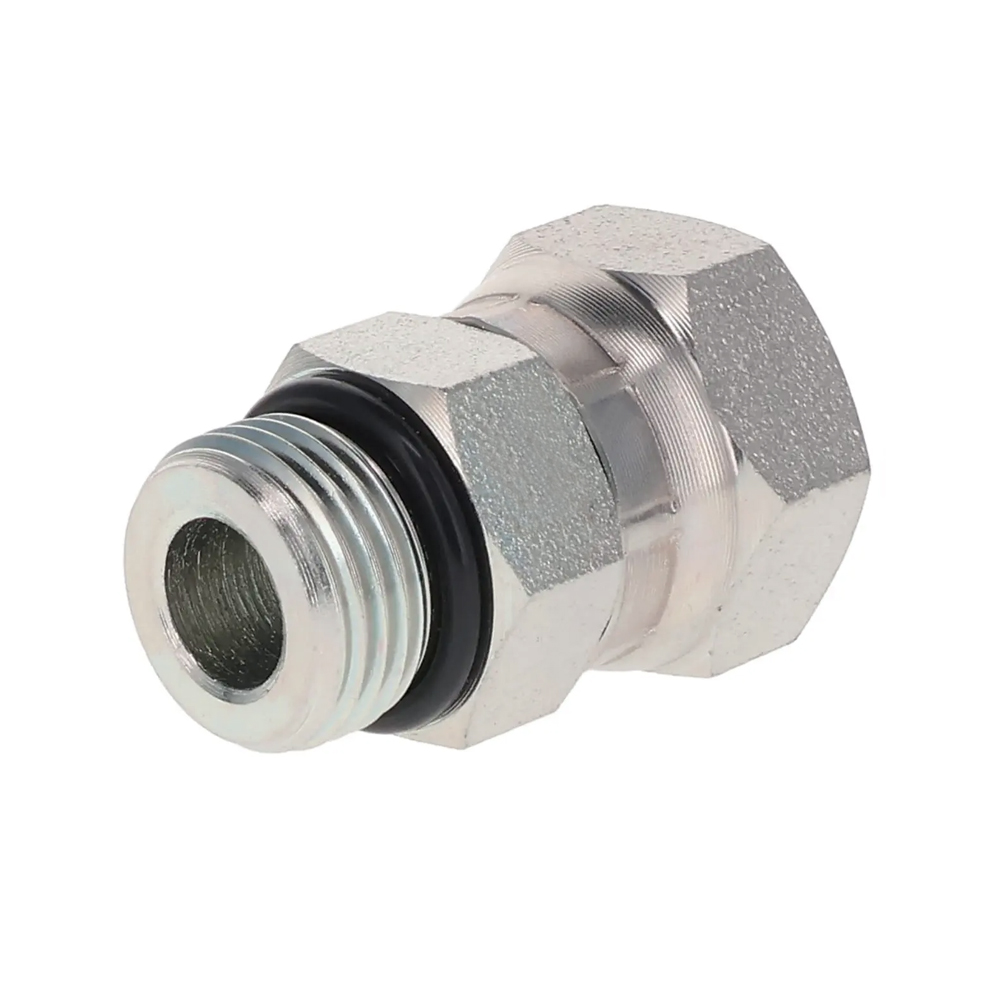

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
|

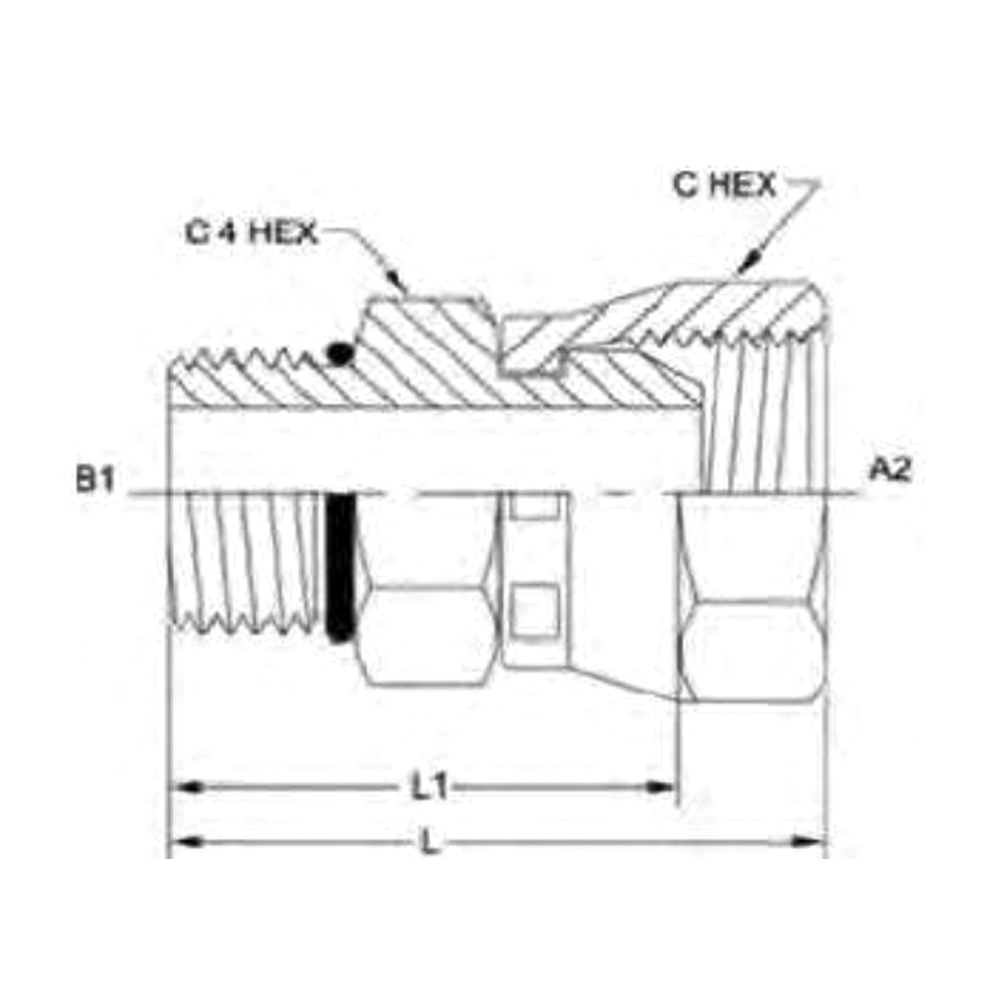

PART NO |
TUBE O.D.
(INCH) |
B1
SAEORB |
A2
NPSM |
L1
(INCH) |
L
(INCH) |
C HEX
(INCH) |
C4 HEX (INCH) |
| 6900-04-02-0 | 1/4 | 7/16-20 | 1/8-27 | 1.00 | 1.14 | 0.562 | 0.562 |
| 6900-04-04-0 | 1/4 | 7/16-20 | 1/4-18 | 1.11 | 1.30 | 0.688 | 0.562 |
| 6900-04-06-0 | 1/4 | 7/16-20 | 3/8-18 | 1.15 | 1.36 | 0.875 | 0.688 |
| 6900-04-08-0 | 1/4 | 7/16-20 | 1/2-14 | 1.21 | 1.49 | 1.000 | 0.812 |
| 6900-05-04-0 | 5/16 | 1/2-20 | 1/4-18 | 1.09 | 1.28 | 0.688 | 0.625 |
| 6900-05-08-0 | 5/16 | 1/2-20 | 1/2-14 | 1.30 | 1.58 | 1.000 | 0.812 |
| 6900-06-04-0 | 3/8 | 9/16-18 | 1/4-18 | 1.07 | 1.26 | 0.688 | 0.688 |
| 6900-06-06-0 | 3/8 | 9/16-18 | 3/8-18 | 1.25 | 1.46 | 0.875 | 0.688 |
| 6900-06-08-0 | 3/8 | 9/16-18 | 1/2-14 | 1.29 | 1.57 | 1.000 | 0.812 |
| 6900-08-04-0 | 1/2 | 3/4-16 | 1/4-18 | 1.17 | 1.36 | 0.688 | 0.875 |
| 6900-08-06-0 | 1/2 | 3/4-16 | 3/8-18 | 1.19 | 1.40 | 0.875 | 0.875 |
| 6900-08-08-0 | 1/2 | 3/4-16 | 1/2-14 | 1.27 | 1.55 | 1.000 | 0.875 |
| 6900-08-12-0 | 1/2 | 3/4-16 | 3/4-14 | 1.41 | 1.76 | 1.250 | 1.000 |
| 6900-10-06-0 | 5/8 | 7/8-14 | 3/8-18 | 1.26 | 1.47 | 0.875 | 1.000 |
| 6900-10-08-0 | 5/8 | 7/8-14 | 1/2-14 | 1.33 | 1.61 | 1.000 | 1.000 |
| 6900-10-12-0 | 5/8 | 7/8-14 | 3/4-14 | 1.37 | 1.72 | 1.250 | 1.000 |
| 6900-12-06-0 | 3/4 | 1-1/16-12 | 3/8-18 | 1.41 | 1.62 | 0.875 | 1.250 |
| 6900-12-08-0 | 3/4 | 1-1/16-12 | 1/2-14 | 1.45 | 1.73 | 1.000 | 1.250 |
| 6900-12-12-0 | 3/4 | 1-1/16-12 | 3/4-14 | 1.60 | 1.95 | 1.250 | 1.250 |
| 6900-12-16-0 | 3/4 | 1-1/16-12 | 1-11-1/2 | 1.70 | 2.05 | 1.500 | 1.250 |
| 6900-14-12-0 | 7/8 | 1-3/16-12 | 3/4-14 | 1.61 | 1.96 | 1.250 | 1.375 |
| 6900-14-16-0 | 7/8 | 1-3/16-12 | 1-11-1/2 | 1.60 | 1.95 | 1.500 | 1.500 |
| 6900-16-08-0 | 1 | 1-5/16-12 | 1/2-14 | 1.62 | 1.90 | 1.000 | 1.500 |
| 6900-16-12-0 | 1 | 1-5/16-12 | 3/4-14 | 1.73 | 2.08 | 1.250 | 1.500 |
| 6900-16-16-0 | 1 | 1-5/16-12 | 1-11-1/2 | 1.71 | 2.06 | 1.500 | 1.500 |
| 6900-16-20-0 | 1 | 1-5/16-12 | 1-1/4-11-1/2 | 1.90 | 2.32 | 1.875 | 1.875 |
| 6900-20-12-0 | 1-1/4 | 1-5/8-12 | 3/4-14 | 1.66 | 2.01 | 1.250 | 1.875 |
| 6900-20-16-0 | 1-1/4 | 1-5/8-12 | 1-11-1/2 | 1.79 | 2.14 | 1.500 | 1.875 |
| 6900-20-20-0 | 1-1/4 | 1-5/8-12 | 1-1/4-11-1/2 | 1.79 | 2.21 | 1.875 | 1.875 |
| 6900-24-20-0 | 1-1/2 | 1-7/8-12 | 1-1/4-11-1/2 | 1.75 | 2.17 | 1.875 | 2.125 |
| 6900-24-24-0 | 1-1/2 | 1-7/8-12 | 1-1/2-11-1/2 | 1.95 | 2.37 | 2.125 | 2.125 |
| 6900-32-32-0 | 2 | 2-1/2-12 | 2-11-1/2 | 2.00 | 2.42 | 2.625 | 2.750 |
