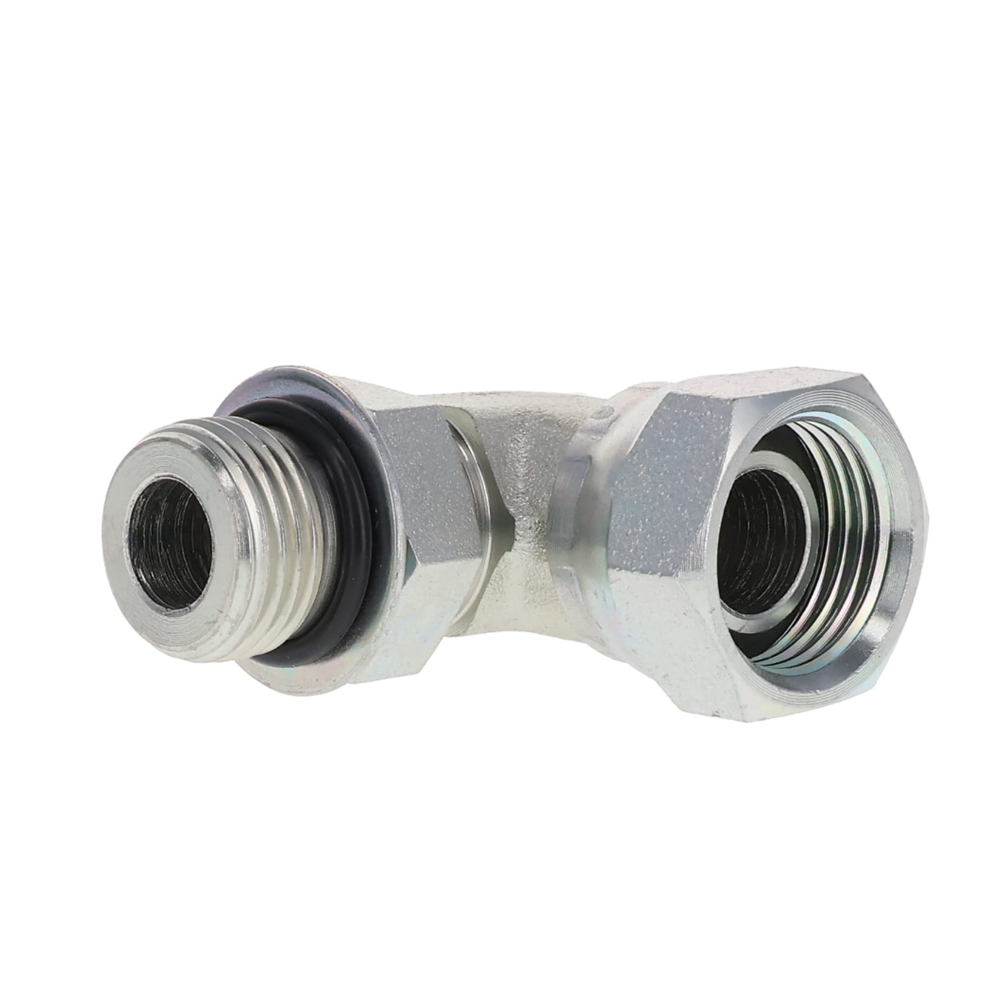

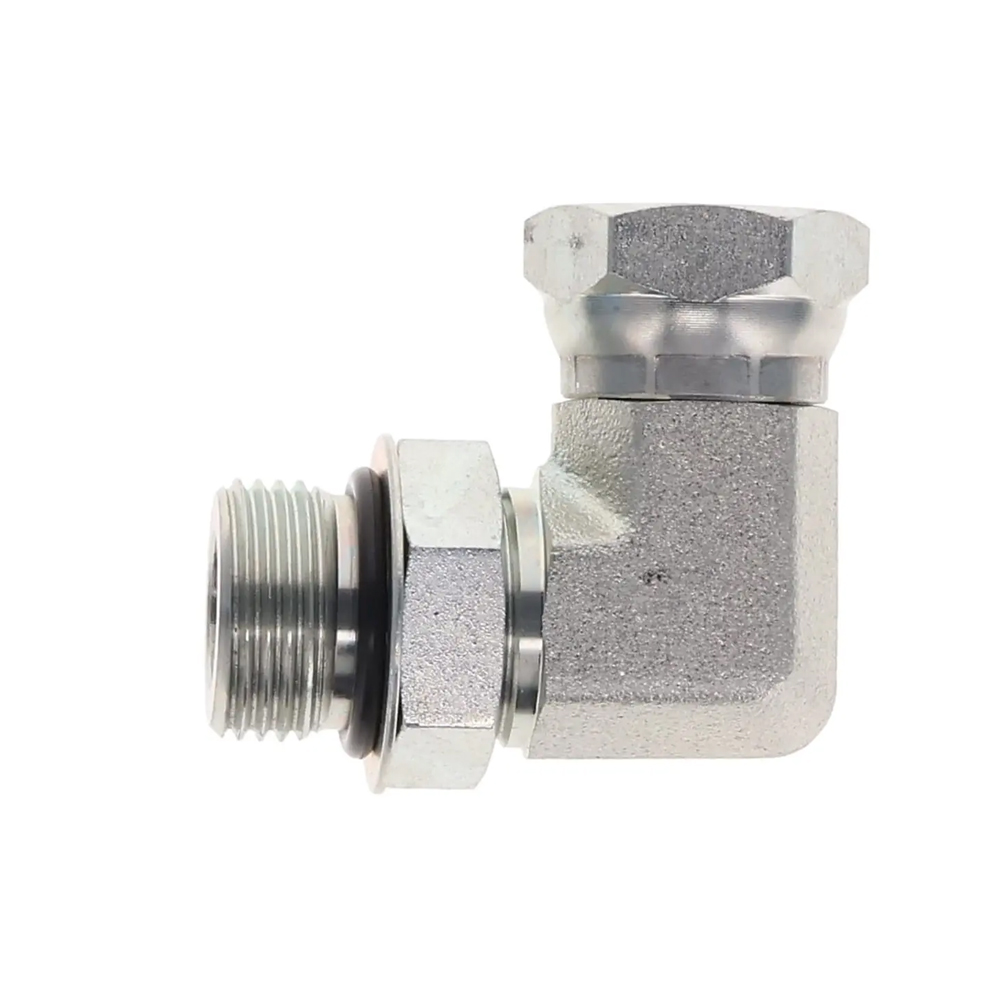

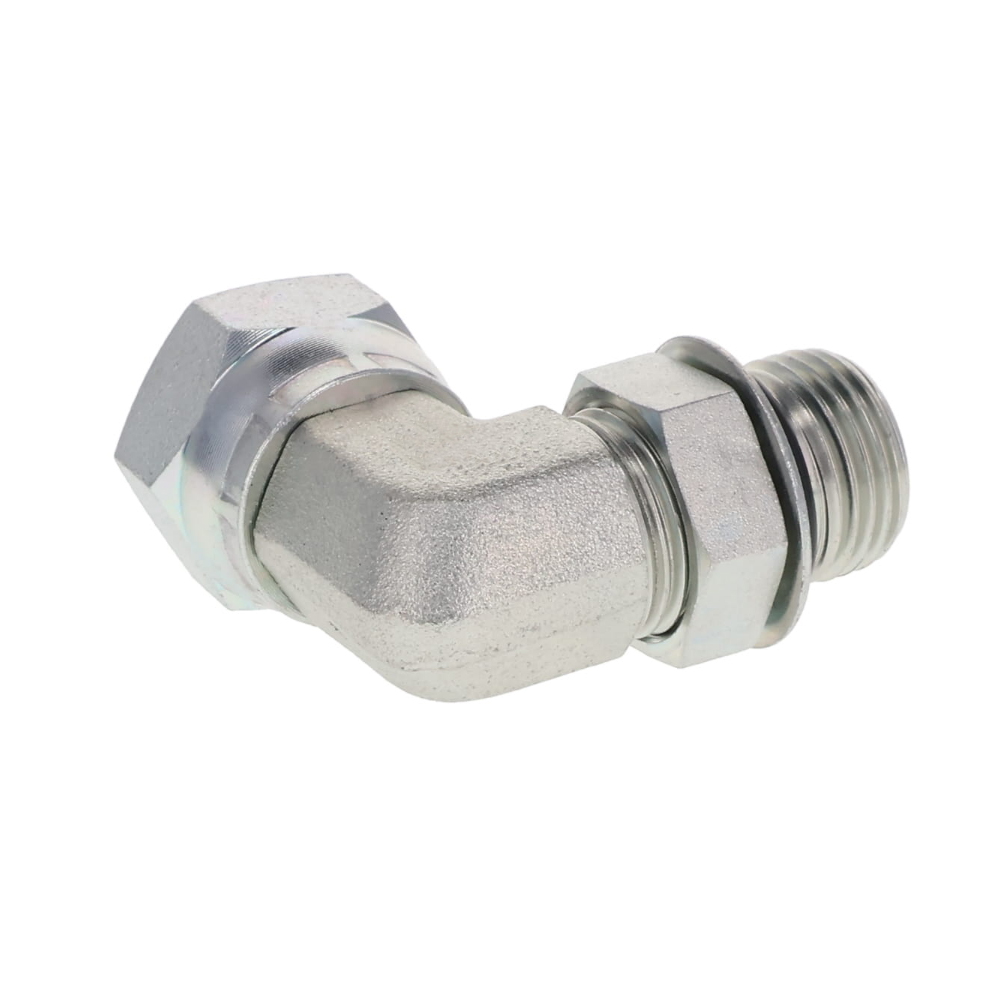

6901 ORB Male x NPSM Female 90° Swivel Adapter

Description:

6901 male ORB To female NPT 90° swivel adapters can be used to convert to NPSM conforming to SAE J514.

"*" indicates required fields

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

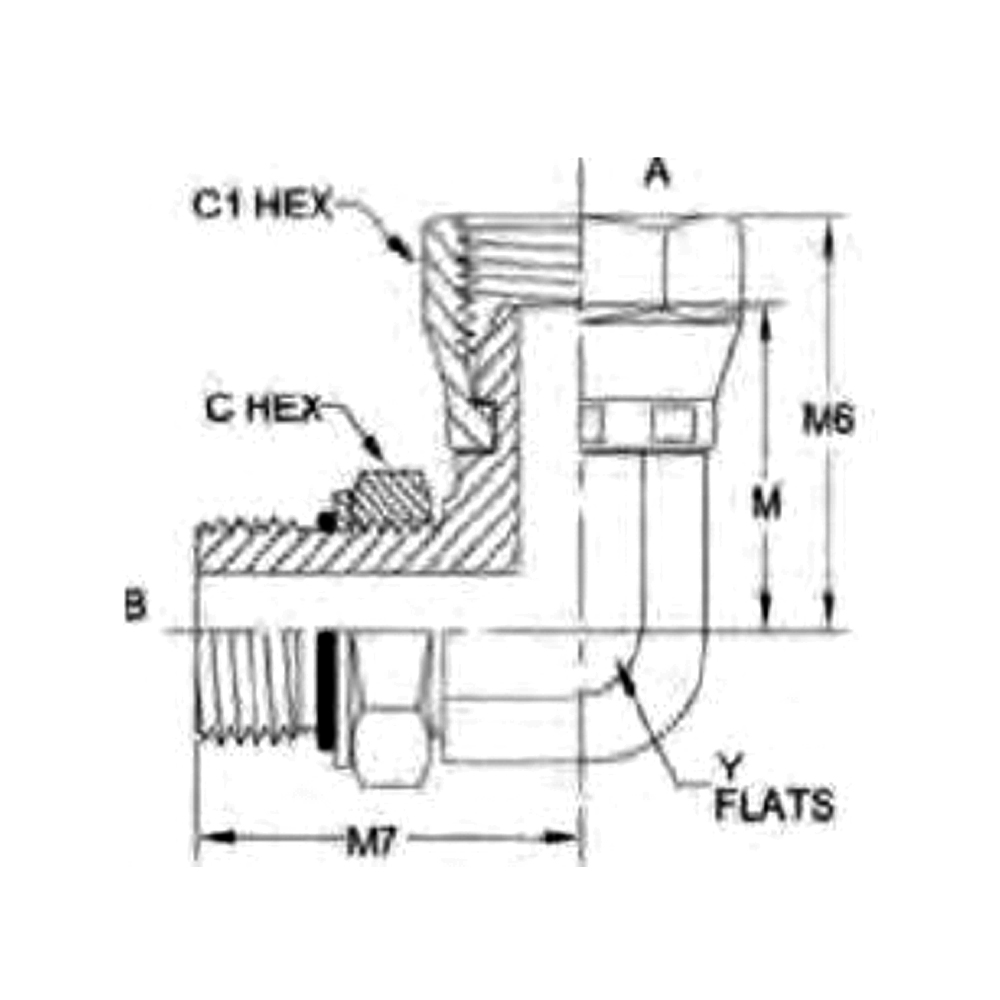

PART NO	TUBE O.D.(INCH)	B SAEORB	A NPSM	M7 (INCH)	M (INCH)	M6 (INCH)	C HEX (INCH)	C1 HEX (INCH)	Y FLATS (INCH)
6901-04-02-NOW-FG	1/4	7/16-20	1/8-27	1.03	0.70	0.84	0.563	0.562	0.438
6901-04-04-NWO-FG	1/4	7/16-20	1/4-18	1.19	0.88	1.07	0.563	0.688	0.562
6901-04-06-NWO-FG	1/4	7/16-20	3/8-18	1.26	0.99	1.20	0.563	0.875	0.750
6901-04-08-NWO-FG	1/4	7/16-20	1/2-14	1.26	1.11	1.39	0.563	1.000	0.750
6901-05-04-NWO-FG	5/16	1/2-20	1/4-18	1.13	0.88	1.07	0.625	0.688	0.562
6901-06-04-NWO-FG	3/8	9/16-18	1/4-18	1.25	0.88	1.07	0.688	0.688	0.562
6901-06-06-NWO-FG	3/8	9/16-18	3/8-18	1.32	0.99	1.20	0.688	0.875	0.750
6901-06-08-NWO-FG	3/8	9/16-18	1/2-14	1.32	1.11	1.39	0.688	1.000	0.750
6901-08-04-NWO-FG	1/2	3/4-16	1/4-18	1.45	0.97	1.16	0.875	0.688	0.750
6901-08-06-NWO-FG	1/2	3/4-16	3/8-18	1.45	0.99	1.20	0.875	0.875	0.750
6901-08-08-NWO-FG	1/2	3/4-16	1/2-14	1.45	1.11	1.39	0.875	1.000	0.750
6901-08-12-NWO-FG	1/2	3/4-16	3/4-14	1.62	1.30	1.65	0.875	1.250	1.062
6901-10-04-NWO-FG	5/8	7/8-14	1/4-18	1.70	1.02	1.21	1.000	0.688	0.875
6901-10-06-NWO-FG	5/8	7/8-14	3/8-18	1.70	1.04	1.25	1.000	0.875	0.875
6901-10-08-NWO-FG	5/8	7/8-14	1/2-14	1.70	1.11	1.39	1.000	1.000	0.875
6901-10-12-NWO-FG	5/8	7/8-14	3/4-14	1.78	1.30	1.65	1.000	1.250	1.062
6901-12-06-NWO-FG	3/4	1-1/16-12	3/8-18	1.94	1.26	1.47	1.250	0.875	1.062
6901-12-08-NWO-FG	3/4	1-1/16-12	1/2-14	1.94	1.30	1.58	1.250	1.000	1.062
6901-12-12-NWO-FG	3/4	1-1/16-12	3/4-14	1.94	1.30	1.65	1.250	1.250	1.062
6901-12-16-NWO-FG	3/4	1-1/16-12	1-11-1/2	2.05	1.54	1.89	1.250	1.500	1.312
6901-14-12-NWO-FG	7/8	1-3/16-12	3/4-14	2.00	1.43	1.78	1.375	1.250	1.312
6901-14-16-NWO-FG	7/8	1-3/16-12	1-11-1/2	2.05	1.54	1.89	1.375	1.500	1.312
6901-16-12-NWO-FG	1	1-5/16-12	3/4-14	2.05	1.43	1.78	1.500	1.250	1.312
6901-16-16-NWO-FG	1	1-5/16-12	1-11-1/2	2.05	1.54	1.89	1.500	1.500	1.312
6901-16-20-NWO-FG	1	1-5/16-12	1-1/4-11-1/2	2.25	1.73	2.15	1.500	1.875	1.625
6901-20-12-NWO-FG	1-1/4	1-5/8-12	3/4-14	2.25	1.56	1.91	1.875	1.250	1.625
6901-20-16-NWO-FG	1-1/4	1-5/8-12	1-11-1/2	2.25	1.70	2.05	1.875	1.500	1.625
6901-20-20-NWO-FG	1-1/4	1-5/8-12	1-1/4-11-1/2	2.25	1.73	2.15	1.875	1.875	1.625
6901-24-20-NWO-FG	1-1/2	1-7/8-12	1-1/4-11-1/2	2.39	1.77	2.19	2.125	1.875	1.875
6901-24-24-NWO-FG	1-1/2	1-7/8-12	1-1/2-11-1/2	2.39	1.89	2.31	2.125	2.125	1.875
6901-32-32-NWO-FG	2	2-1/2-12	2-11-1/2	2.89	2.27	2.69	2.750	2.625	2.500

Click to enlarge

Category: SAE ORB Adapters Tags: Male, NPSM, ORB, 6901

Description
Package& Shipping

Description

PART NO	TUBE O.D.(INCH)	B SAEORB	A NPSM	M7 (INCH)	M (INCH)	M6 (INCH)	C HEX (INCH)	C1 HEX (INCH)	Y FLATS (INCH)
6901-04-02-NOW-FG	1/4	7/16-20	1/8-27	1.03	0.70	0.84	0.563	0.562	0.438
6901-04-04-NWO-FG	1/4	7/16-20	1/4-18	1.19	0.88	1.07	0.563	0.688	0.562
6901-04-06-NWO-FG	1/4	7/16-20	3/8-18	1.26	0.99	1.20	0.563	0.875	0.750
6901-04-08-NWO-FG	1/4	7/16-20	1/2-14	1.26	1.11	1.39	0.563	1.000	0.750
6901-05-04-NWO-FG	5/16	1/2-20	1/4-18	1.13	0.88	1.07	0.625	0.688	0.562
6901-06-04-NWO-FG	3/8	9/16-18	1/4-18	1.25	0.88	1.07	0.688	0.688	0.562
6901-06-06-NWO-FG	3/8	9/16-18	3/8-18	1.32	0.99	1.20	0.688	0.875	0.750
6901-06-08-NWO-FG	3/8	9/16-18	1/2-14	1.32	1.11	1.39	0.688	1.000	0.750
6901-08-04-NWO-FG	1/2	3/4-16	1/4-18	1.45	0.97	1.16	0.875	0.688	0.750
6901-08-06-NWO-FG	1/2	3/4-16	3/8-18	1.45	0.99	1.20	0.875	0.875	0.750
6901-08-08-NWO-FG	1/2	3/4-16	1/2-14	1.45	1.11	1.39	0.875	1.000	0.750
6901-08-12-NWO-FG	1/2	3/4-16	3/4-14	1.62	1.30	1.65	0.875	1.250	1.062
6901-10-04-NWO-FG	5/8	7/8-14	1/4-18	1.70	1.02	1.21	1.000	0.688	0.875
6901-10-06-NWO-FG	5/8	7/8-14	3/8-18	1.70	1.04	1.25	1.000	0.875	0.875
6901-10-08-NWO-FG	5/8	7/8-14	1/2-14	1.70	1.11	1.39	1.000	1.000	0.875
6901-10-12-NWO-FG	5/8	7/8-14	3/4-14	1.78	1.30	1.65	1.000	1.250	1.062
6901-12-06-NWO-FG	3/4	1-1/16-12	3/8-18	1.94	1.26	1.47	1.250	0.875	1.062
6901-12-08-NWO-FG	3/4	1-1/16-12	1/2-14	1.94	1.30	1.58	1.250	1.000	1.062
6901-12-12-NWO-FG	3/4	1-1/16-12	3/4-14	1.94	1.30	1.65	1.250	1.250	1.062
6901-12-16-NWO-FG	3/4	1-1/16-12	1-11-1/2	2.05	1.54	1.89	1.250	1.500	1.312
6901-14-12-NWO-FG	7/8	1-3/16-12	3/4-14	2.00	1.43	1.78	1.375	1.250	1.312
6901-14-16-NWO-FG	7/8	1-3/16-12	1-11-1/2	2.05	1.54	1.89	1.375	1.500	1.312
6901-16-12-NWO-FG	1	1-5/16-12	3/4-14	2.05	1.43	1.78	1.500	1.250	1.312
6901-16-16-NWO-FG	1	1-5/16-12	1-11-1/2	2.05	1.54	1.89	1.500	1.500	1.312
6901-16-20-NWO-FG	1	1-5/16-12	1-1/4-11-1/2	2.25	1.73	2.15	1.500	1.875	1.625
6901-20-12-NWO-FG	1-1/4	1-5/8-12	3/4-14	2.25	1.56	1.91	1.875	1.250	1.625
6901-20-16-NWO-FG	1-1/4	1-5/8-12	1-11-1/2	2.25	1.70	2.05	1.875	1.500	1.625
6901-20-20-NWO-FG	1-1/4	1-5/8-12	1-1/4-11-1/2	2.25	1.73	2.15	1.875	1.875	1.625
6901-24-20-NWO-FG	1-1/2	1-7/8-12	1-1/4-11-1/2	2.39	1.77	2.19	2.125	1.875	1.875
6901-24-24-NWO-FG	1-1/2	1-7/8-12	1-1/2-11-1/2	2.39	1.89	2.31	2.125	2.125	1.875
6901-32-32-NWO-FG	2	2-1/2-12	2-11-1/2	2.89	2.27	2.69	2.750	2.625	2.500

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
