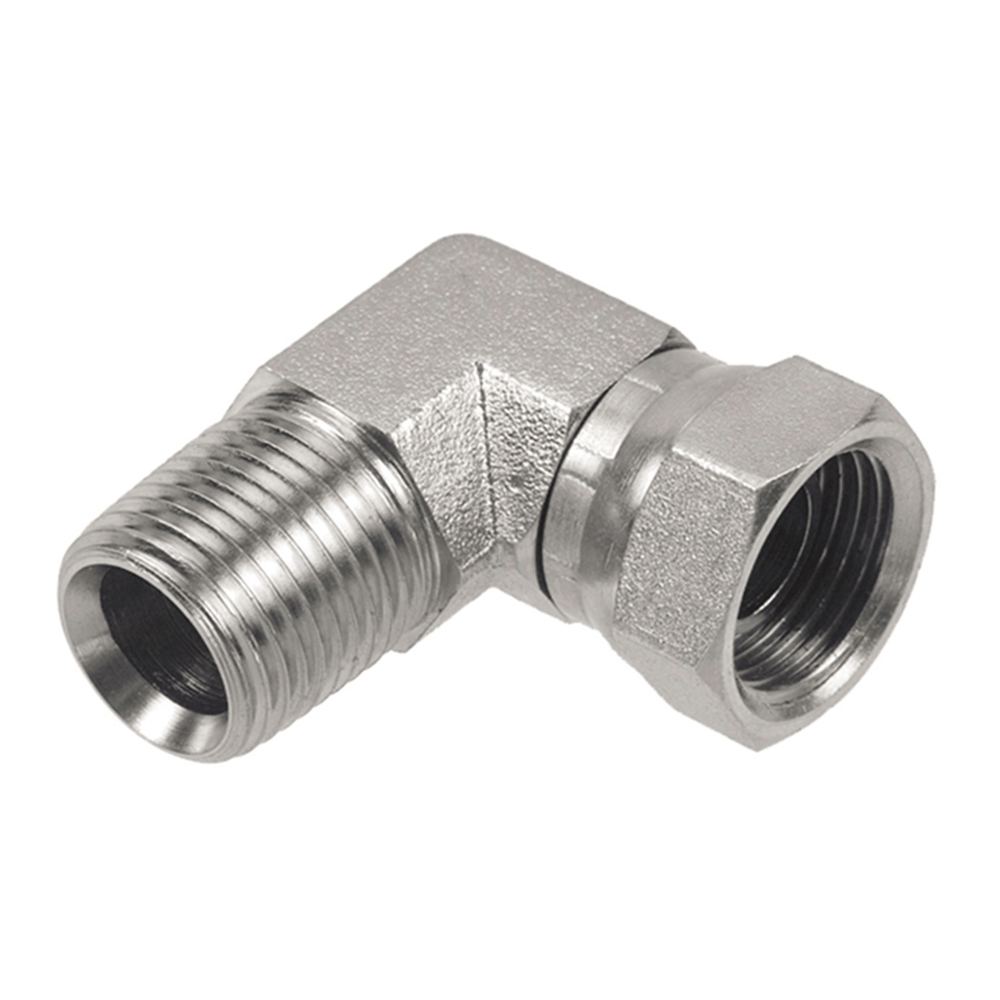

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

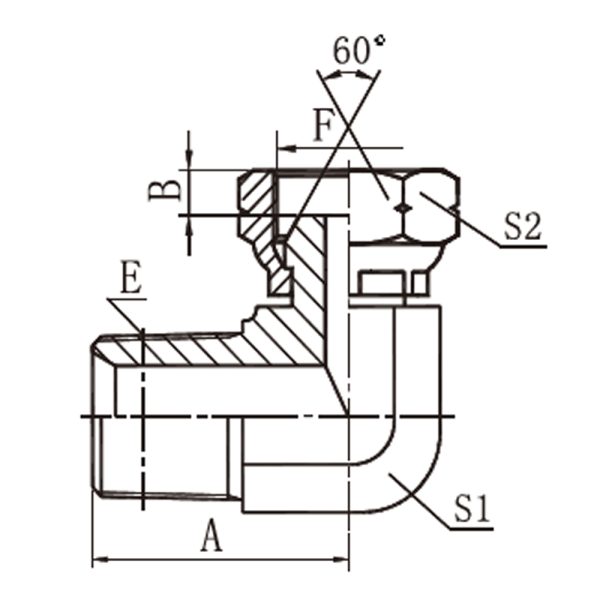

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | S1 | S2 | |
| 2NB9-02 | Z1/8″X27 | G1/8″X28 | 21 | 6 | 11 | 14 |
| 2NB9-04 | Z1/4″X18 | G1/4″X19 | 25.5 | 5 | 14 | 19 |
| 2NB9-04-06 | Z1/4″X18 | G3/8″X19 | 25.5 | 6.5 | 14 | 22 |
| 2NB9-06 | Z3/8″X18 | G3/8″X19 | 31 | 6.5 | 19 | 22 |
| 2NB9-06-04 | Z3/8″X18 | G1/4″X19 | 31 | 5 | 19 | 19 |
| 2NB9-06-08 | Z3/8″X18 | G1/2″X14 | 31 | 7.8 | 19 | 27 |
| 2NB9-08 | Z1/2″X14 | G1/2″X14 | 37.3 | 7.8 | 22 | 27 |
| 2NB9-08-06 | Z1/2″X14 | G3/8″X19 | 36.7 | 6.5 | 22 | 22 |
| 2NB9-12 | Z3/4″X14 | G3/4″X14 | 43.5 | 10.5 | 27 | 32 |
| 2NB9-12-08 | Z3/4″X14 | G1/2″X14 | 44 | 7.8 | 27 | 27 |
| 2NB9-12-16 | Z3/4″X14 | G1″X11 | 45 | 11 | 30 | 41 |
| 2NB9-16 | Z1″X11.5 | G1″X11 | 50 | 11 | 33 | 41 |
| 2NB9-16-12 | Z1″X11.5 | G3/4″X14 | 50 | 10.5 | 33 | 32 |
| 2NB9-20 | Z1.1/4″X11.5 | G1.1/4″X11 | 54.5 | 11.5 | 41 | 50 |
| 2NB9-24 | Z1.1/2″X11.5 | G1.1/2″X11 | 59 | 12.5 | 48 | 55 |
| 2NB9-32 | Z2″X11.5 | G2″X11 | 73.5 | 17 | 63 | 70 |
