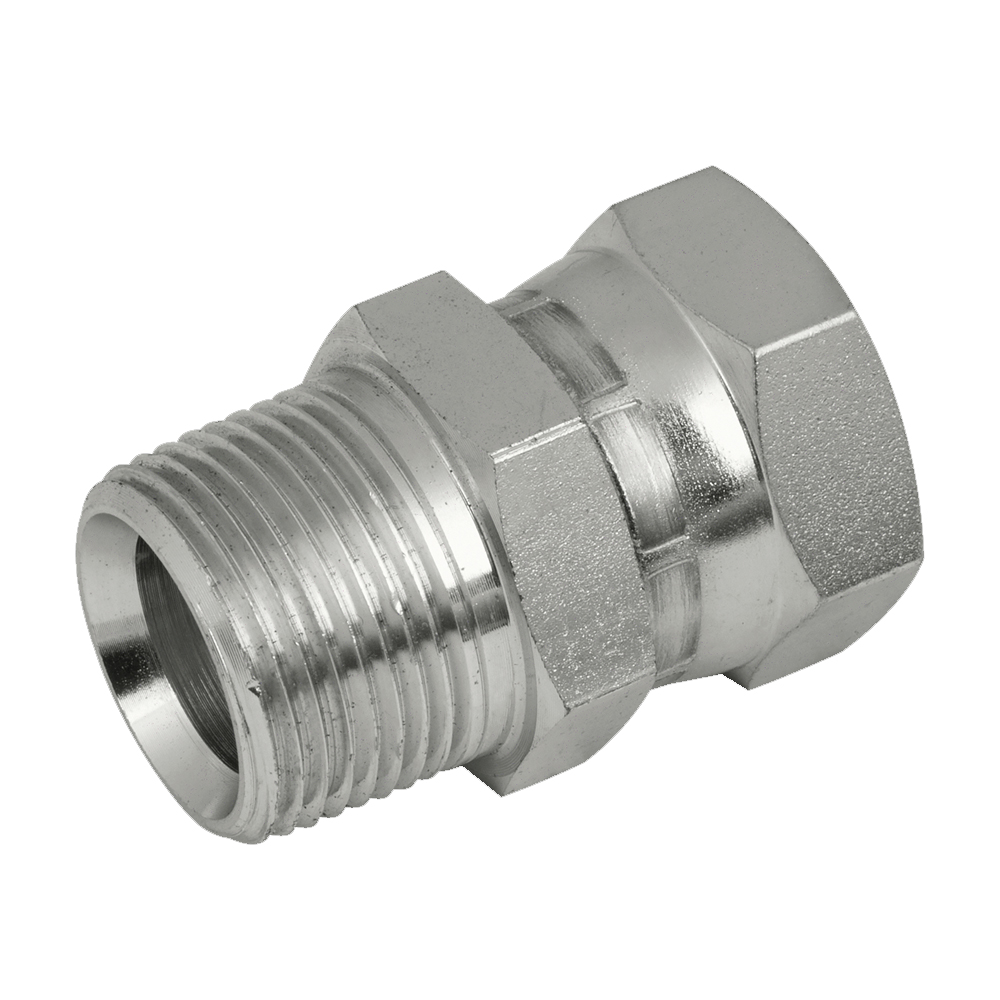

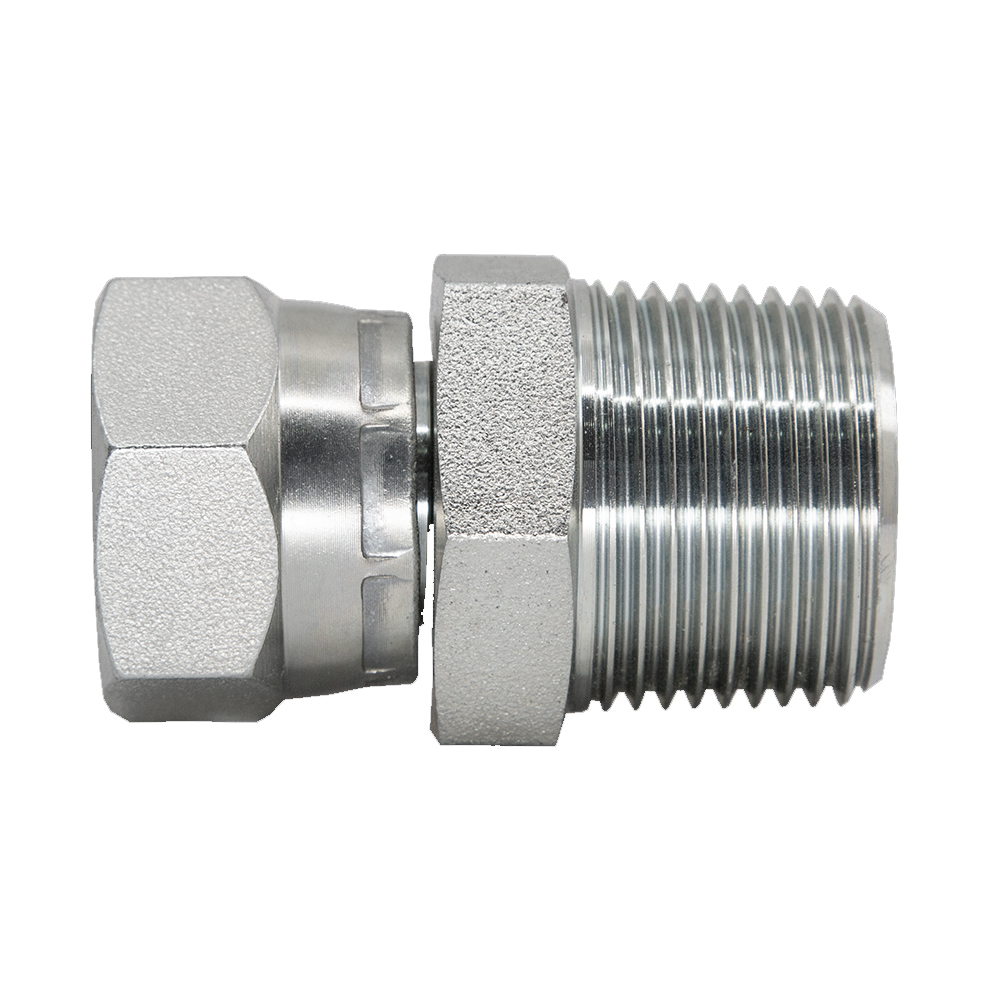

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

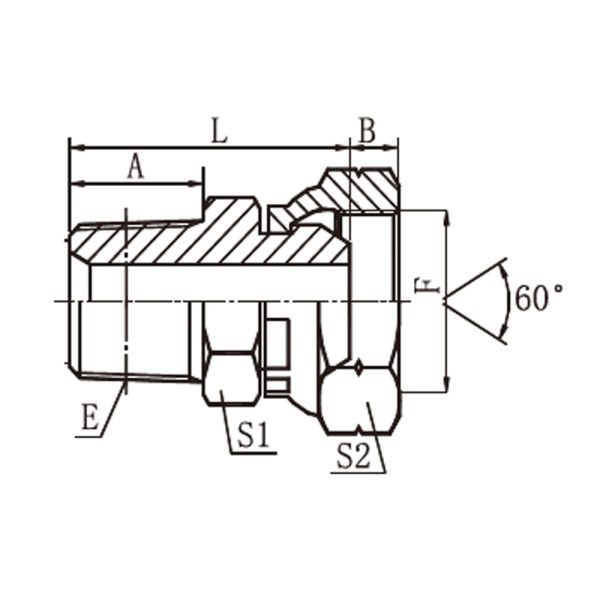

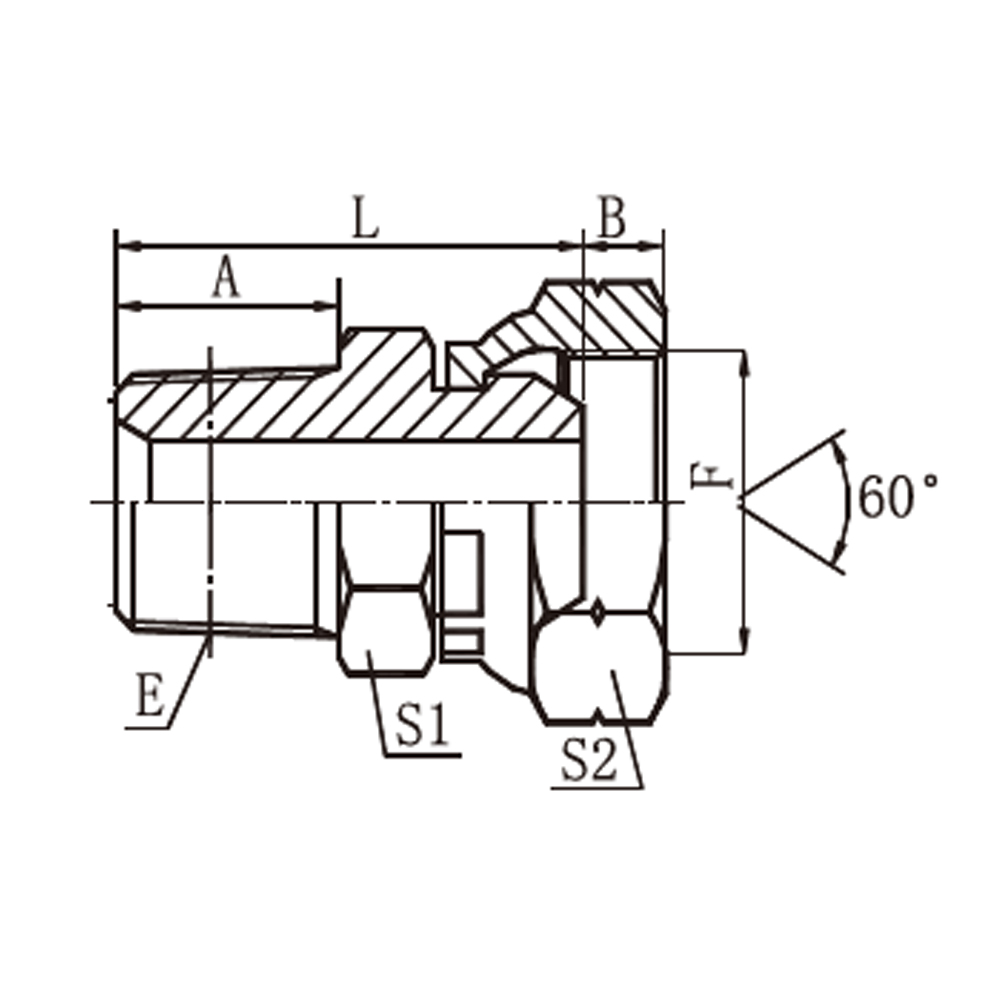

| PART NO. | THREAD | DIMENSIONS | |||||
| E | F | A | B | L | S1 | S2 | |
| 2NB-02 | Z1/8″X27 | G1/8″X28 | 10.5 | 6 | 25.5 | 12 | 14 |
| 2NB-02-04 | Z1/8″X27 | G1/4″X19 | 10.5 | 5 | 27 | 14 | 19 |
| 2NB-04-02 | Z1/4″X18 | G1/8″X28 | 15 | 6 | 30 | 17 | 14 |
| 2NB-04 | Z1/4″X18 | G1/4″X19 | 15 | 5 | 31 | 17 | 19 |
| 2NB-04-06 | Z1/4″X18 | G3/8^X19 | 15 | 6.5 | 33 | 17 | 22 |
| 2NB-04-08 | Z1/4″X18 | G1/2″X14 | 15 | 7.8 | 35 | 19 | 27 |
| 2NB-06 | Z3/8″X18 | G3/8″X19 | 16 | 6.5 | 35 | 19 | 22 |
| 2NB-06-04 | Z3/8″X18 | G1/4″X19 | 16 | 5 | 33 | 19 | 19 |
| 2NB-06-08 | Z3/8″X18 | G1/2″X14 | 16 | 7.8 | 36 | 19 | 27 |
| 2NB-08 | Z1/2″X14 | G1/2″X14 | 19.5 | 7.8 | 41 | 22 | 27 |
| 2NB-08-04 | Z1/2″X14 | G1/4″X19 | 19.5 | 5 | 38.5 | 22 | 19 |
| 2NB-08-06 | Z1/2″X14 | G3/8″X19 | 19.5 | 6.5 | 40.5 | 22 | 22 |
| 2NB-08-12 | Z1/2″X14 | G3/4″X14 | 19.5 | 10.5 | 44.5 | 27 | 32 |
| 2NB-12 | Z3/4″X14 | G3/4″X14 | 19.5 | 10.5 | 44.5 | 30 | 32 |
| 2NB-12-06 | Z3/4″X14 | G3/8″X19 | 19.5 | 6.5 | 41.7 | 30 | 22 |
| 2NB-12-08 | Z3/4″X14 | G1/2″X14 | 19.5 | 7.8 | 43.5 | 30 | 27 |
| 2NB-12-16 | Z3/4″X14 | G1″X11 | 19.5 | 11 | 46.5 | 32 | 41 |
| 2NB-16-12 | Z1″X11.5 | G3/4″X14 | 25.5 | 10.5 | 51.5 | 36 | 32 |
| 2NB-16 | Z1″X11.5 | G1″X11 | 25.5 | 11 | 52.5 | 36 | 41 |
| 2NB-20 | Z1.1/4″X11.5 | G1.1/4″X11 | 26.5 | 11.5 | 58 | 46 | 50 |
| 2NB-24 | Z1.1/2″X11.5 | G1.1/2″X11 | 27.5 | 12.5 | 62 | 50 | 55 |
| 2NB-32 | Z2″X11.5 | G2″X11 | 27.5 | 17 | 68 | 65 | 70 |
