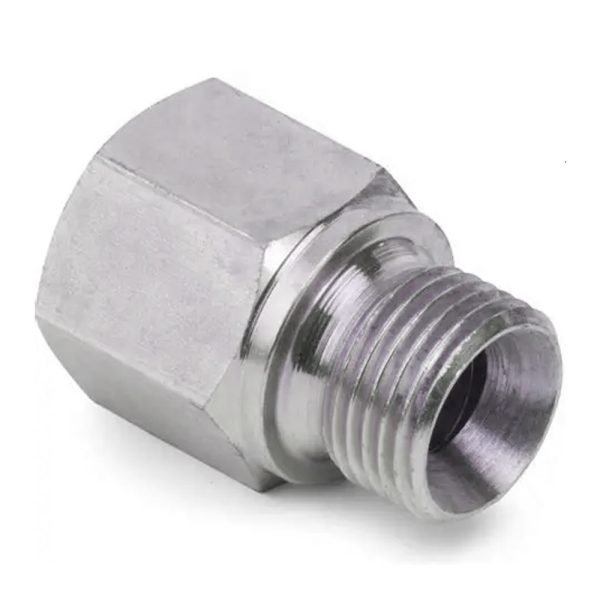

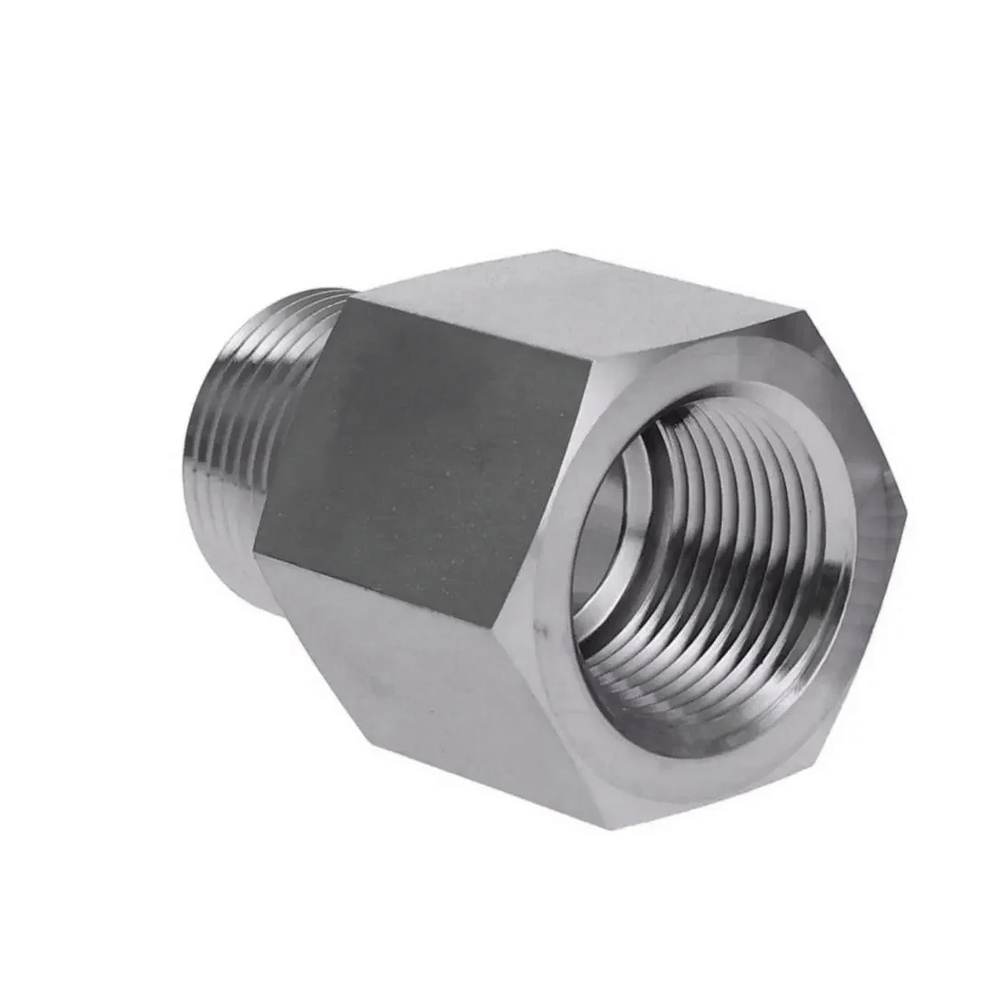

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

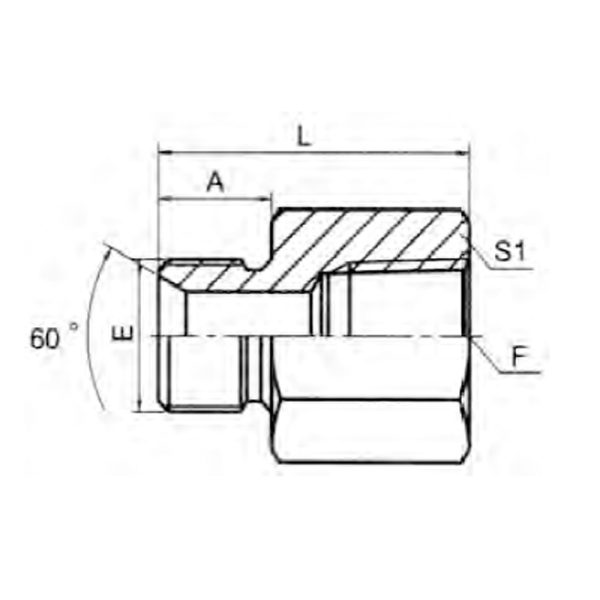

| PART NO. | THREAD | DIMENSIONS | |||
| E | F | A | L | S1 | |
| 5BN-04 | G1/4″X19 | Z1/4″X18 | 12 | 30 | 19 |
| 5BN-06 | G3/8″X19 | Z3/8″X18 | 13.5 | 33 | 22 |
| 5BN-08 | G1/2″X14 | Z1/2″X14 | 16 | 42 | 30 |
| 5BN-12 | G3/4″X14 | Z3/4″X14 | 18.5 | 44.5 | 36 |
| 5BN-16 | G1″X11 | Z1″X11.5 | 20.5 | 52 | 41 |
| 5BN-20 | G1.1/4″X11 | Z1.1/4″X11.5 | 20.5 | 55 | 50 |
| 5BN-24 | G1.1/2″X11 | Z1.1/2″X11.5 | 23 | 58 | 60 |
| 5BN-32 | G2″X11 | Z2″X11.5 | 25.5 | 62 | 70 |
