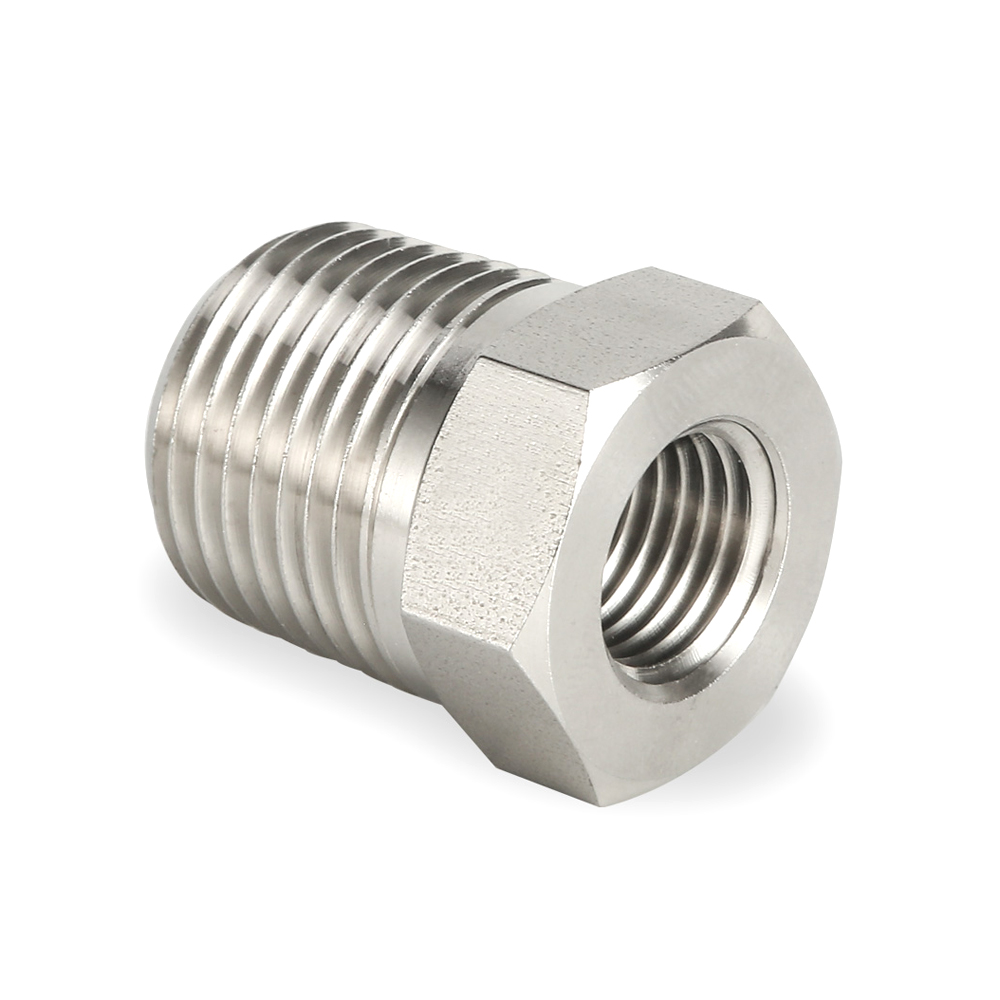

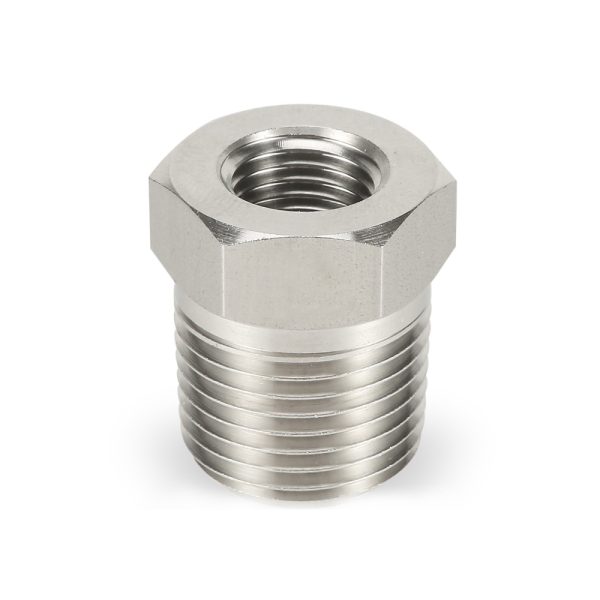

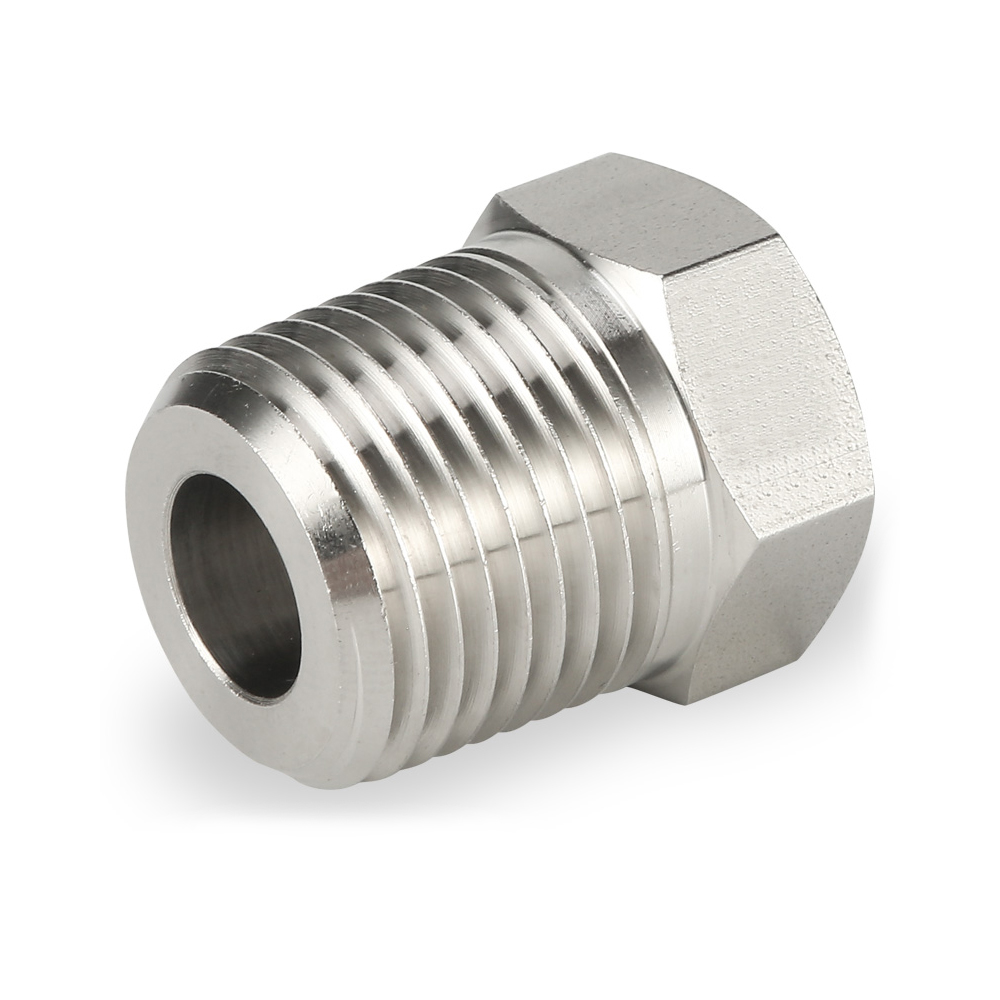

5406 NPT Male To Female Reducer Bushing

Description:

5406 NPT male to female reducer bushing adapters can be used to convert to NPT thread.

"*" indicates required fields

Hydraulic NPT fitting comes in a variety of sizes and threads, such as JIC to NPT, NPT to BSP, NPT to metric, and ORFS to NPT thread. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

PART NO.	THREAD		DIMENSIONS（INCH）
PART NO.	A1 NPTF	A2 NPTF	A1 DRILL	L	C HEX
5406-04-02	1/4-18	1/8-27	0.281	0.85	0.625
5406-06-02	3/8-18	1/8-27	0.333	0.85	0.75
5406-06-04	3/8-18	1/4-18	0.406	0.85	0.75
5406-08-02	1/2-14	1/8-27	0.333	1.1	0.875
5406-08-04	1/2-14	1/4-18	0.431	1.1	0.875
5406-08-06	1/2-14	3/8-18	0.531	1.1	0.875
5406-12-02	3/4-14	1/8-27	0.333	1.17	1.125
5406-12-04	3/4-14	1/4-18	0.431	1.17	1.125
5406-12-06	3/4-14	3/8-18	0.571	1.17	1.125
5406-12-08	3/4-14	1/2-14	0.697	1.17	1.125
5406-16-02	1-11-1/2	1/8-27	0.333	1.36	1.375
5406-16-04	1-11-1/2	1/4-18	0.431	1.36	1.375
5406-16-06	1-11-1/2	3/8-18	0.571	1.36	1.375
5406-16-08	1-11-1/2	1/2-14	0.697	1.36	1.375
5406-16-12	1-11-1/2	3/4-14	0.907	1.36	1.375
5406-20-04	1-1/4-11-1/2	1/4-18	0.431	1.47	1.75
5406-20-06	1-1/4-11-1/2	3/8-18	0.571	1.47	1.75
5406-20-08	1-1/4-11-1/2	1/2-14	0.697	1.47	1.75
5406-20-12	1-1/4-11-1/2	3/4-14	0.907	1.47	1.75
5406-20-16	1-1/4-11-1/2	1-11-1/2	1.142	1.47	1.75
5406-24-02	1-1/2-11-1/2	1/8-27	0.333	1.57	2
5406-24-04	1-1/2-11-1/2	1/4-18	0.431	1.57	2
5406-24-06	1-1/2-11-1/2	3/8-18	0.571	1.57	2
5406-24-08	1-1/2-11-1/2	1/2-14	0.697	1.57	2
5406-24-12	1-1/2-11-1/2	3/4-14	0.907	1.57	2
5406-24-16	1-1/2-11-1/2	1-11-1/2	1.142	1.57	2
5406-24-20	1-1/2-11-1/2	1-1/4-11-1/2	1.486	1.57	2
5406-32-04	2-11-1/2	1/4-18	0.431	1.75	2.5
5406-32-06	2-11-1/2	3/8-18	0.571	1.75	2.5
5406-32-08	2-11-1/2	1/2-14	0.697	1.75	2.5

Click to enlarge

Category: NPT Hydraulic Adapter Tags: Female, NPT, Male, 5406, bushing

Description
Package& Shipping

Description

PART NO.	THREAD		DIMENSIONS（INCH）
PART NO.	A1 NPTF	A2 NPTF	A1 DRILL	L	C HEX
5406-04-02	1/4-18	1/8-27	0.281	0.85	0.625
5406-06-02	3/8-18	1/8-27	0.333	0.85	0.75
5406-06-04	3/8-18	1/4-18	0.406	0.85	0.75
5406-08-02	1/2-14	1/8-27	0.333	1.1	0.875
5406-08-04	1/2-14	1/4-18	0.431	1.1	0.875
5406-08-06	1/2-14	3/8-18	0.531	1.1	0.875
5406-12-02	3/4-14	1/8-27	0.333	1.17	1.125
5406-12-04	3/4-14	1/4-18	0.431	1.17	1.125
5406-12-06	3/4-14	3/8-18	0.571	1.17	1.125
5406-12-08	3/4-14	1/2-14	0.697	1.17	1.125
5406-16-02	1-11-1/2	1/8-27	0.333	1.36	1.375
5406-16-04	1-11-1/2	1/4-18	0.431	1.36	1.375
5406-16-06	1-11-1/2	3/8-18	0.571	1.36	1.375
5406-16-08	1-11-1/2	1/2-14	0.697	1.36	1.375
5406-16-12	1-11-1/2	3/4-14	0.907	1.36	1.375
5406-20-04	1-1/4-11-1/2	1/4-18	0.431	1.47	1.75
5406-20-06	1-1/4-11-1/2	3/8-18	0.571	1.47	1.75
5406-20-08	1-1/4-11-1/2	1/2-14	0.697	1.47	1.75
5406-20-12	1-1/4-11-1/2	3/4-14	0.907	1.47	1.75
5406-20-16	1-1/4-11-1/2	1-11-1/2	1.142	1.47	1.75
5406-24-02	1-1/2-11-1/2	1/8-27	0.333	1.57	2
5406-24-04	1-1/2-11-1/2	1/4-18	0.431	1.57	2
5406-24-06	1-1/2-11-1/2	3/8-18	0.571	1.57	2
5406-24-08	1-1/2-11-1/2	1/2-14	0.697	1.57	2
5406-24-12	1-1/2-11-1/2	3/4-14	0.907	1.57	2
5406-24-16	1-1/2-11-1/2	1-11-1/2	1.142	1.57	2
5406-24-20	1-1/2-11-1/2	1-1/4-11-1/2	1.486	1.57	2
5406-32-04	2-11-1/2	1/4-18	0.431	1.75	2.5
5406-32-06	2-11-1/2	3/8-18	0.571	1.75	2.5
5406-32-08	2-11-1/2	1/2-14	0.697	1.75	2.5

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
