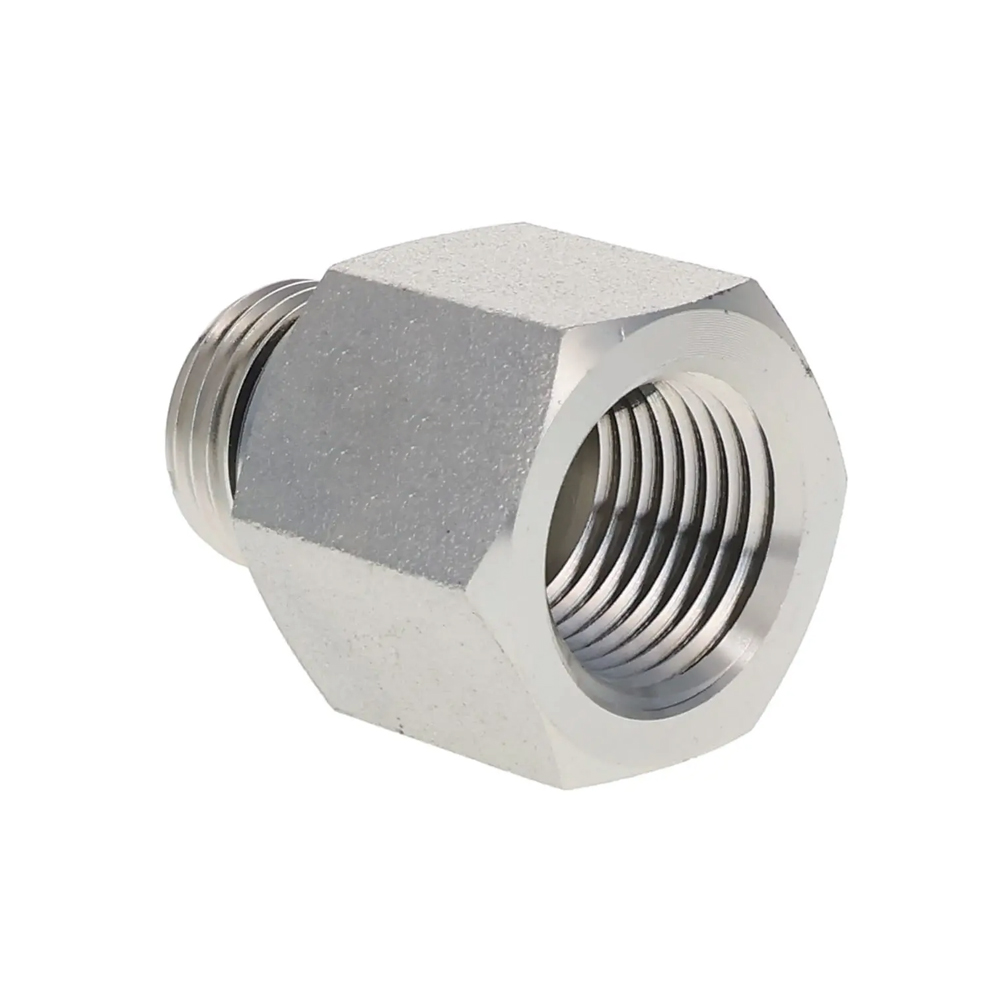

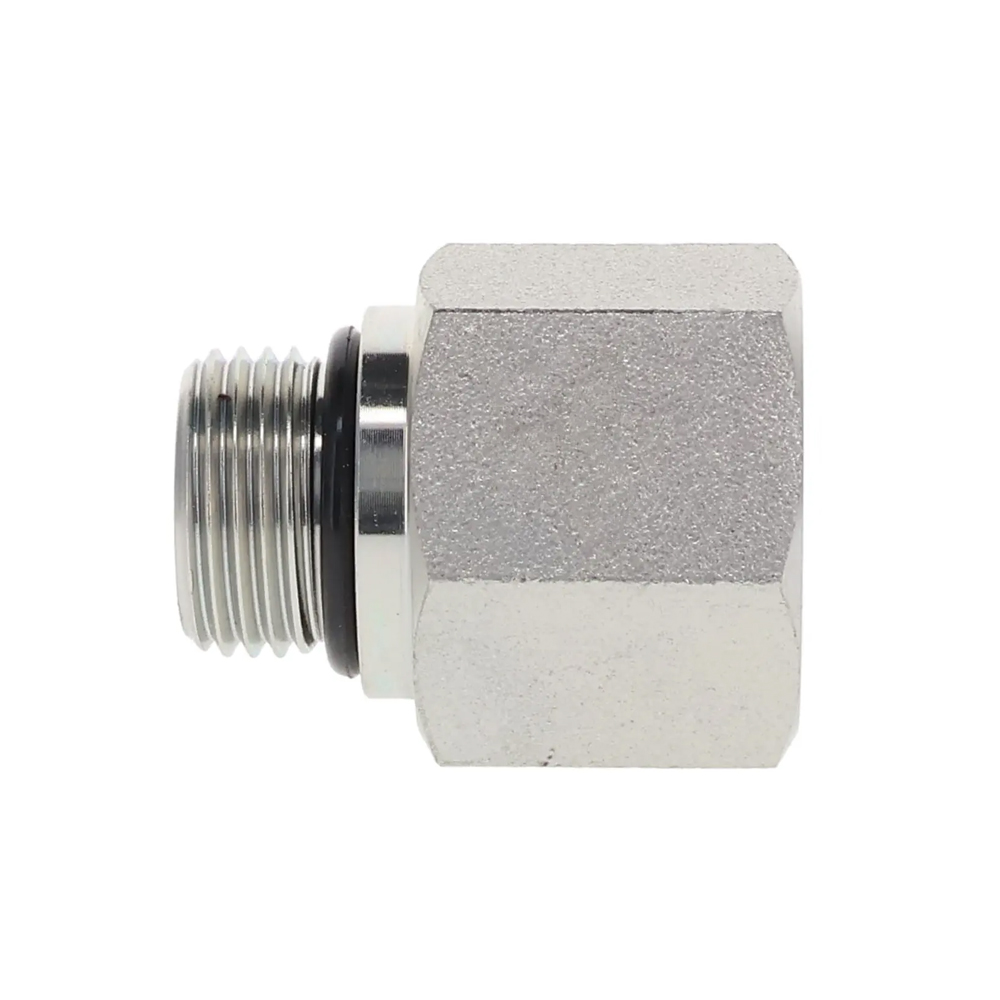

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

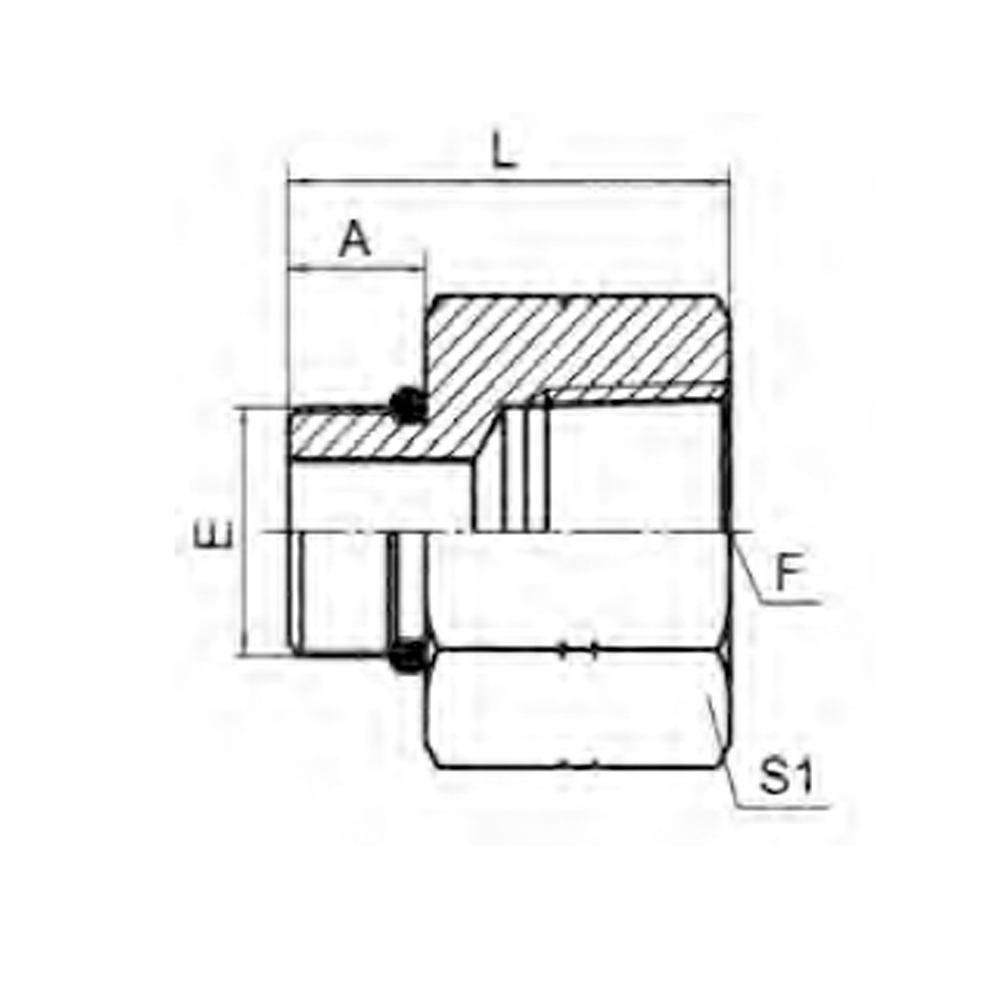

| PART NO. | THREAD | O-RING | DIMENSIONS | |||
| E | F | E | A | L | S1 | |
| 5ON-02 | 5/16″X24 | Z1/8″X27 | O902 | 7.54 | 24.5 | 17 |
| 5ON-02-04 | 5/16″X24 | Z1/4″XI8 | O902 | 7.54 | 29 | 19 |
| 5ON-03-02 | 3/8″X24 | Z1/8″X27 | O903 | 7.54 | 24.5 | 17 |
| 5ON-03-04 | 3/8″X24 | Z1/4″XI8 | O903 | 7.54 | 29 | 19 |
| 5ON-04-02 | 7/16″X20 | Z1/8″X27 | O904 | 9.14 | 24.5 | 17 |
| 5ON-04 | 7/16″X20 | Z1/4″XI8 | O904 | 9.14 | 29 | 19 |
| 5ON-04-06 | 7/16″X20 | Z3/8″XI8 | O904 | 9.14 | 30.5 | 22 |
| 5ON-05-02 | 1/2″X20 | Z1/8″X27 | O905 | 9.14 | 26 | 17 |
| 5ON-06-04 | 9/16″X18 | Z1/4″XI8 | O906 | 9.93 | 31.5 | 19 |
| 5ON-08-04 | 3/4″X16 | Z1/4″XI8 | O908 | 11.13 | 32.5 | 22 |
| 5ON-08-06 | 3/4″X16 | Z3/8″XI8 | O908 | 11.13 | 34 | 22 |
| 5ON-08 | 3/4″X16 | Z1/2″X14 | O908 | 11.13 | 40 | 30 |
| 5ON-08-12 | 3/4″X16 | Z3/4″XI4 | O908 | 11.13 | 40 | 36 |
| 5ON-10-08 | 7/8″X14 | Z1/2″X14 | O910 | 12.7 | 41.5 | 30 |
| 5ON-10-06 | 7/8″X14 | Z3/8″XI8 | O910 | 12.7 | 35.5 | 27 |
| 5ON-10-12 | 7/8″X14 | Z3/4″XI4 | O910 | 12.7 | 41 | 36 |
| 5ON-12-08 | 1.1/16″X12 | Z1/2″XI4 | O912 | 15.1 | 42 | 32 |
| 5ON-12 | 1.1/16″X12 | Z3/4″XI4 | O912 | 15.1 | 45.5 | 36 |
| 5ON-12-16 | 1.1/16″X12 | Z1″X11.5 | O912 | 15.1 | 50.5 | 41 |
| 5ON-16-12 | 1.5/16″X12 | Z3/4″XI4 | O916 | 15.1 | 43 | 38 |
| 5ON-16 | 1.5/16″X12 | Z1″X11.5 | O916 | 15.1 | 51.5 | 41 |
| 5ON-20-16 | 1.5/8″X12 | Z1″X11.5 | O920 | 15.1 | 40 | 50 |
| 5ON-20 | 1.5/8″X12 | Z1.1/4″X11.5 | O920 | 15.1 | 53.5 | 50 |
| 5ON-24-16 | 1.7/8″X12 | Z1″X11.5 | O924 | 15.1 | 34 | 55 |
| 5ON-24-20 | 1.7/8″X12 | Z1.1/4″X11.5 | O924 | 15.1 | 48 | 55 |
| 5ON-24 | 1.7/8″X12 | Z1.1/2″X11.5 | O924 | 15.1 | 50 | 60 |
| 5ON-32 | 2.1/2″X12 | 2″X11.5 | O932 | 15.1 | 50 | 70 |
