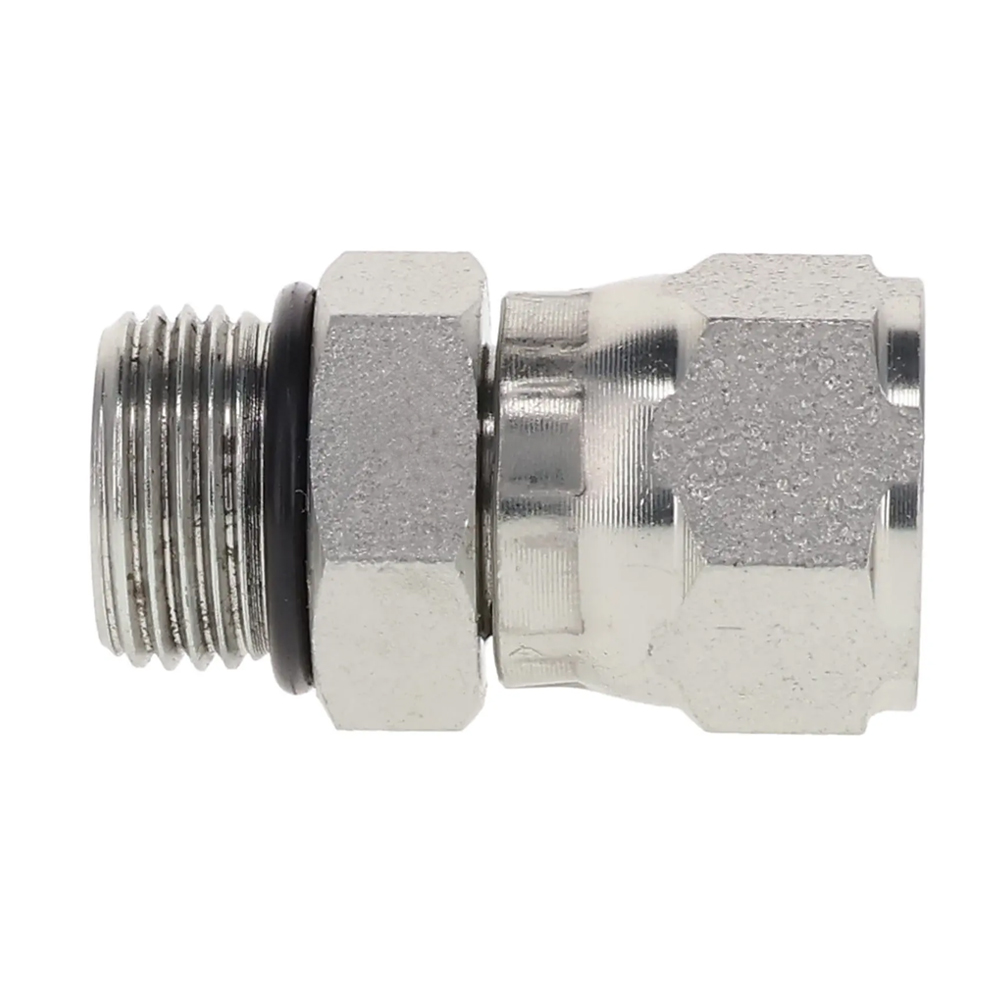

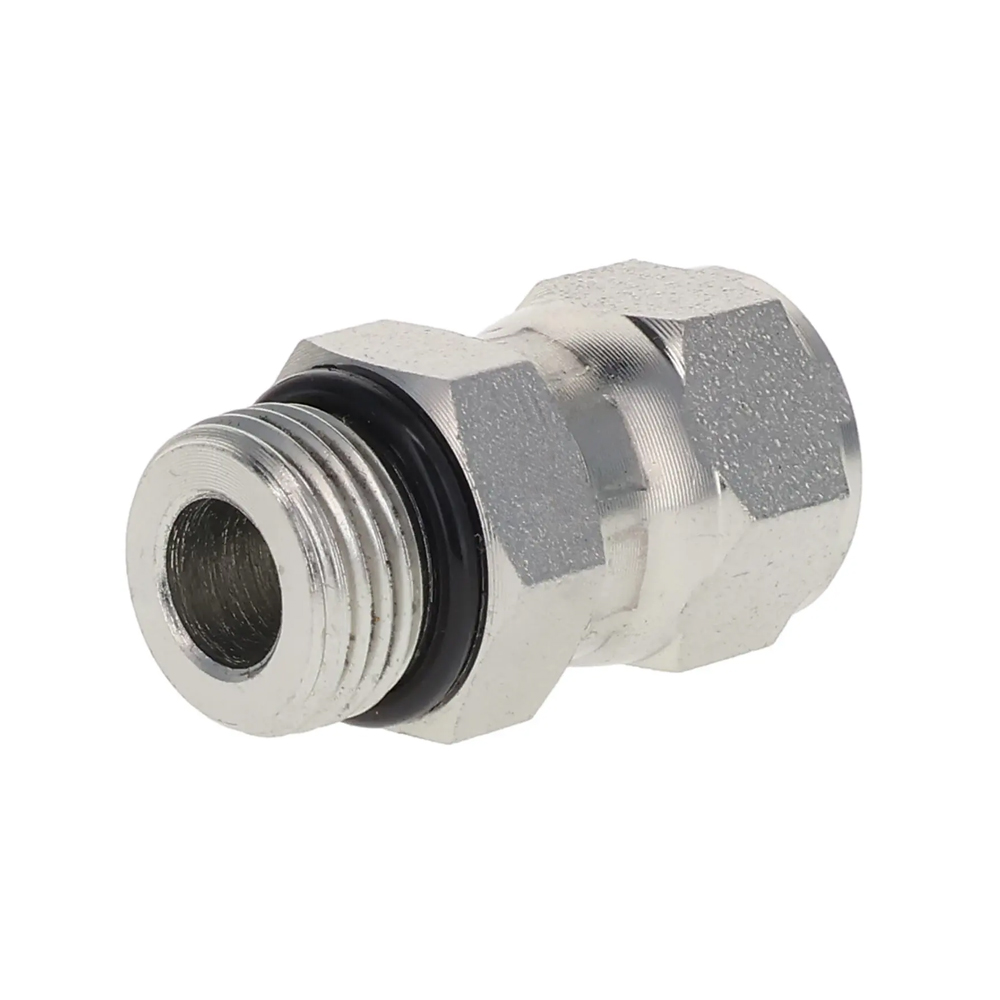

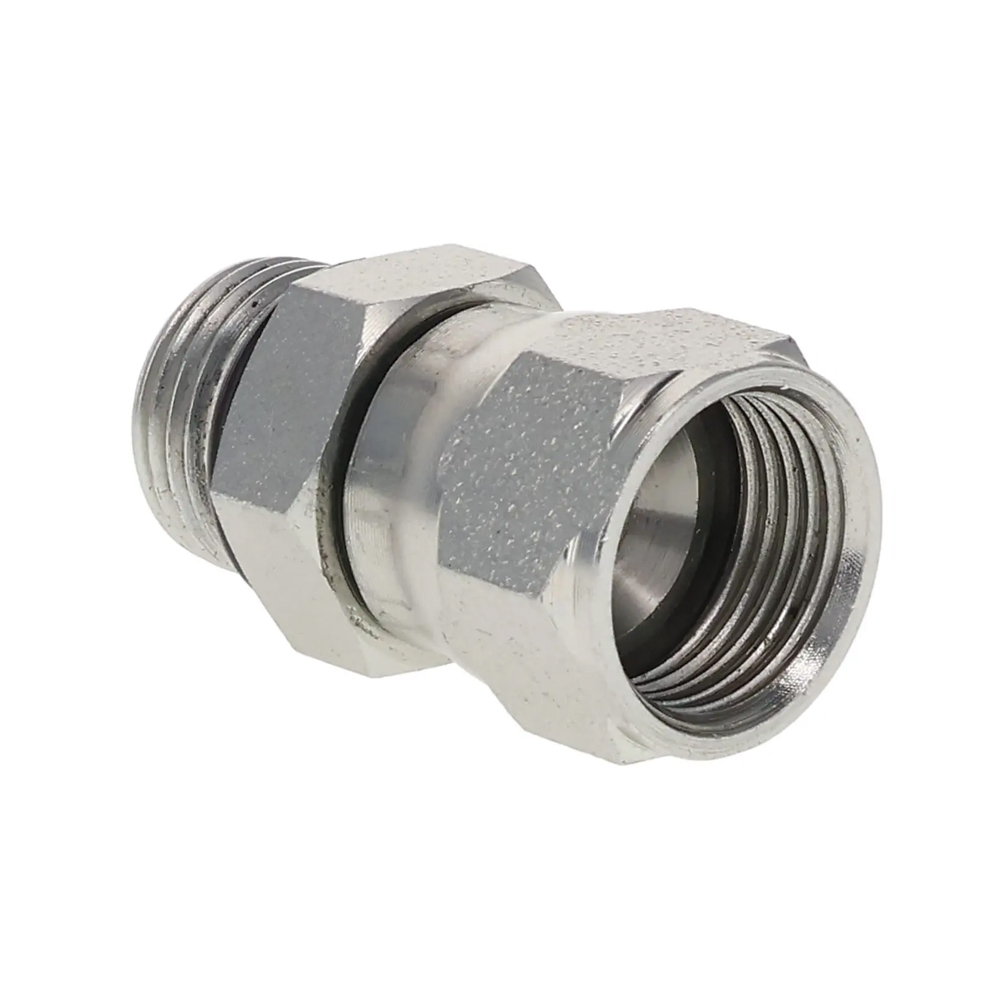

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
|
PART NO |
TUBE O.D.
(INCH) |
B
SAEORB |
A
SAE37 |
L
(INCH) |
L1
(INCH) |

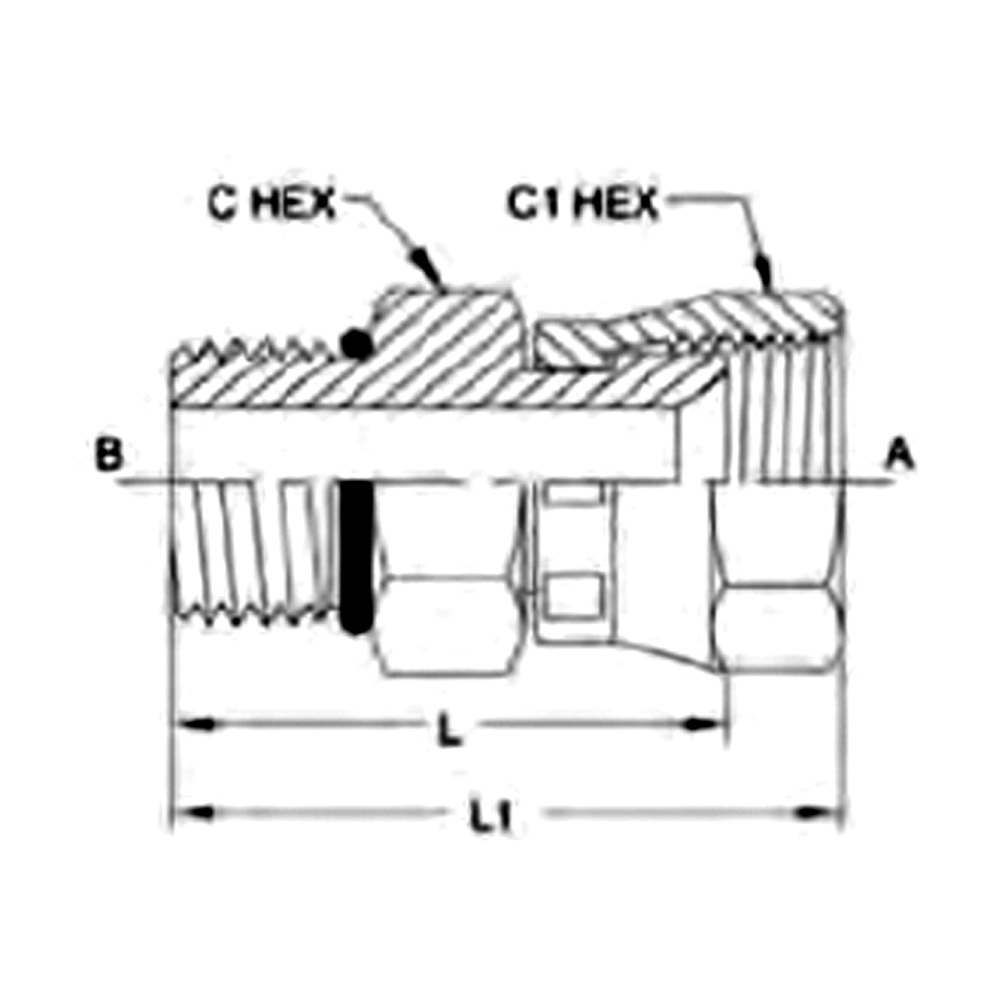

C1 HEX
(INCH) |
C HEX (INCH) |
| 6402-04-04-0 | 1/4 | 7/16-20 | 7/16-20 | 1.02 | 1.31 | 0.562 | 0.562 |
| 6402-04-06-0 | 1/4 | 7/16-20 | 9/16-18 | 1.09 | 1.42 | 0.688 | 0.562 |
| 6402-06-04-0 | 3/8 | 9/16-18 | 7/16-20 | 1.08 | 1.37 | 0.562 | 0.688 |
| 6402-06-06-0 | 3/8 | 9/16-18 | 9/16-18 | 1.15 | 1.48 | 0.688 | 0.688 |
| 6402-06-08-0 | 3/8 | 9/16-18 | 3/4-16 | 1.20 | 1.58 | 0.875 | 0.812 |
| 6402-08-06-0 | 1/2 | 3/4-16 | 9/16-18 | 1.23 | 1.56 | 0.688 | 0.875 |
| 6402-08-08-0 | 1/2 | 3/4-16 | 3/4-16 | 1.28 | 1.65 | 0.875 | 0.875 |
| 6402-08-10-0 | 1/2 | 3/4-16 | 7/8-14 | 1.31 | 1.76 | 1.000 | 0.875 |
| 6402-10-08-0 | 5/8 | 7/8-14 | 3/4-16 | 1.40 | 1.78 | 0.875 | 1.000 |
| 6402-10-10-0 | 5/8 | 7/8-14 | 7/8-14 | 1.43 | 1.88 | 1.000 | 1.000 |
| 6402-12-10-0 | 3/4 | 1-1/16-12 | 7/8-14 | 1.60 | 2.05 | 1.000 | 1.250 |
| 6402-12-12-0 | 3/4 | 1-1/16-12 | 1-1/16-12 | 1.63 | 2.15 | 1.250 | 1.250 |
| 6402-16-16-0 | 1 | 1-5/16-12 | 1-5/16-12 | 1.72 | 2.27 | 1.500 | 1.500 |
| 6402-20-20-0 | 1-1/4 | 1-5/8-12 | 1-5/8-12 | 1.85 | 2.40 | 2.000 | 1.875 |
| 6402-24-24-0 | 1-1/2 | 1-7/8-12 | 1-7/8-12 | 1.99 | 2.67 | 2.250 | 2.125 |
| 6402-32-32-0 | 2 | 2-1/2-12 | 2-1/2-12 | 2.18 | 3.07 | 2.875 | 2.750 |
