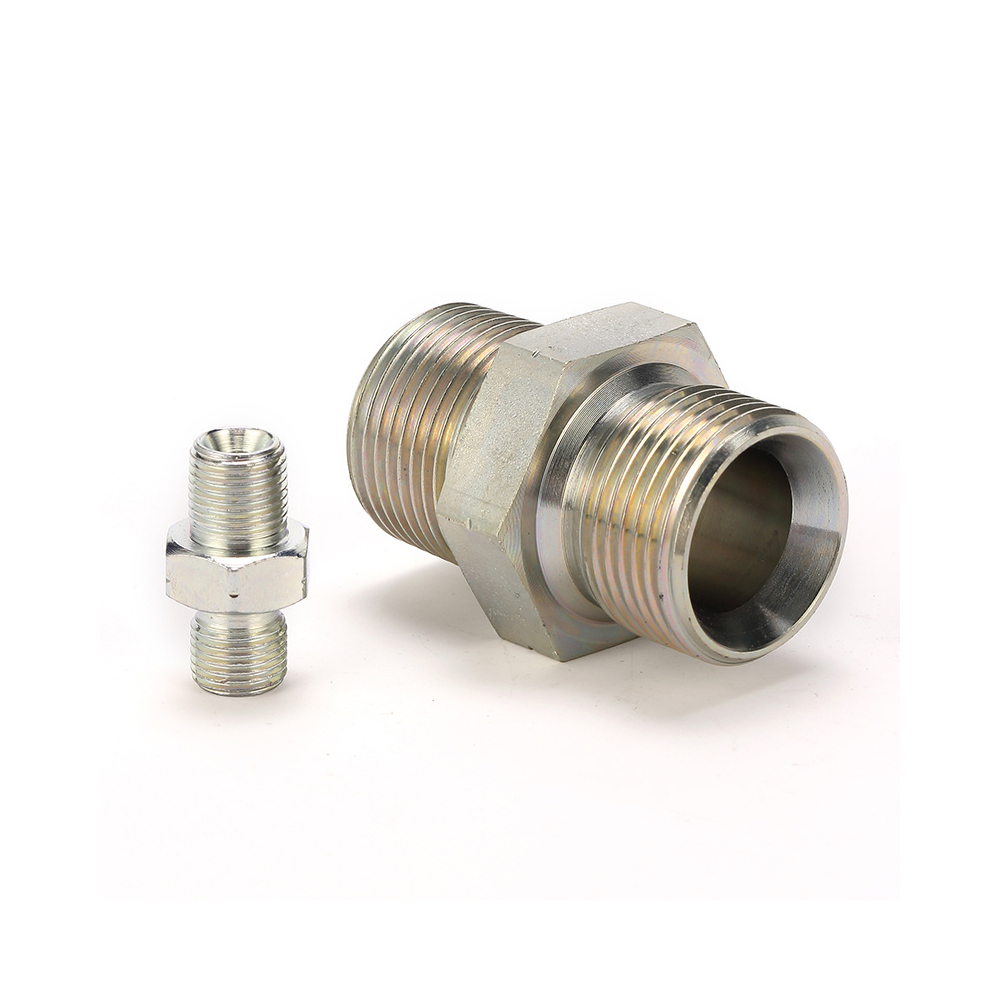

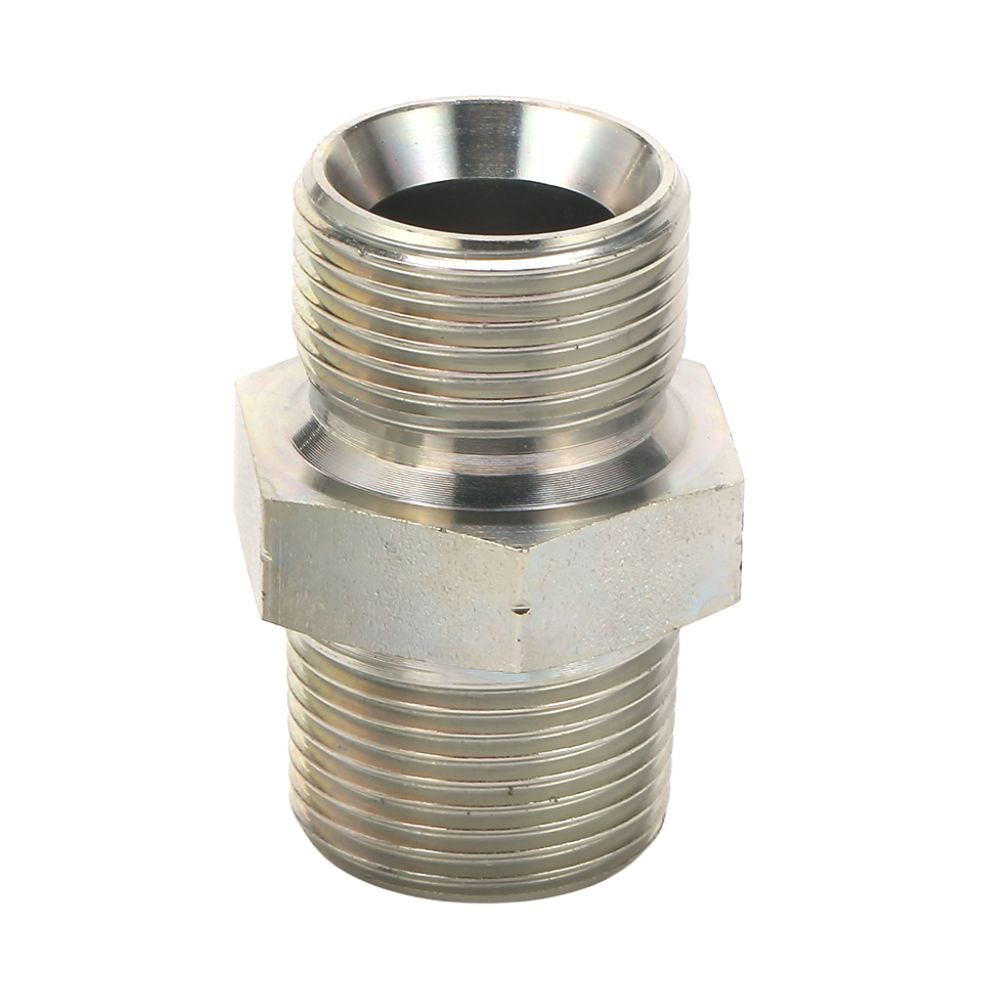

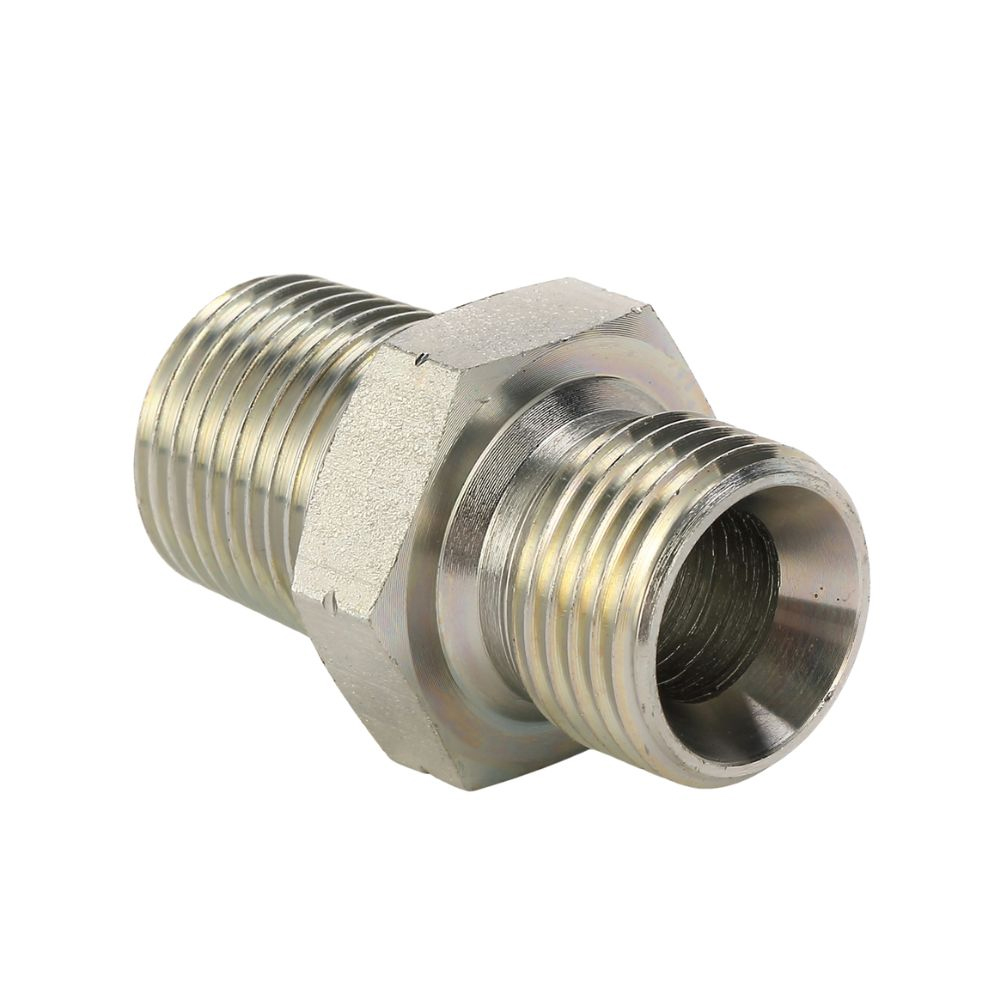

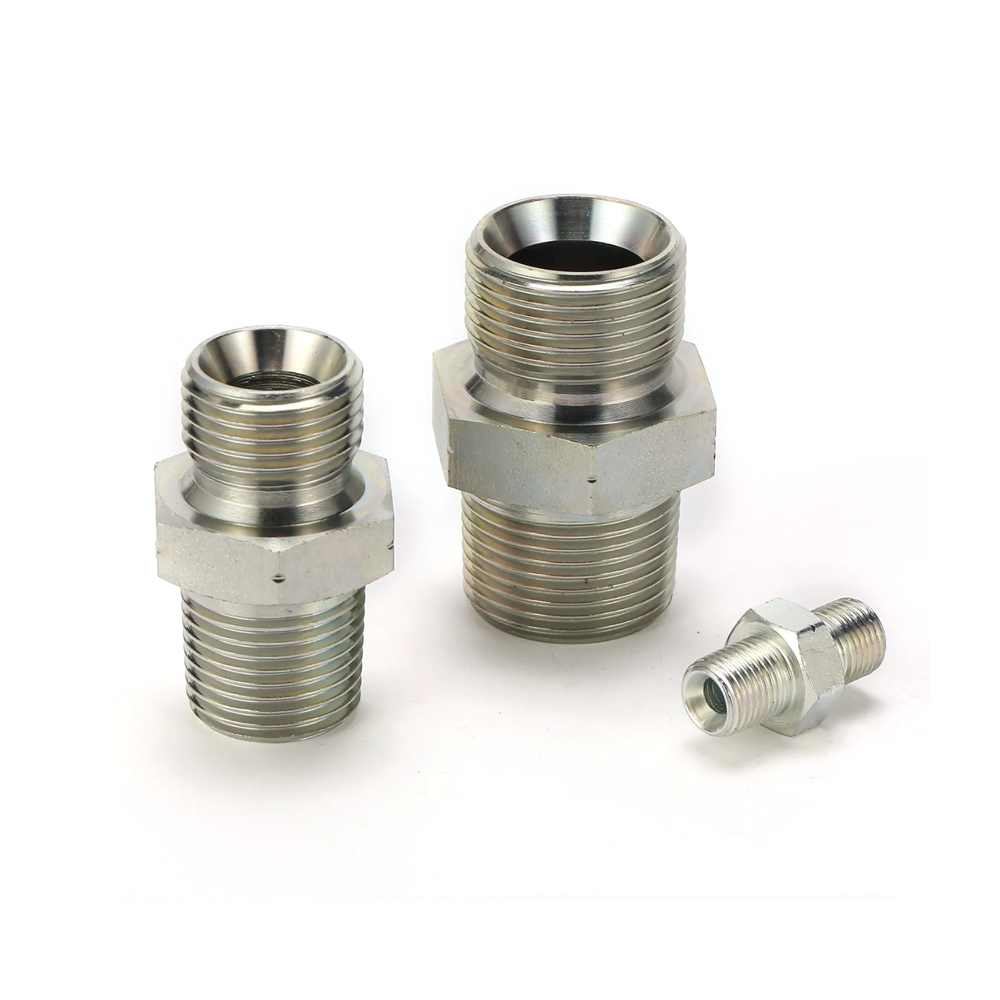

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

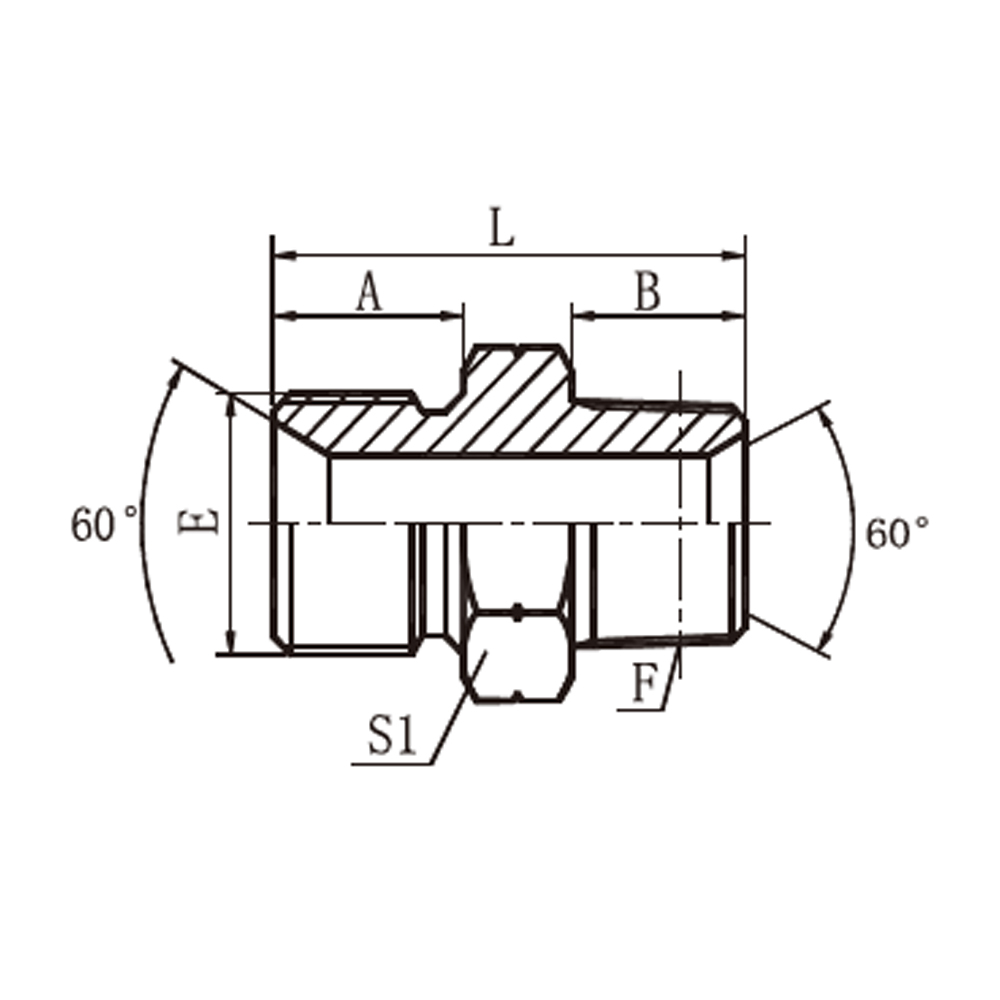

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | L | S1 | |
| 1BT-02SP | G1/8″X28 | R1/8″X28 | 10 | 10 | 26 | 14 |
| 1BT-02-04SP | G1/8″X28 | R1/4″X19 | 10 | 14.5 | 30.5 | 14 |
| 1BT-04SP | G1/4″X19 | R1/4″X19 | 12 | 14.5 | 32 | 19 |
| 1BT-04-02SP | G1/4″X19 | R1/8″X28 | 12 | 10 | 28 | 19 |
| 1BT-04-06SP | G1/4″X19 | R3/8″X19 | 12 | 15 | 32 | 19 |
| 1BT-04-08SP | G1/4″X19 | R1/2″X14 | 12 | 20 | 40 | 24 |
| 1BT-06SP | G3/8″X19 | R3/8″X19 | 13.5 | 15 | 35.5 | 22 |
| 1BT-06-04SP | G3/8″X19 | R1/4″X19 | 13.5 | 14.5 | 35.5 | 22 |
| 1BT-06-08SP | G3/8″X19 | R1/2″X14 | 13.5 | 20 | 40.5 | 24 |
| 1BT-08SP | G1/2″X14 | R1/2″X14 | 16 | 20 | 45 | 27 |
| 1BT-08-04SP | G1/2″X14 | R1/4″X19 | 16 | 14.5 | 40.5 | 27 |
| 1BT-08-06SP | G1/2″X14 | R3/8″X19 | 16 | 15 | 40.5 | 27 |
| 1BT-08-12SP | G1/2″X14 | R3/4″X14 | 16 | 20 | 45 | 30 |
| 1BT-10-06SP | G5/8″X14 | R3/8″X19 | 17.5 | 15 | 41.5 | 30 |
| 1BT-10-08SP | G5/8″X14 | R1/2″X14 | 17.5 | 20 | 46.5 | 30 |
| 1BT-10-12SP | G5/8″X14 | R3/4″X14 | 17.5 | 20 | 46.5 | 30 |
| 1BT-10-16SP | G5/8″X14 | R1″X11 | 17.5 | 25.5 | 53 | 36 |
| 1BT-12SP | G3/4″X14 | R3/4″X14 | 18.5 | 20 | 48.5 | 32 |
| 1BT-12-08SP | G3/4″X14 | R1/2″X14 | 18.5 | 20 | 49.5 | 32 |
| 1BT-12-16SP | G3/4″X14 | R1″X11 | 18.5 | 25.5 | 53.5 | 36 |
| 1BT-12-20SP | G3/4″X14 | R1.1/4″X11 | 18.5 | 26.5 | 58 | 46 |
| 1BT-16SP | G1″X11 | R1″X11 | 20.5 | 25.5 | 58 | 41 |
| 1BT-16-12SP | G1″X11 | R3/4″X14 | 20.5 | 20 | 53 | 41 |
| 1BT-16-20SP | G1″X11 | R1.1/4″X11 | 20.5 | 26.5 | 60 | 46 |
| 1BT-20SP | G1.1/4″X11 | R1.1/4″X11 | 20.5 | 26.5 | 62 | 50 |
| 1BT-20-12SP | G1.1/4″X11 | R3/4″X14 | 20.5 | 20 | 55.5 | 50 |
| 1BT-20-16SP | G1.1/4″X11 | R1″X11 | 20.5 | 25.5 | 61 | 50 |
| 1BT-20-24SP | G1.1/4″X11 | R1.1/2″X11 | 20.5 | 26.5 | 62 | 50 |
| 1BT-24SP | G1.1/2″X11 | R1.1/2″X11 | 23 | 26.5 | 64.5 | 55 |
| 1BT-24-16SP | G1.1/2″X11 | R1″X11 | 23 | 25.5 | 63.5 | 55 |
| 1BT-24-20SP | G1.1/2″X11 | R1.1/4″X11 | 23 | 26.5 | 64.5 | 55 |
| 1BT-24-32SP | G1.1/2″X11 | R2″X11 | 23 | 30 | 70 | 65 |
| 1BT-32SP | G2″X11 | R2″X11 | 25.5 | 30 | 72.5 | 70 |
| 1BT-32-20SP | G2″X11 | R1.1/4″X11 | 25.5 | 26.5 | 68.5 | 70 |
| 1BT-32-24SP | G2″X11 | R1.1/2″X11 | 25.5 | 26.5 | 68.5 | 70 |
| 1BT-40SP | G2.1/2″X11 | R2.1/2″X11 | 32 | 35 | 84 | 90 |
| 1BT-48SP | G3″X11 | G3″X11 | 36 | 38 | 94 | 100 |
