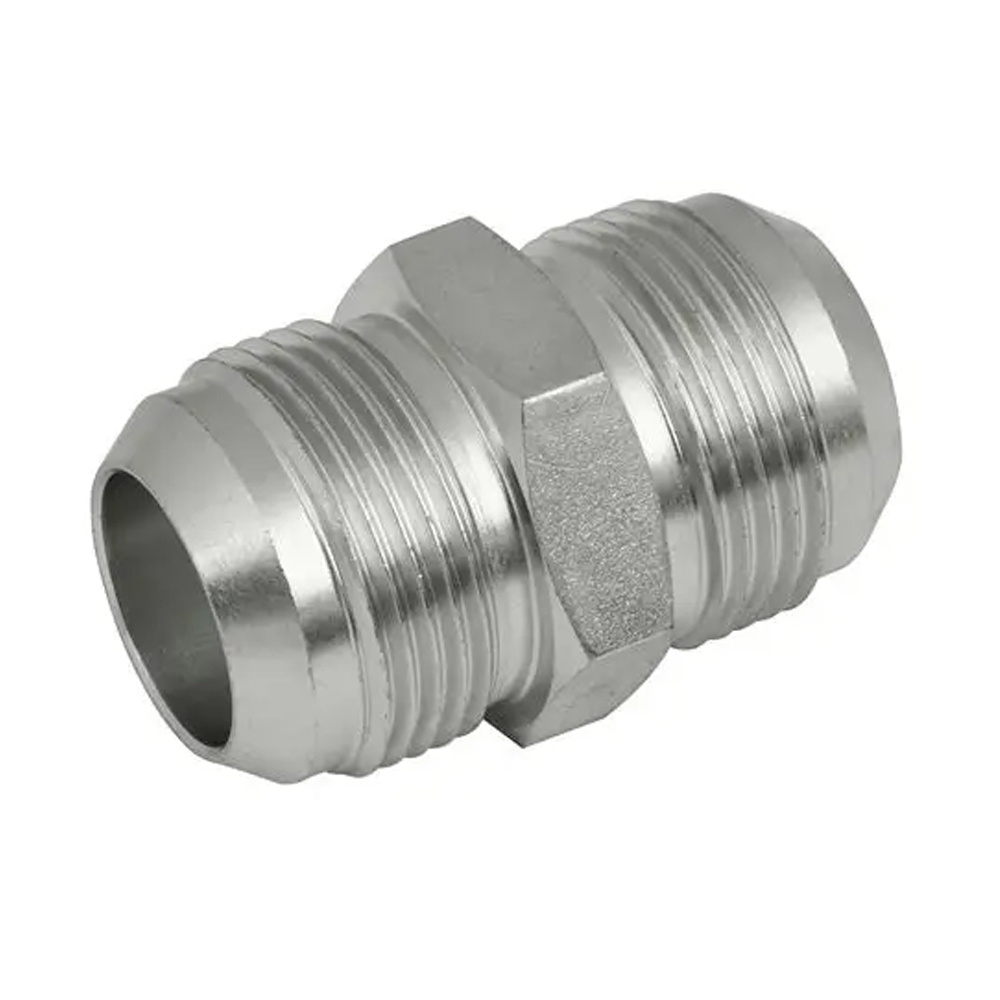

1S GAS 60° Cone Male JIS Adapter

Description:

1S male JIS gas pipe fitting is a straight adapter that has two male 60-degree JIS threads and is designed to be connected to female JIS threads.

INQUIRE NOW

"*" indicates required fields

Category: Tags: , , ,
Description

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

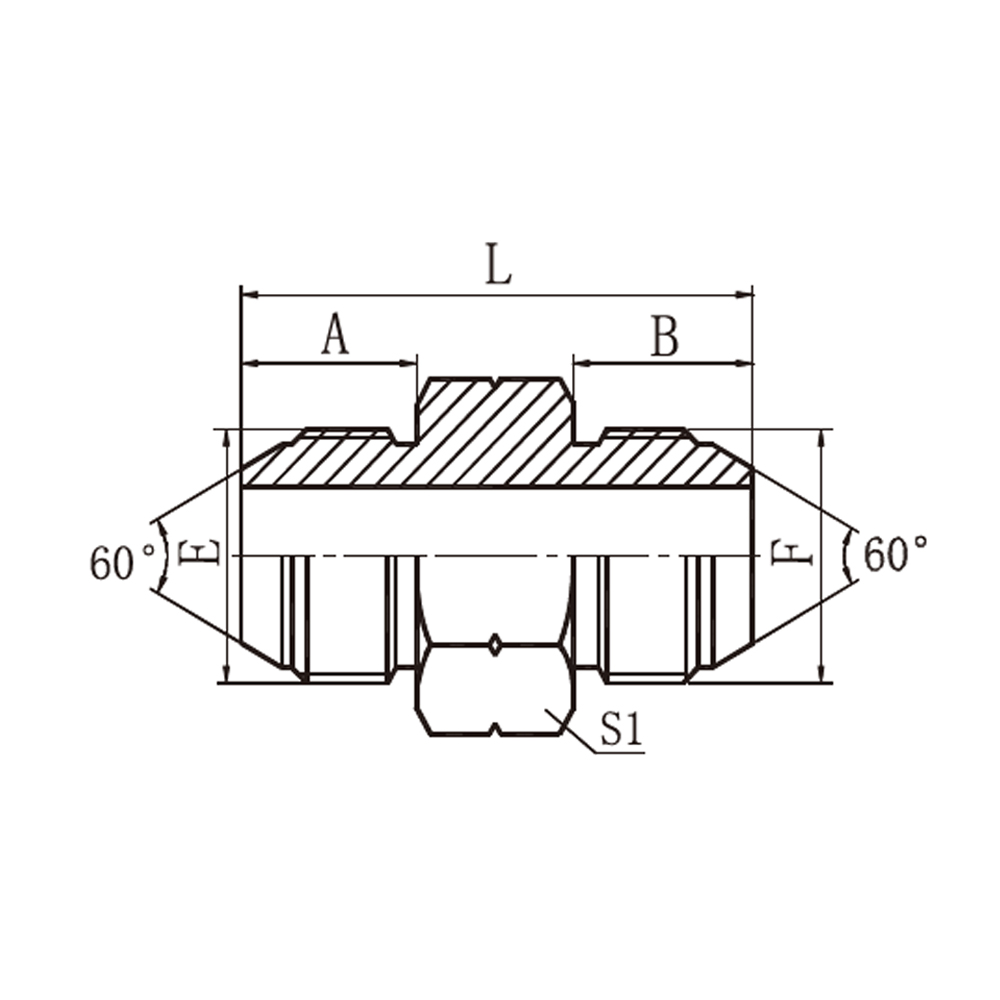

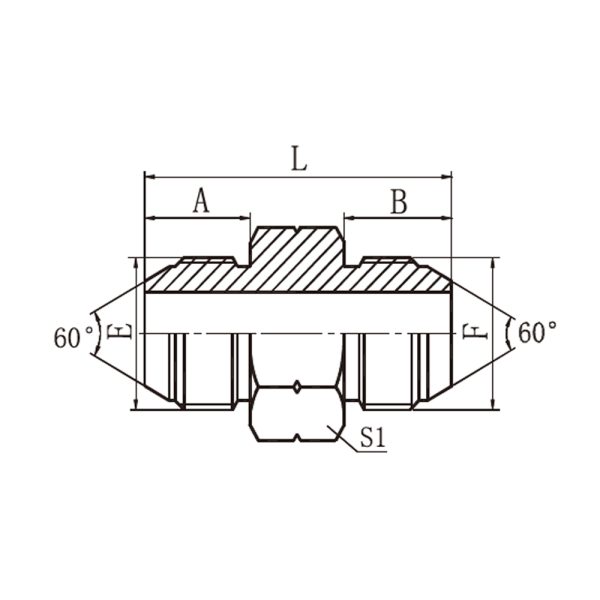

PART  NO. THREAD DIMENSIONS
E F L1 L2 L S1
1S-02 G1/8＂X28 G1/8＂X28 12 12 30 14
1S-04 G1/4＂X19 G1/4＂X19 16 16 38 17
1S-06 G3/8＂X19 G3/8＂X19 18 18 42 19
1S-08 G1/2＂X14 G1/2＂X14 20 20 48 22
1S-12 G3/4＂X14 G3/4＂X14 22 22 54 30
1S-16 G1＂X11 G1＂X11 24 24 59 36
1S-20 G1.1/4＂X11 G1.1/4＂X11 27 27 67 46
1S-24 G1.1/2＂X11 G1.1/2＂X11 27 27 69 50
1S-32 G2＂X11 G2＂X11 30 30 77 65
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

Related products

4B-WD BSP Male O-Ring Seal Plug

3B BSP Female 60° Cone Fitting

9S JIS Female 60° Cone Seat Plug

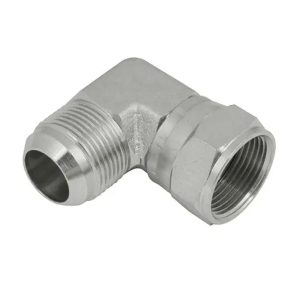

2K9 JIS Elbow JIS 60°CONE Metric Adapter
