JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

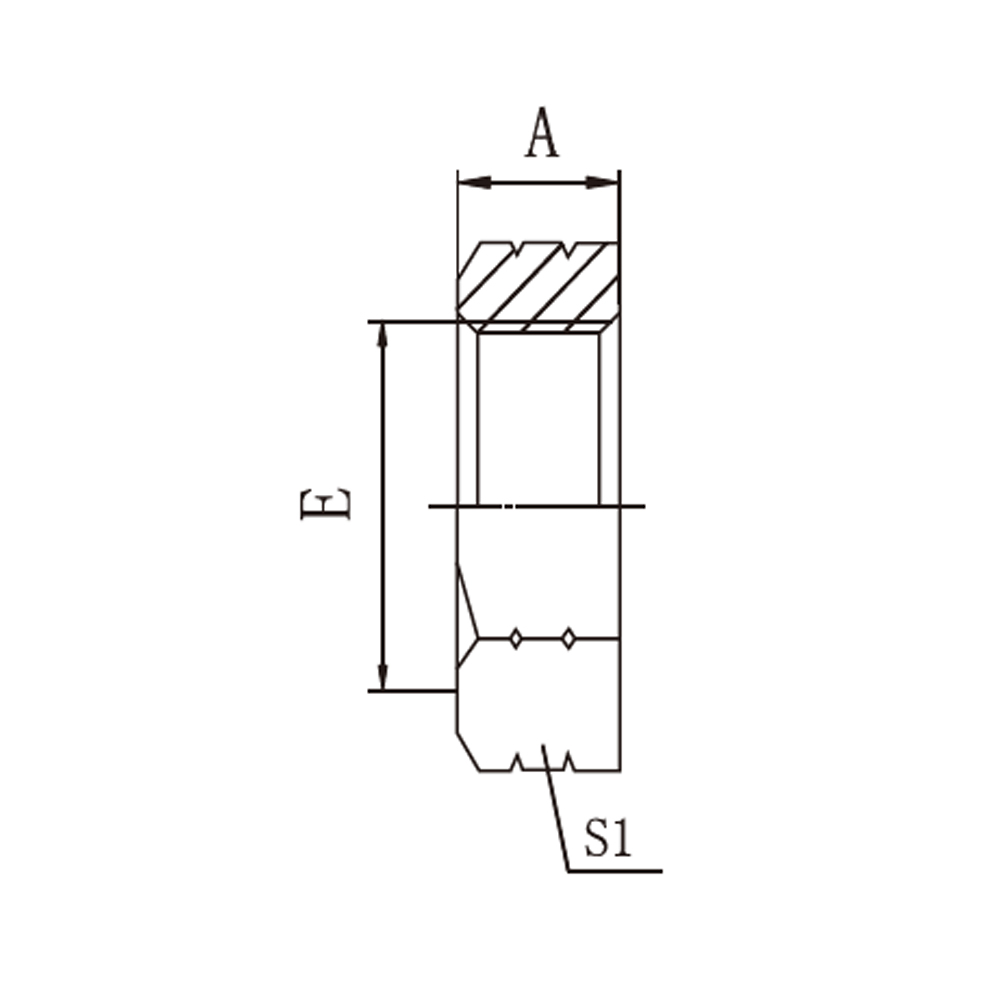

| PART NO. | THREAD | DIMENSIONS | |
| E | A | S1 | |
| 8J-04 | 7/16″X20 | 7 | 17 |
| 8J-05 | 1/2″X20 | 7 | 19 |
| 8J-06 | 9/16″X18 | 7 | 22 |
| 8J-08 | 3/4″X16 | 8 | 24 |
| 8J-10 | 7/8″X14 | 9 | 30 |
| 8J-12 | 1.1/16″X12 | 10.5 | 36 |
| 8J-14 | 1.3/16″X12 | 10.5 | 38 |
| 8J-16 | 1.5/16″X12 | 10.5 | 41 |
| 8J-20 | 1.5/8″X12 | 10.5 | 50 |
| 8J-24 | 1.7/8″X12 | 10.5 | 55 |
| 8J-32 | 2.1/2″X12 | 10.5 | 70 |
