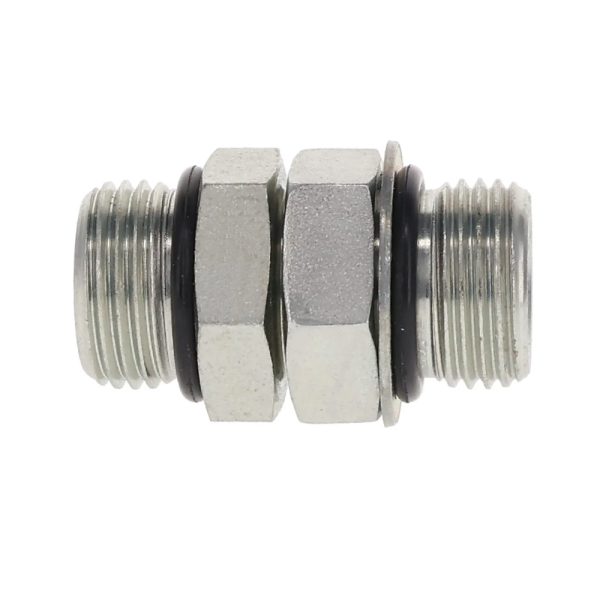

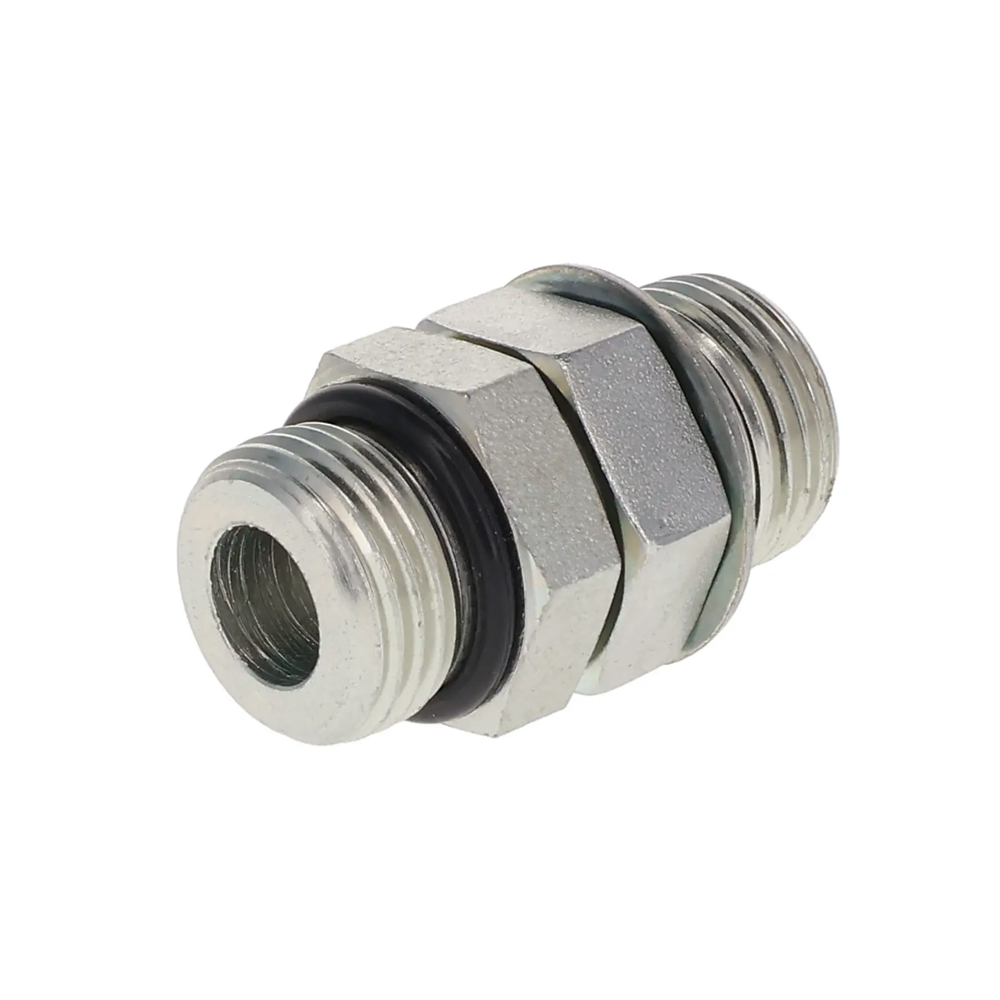

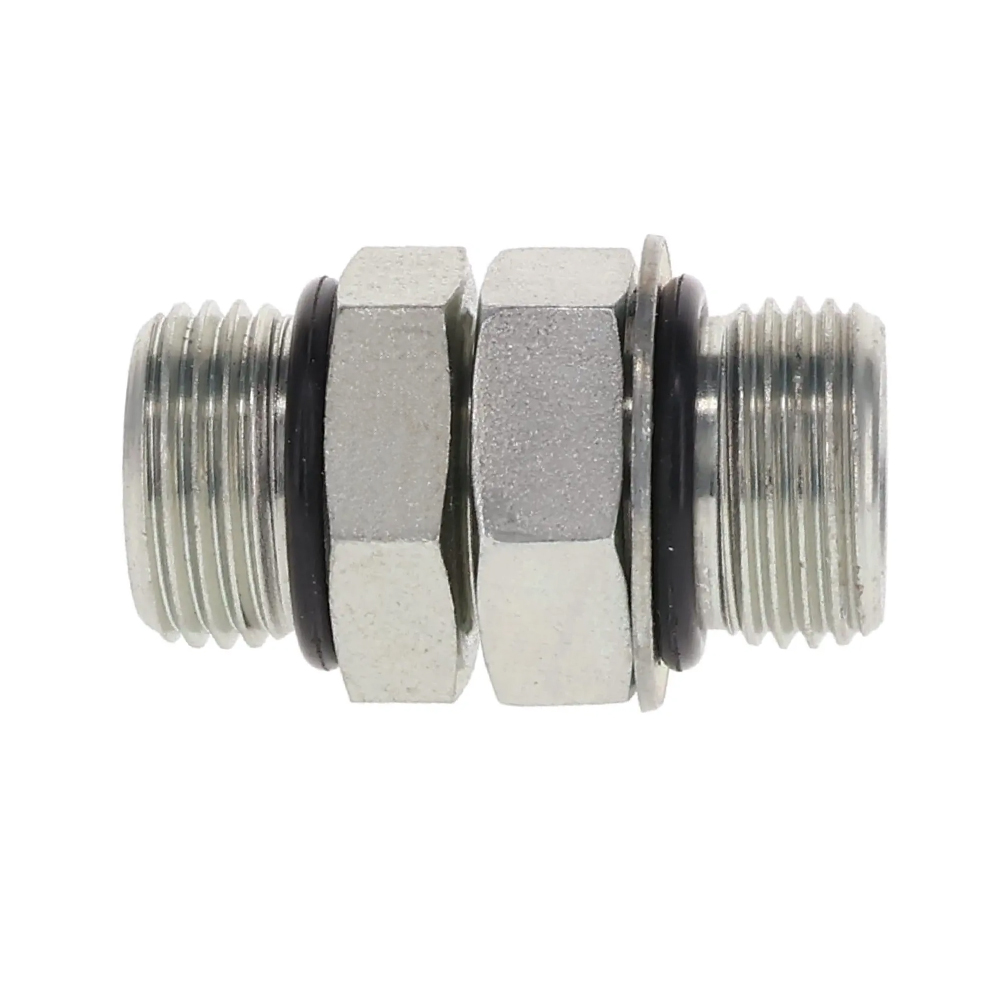

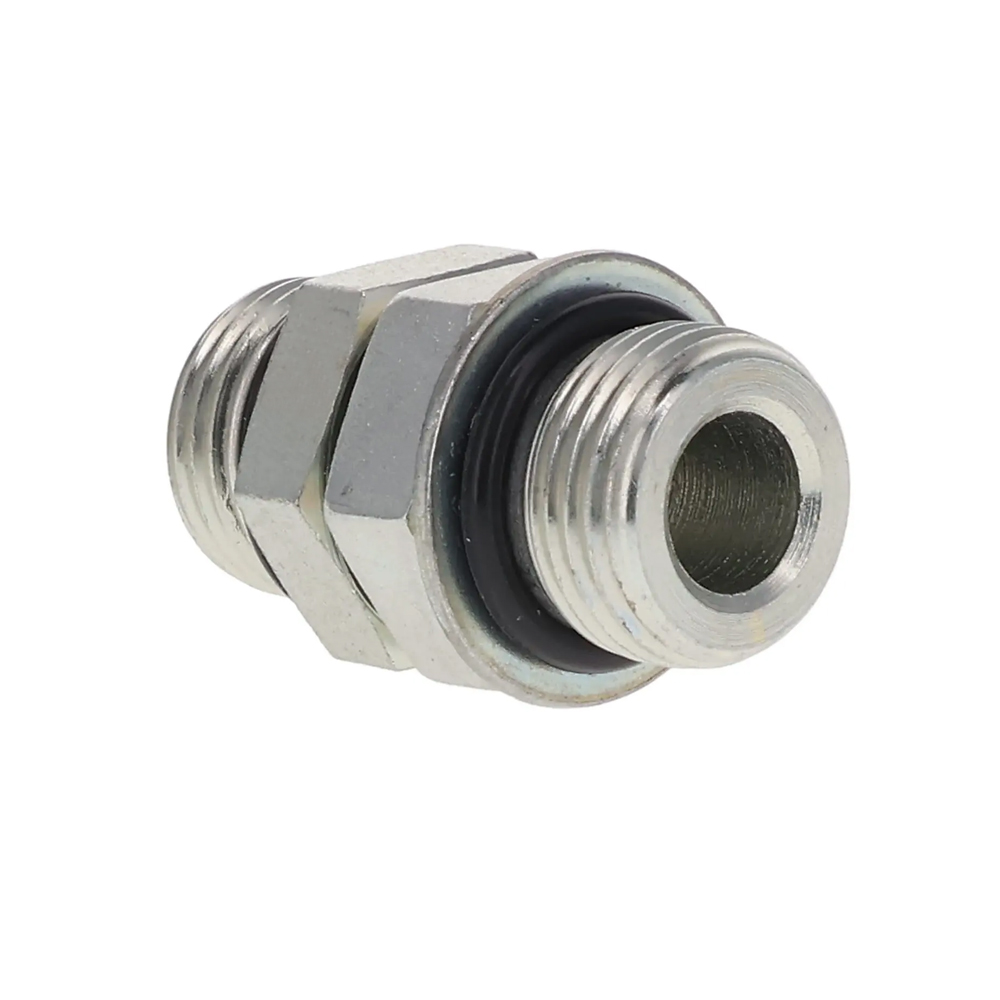

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.
|
PART NO |
T5
SAE ORB |
C4
HEX (inch) |
D2
DRILL |
L1
(inch) |
| 6407-4-4 | 7/16-20 | 9/16 | 0.203 | 1.22 |
| 6407-6-6 | 9/16-18 | 11/16 | 0.297 | 1.41 |
| 6407-8-8 | 3/4-16 | 7/8 | 0.422 | 1.56 |
| 6407-10-10 | 7/8-14 | 1 | 0.484 | 1.81 |
| 6407-12-12 | 1 1/16-12 | 1 1/4 | 0.656 | 2.13 |
| 6407-16-16 | 1 5/16-12 | 1 1/2 | 0.875 | 2.13 |
| 6407-20-20 | 1 5/8-12 | 1 7/8 | 1.078 | 2.13 |
| 6407-24-24 | 1 7/8-12 | 2 1/8 | 1.344 | 2.13 |
| 6407-32-32 | 2 1/2-12 | 2 3/4 | 1.813 | 2.13 |
