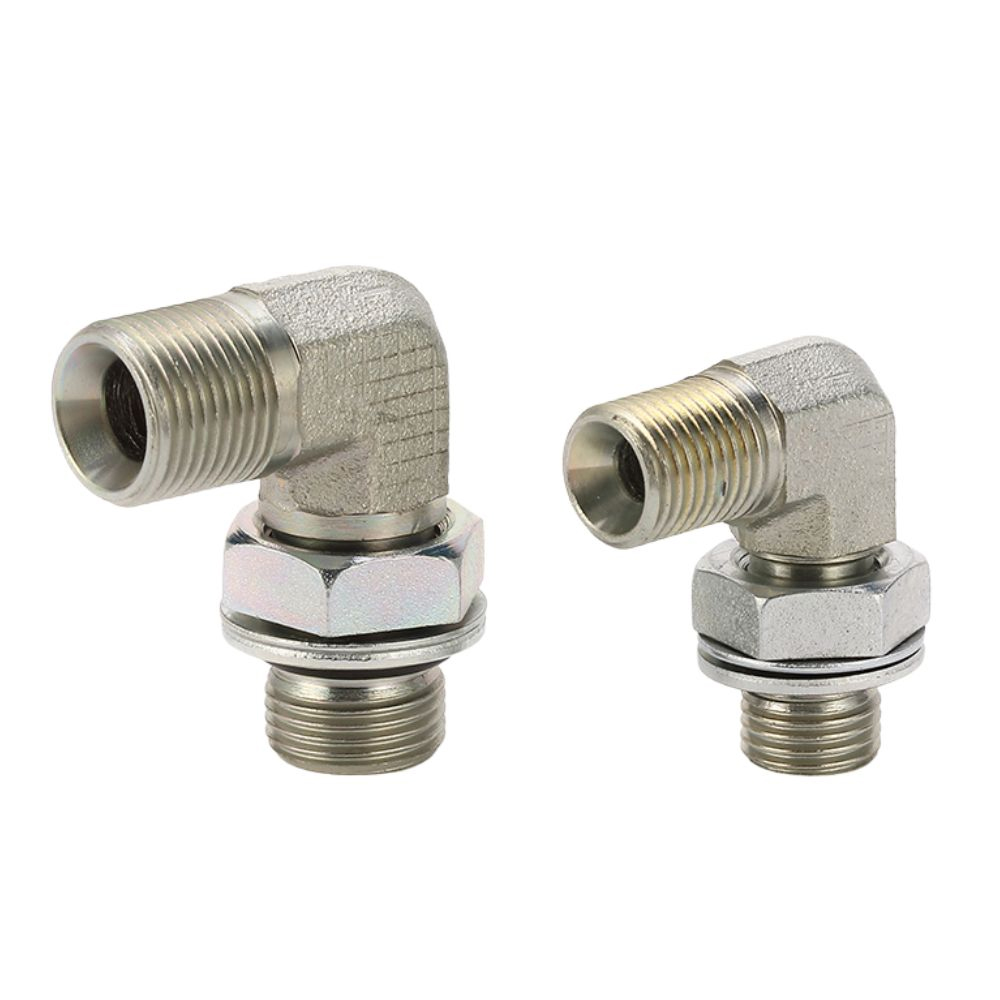

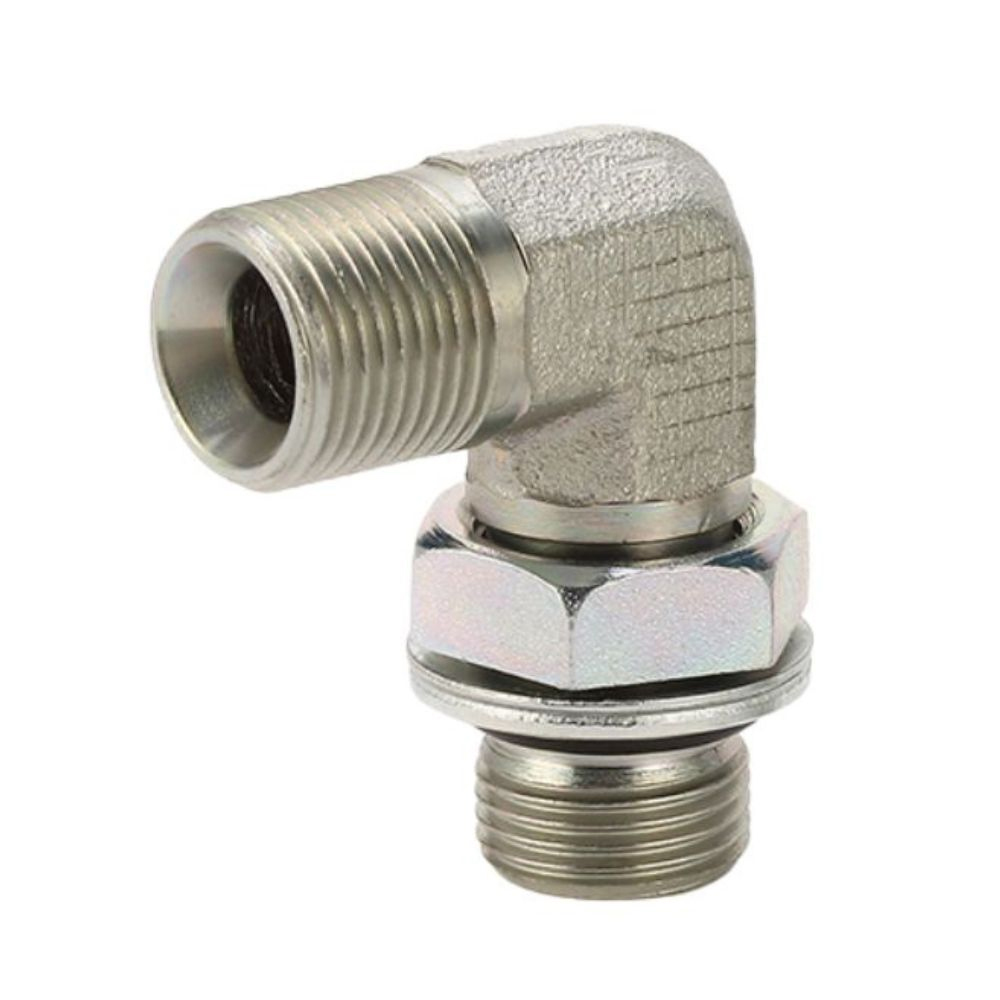

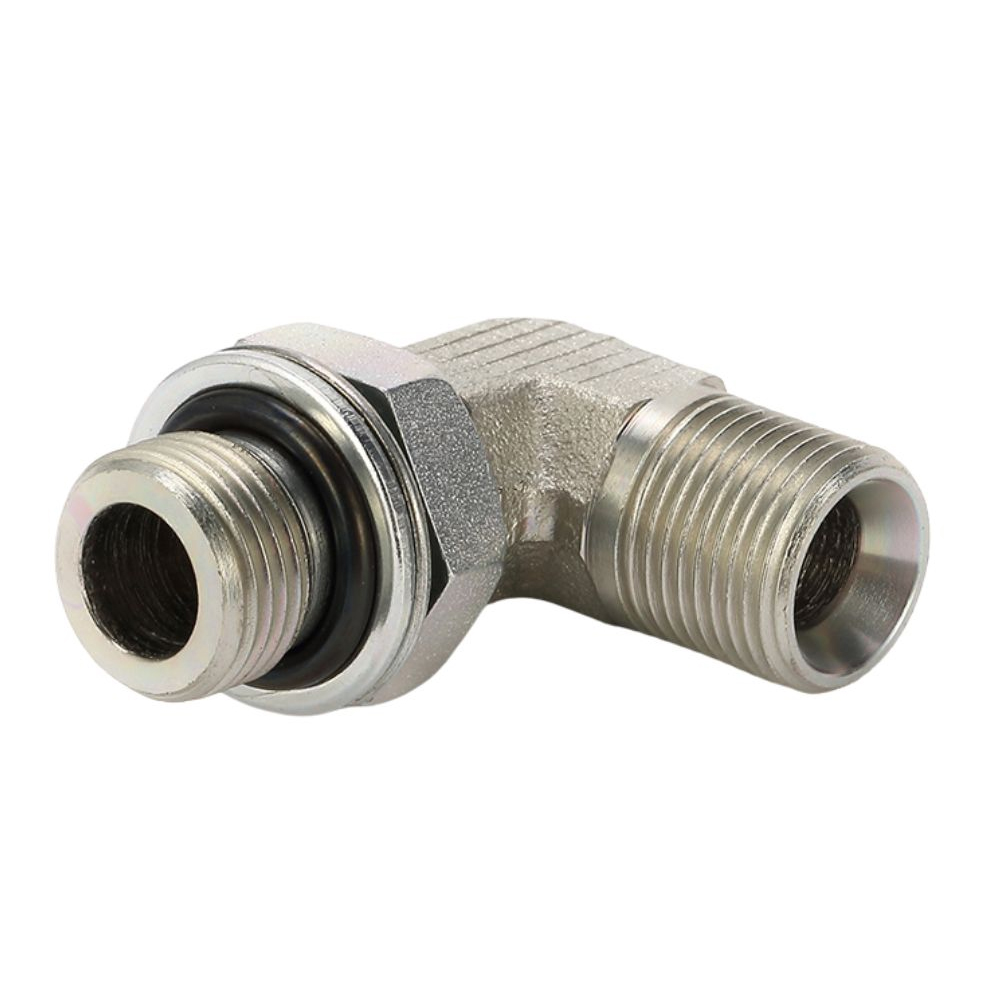

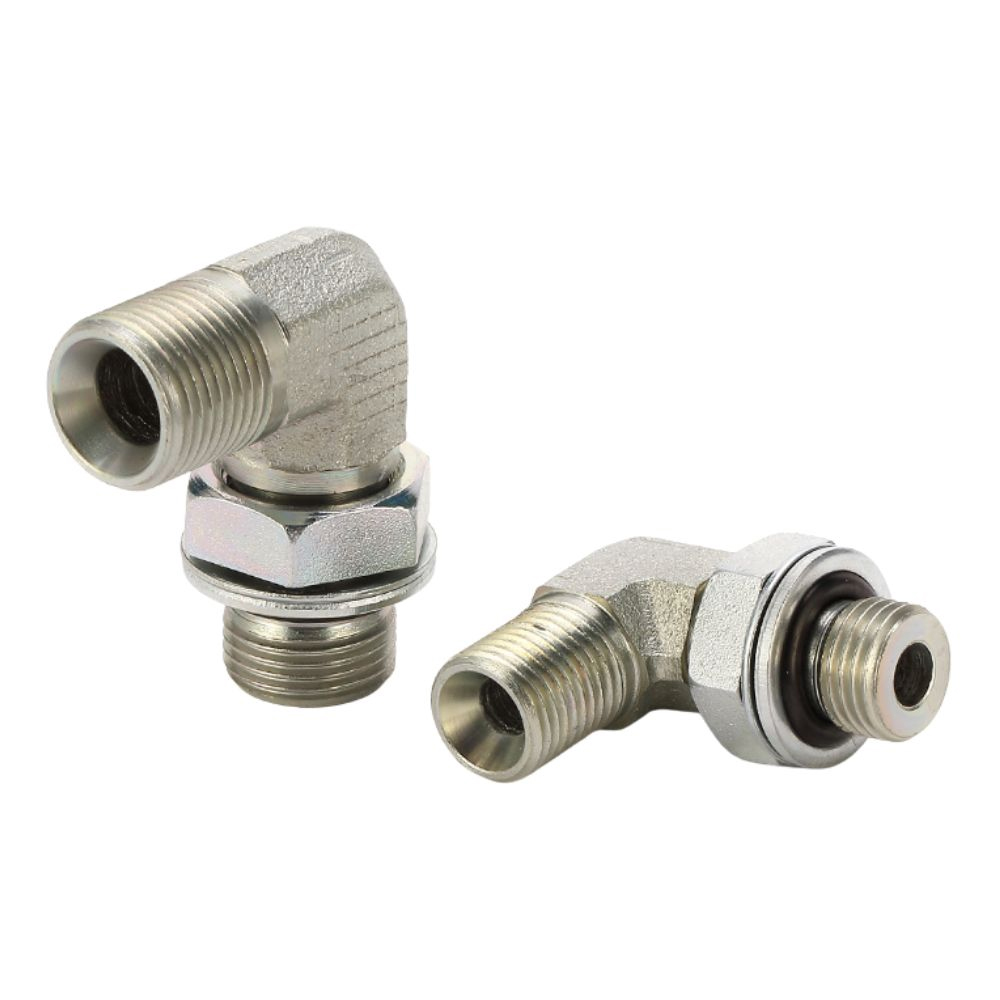

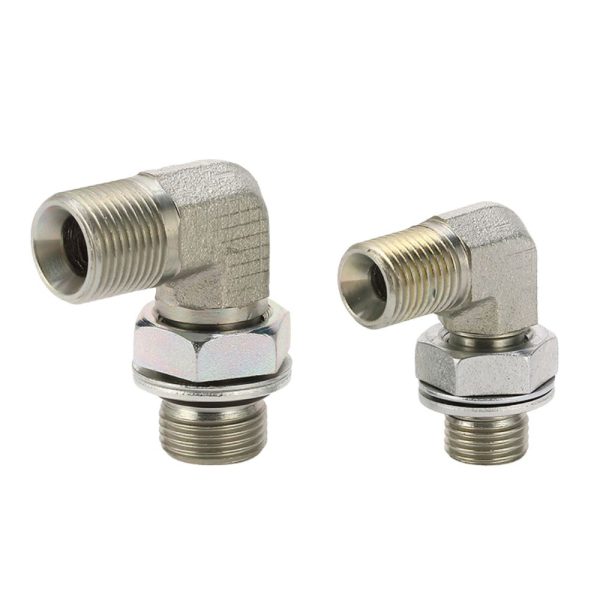

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

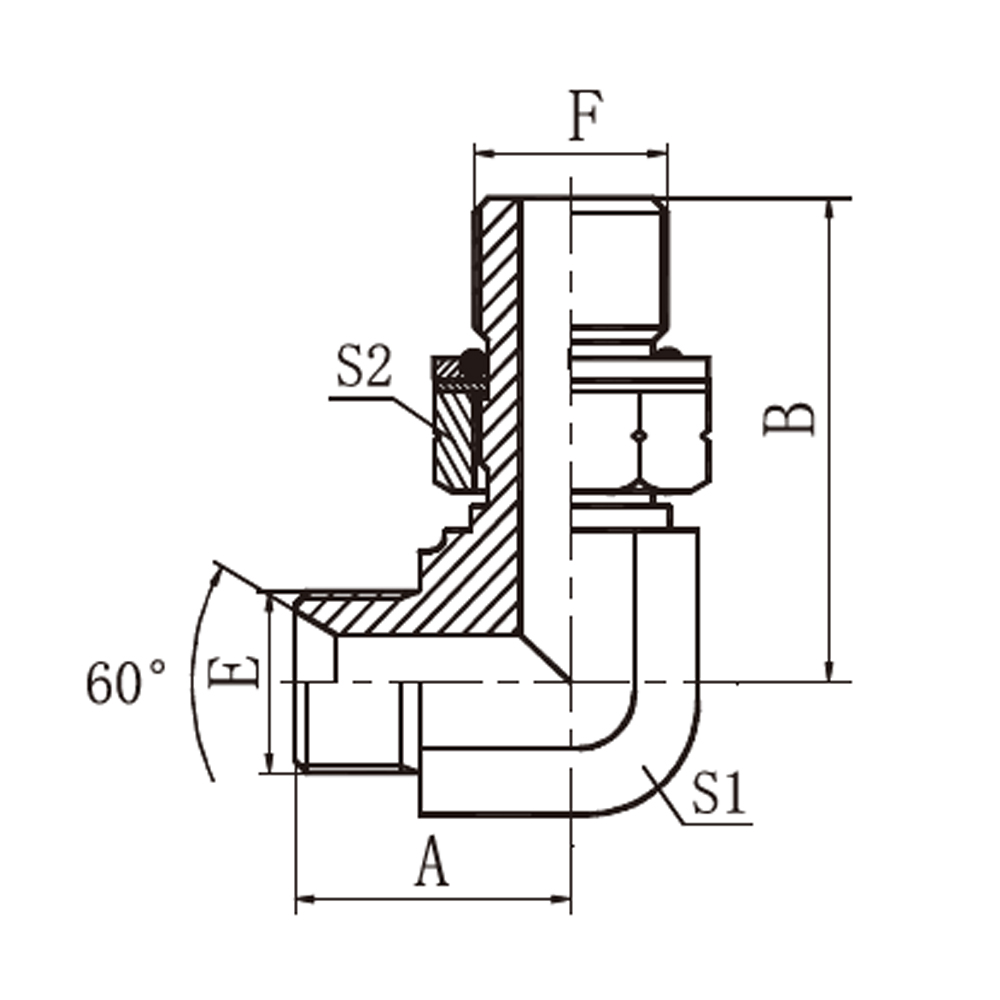

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | F | A | B | S1 | S2 | |
| 1BG9-040G | G1/4″X19 | G1/4″X19 | 111 | 24.5 | 31.5 | 14 | 19 |
| 1BG9-04-060G | G1/4″X19 | G3/8″X19 | 113 | 26.5 | 36.8 | 16 | 22 |
| 1BG9-060G | G3/8″X19 | G3/8″X19 | 113 | 28 | 36.8 | 16 | 22 |
| 1BG9-06-080G | G3/8″X19 | G1/2″X14 | 115 | 31 | 43.2 | 22 | 27 |
| 1BG9-080G | G1/2″X14 | G1/2″X14 | 115 | 34.5 | 43.2 | 22 | 27 |
| 1BG9-08-120G | G1/2″X14 | G3/4″X14 | 119 | 40 | 49.3 | 27 | 32 |
| 1BG9-120G | G3/4″X14 | G3/4″X14 | 119 | 40 | 49.3 | 27 | 32 |
| 1BG9-12-160G | G3/4″X14 | G1″X11 | 217 | 45 | 53 | 33 | 41 |
| 1BG9-160G | G1″X11 | G1″X11 | 217 | 46 | 54 | 33 | 41 |
| 1BG9-20-160G | G1.1/4″X11 | G1″X11 | 217 | 50.5 | 58 | 41 | 41 |
| 1BG9-200G | G1.1/4″X11 | G1.1/4″X11 | 222 | 51.5 | 58 | 41 | 50 |
| 1BG9-240G | G1.1/2″X11 | G1.1/2″X11 | 224 | 58.5 | 63 | 48 | 55 |
