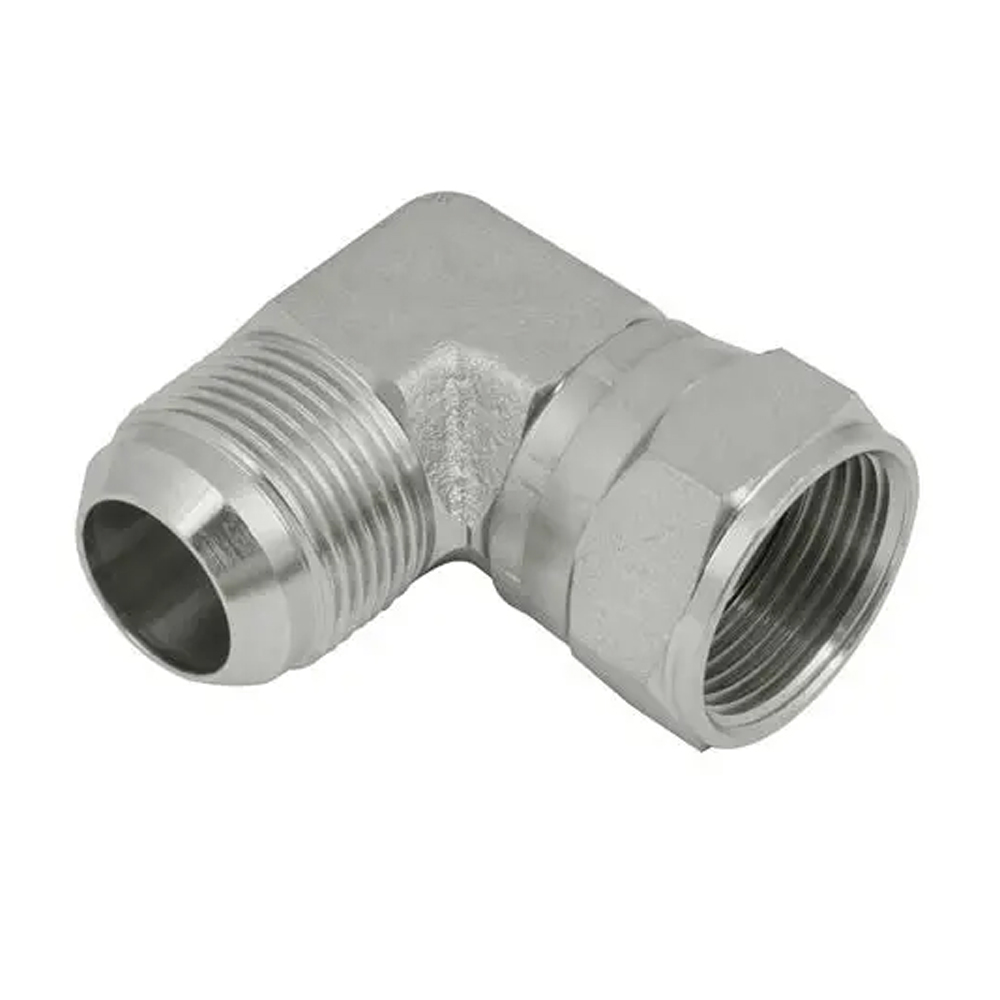

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

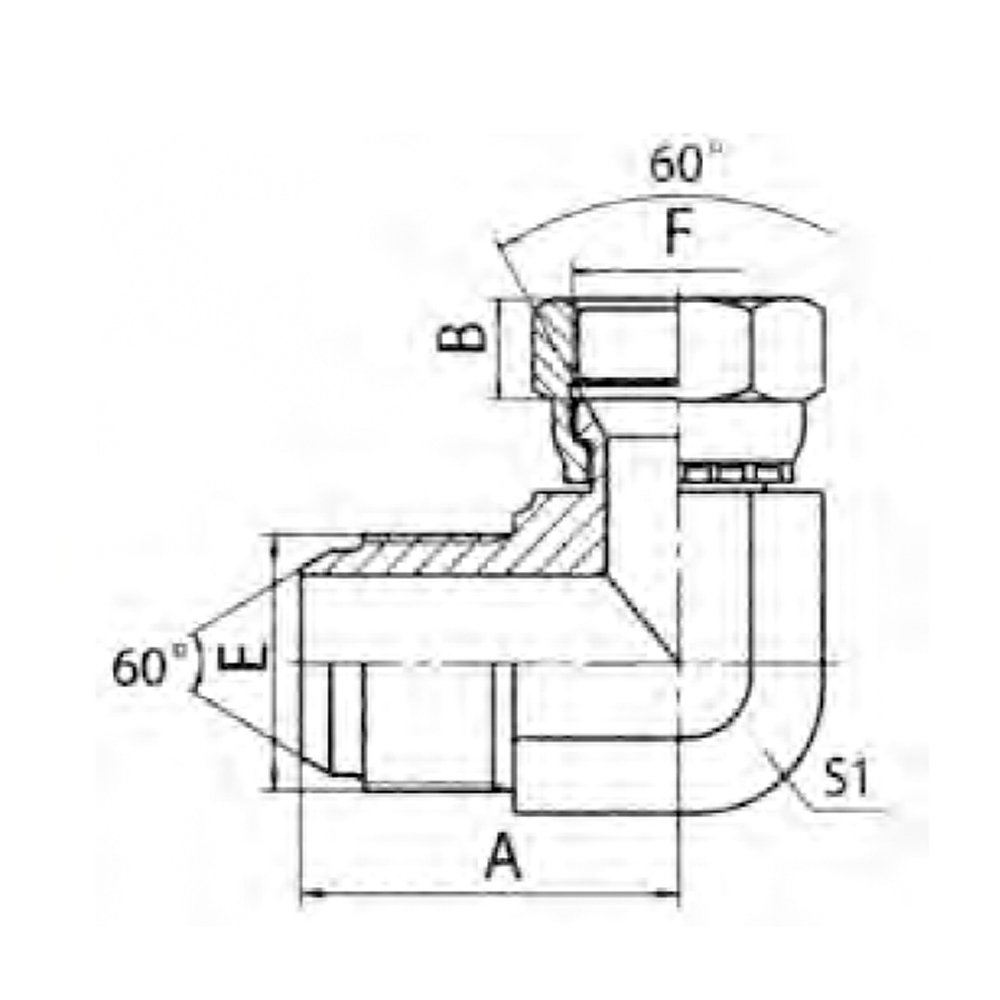

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | S1 | S2 | |
| 2K9-14 | M14X1.5 | M14X1.5 | 29 | 11 | 14 | 19 |
| 2K9-16 | M16X1.5 | M16X1.5 | 31.5 | 10.5 | 16 | 22 |
| 2K9-18 | M18X1.5 | M18X1.5 | 33.8 | 11 | 19 | 24 |
| 2K9-22 | M22X1.5 | M22X1.5 | 38 | 14 | 22 | 27 |
| 2K9-24 | M24X1.5 | M24X1.5 | 41.2 | 14.5 | 24 | 32 |
| 2K9-30-24 | M30X1.5 | M24X1.5 | 48 | 14.5 | 30 | 32 |
| 2K9-30 | M30X1.5 | M30X1.5 | 48 | 17 | 30 | 36 |
| 2K9-33 | M33X1.5 | M33X1.5 | 55 | 17.5 | 33 | 41 |
