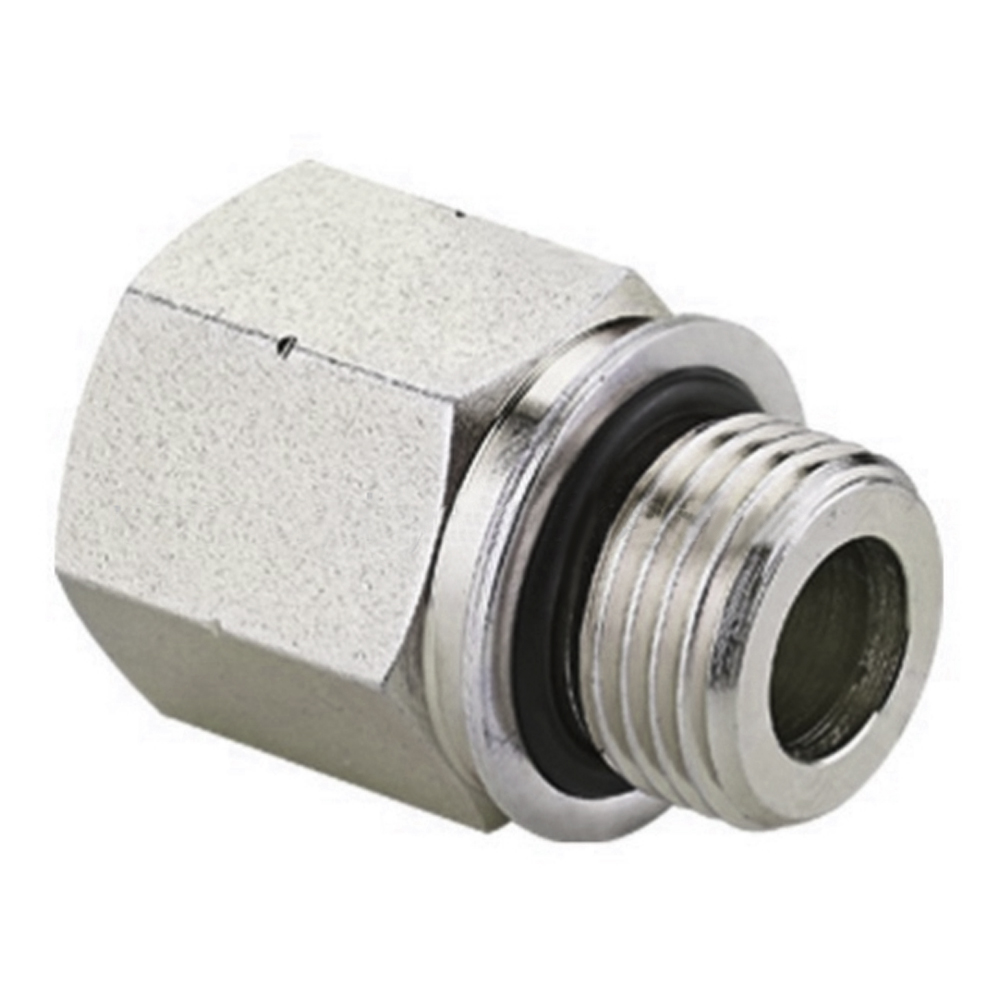

5GB BSP Male To Female O-Ring Fittings

Description:

5B BSP male hydraulic fittings are straight double-use male ro female thread, with a 60-degree cone seat compliant to ISO 1179.

Category: BSP Hydraulic Adapter Tags: Female, BSP, 5GB, ISO1179

Description
Package& Shipping

Description

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

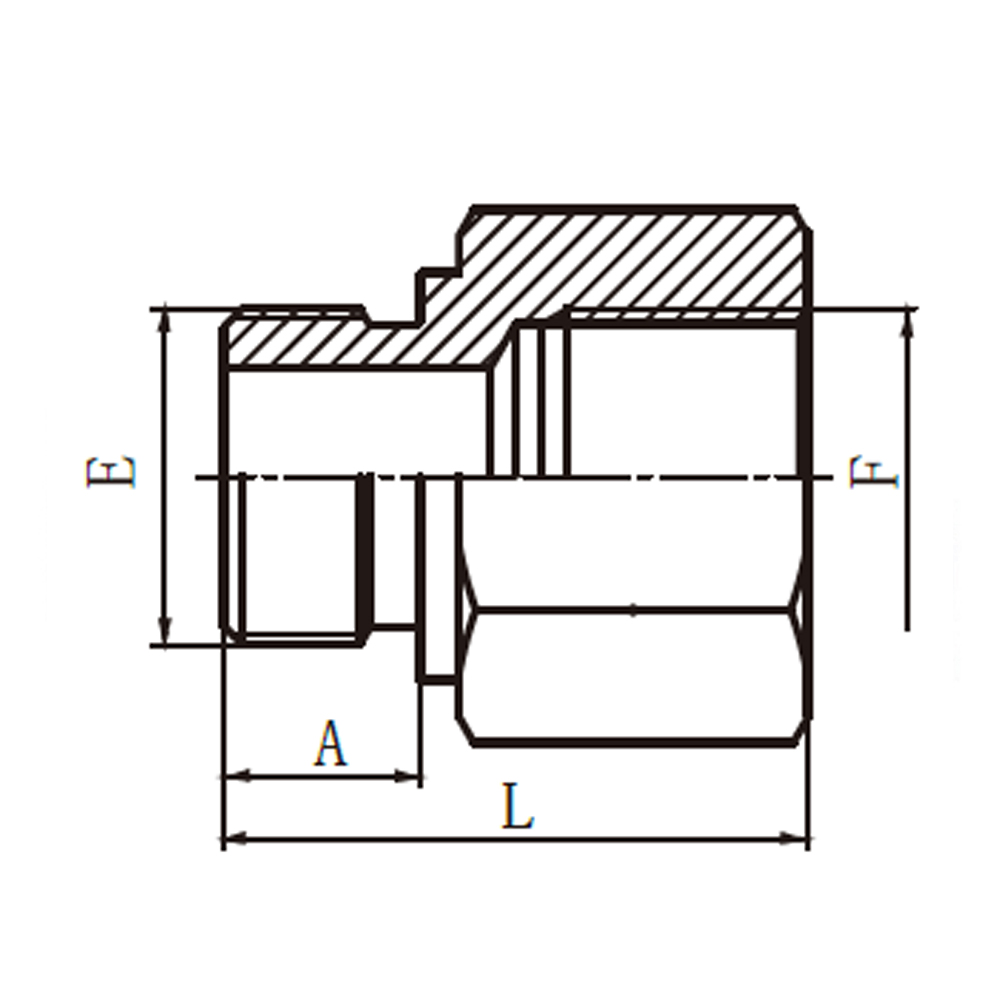

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F	E	A	L	S1
5GB-04	G1/4″X19	G1/4″X19	O111	11	32	19
5GB-04-06	G1/4″X19	G3/8″X19	O111	11	35.5	22
5GB-06	G3/8″X19	G3/8″X19	O113	11.5	36	22
5GB-06-08	G3/8″X19	G1/2″X14	O113	11.5	41	27
5GB-08	G1/2″X14	G1/2″X14	O115	14	41	27
5GB-08-12	G1/2″X14	G3/4″X14	O115	14	46	36
5GB-12	G3/4″X14	G3/4″X14	O119	15.5	46	36
5GB-12-16	G3/4″X14	G1″X11	O119	15.5	50	41
5GB-16-12	G1″X11	G3/4″X14	O217	18	47	41
5GB-16	G1″X11	G1″X11	O217	18	52.5	41

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
