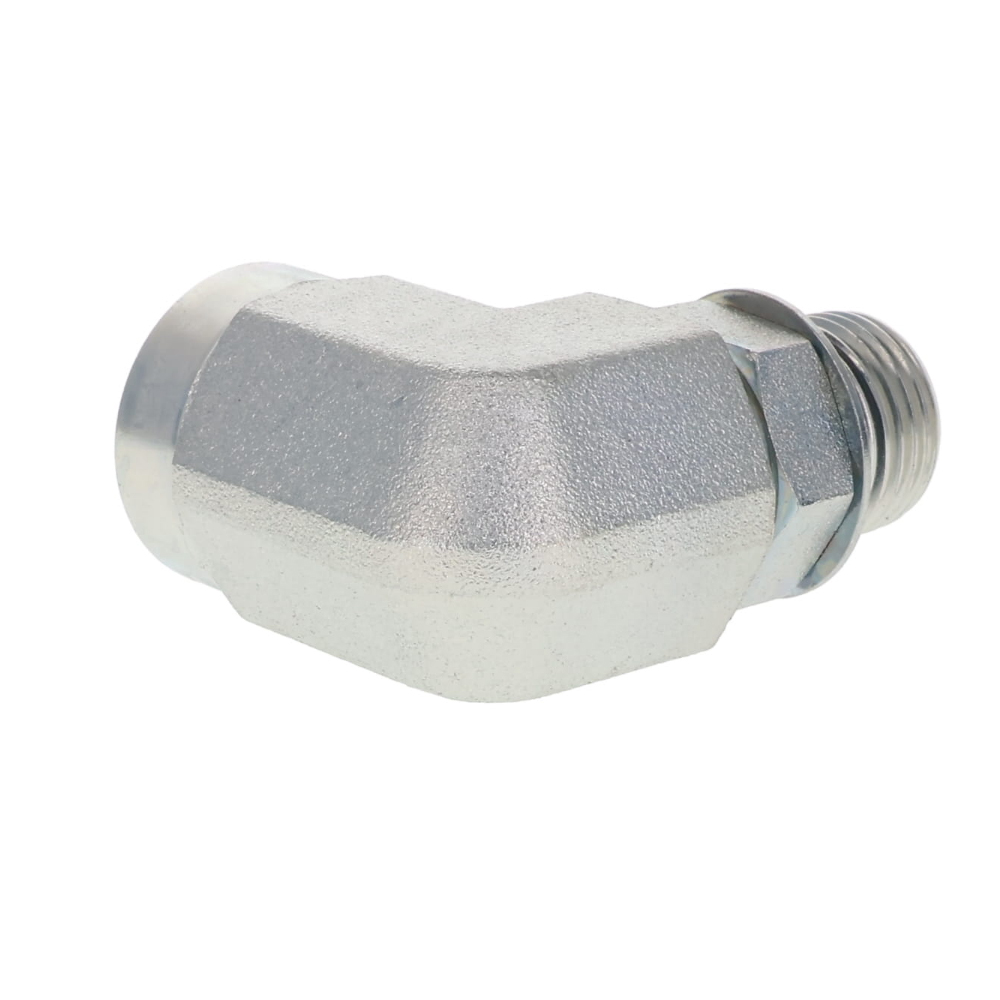

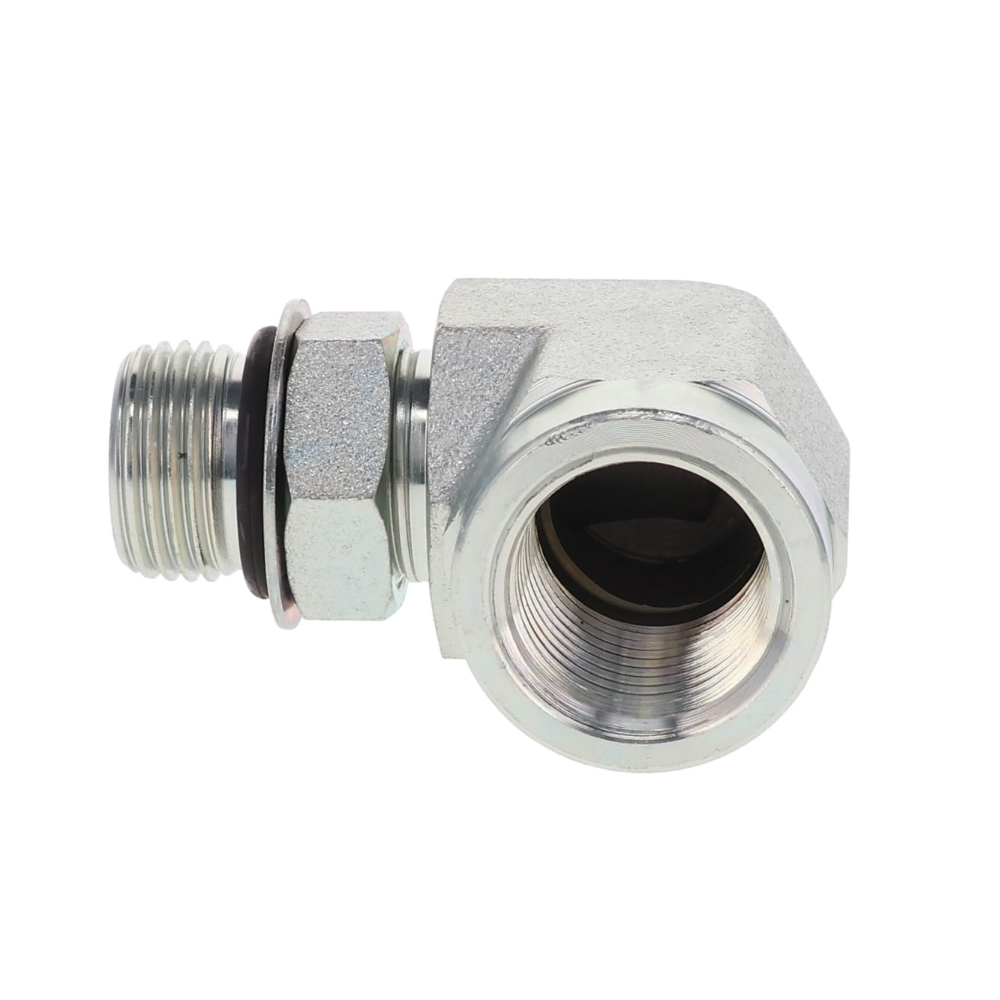

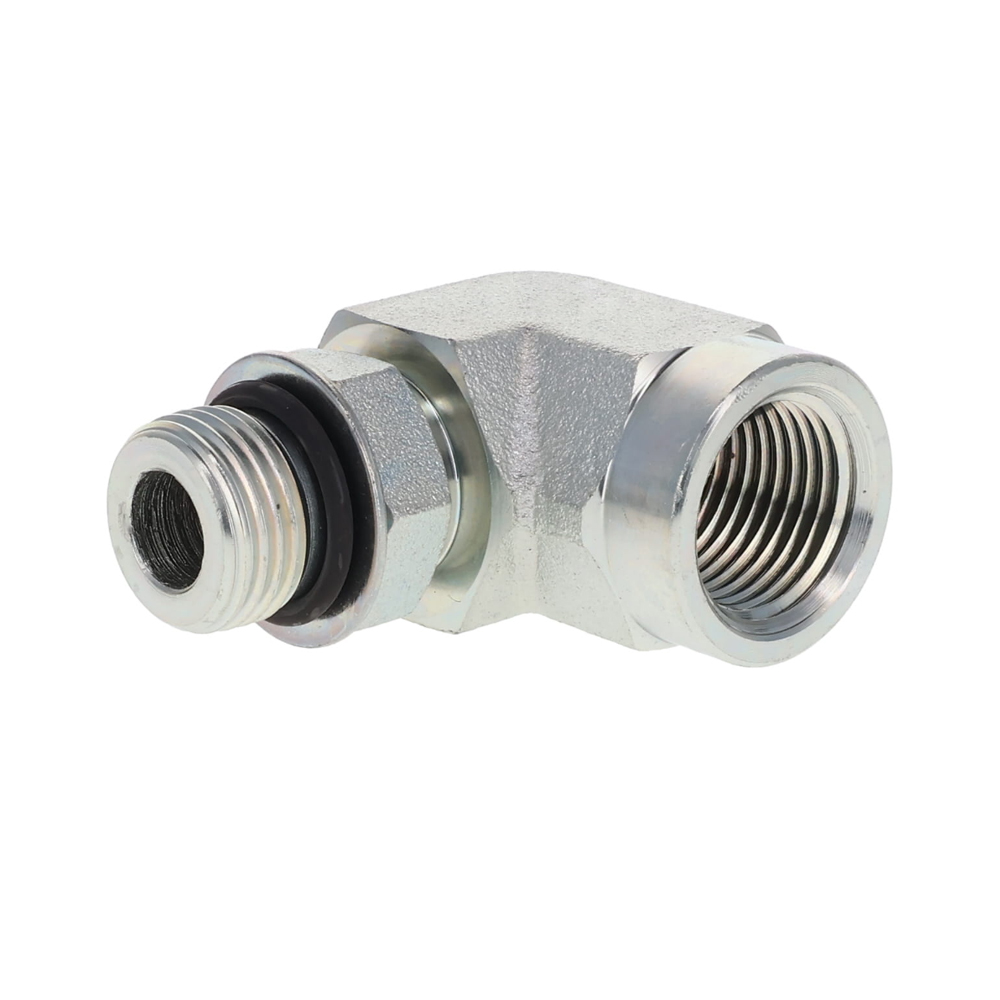

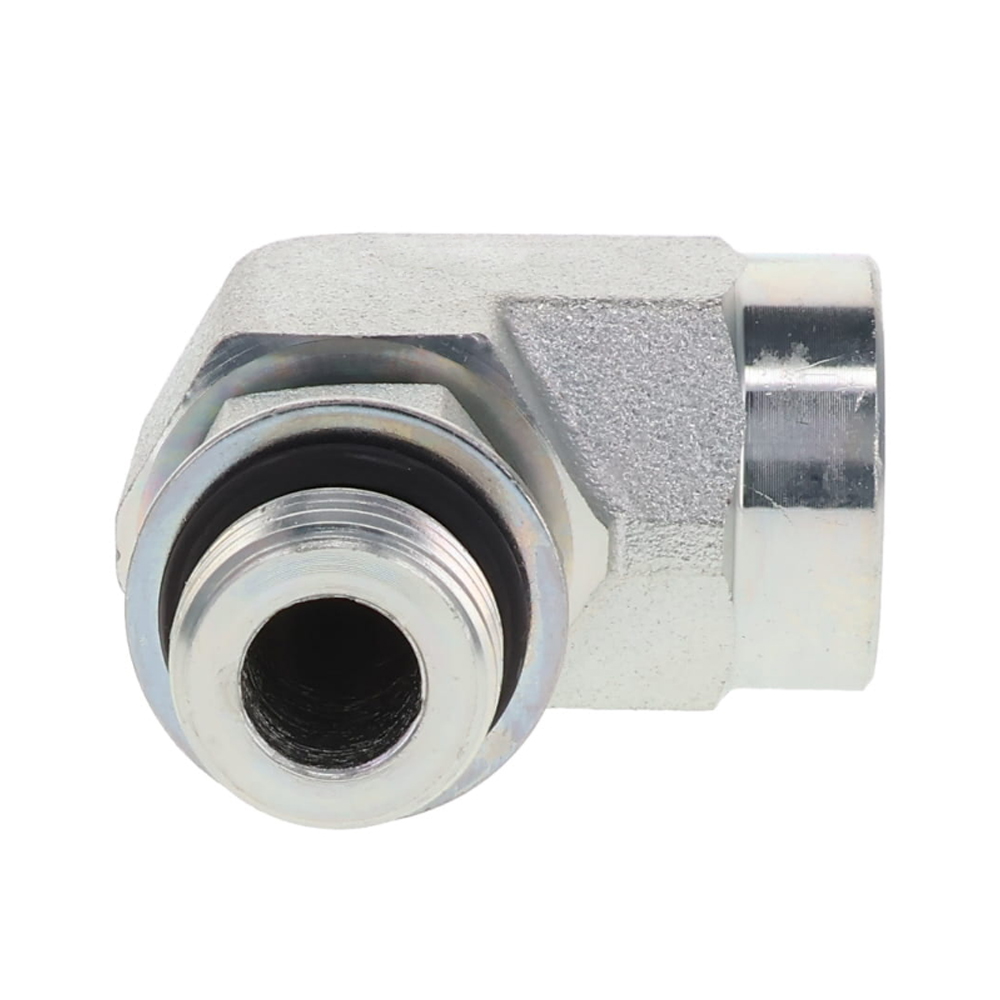

5ON9 Male ORB To NPT Female 90° Elbow Adapter

Description:

5ON9 male ORB To NPT female 90° elbow adapters can be used to convert to NPT, JIC conforming to SAE J514.

"*" indicates required fields

SAE O-Ring Boss (ORB) fittings from 45° and 90° elbows to straight adapters and tees come in carbon steel, suitable for any hydraulic application. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

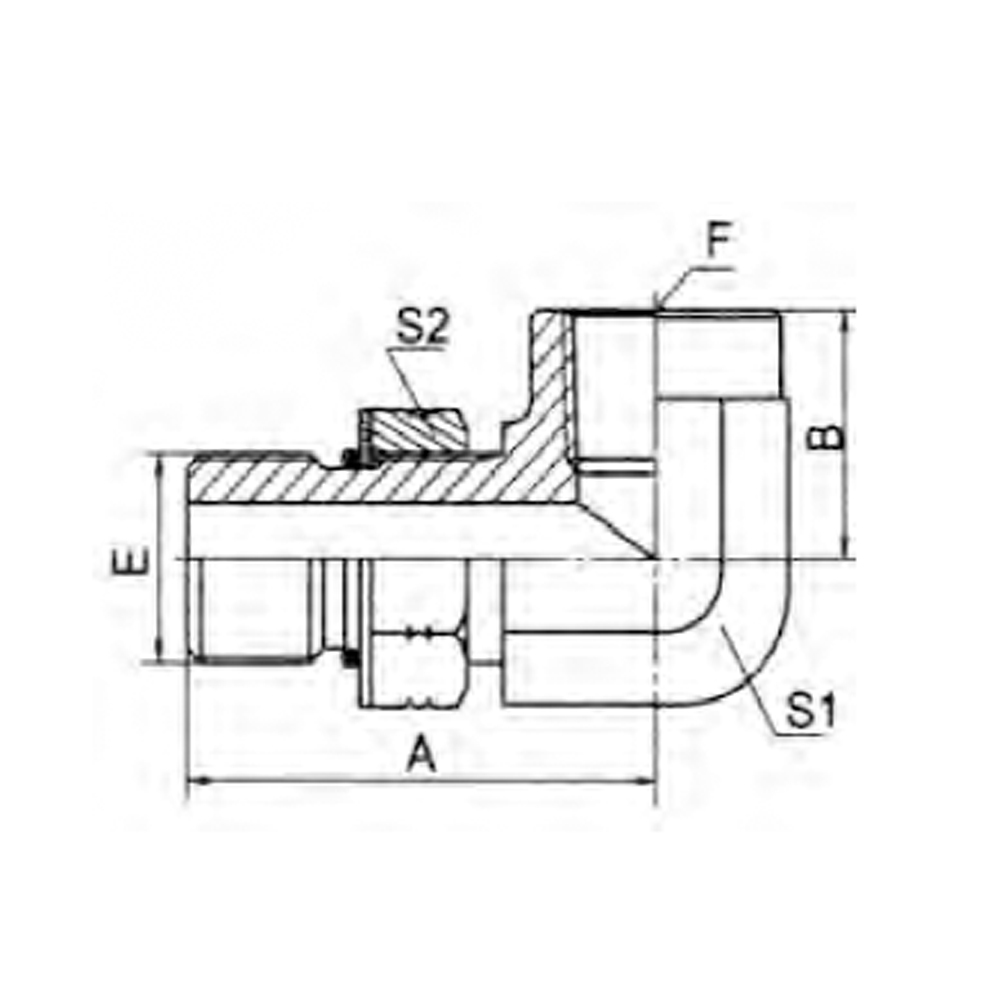

PART NO.	THREAD		O-RING	DIMENSIONS
PART NO.	E	F		A	B	S1	S2
5ON9-04OG	7/16″X20	Z1/4″X18	O904	31.5	22.4	16	17
5ON9-05-04OG	1/2″X20	Z1/4″X18	O905	31.5	22.4	16	17
5ON9-06OG	9/16″X18	Z3/8″X18	O906	36.5	26.5	22	19
5ON9-06-04OG	9/16″X18	Z1/4″X18	O906	33.3	22.4	16	17
5ON9-06-08OG	9/16″X18	Z1/2″X14	O906	40	31.2	27	19
5ON9-08OG	3/4″X16	Z1/2″X14	O908	43	31.2	27	24
5ON9-08-06OG	3/4″X16	Z3/8″X18	O908	40	26.5	22	24
5ON9-08-12OG	3/4″X16	Z3/4″X14	O908	46.5	34.5	33	24
5ON9-10-08OG	7/8″X14	Z1/2″X14	O910	48	31.2	27	27
5ON9-120G	1.1/16″X12	Z3/4″X14	O912	55	34.5	33	32
5ON9-12-16OG	1.1/16″X12	Z1″X11.5	O912	59.5	41.1	41	32
5ON9-16OG	1.5/16″X12	Z1″X11.5	O916	59.5	41.1	41	41
5ON9-16-12OG	1.5/16″X12	Z3/4″X14	O916	56	34.5	33	41
5ON9-20OG	1.5/8″X12	Z1.1/4″X11.5	O920	65	43.2	48	50
