4Q Metric Pipe Male Hose Plug

Description:

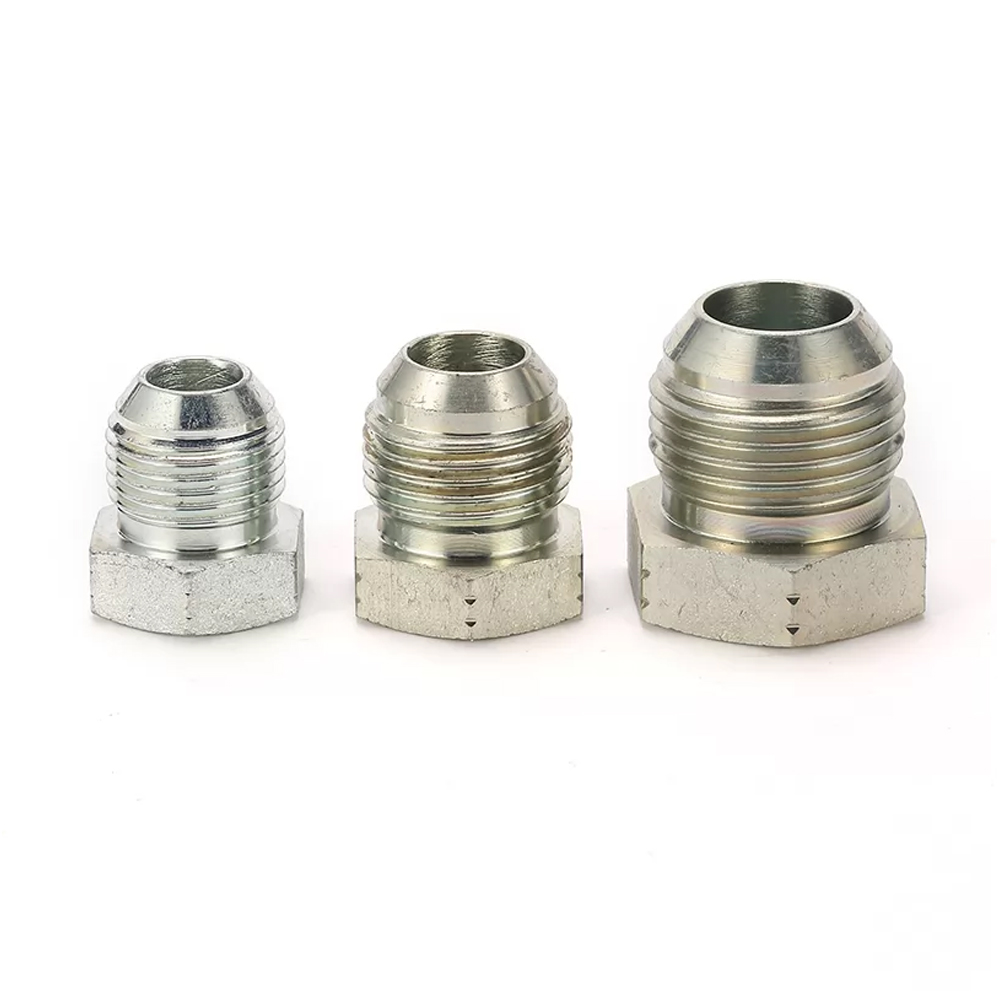

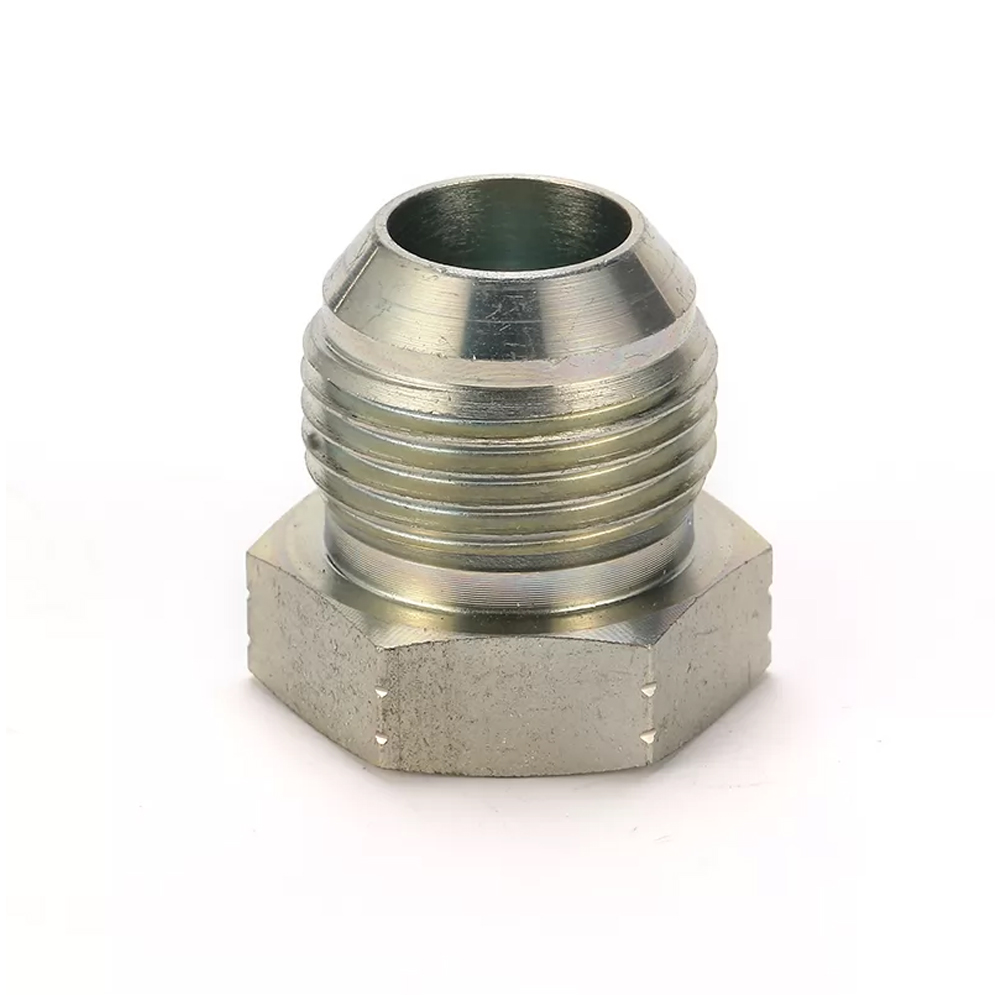

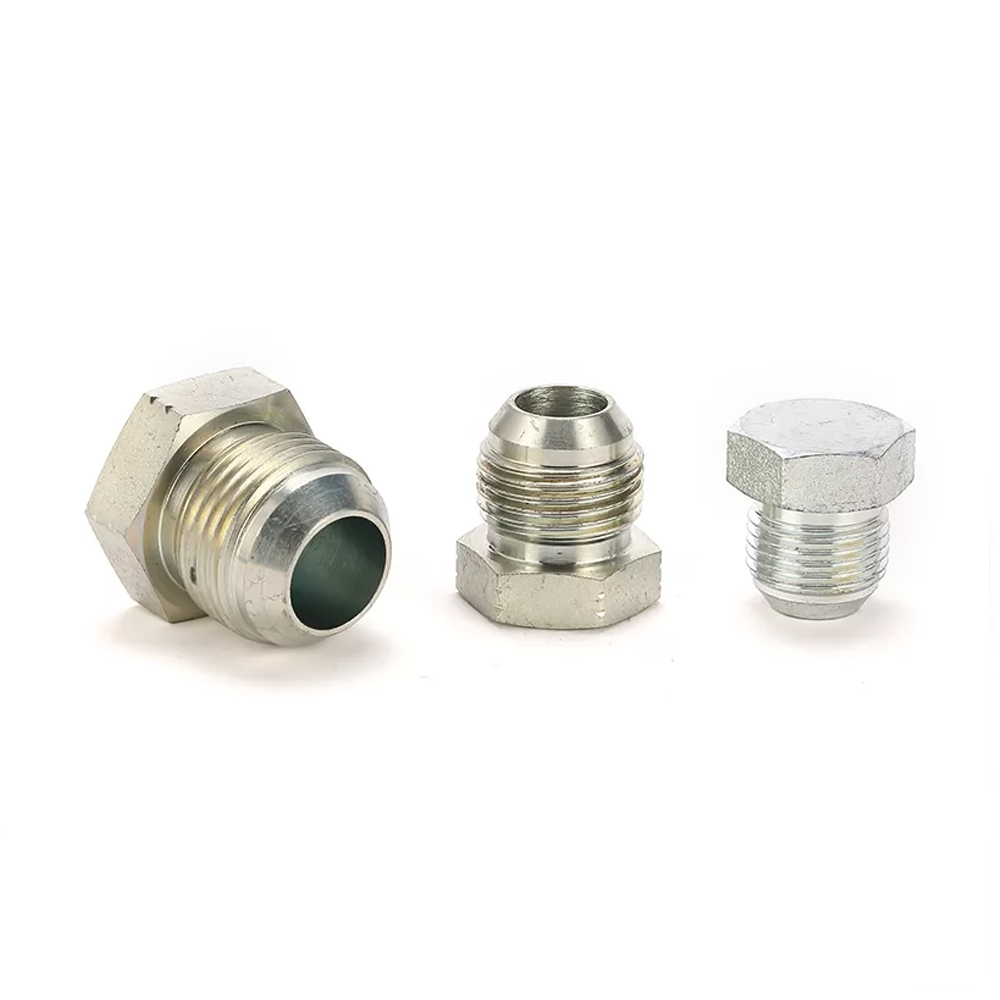

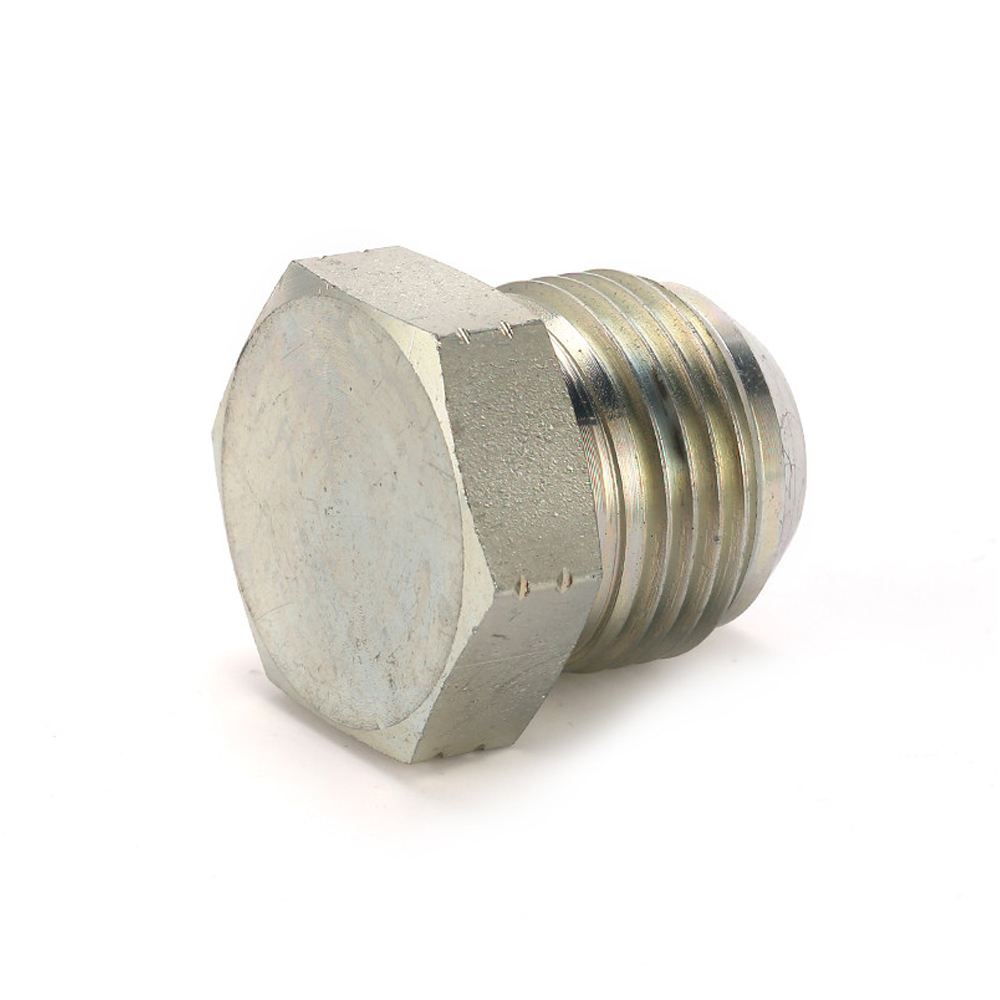

4Q hydraulic 74° cone metric plug is a type of hydraulic adapter that is commonly used in high-pressure hydraulic systems.

INQUIRE NOW

"*" indicates required fields

Category: Tags: , , ,
Description

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

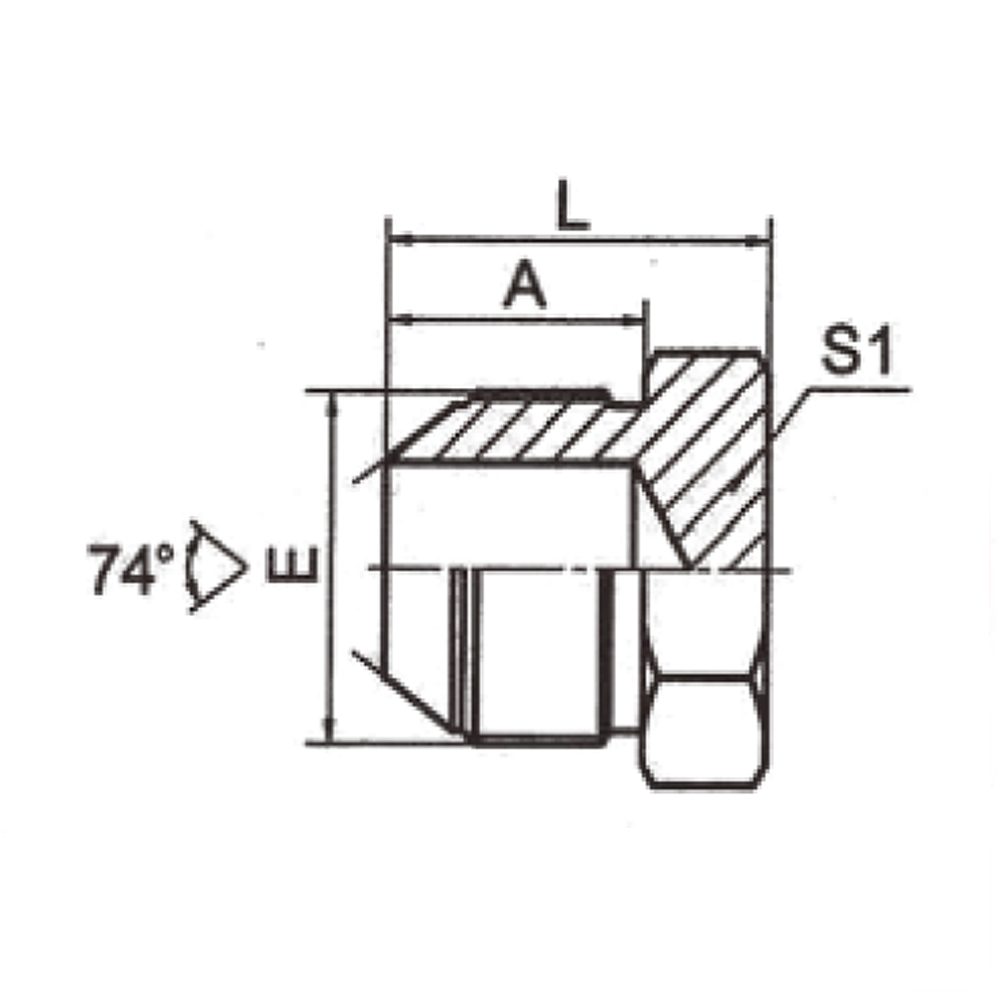

PART NO. THREAD TUBE O.D. DIMENSIONS
E D A L S1 S2
4Q-10 M10X1 5 12 18 12 14
4Q-12 M12X1.5 6 15.7 21.5 14 14
4Q-14 M14X1.5 8 17 23 17 17
4Q-16 M16X1.5 10 18 24 17 22
4Q-18 M18X1.5 12 18 24 19 24
4Q-22 M22X1.5 14 19.5 27.5 24 27
4Q-24 M24X1.5 16 20 30 27 30
4Q-27 M27X1.5 18 20 30 30 32
4Q-30 M30X1.5 20 23 34 32 36
4Q-30E M30X2 20 26 37 32 36
4Q-33 M33X2 22 26 37 36 38
4Q-36 M36X2 25 26 38 38 41
4Q-39 M39X2 28 26 39 41 46
4Q-42 M42X2 32 28.5 41.5 46 50
4Q-45 M45X2 34 28.5 41.5 46 55
Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.



Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
