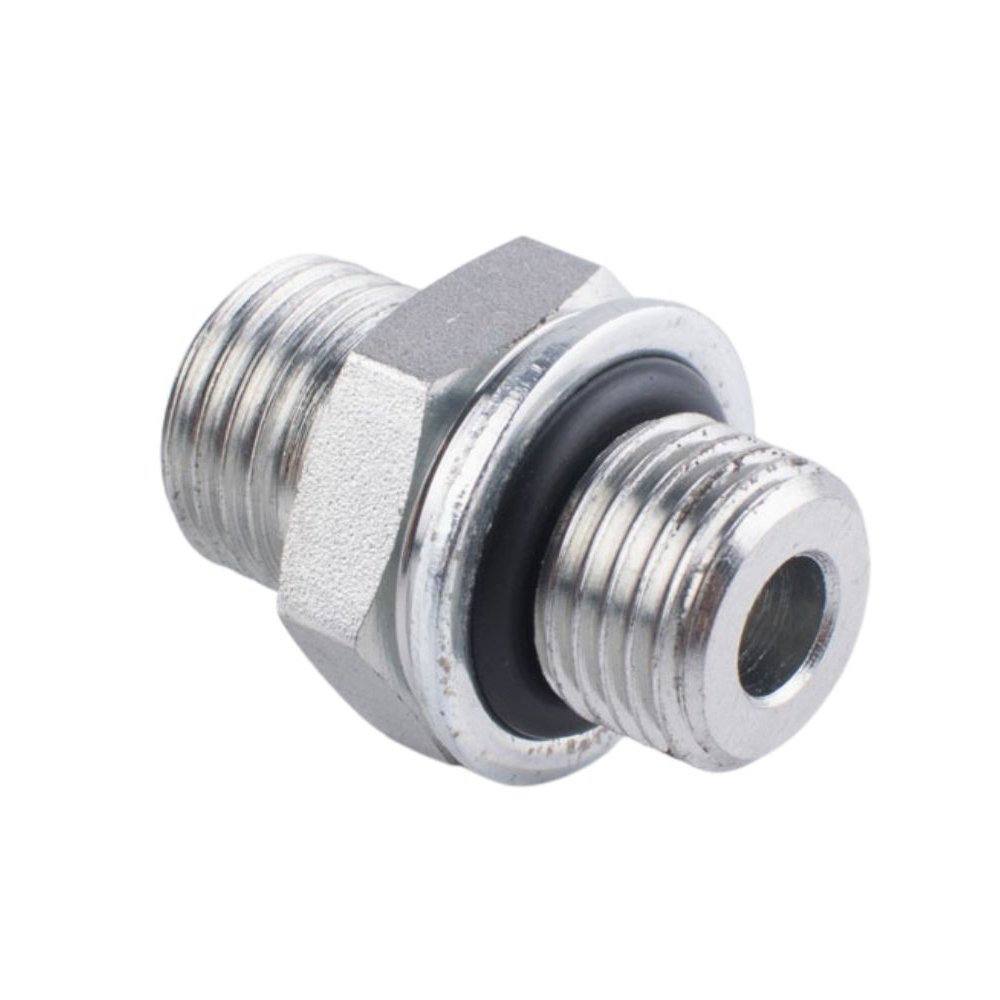

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

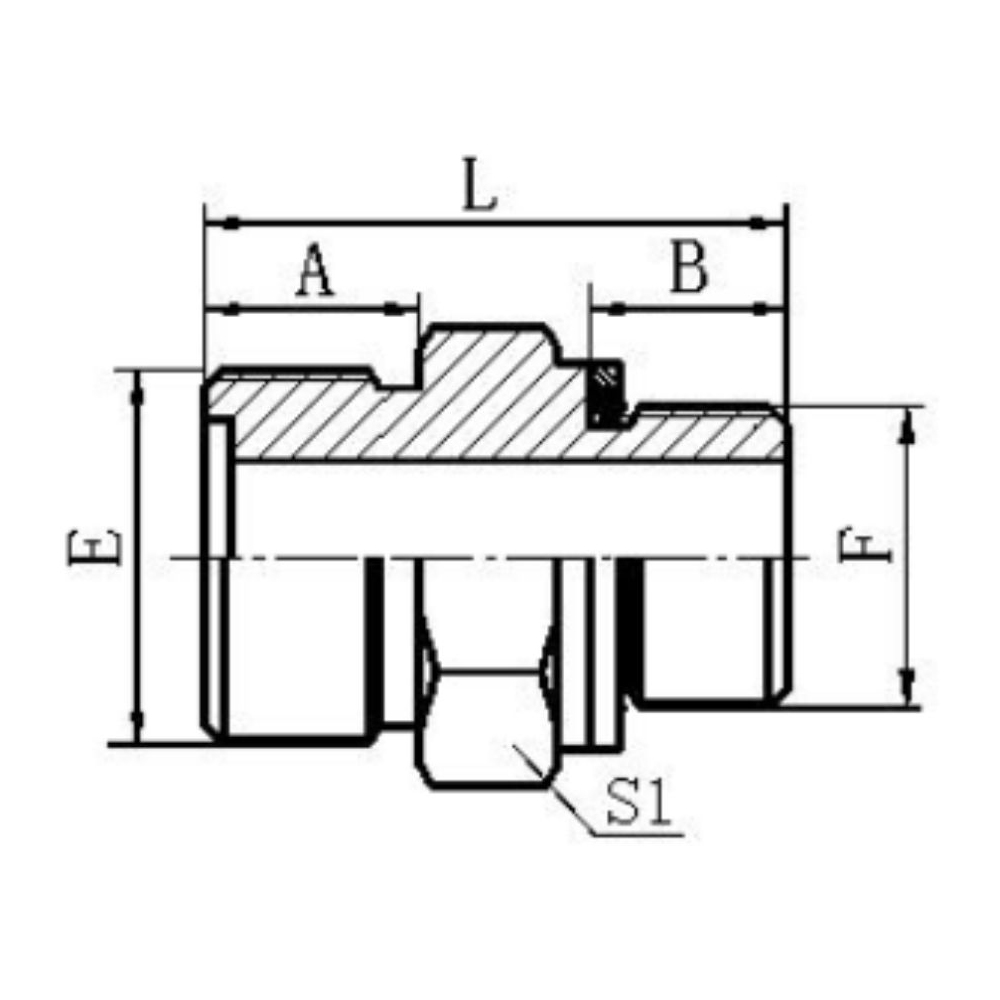

| PART NO. | THREAD | O-RING | DIMENSIONS | |||||
| E | F | E | F | A | B | L | S1 | |
| 1EH-12-10 | M12X1.25 | M10X1 | 8X1.9 | O08.1X1.6 | 11 | 8.5 | 26.5 | 14 |
| 1EH-14-12 | M14X1.5 | M12X1.5 | 10X1.9 | O09.3X2.4 | 11 | 11 | 29.5 | 17 |
| 1EH-16-14 | M16X1.5 | M14X1.5 | 11X1.9 | O11.3X2.4 | 11 | 11 | 29.5 | 19 |
| 1EH-18-16 | M18X1.5 | M16X1.5 | 13X1.9 | O13.3X2.4 | 11 | 11.5 | 31.5 | 22 |
| 1EH-22-18 | M22X1.5 | M18X1.5 | 16X2.4 | O15.3X2.4 | 12 | 12.5 | 34.5 | 24 |
| 1EH-27-22 | M27X1.5 | M22X1.5 | 20X2.4 | O19.3X2.4 | 13 | 15 | 38 | 30 |
| 1EH-30-27 | M30X1.5 | M27X2 | 24X2.4 | O23.5X3.0 | 14 | 18.5 | 43.5 | 32 |
| 1EH-36-33 | M36X2 | M33X2 | 30X3.1 | O29.2X3.0 | 16 | 18.5 | 47.5 | 41 |
| 1EH-39-33 | M39X2 | M33X2 | 32X3.1 | O29.2X3.0 | 18 | 18.5 | 49.5 | 41 |
| 1EH-42 | M42X2 | M42X2 | 35X3.1 | O38.5X3.0 | 20 | 19 | 54 | 50 |
| 1EH-45-42 | M45X2 | M42X2 | 38X3.1 | O38.5X3.0 | 20 | 19 | 54 | 50 |
| 1EH-52-48 | M52X2 | M48X2 | 40X3.1 | O44.5X3.0 | 22 | 21.5 | 58.5 | 55 |
