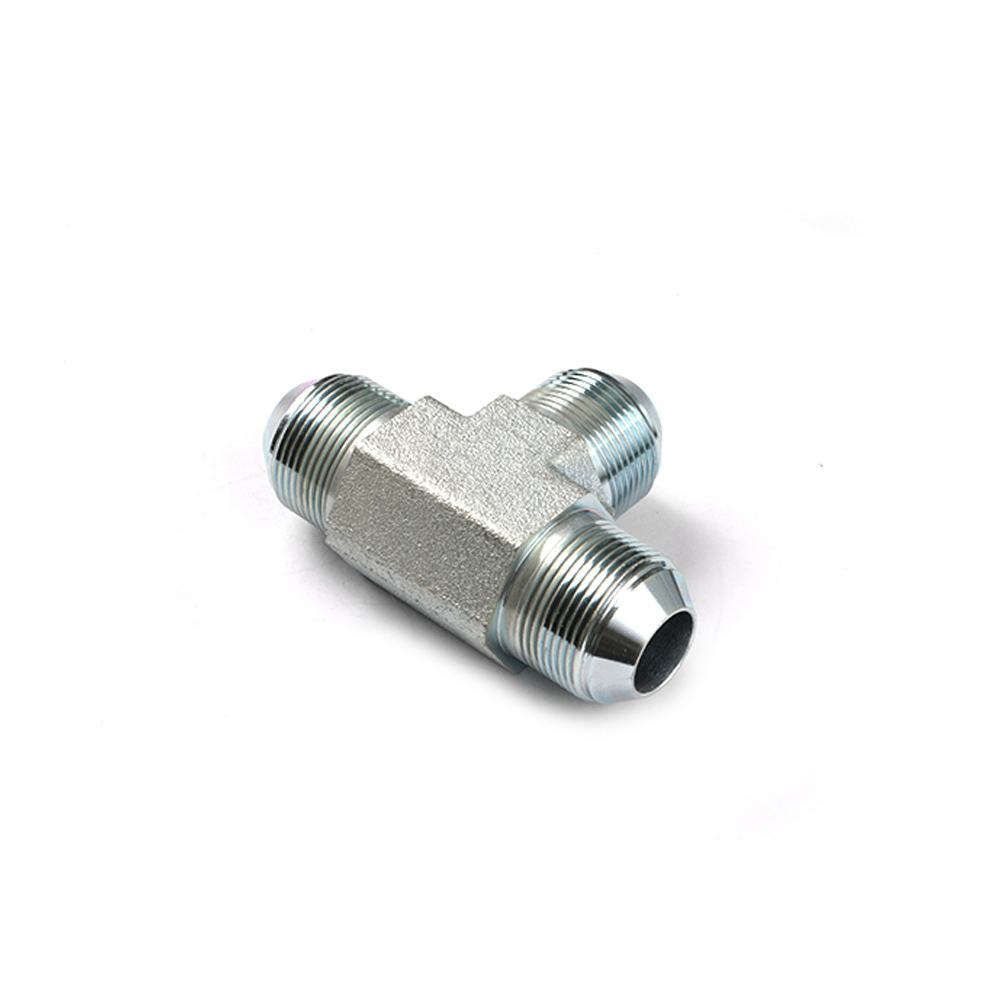

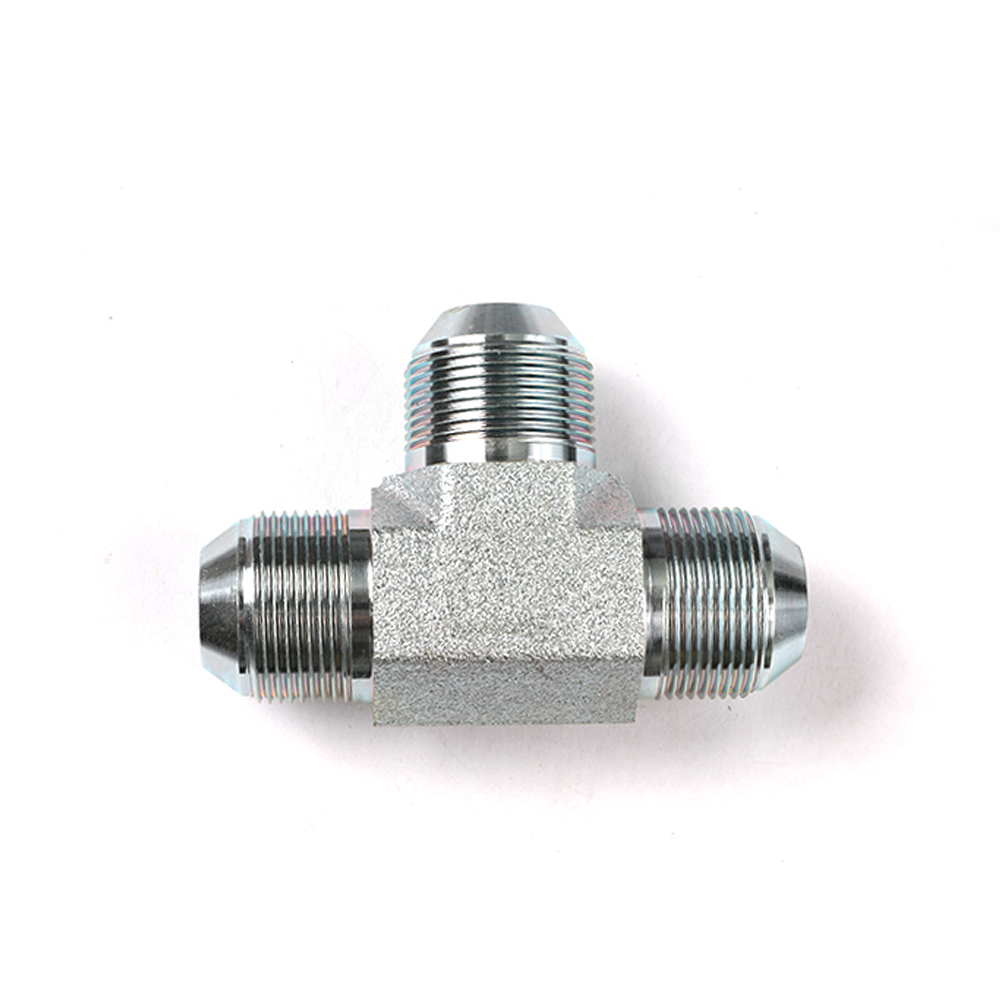

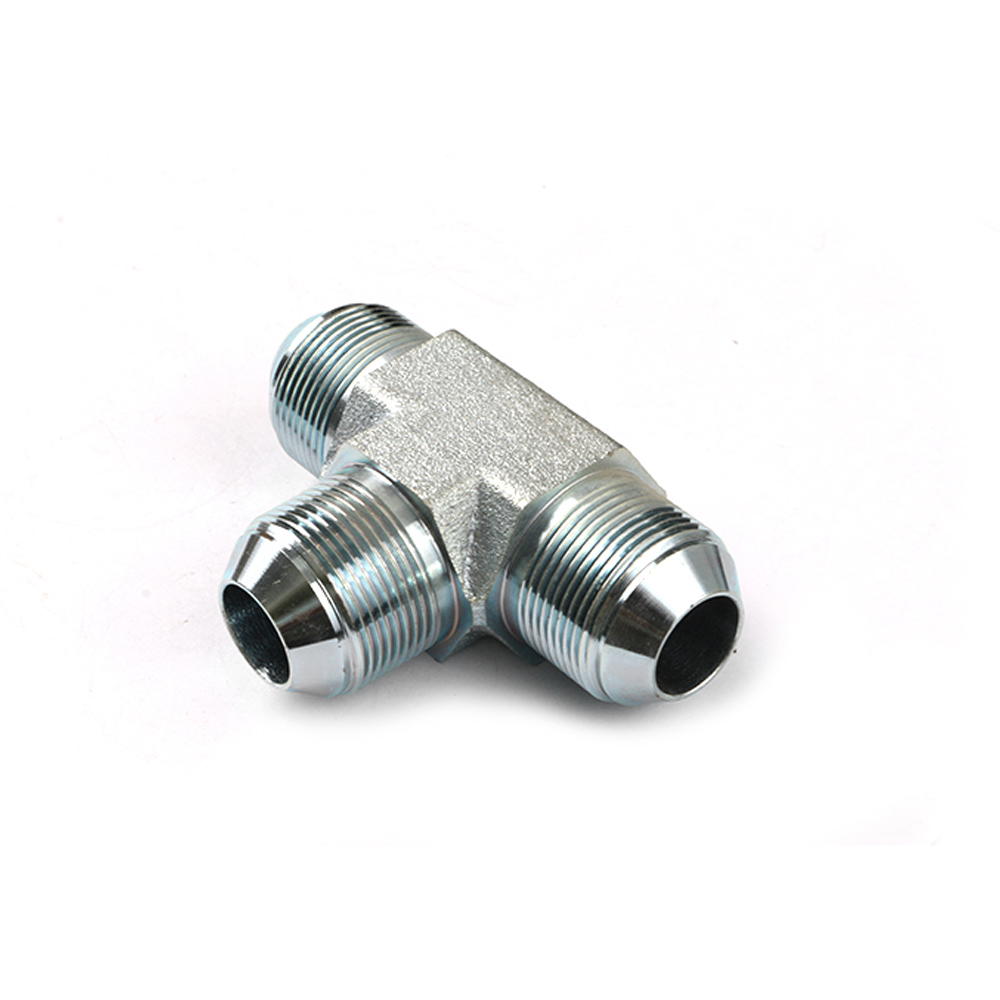

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

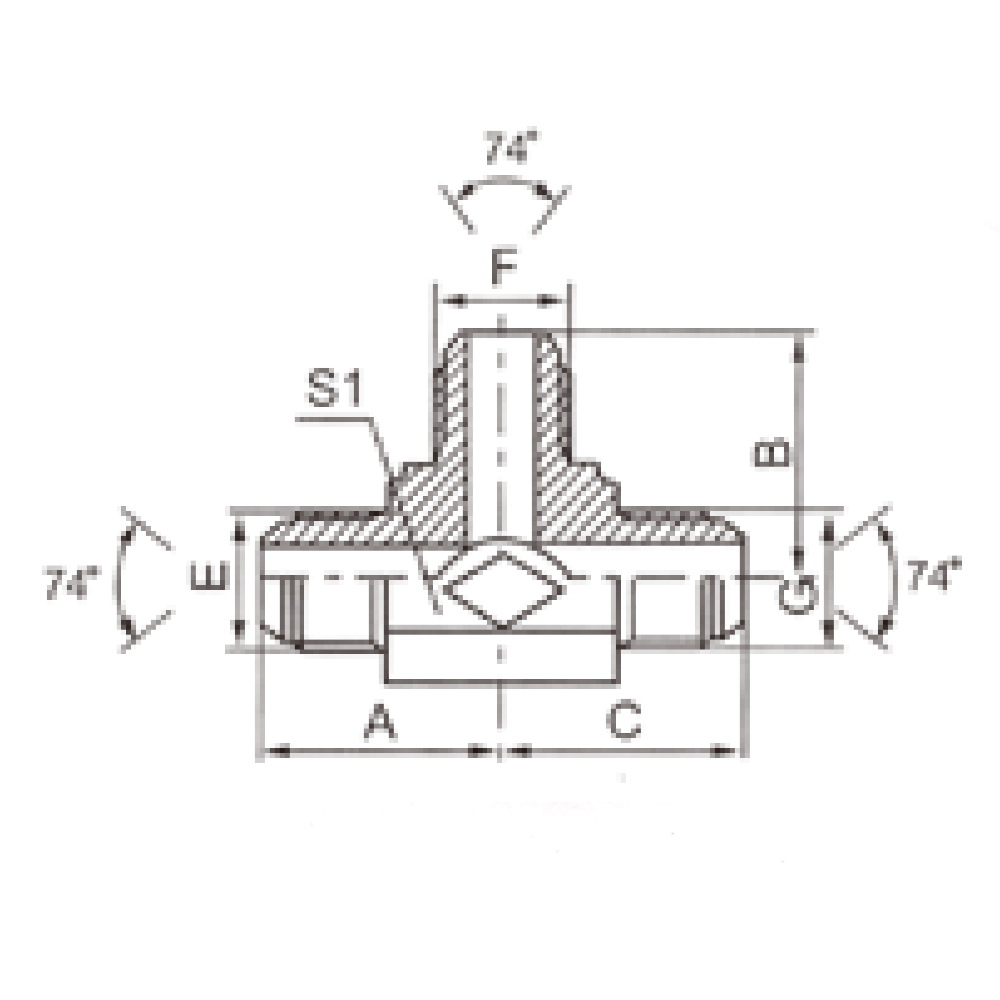

| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | ||||||
| E | F | G | D1,D2,D3 | A | B | C | S1 | S2,S3,S4 | |
| AQ-14 | M14X1.5 | M14X1.5 | M14X1.5 | 8 | 27 | 27 | 27 | 14 | 17 |
| AQ-16 | M16X1.5 | M16X1.5 | M16X1.5 | 10 | 29.5 | 29.5 | 29.5 | 16 | 22 |
| AQ-18 | M18X1.5 | M18X1.5 | M18X1.5 | 12 | 34 | 34 | 34 | 19 | 24 |
| AQ-22 | M22X1.5 | M22X1.5 | M22X1.5 | 14 | 37.5 | 37.5 | 37.5 | 22 | 27 |
| AQ-27 | M27X1.5 | M27X1.5 | M27X1.5 | 18 | 41.5 | 41.5 | 41.5 | 27 | 32 |
| AQ-30 | M30X1.5 | M30X1.5 | M30X1.5 | 20 | 42.8 | 42.8 | 42.8 | 30 | 36 |
| AQ-33 | M33X2 | M33X2 | M33X2 | 22 | 49.5 | 49.5 | 49.5 | 33 | 38 |
