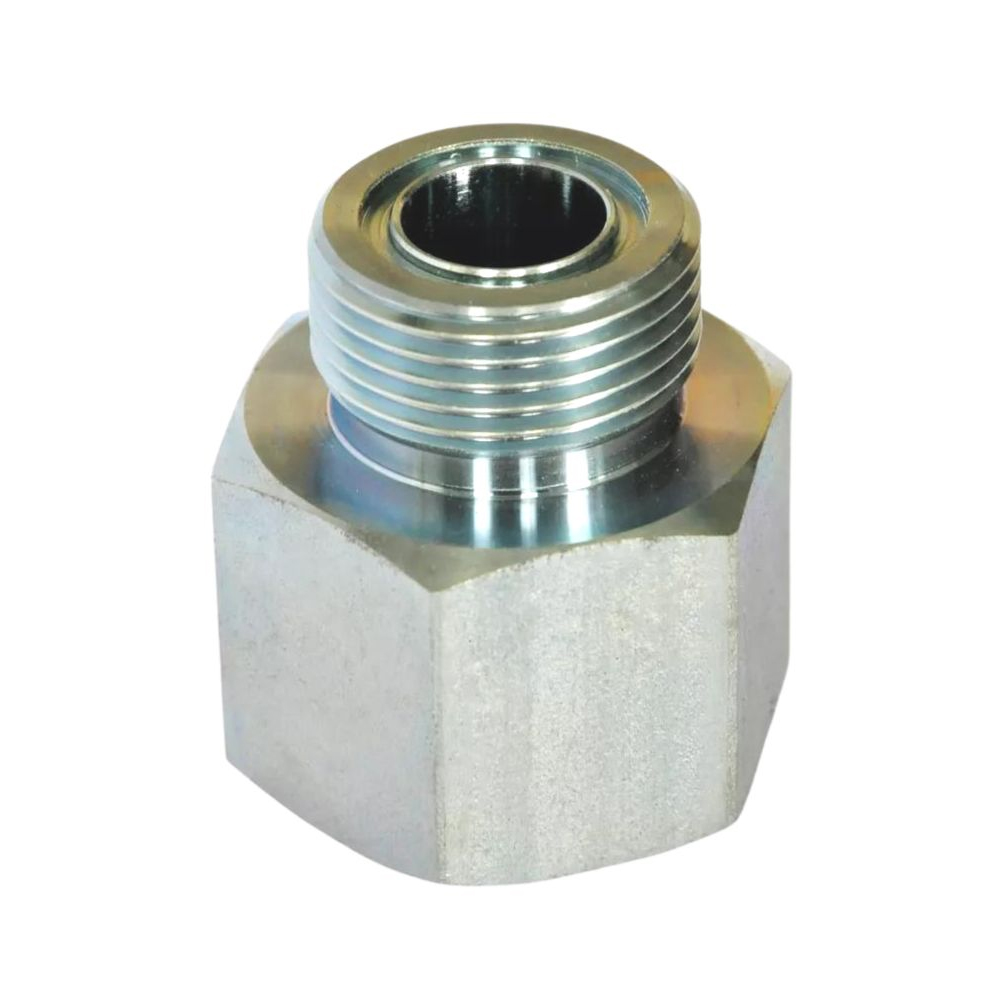

Metric hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

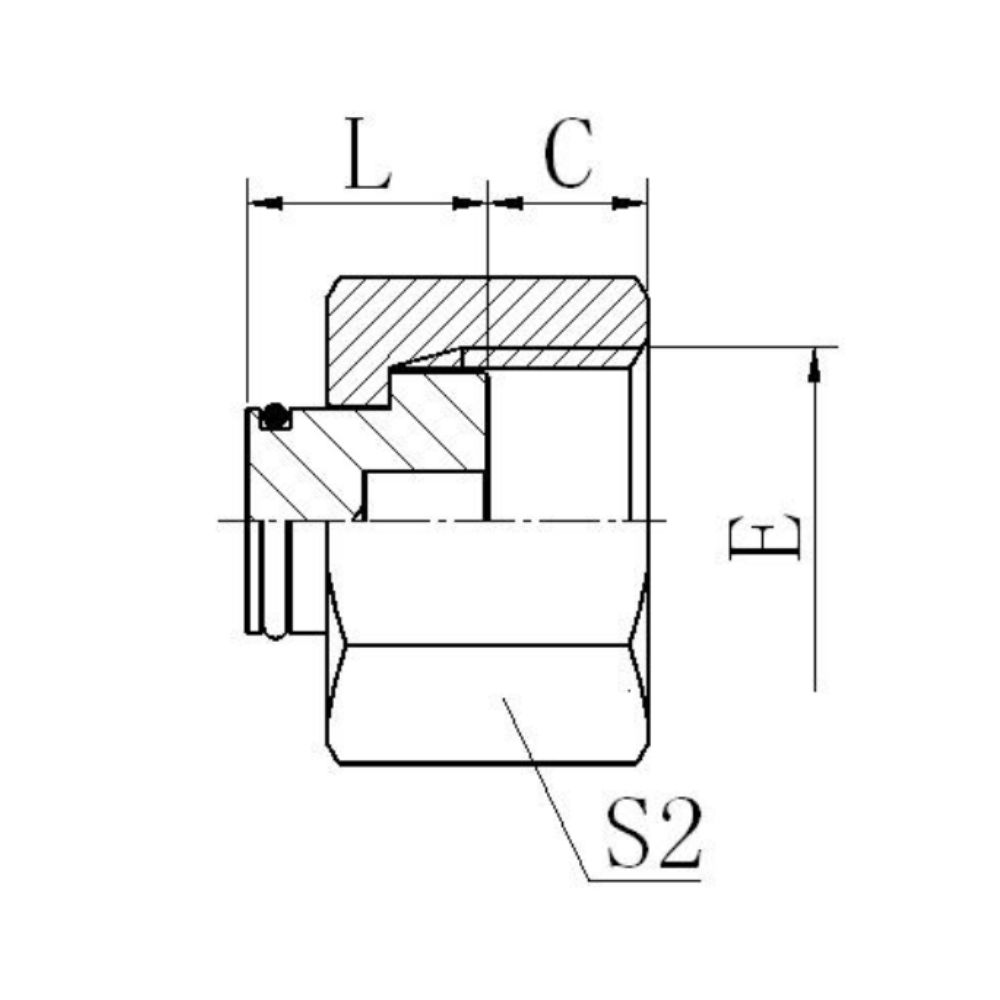

| PART NO. | THREAD | DIMENSIONS | ||
| E | C | L | S2 | |
| 9E-12 | M12X1.25 | 8 | 10 | 14 |
| 9E-14 | M14X1.5 | 8.5 | 10.5 | 17 |
| 9E-16 | M16X1.5 | 8.5 | 11.5 | 19 |
| 9E-18 | M18X1.5 | 8.5 | 13 | 22 |
| 9E-22 | M22X1.5 | 10 | 13 | 27 |
| 9E-27 | M27X1.5 | 10 | 15 | 32 |
| 9E-30 | M30X1.5 | 11 | 15 | 36 |
| 9E-36 | M36X2 | 13 | 15.5 | 41 |
| 9E-39 | M39X2 | 13 | 17.5 | 46 |
| 9E-42 | M42X2 | 15 | 18.5 | 50 |
| 9E-45 | M45X2 | 15 | 18.5 | 55 |
| 9E-52 | M52X2 | 17 | 18.5 | 60 |
