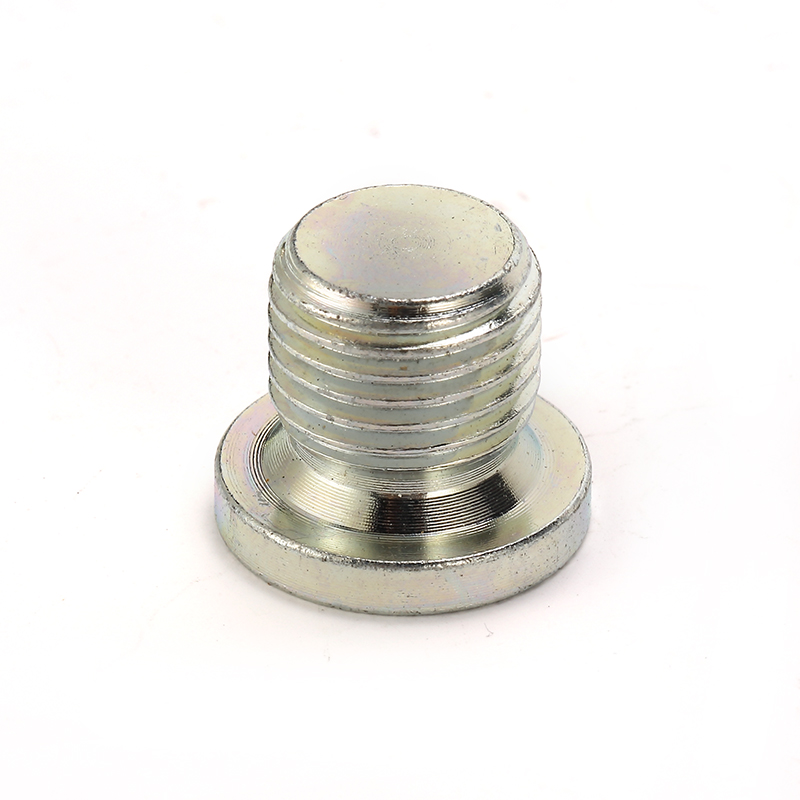

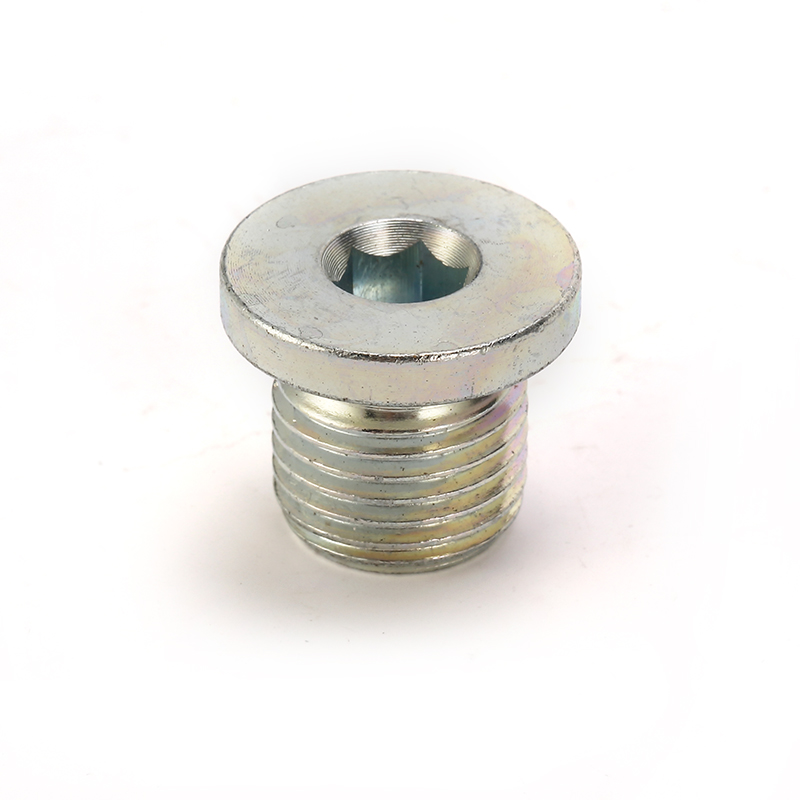

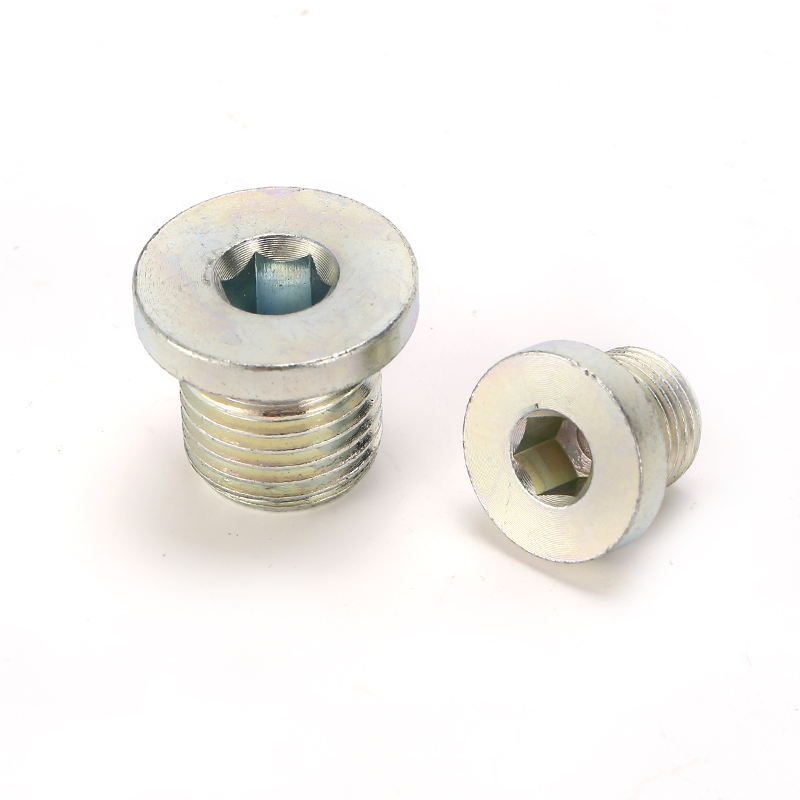

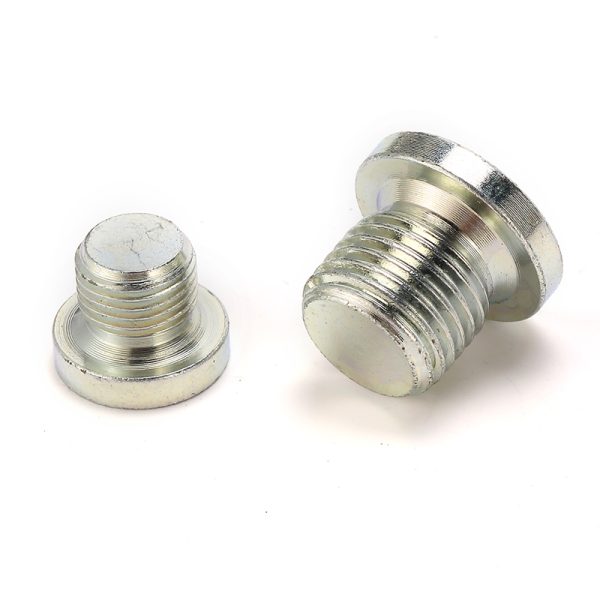

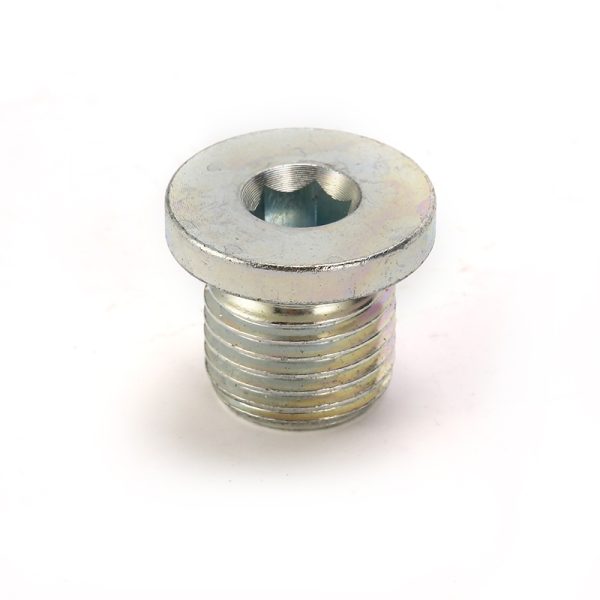

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

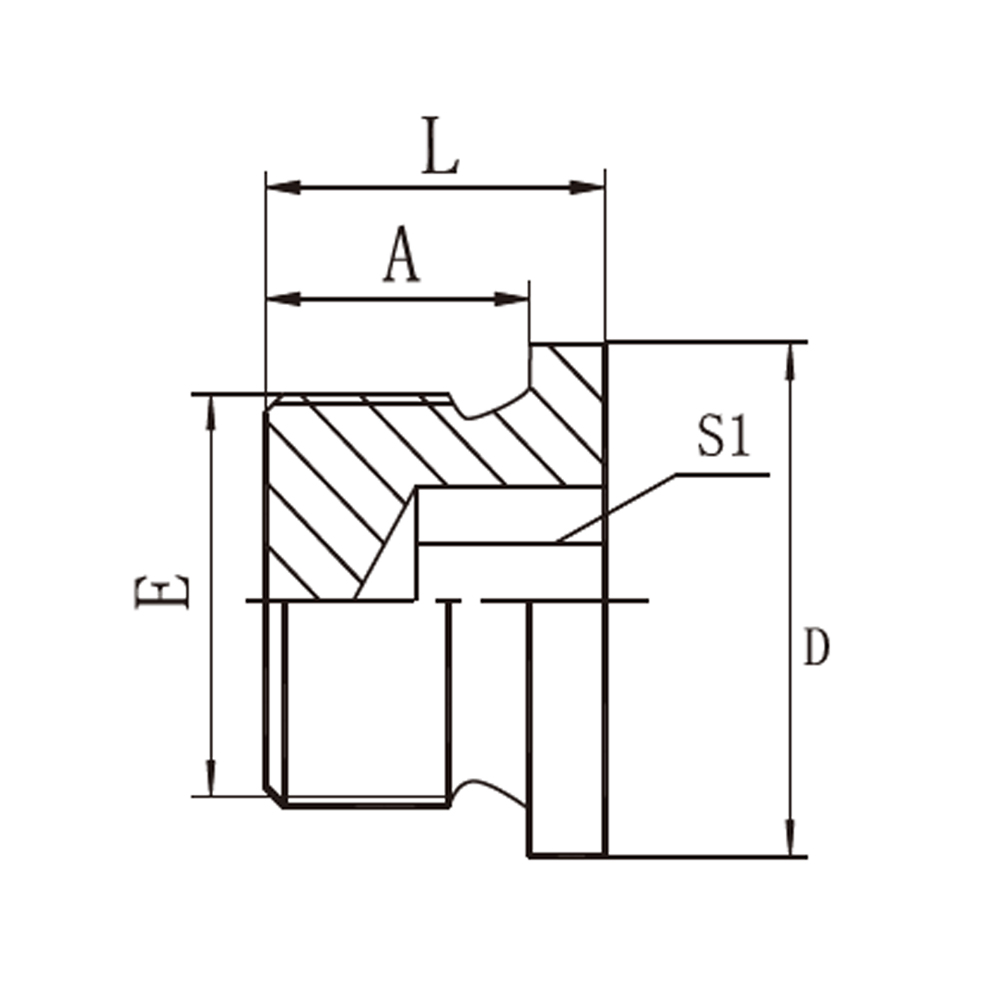

| PART NO. | THREAD | DIMENSIONS | |||
| E | A | L | S1 | D | |
| 4BN-02 | G1/8″X28 | 8 | 11 | 5 | Φ14 |
| 4BN-04 | G1/4″X19 | 12 | 15 | 6 | Φ18 |
| 4BN-06 | G3/8″X19 | 12 | 15 | 8 | Φ22 |
| 4BN-08 | G1/2″X14 | 14 | 18 | 10 | Φ25 |
| 4BN-12 | G3/4″X14 | 16 | 20 | 12 | Φ32 |
| 4BN-16 | G1″X11 | 16 | 21 | 17 | Φ39 |
