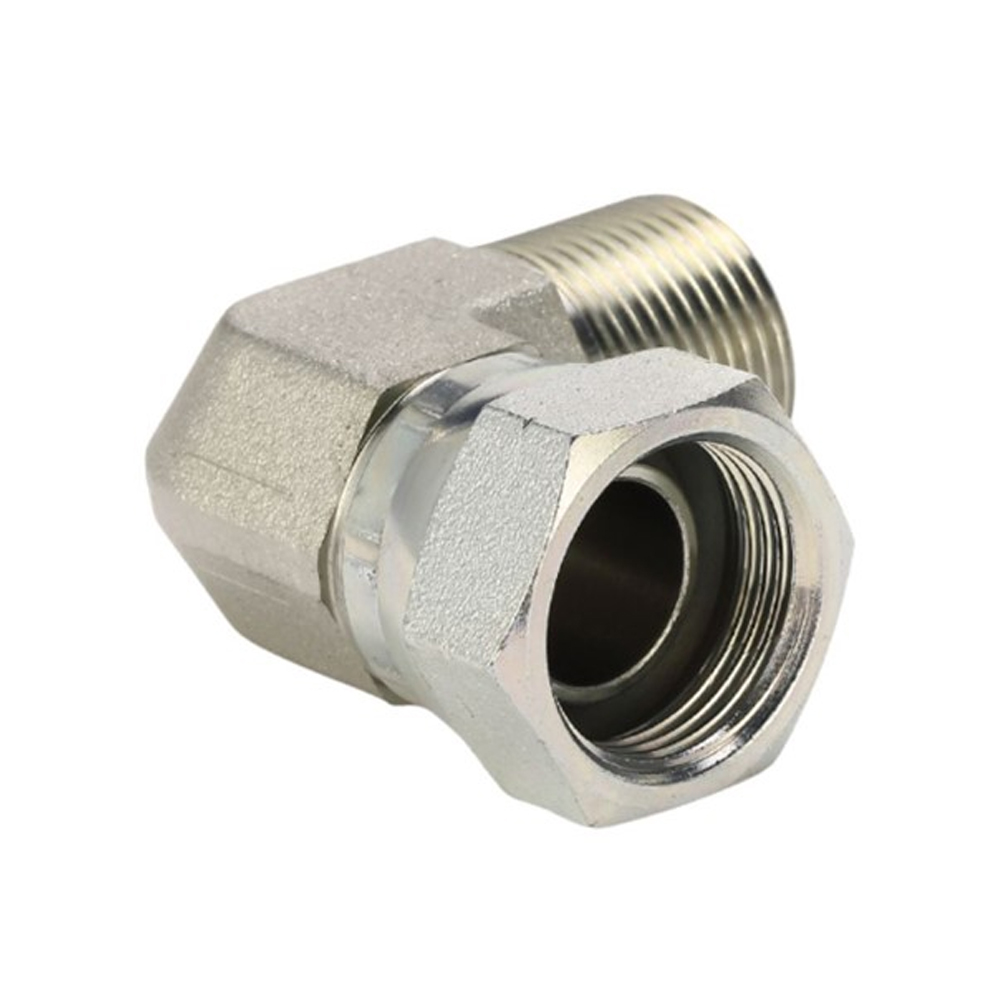

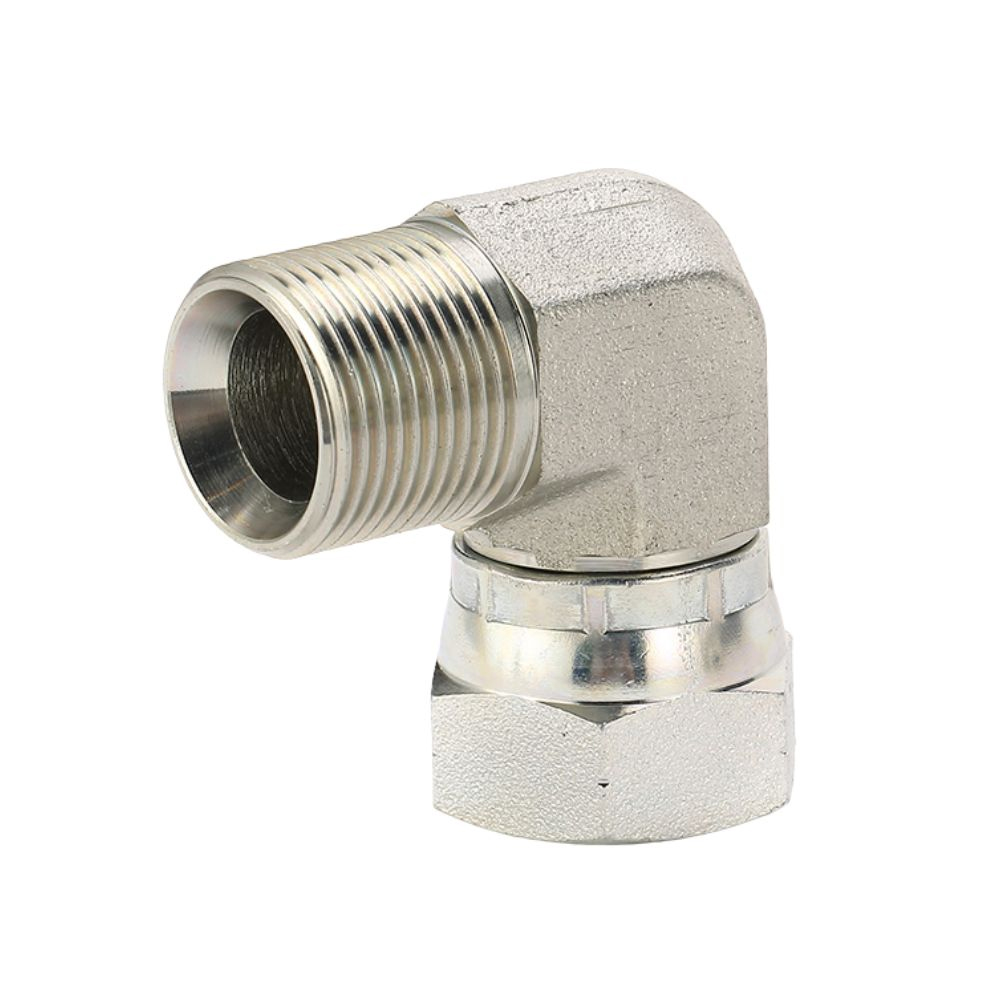

BSP hydraulic adapters feature a threaded connection system based on the British Standard Pipe thread standard. There are two types of BSP threads: BSPP and BSPT. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

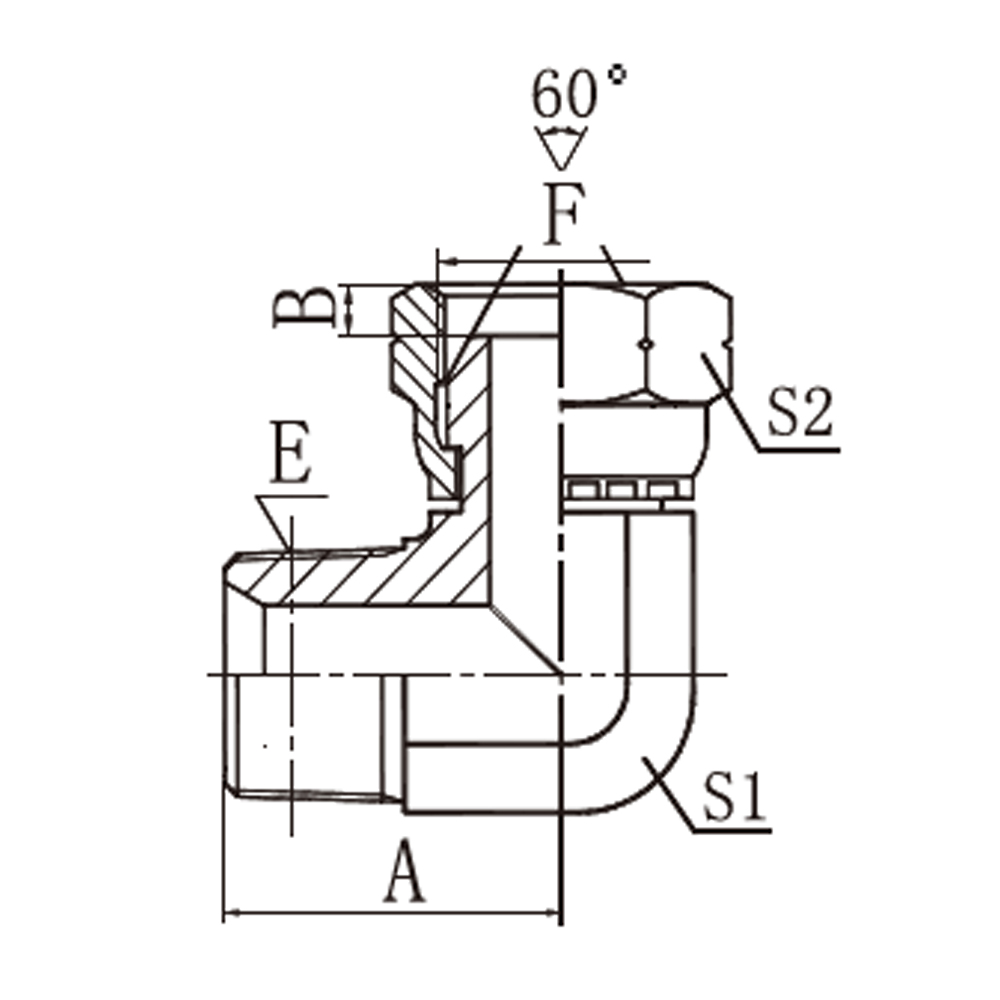

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | S1 | S2 | |
| 2TB9-02SP | R1/8″X28 | G1/8″X28 | 21 | 6 | 11 | 14 |
| 2TB9-04SP | R1/4″X19 | G1/4″X19 | 26 | 5 | 14 | 19 |
| 2TB9-06SP | R3/8″X19 | G3/8″X19 | 28 | 6.5 | 16 | 22 |
| 2TB9-06-08SP | R3/8″X19 | G1/2″X14 | 31 | 7.8 | 19 | 27 |
| 2TB9-08-06SP | R1/2″X14 | G3/8″X19 | 36 | 6.5 | 22 | 22 |
| 2TB9-08SP | R1/2″X14 | G1/2″X14 | 36 | 7.8 | 22 | 27 |
| 2TB9-08-12SP | R1/2″X14 | G3/4″X14 | 37 | 10.5 | 24 | 32 |
| 2TB9-12-08SP | R3/4″X14 | G1/2″X14 | 43.5 | 7.8 | 27 | 27 |
| 2TB9-12SP | R3/4″X14 | G3/4″X14 | 43.5 | 10.5 | 27 | 32 |
| 2TB9-16SP | R1″X11 | G1″X11 | 50 | 11 | 33 | 41 |
| 2TB9-20SP | R1.1/4″X11 | G1.1/4″X11 | 57.5 | 11.5 | 41 | 50 |
| 2TB9-24SP | R1.1/2″X11 | G1.1/2″X11 | 62.5 | 12.5 | 48 | 55 |
