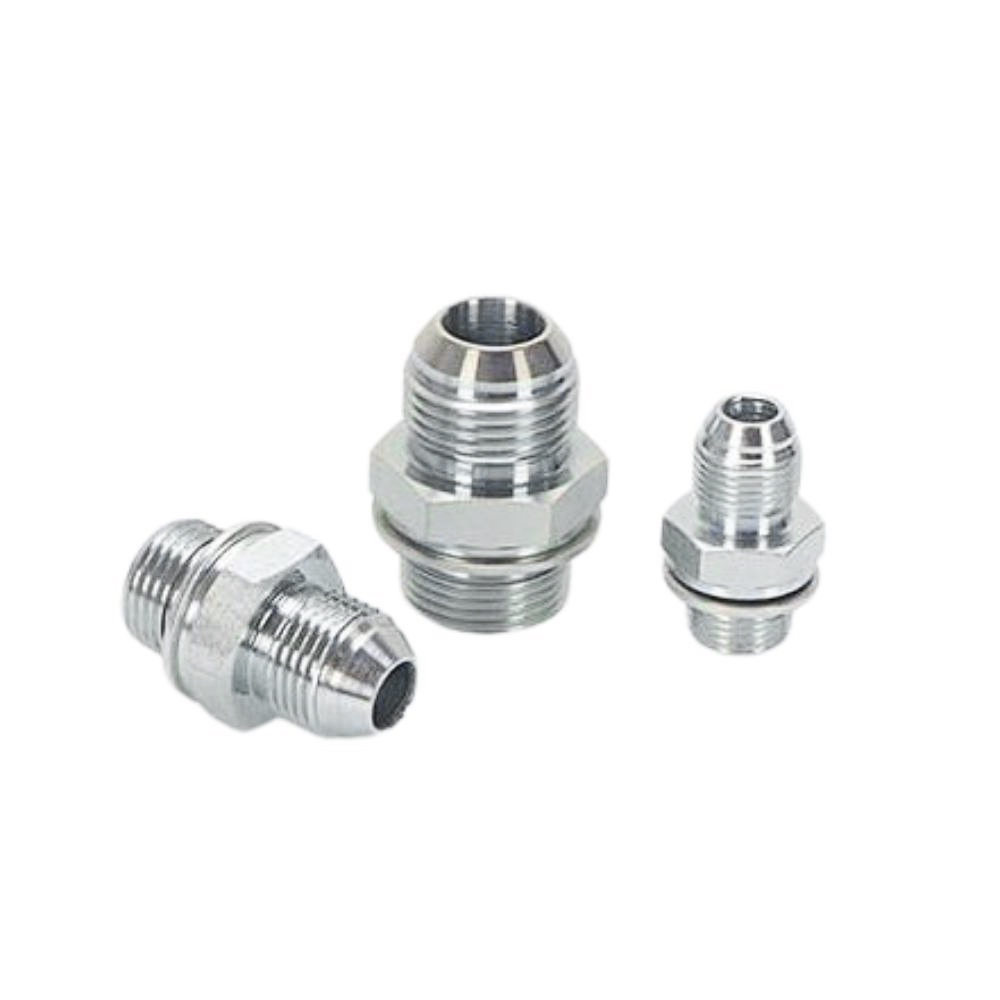

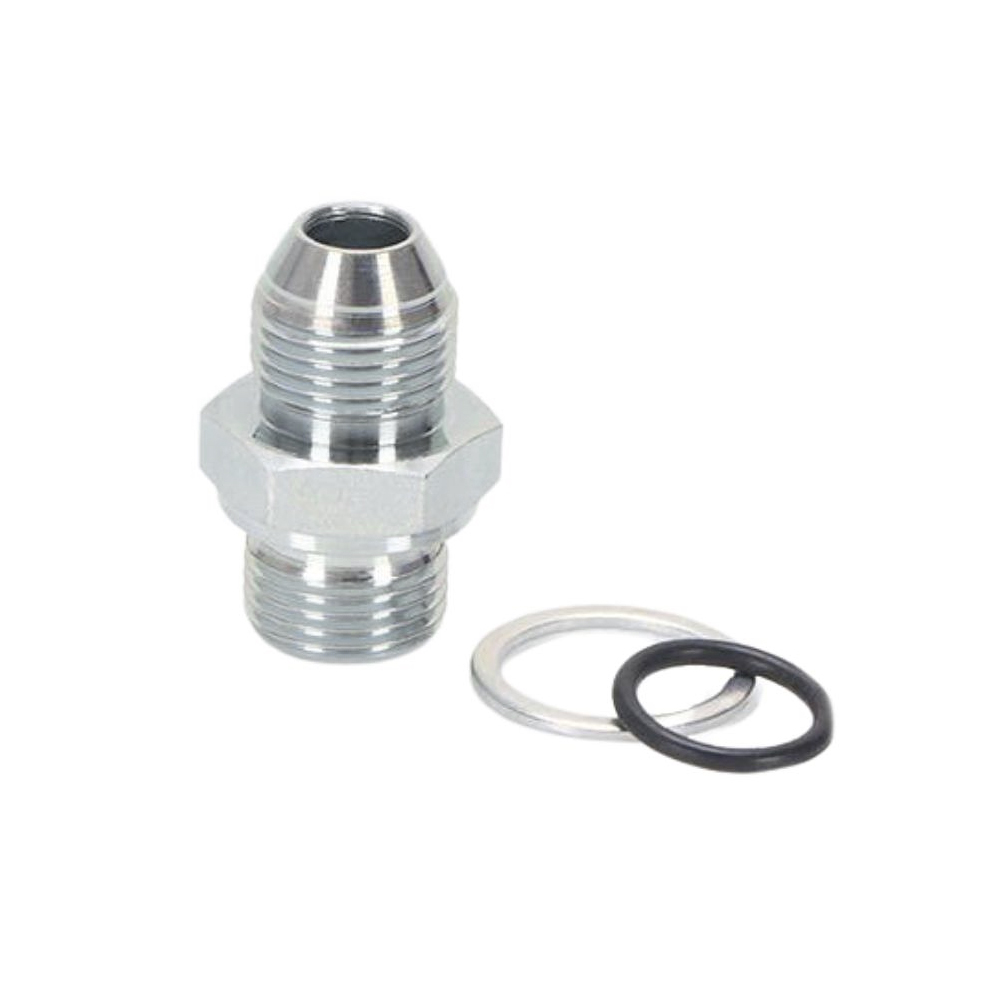

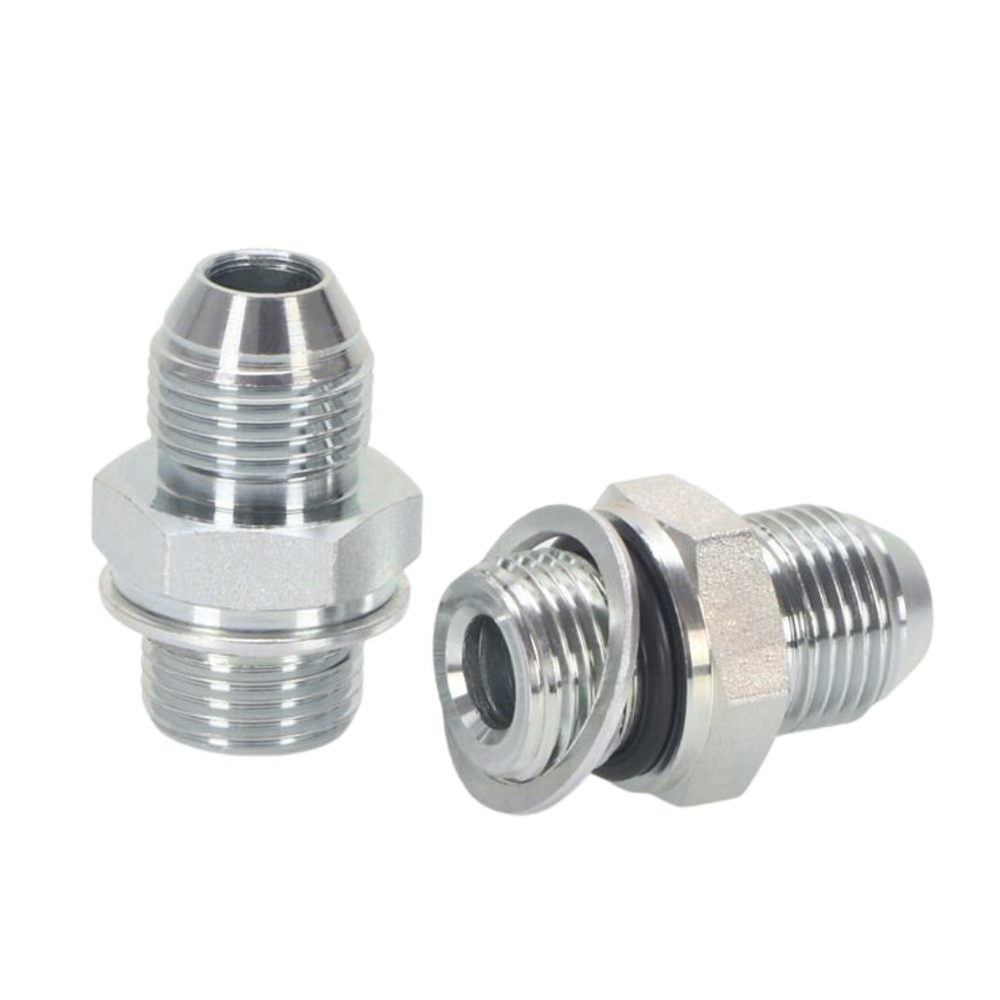

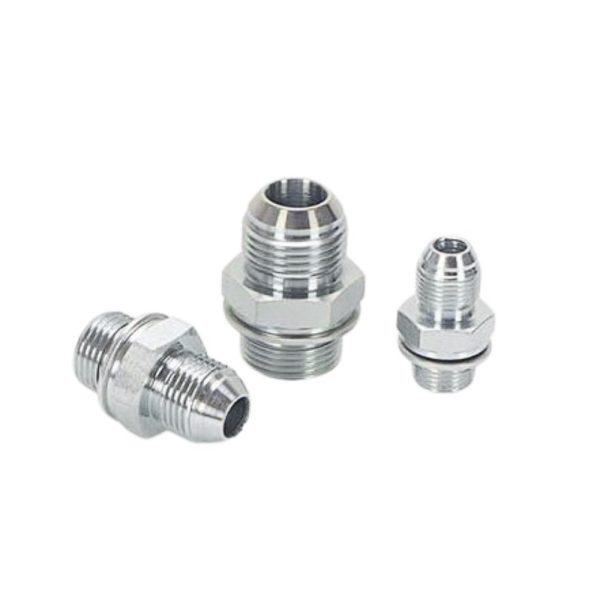

JIS hydraulic adapters serve as critical interface components, enabling seamless connections between hydraulic system elements with incompatible thread specifications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

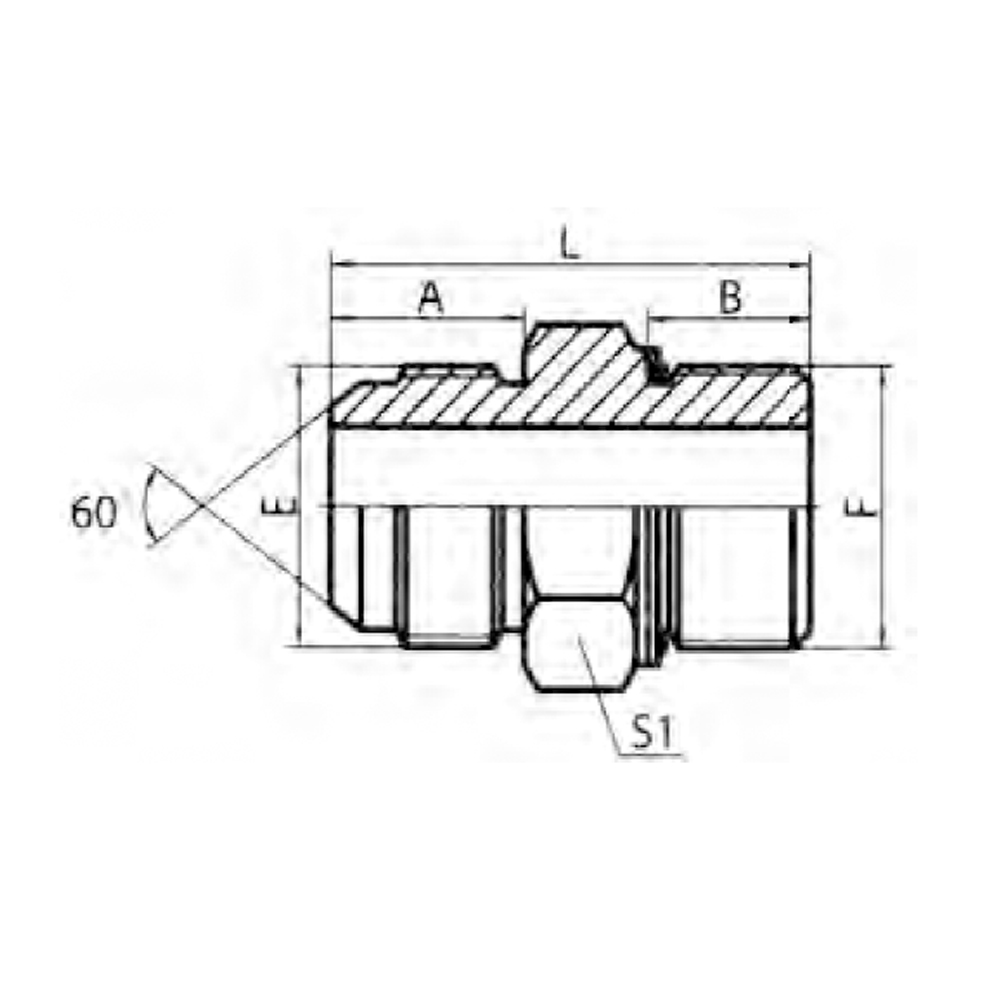

| PART NO. | THREAD | O-RING | DIMENSIONS | ||||
| E | F | F | A | B | L | S1 | |
| 1KG-14-04 | M14X1.5 | G1/4″X19 | O111 | 17 | 11 | 36 | 19 |
| 1KG-14-06 | M14X1.5 | G3/8″X19 | O113 | 17 | 11.5 | 36.5 | 22 |
| 1KG-16-06 | M16X1.5 | G3/8″X19 | O113 | 18 | 11.5 | 38 | 22 |
| 1KG-18-06 | M18X1.5 | G3/8″X19 | O113 | 18 | 11.5 | 38 | 22 |
| 1KG-22-08 | M22X1.5 | G1/2″X14 | O115 | 20 | 14 | 47 | 27 |
| 1KG-30-12 | M30X1.5 | G3/4″X14 | O119 | 26 | 15.5 | 52.5 | 32 |
| 1KG-33-12 | M33X1.5 | G3/4″X14 | O119 | 30 | 15.5 | 59.5 | 36 |
| 1KG-33-16 | M33X1.5 | G1″X14 | O217 | 30 | 18 | 62 | 41 |
