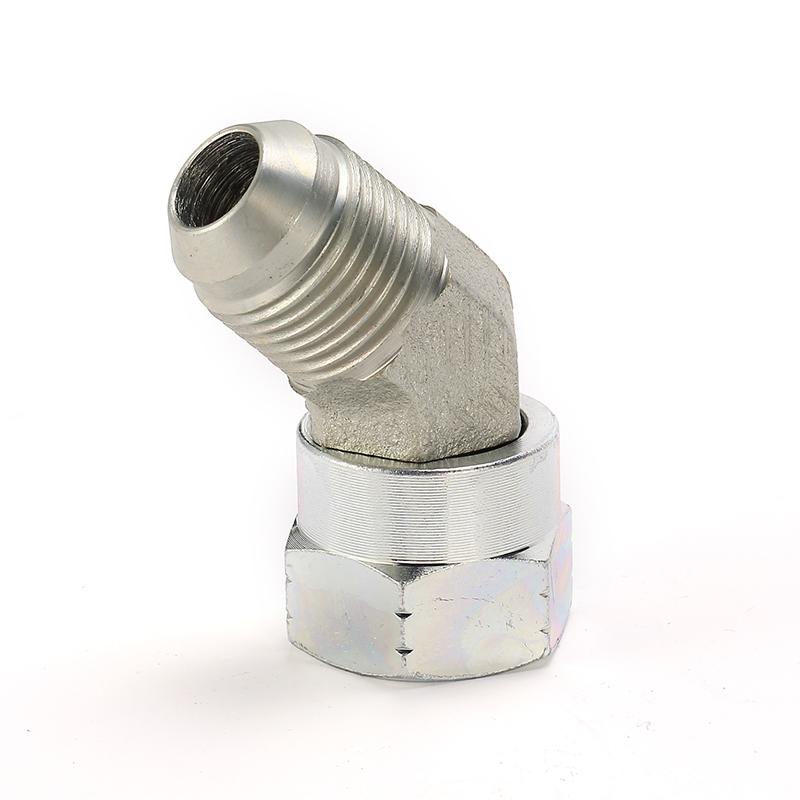

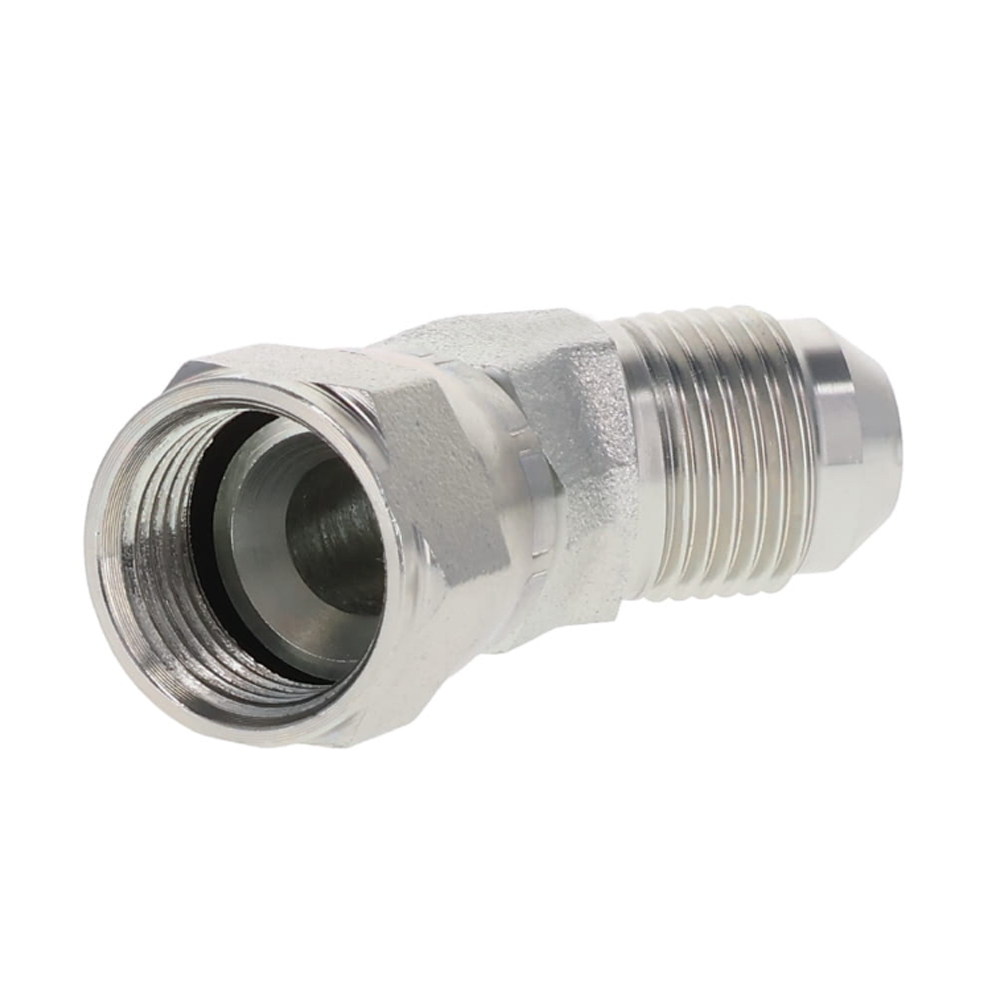

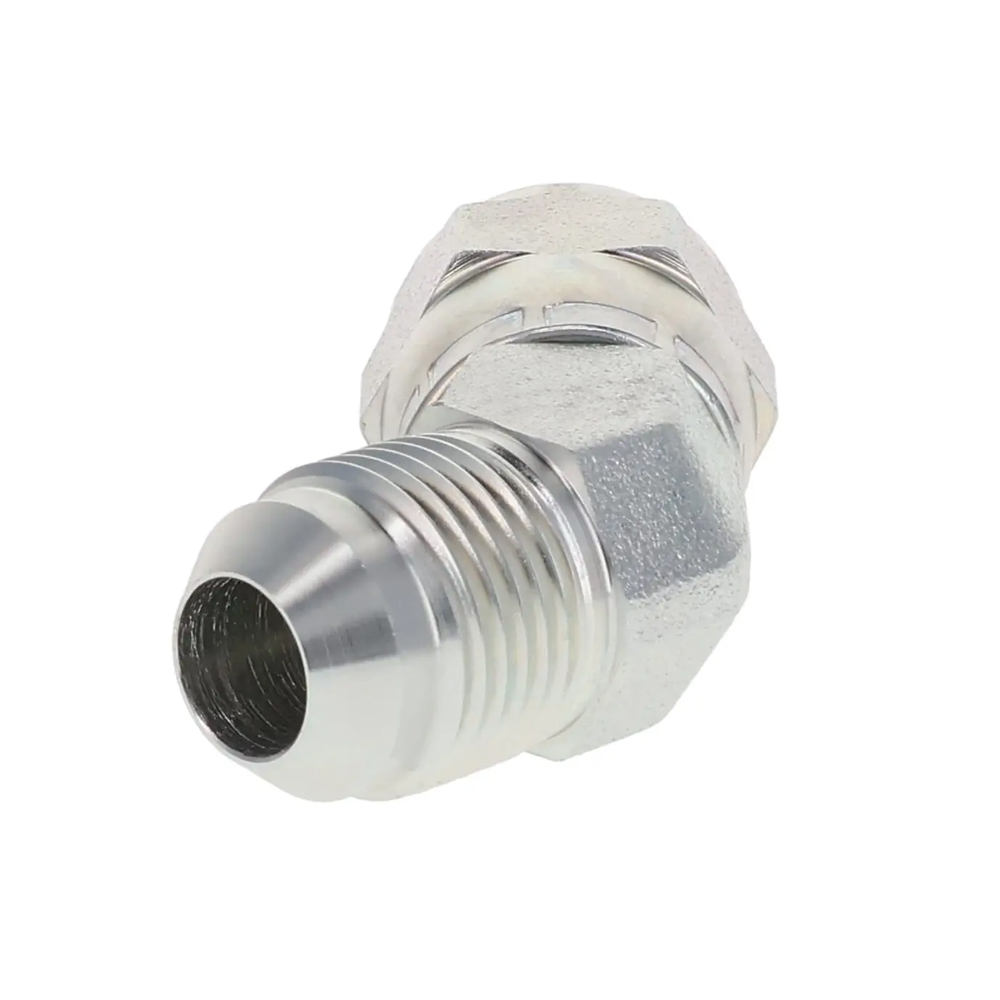

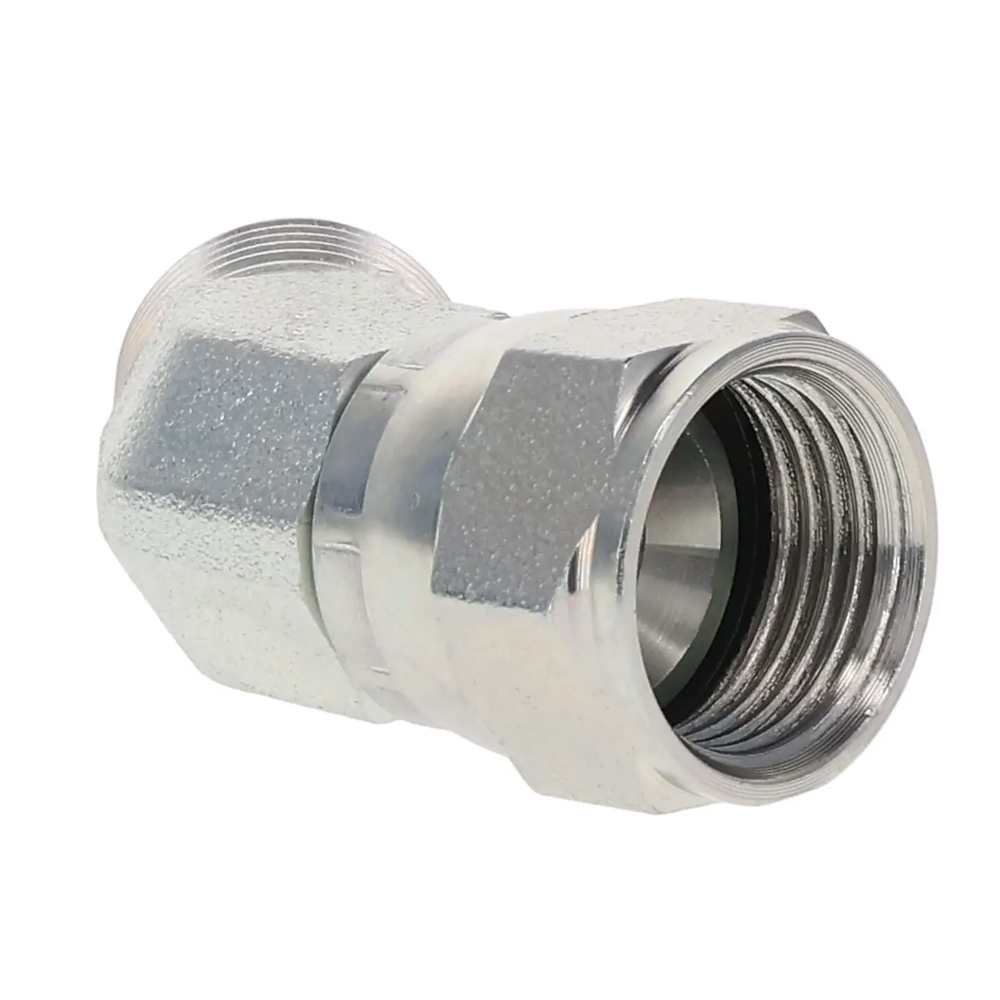

JIC hydraulic adapters feature a 37-degree flare connection system based on the SAE J514 standard. This metal-to-metal seal provides a reliable and leak-free connection suitable for various hydraulic applications. Topol Power manufactures a comprehensive range of precision metric adapters to accommodate diverse hydraulic configuration requirements.

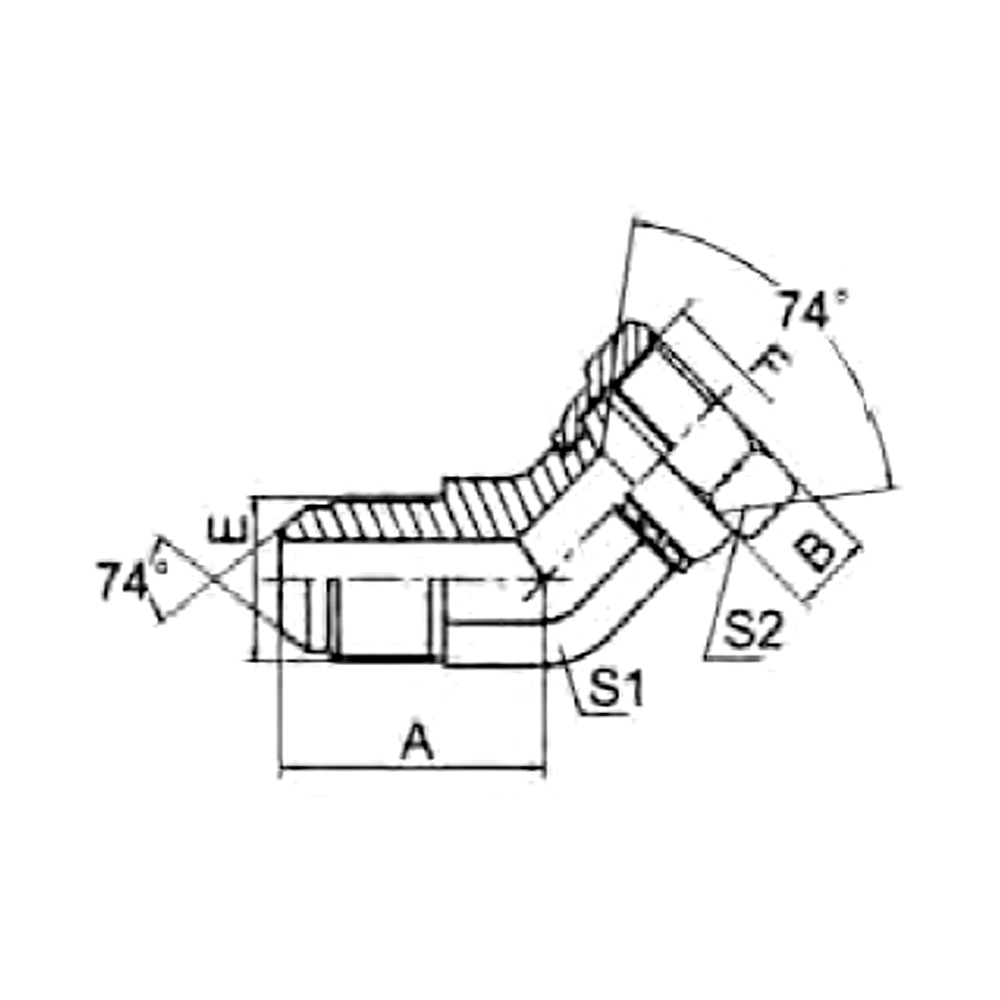

| PART NO. | THREAD | DIMENSIONS | ||||
| E | F | A | B | S1 | S2 | |
| 2J4-04 | 7/16″X20 | 7/16″X20 | 21.5 | 9.5 | 11 | 17 |
| 2J4-05 | 1/2″X20 | 1/2″X20 | 22 | 9 | 14 | 19 |
| 2J4-06 | 9/16″X18 | 9/16″X18 | 22.8 | 9.5 | 14 | 19 |
| 2J4-08 | 3/4″X16 | 3/4″X16 | 26.8 | 10.8 | 19 | 24 |
| 2J4-10 | 7/8″X14 | 7/8″X14 | 31 | 12 | 22 | 27 |
| 2J4-12 | 1.1/16″X12 | 1.1/16″X12 | 35.5 | 13 | 27 | 32 |
| 2J4-14 | 1.3/16″X12 | 1.3/16″X12 | 37 | 15 | 30 | 36 |
| 2J4-16 | 1.5/16″X12 | 1.5/16″X12 | 38.5 | 14 | 33 | 41 |
| 2J4-20 | 1.5/8″X12 | 1.5/8″X12 | 43 | 15 | 41 | 50 |
| 2J4-24 | 1.7/8″X12 | 1.7/8″X12 | 49 | 19 | 48 | 55 |
