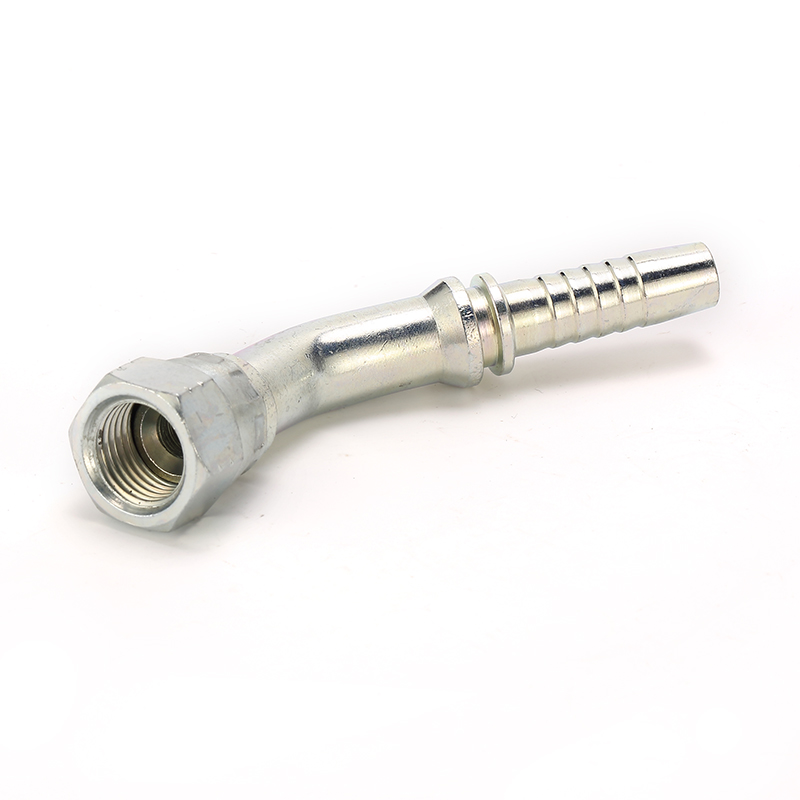

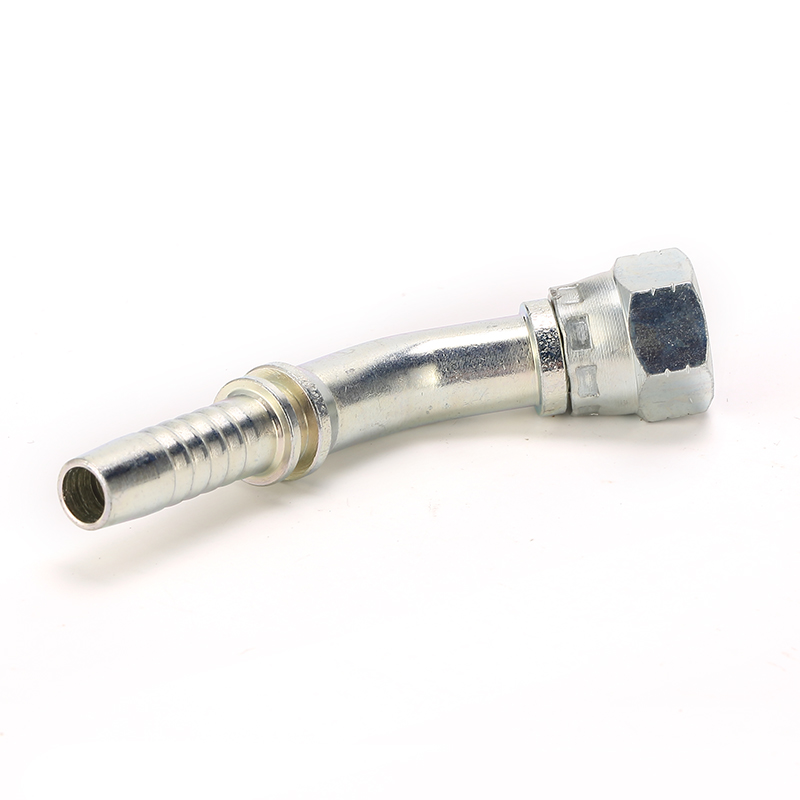

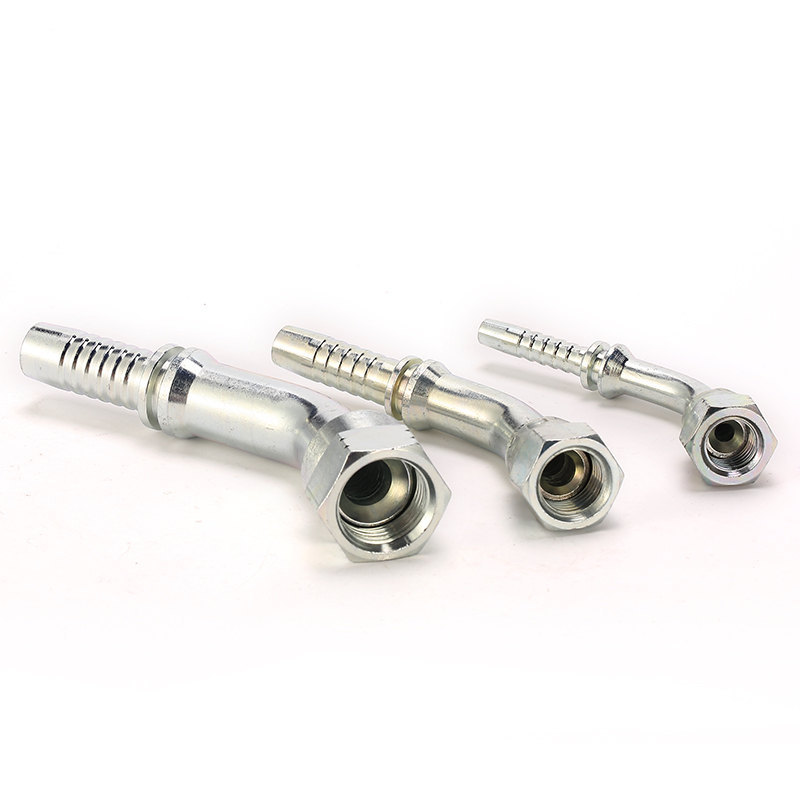

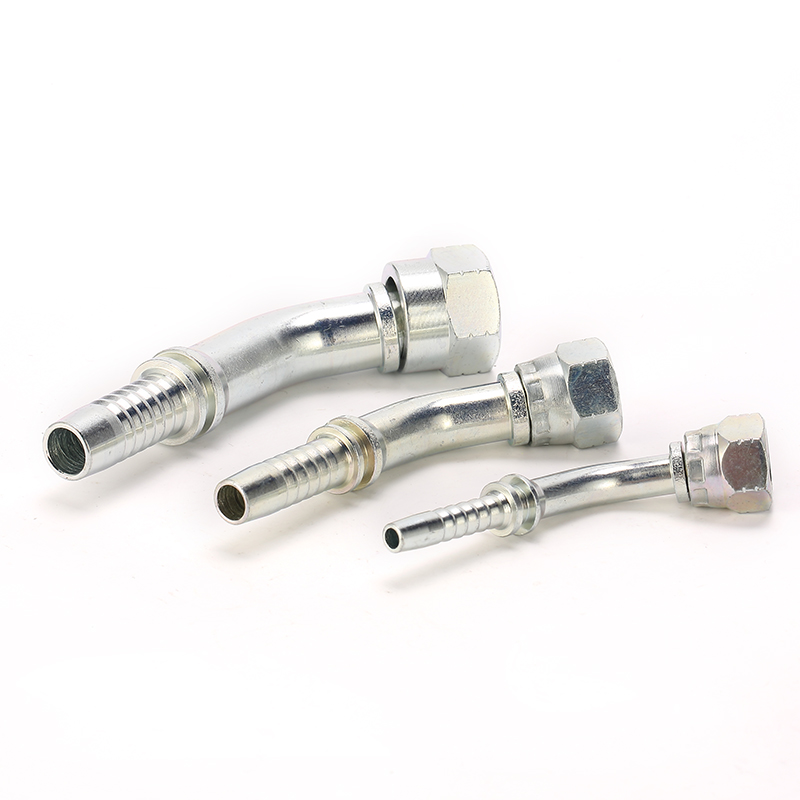

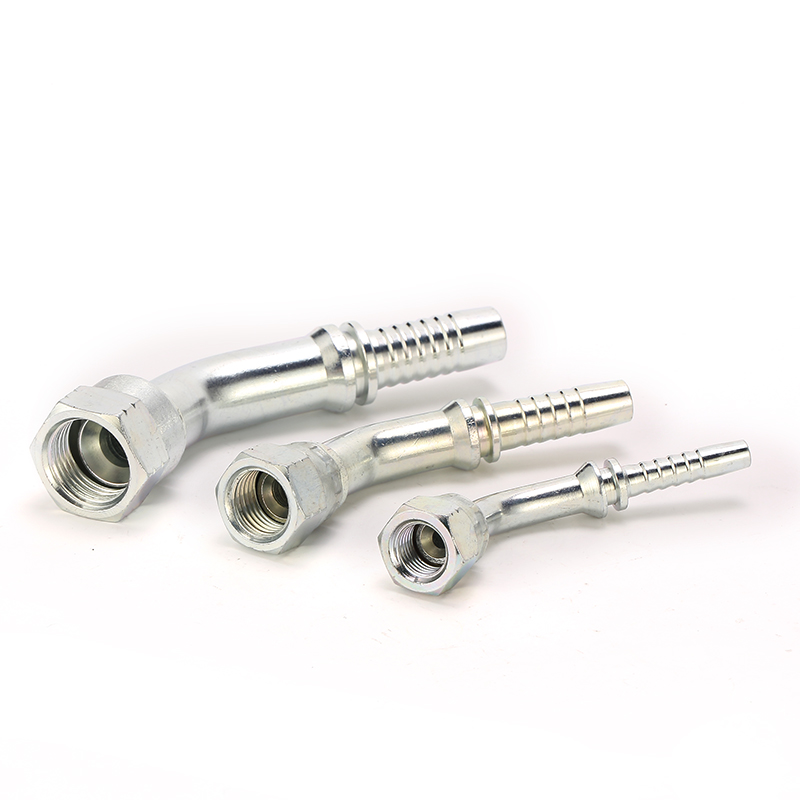

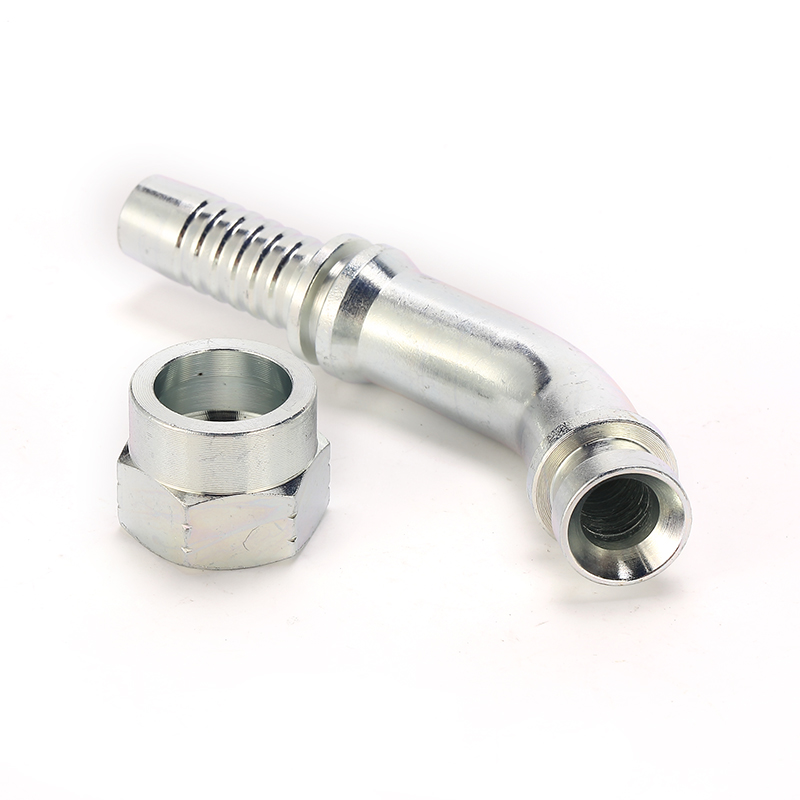

Our JIC hydraulic fittings include female, male, double nut, crimping nut, T nut, K type, straight, 45°, 90°. JIC hydraulic fittings are manufactured by Topol Power and designed according to industry standards and are suitable for high temperature and pressure environments.
| PARTNO. | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 27841-04-03 | 7/16″X20 | 5 | 03 | 37.6 | 9 | 17.2 | 15 |
| 27841-06-04 | 5/8″X18 | 6 | 04 | 42 | 11.3 | 20 | 22 |
| 27841-06-05 | 5/8″X18 | 8 | 05 | 43.7 | 11.3 | 20.4 | 22 |
| 27841-06-06 | 5/8″X18 | 10 | 06 | 45.3 | 11.3 | 21 | 22 |
| 27841-08-08 | 3/4″X16 | 12 | 08 | 58.2 | 11 | 23.3 | 24 |
| 27841-10-08 | 7/8″X14 | 12 | 08 | 58.2 | 13 | 23.3 | 27 |
| 27841-10-10 | 7/8″X14 | 16 | 10 | 69.6 | 13 | 25.3 | 27 |
| 27841-12-12 | 1.1/16″X14 | 20 | 12 | 76.8 | 14.3 | 30 | 32 |
