26791 90 Elbow JIC 74° Cone Seat Hose Fittings

Description:

According to SAE J514, a JIC fitting is classified as a compression fitting that incorporates a 37-degree flared seating surface along with parallel threads.The 26791 JIC hydraulic hose fitting is a female fitting that features a 37-degree cone seat and includes a 90-degree elbow. JIC fittings are frequently utilized for hydraulic connections in a variety of fluid power systems.

"*" indicates required fields

Our JIC hydraulic fittings include female, male, double nut, crimping nut, T nut, K type, straight, 45°, 90°. JIC hydraulic fittings are manufactured by Topol Power and designed according to industry standards and are suitable for high temperature and pressure environments.

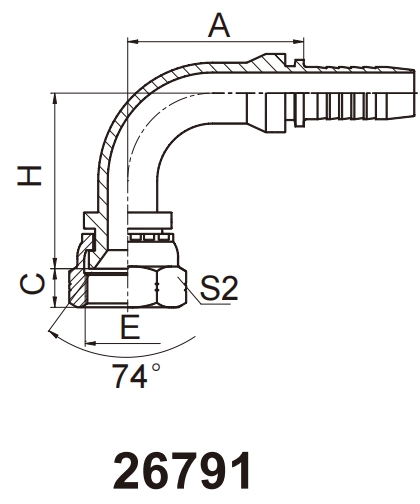

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	H	S2
26791-04-03	7/16″X20	5	03	26.5	9	30.5	15
26791-04-04	7/16″X20	6	04	30	9	33.5	15
26791-05-04	1/2″X20	6	04	30	9.5	34	17
26791-05-05	1/2″X20	8	05	33	9.5	37	17
26791-05-06	1/2″X20	10	06	35.3	9.5	39.3	17
26791-06-04	9/16″X18	6	04	30	10.5	34	19
26791-06-05	9/16″X18	8	05	33	10.5	37	19
26791-06-06	9/16″X18	10	06	35.3	10.5	39.3	19
26791-06-08	9/16″X18	12	08	35.8	10.5	39.8	19
26791-08-06	3/4″X16	10	06	35.3	11	41.3	24
26791-08-08	3/4″X16	12	08	41	11	47.5	24
26791-08-10	3/4″X16	16	10	49	11	47.5	24
26791-10-08	7/8″X14	12	08	41	13	48	27
26791-10-10	7/8″X14	16	10	56	13	52.5	27
26791-10-12	7/8″X14	20	12	64.9	13	62	27
26791-12-08	1.1/16″X12	12	08	41	15	49.5	32
26791-12-10	1.1/16″X12	16	10	56	15	54	32
26791-12-12	1.1/16″X12	20	12	65.5	15	63.5	32
26791-12-16	1.1/16″X12	25	16	74	15	63.5	32
26791-14-12	1.3/16″X12	20	12	65.5	15	63.5	36
26791-16-12	1.5/16″X12	20	12	65.5	16	63.5	41
26791-16-16	1.5/16″X12	25	16	76.7	16	70	41
26791-20-20W	1.5/8″X12	32	20	91.5	17	80.5	50
26791-24-20W	1.7/8″X12	32	20	91.5	20	80.5	55
26791-24-24W	1.7/8″X12	40	24	109.4	20	94	55
26791-32-32W	2.1/2″X12	50	32	133.1	23.5	121.8	75

Click to enlarge

Category: JIC 37° Hose Fittings Tags: Carbon Steel, 45 elbow, JIC 37°, Female

Description
Package& Shipping

Description

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	C	H	S2
26791-04-03	7/16″X20	5	03	26.5	9	30.5	15
26791-04-04	7/16″X20	6	04	30	9	33.5	15
26791-05-04	1/2″X20	6	04	30	9.5	34	17
26791-05-05	1/2″X20	8	05	33	9.5	37	17
26791-05-06	1/2″X20	10	06	35.3	9.5	39.3	17
26791-06-04	9/16″X18	6	04	30	10.5	34	19
26791-06-05	9/16″X18	8	05	33	10.5	37	19
26791-06-06	9/16″X18	10	06	35.3	10.5	39.3	19
26791-06-08	9/16″X18	12	08	35.8	10.5	39.8	19
26791-08-06	3/4″X16	10	06	35.3	11	41.3	24
26791-08-08	3/4″X16	12	08	41	11	47.5	24
26791-08-10	3/4″X16	16	10	49	11	47.5	24
26791-10-08	7/8″X14	12	08	41	13	48	27
26791-10-10	7/8″X14	16	10	56	13	52.5	27
26791-10-12	7/8″X14	20	12	64.9	13	62	27
26791-12-08	1.1/16″X12	12	08	41	15	49.5	32
26791-12-10	1.1/16″X12	16	10	56	15	54	32
26791-12-12	1.1/16″X12	20	12	65.5	15	63.5	32
26791-12-16	1.1/16″X12	25	16	74	15	63.5	32
26791-14-12	1.3/16″X12	20	12	65.5	15	63.5	36
26791-16-12	1.5/16″X12	20	12	65.5	16	63.5	41
26791-16-16	1.5/16″X12	25	16	76.7	16	70	41
26791-20-20W	1.5/8″X12	32	20	91.5	17	80.5	50
26791-24-20W	1.7/8″X12	32	20	91.5	20	80.5	55
26791-24-24W	1.7/8″X12	40	24	109.4	20	94	55
26791-32-32W	2.1/2″X12	50	32	133.1	23.5	121.8	75

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
