Our JIC hydraulic fittings include female, male, double nut, crimping nut, T nut, K type, straight, 45°, 90°. JIC hydraulic fittings are manufactured by Topol Power and designed according to industry standards and are suitable for high temperature and pressure environments.

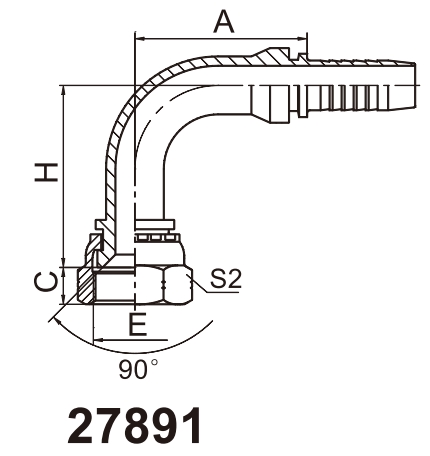

| PART NO | THREAD E | HOSE BORE | DIMENSIONS | ||||
| DN | DASH | A | C | H | S2 | ||
| 27891-04-04 | 7/16″X20 | 6 | 04 | 30 | 9 | 33.5 | 15 |
| 27891-06-04 | 5/8″X18 | 6 | 04 | 30 | 11.3 | 35.5 | 22 |
| 27891-06-05 | 5/8″X18 | 8 | 05 | 33 | 11.3 | 38.5 | 22 |
| 27891-06-06 | 5/8″X18 | 10 | 06 | 35.3 | 11.3 | 40.8 | 22 |
| 27891-10-08 | 7/8″X14 | 12 | 08 | 42 | 13 | 47 | 27 |
| 27891-10-10 | 7/8″X14 | 16 | 10 | 56.5 | 13 | 52.5 | 27 |
| 27891-12-12 | 1.1/16″X14 | 20 | 12 | 65 | 14.3 | 63.5 | 32 |
