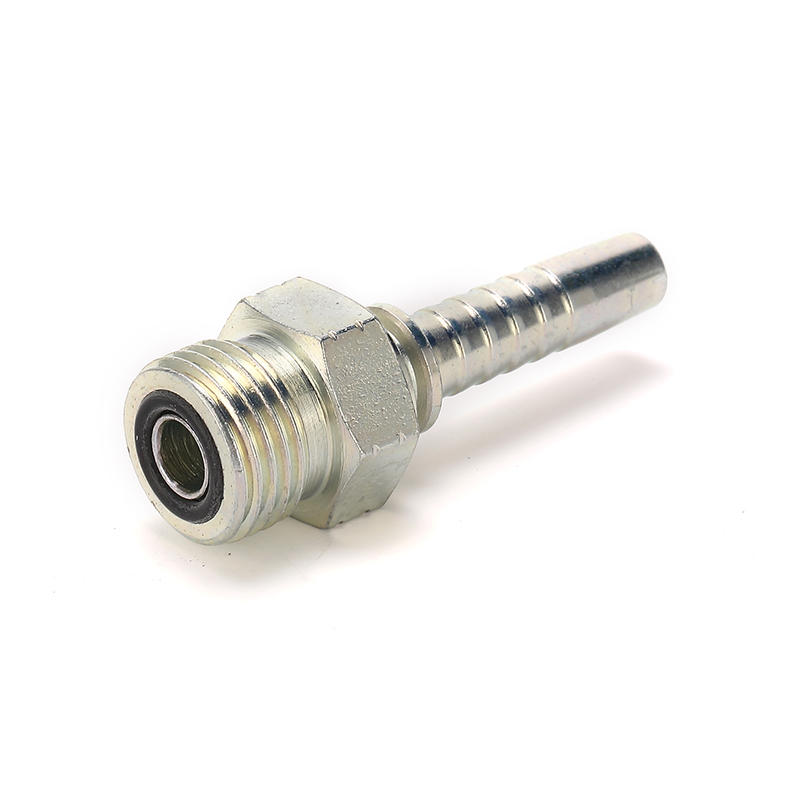

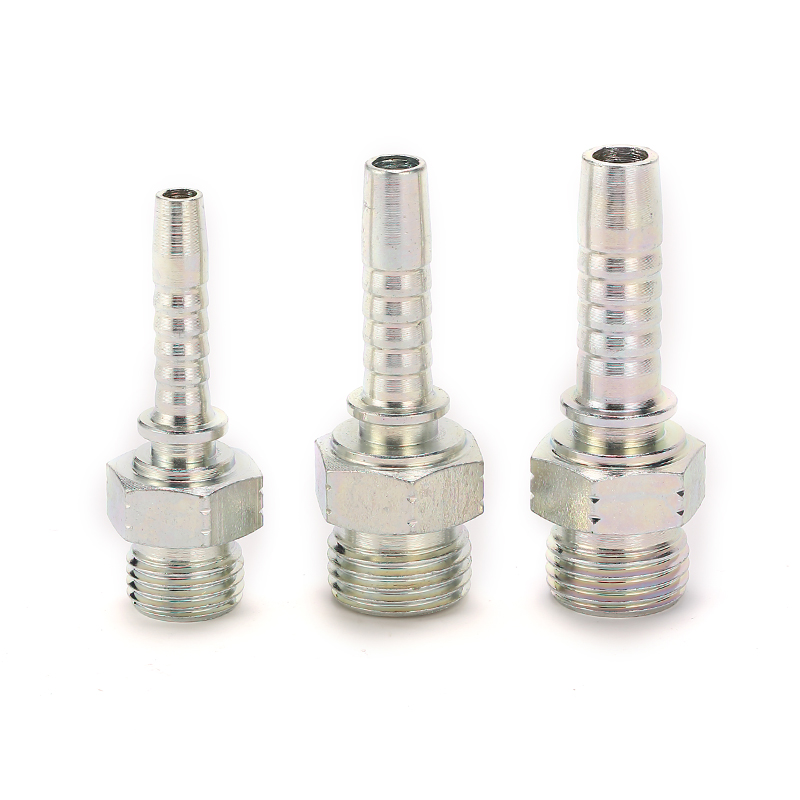

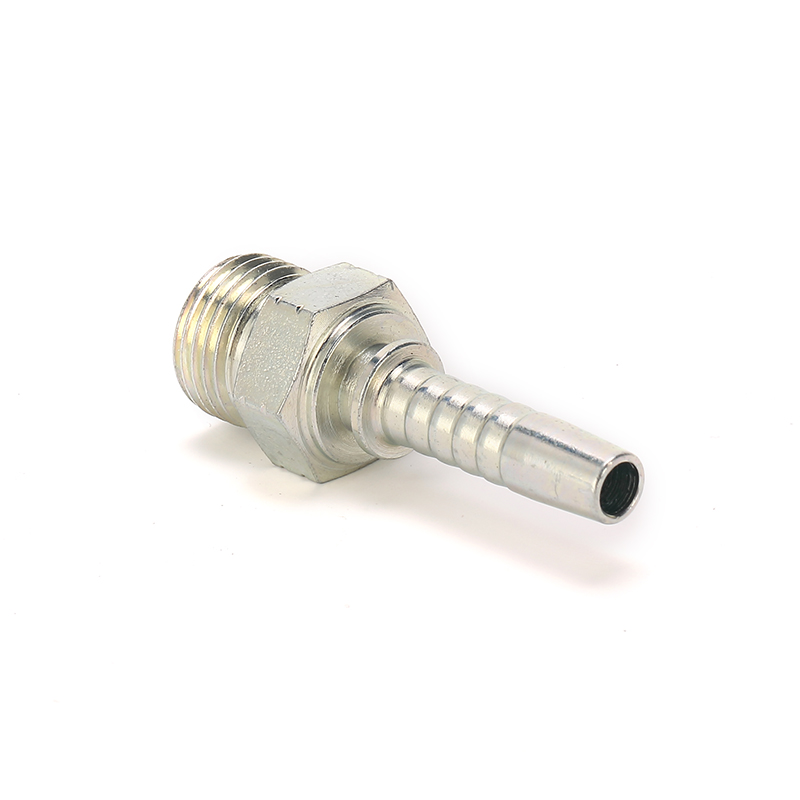

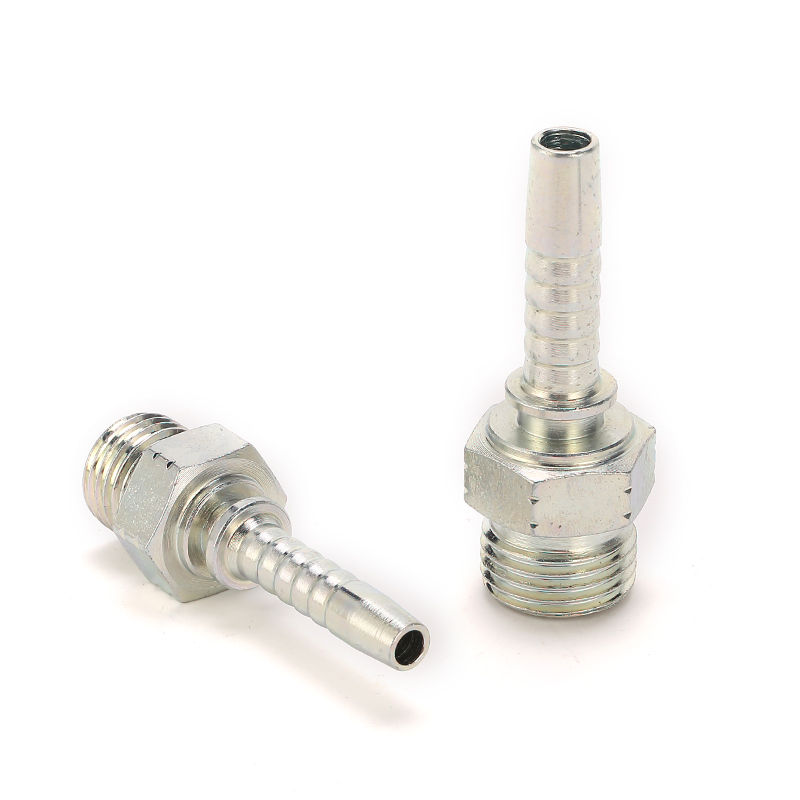

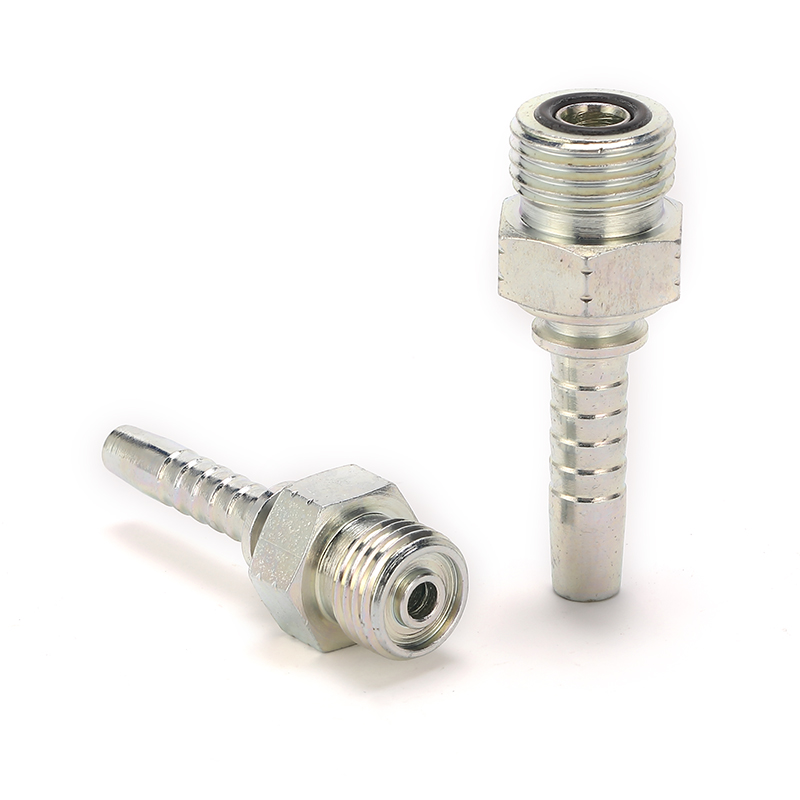

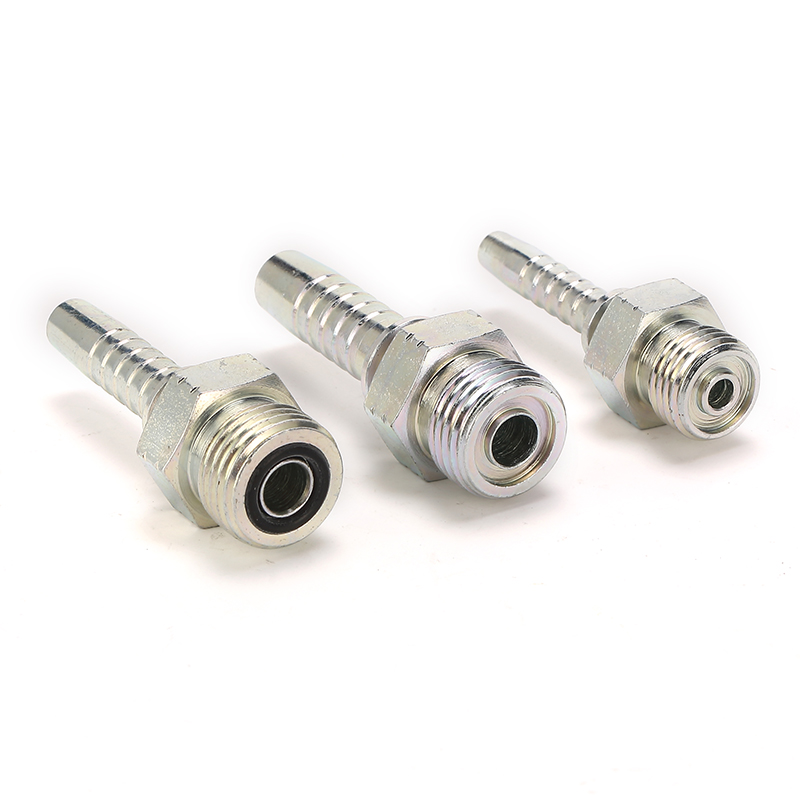

14211 ORFS Male O-Ring Hose Fittings

Description:

The 14211 ORFS hydraulic hose fitting is a male hydraulic hose fitting with an o-ring face seal to prevent leakage. ORFS fittings are extensively utilized in situations with significant vibrations.

"*" indicates required fields

ORFS hydraulic hose fitting is the hose fitting with an o-ring face seal. Topol Power can provide ORFS hydraulic hose fittings of different shapes and sizes. They can suit a wide variety of industrial applications.

PART NO.	THREAD E	HOSEBORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
15611-02-03	Z1/8″X27	5	03	21.5	10.5	12
15611-02-04	Z1/8″X27	6	04	22.5	10.5	12
15611-04-03	Z1/4″X18	5	03	27	15	17
15611-04-04	Z1/4″X18	6	04	28	15	17
15611-04-05	Z1/4″X18	8	05	28	15	17
15611-04-06	Z1/4″X18	10	06	28	15	17
15611-06-04	Z3/8″X18	6	04	28	16	19
15611-06-05	Z3/8″X18	8	05	29	16	19
15611-06-06	Z3/8″X18	10	06	29	16	19
15611-06-08	Z3/8″X18	12	08	30.5	16	19
15611-08-06	Z1/2″X14	10	06	34	19.5	22
15611-08-08	Z1/2″X14	12	08	34.5	19.5	22
15611-08-10	Z1/2″X14	16	10	35.5	19.5	22
15611-12-08	Z3/4″X14	12	08	37.5	19.5	27
15611-12-10	Z3/4″X14	16	10	37.5	19.5	27
15611-12-12	Z3/4″X14	20	12	38.5	19.5	27
15611-12-16	Z3/4″X14	25	16	39.5	19.5	32
15611-16-10	Z1″X11.5	16	10	45	25.5	36
15611-16-12	Z1″X11.5	20	12	45	25.5	36
15611-16-16	Z1″X11.5	25	16	46.5	25.5	36
15611-20-16	Z1.1/4″X11.5	25	16	49	26.5	46
15611-20-20	Z1.1/4″X11.5	32	20	50.5	26.5	46
15611-24-24	Z1.1/2″X11.5	40	24	51	27.5	50
15611-32-32	Z2″X11.5	50	32	55	27.5	65

Click to enlarge

Category: ORFS Hose Fittings Tags: Female, Carbon Steel, ORFS, O-ring

Description
Package& Shipping

Description

PART NO.	THREAD E	HOSEBORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	A	C	S1
15611-02-03	Z1/8″X27	5	03	21.5	10.5	12
15611-02-04	Z1/8″X27	6	04	22.5	10.5	12
15611-04-03	Z1/4″X18	5	03	27	15	17
15611-04-04	Z1/4″X18	6	04	28	15	17
15611-04-05	Z1/4″X18	8	05	28	15	17
15611-04-06	Z1/4″X18	10	06	28	15	17
15611-06-04	Z3/8″X18	6	04	28	16	19
15611-06-05	Z3/8″X18	8	05	29	16	19
15611-06-06	Z3/8″X18	10	06	29	16	19
15611-06-08	Z3/8″X18	12	08	30.5	16	19
15611-08-06	Z1/2″X14	10	06	34	19.5	22
15611-08-08	Z1/2″X14	12	08	34.5	19.5	22
15611-08-10	Z1/2″X14	16	10	35.5	19.5	22
15611-12-08	Z3/4″X14	12	08	37.5	19.5	27
15611-12-10	Z3/4″X14	16	10	37.5	19.5	27
15611-12-12	Z3/4″X14	20	12	38.5	19.5	27
15611-12-16	Z3/4″X14	25	16	39.5	19.5	32
15611-16-10	Z1″X11.5	16	10	45	25.5	36
15611-16-12	Z1″X11.5	20	12	45	25.5	36
15611-16-16	Z1″X11.5	25	16	46.5	25.5	36
15611-20-16	Z1.1/4″X11.5	25	16	49	26.5	46
15611-20-20	Z1.1/4″X11.5	32	20	50.5	26.5	46
15611-24-24	Z1.1/2″X11.5	40	24	51	27.5	50
15611-32-32	Z2″X11.5	50	32	55	27.5	65

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
