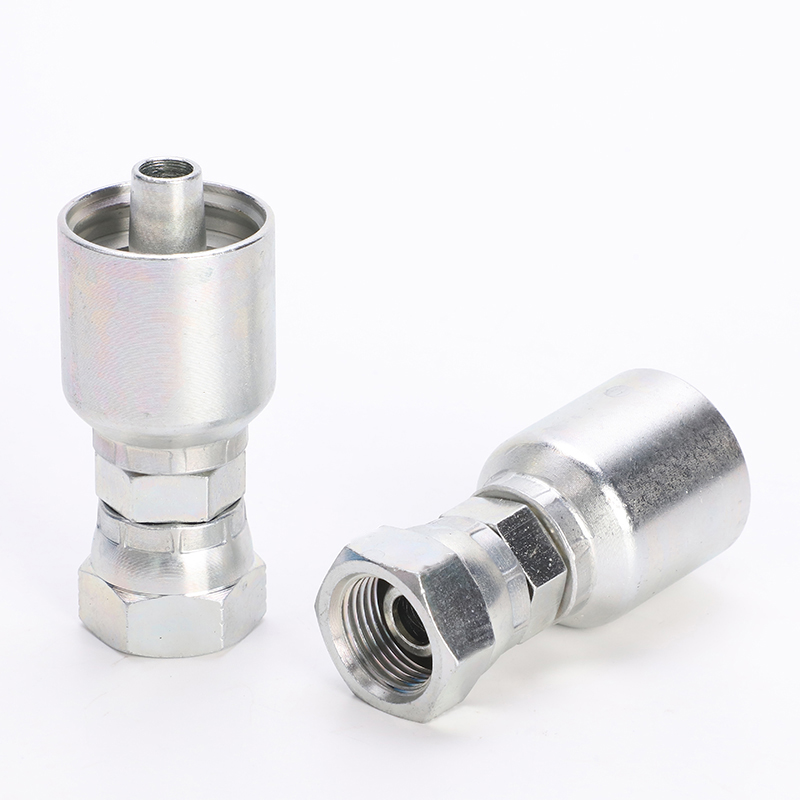

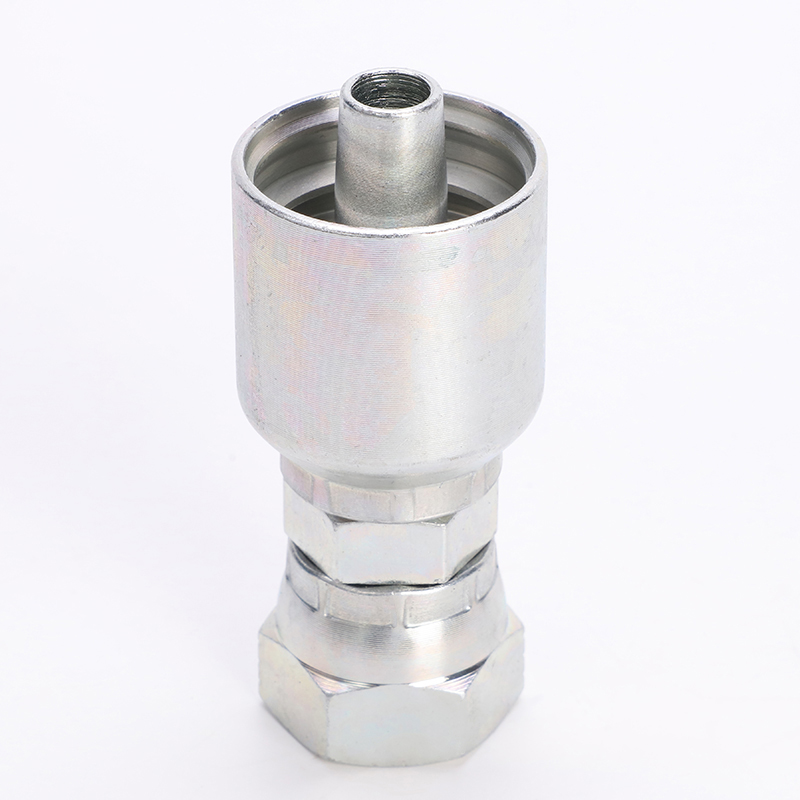

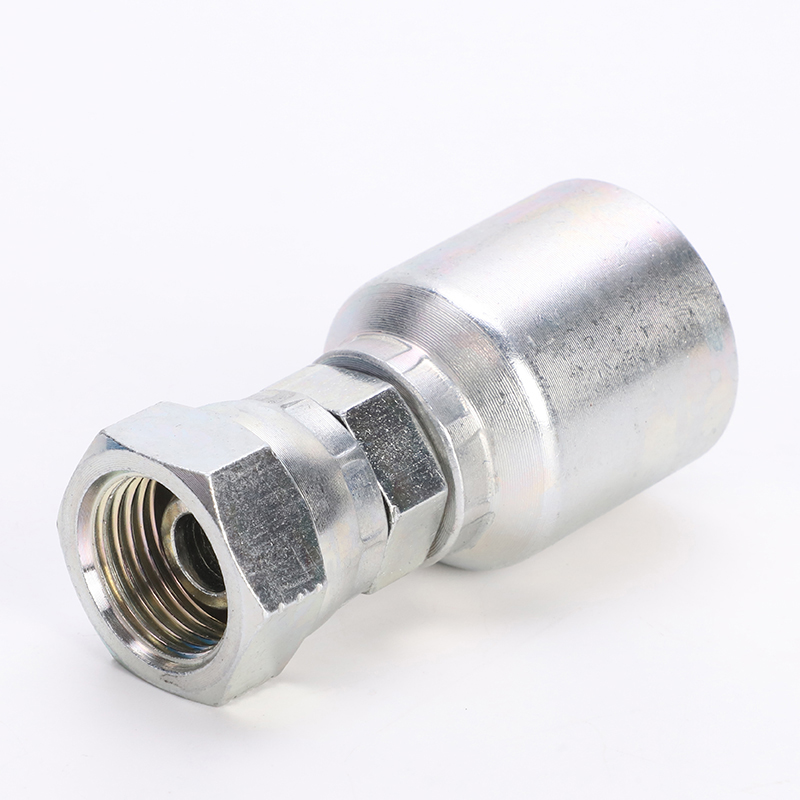

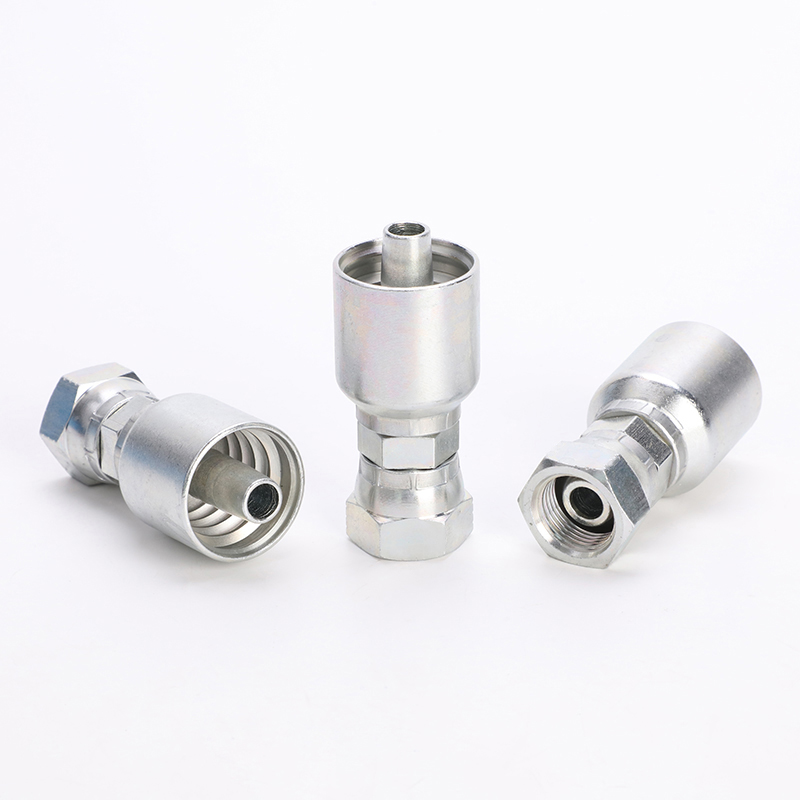

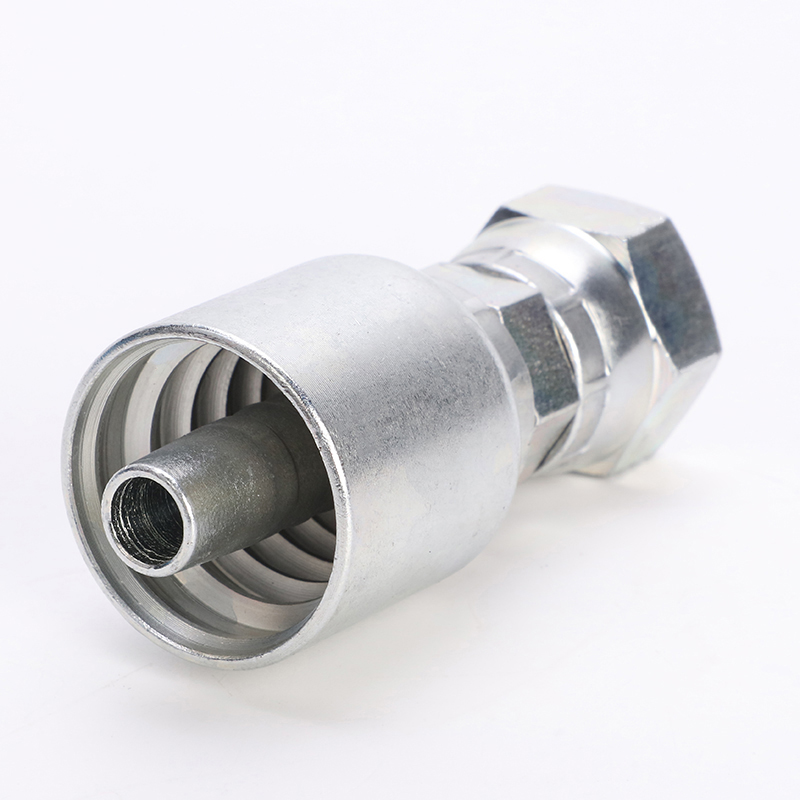

21611PK NPSM Female 60° Cone Hose Fittings

Description:

The 21611pk female JIC 60° cone fittings are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

Category: One Piece Fittings Tags: Carbon Steel, JIC, One Piece, 60° Cone

Description
Package& Shipping

Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

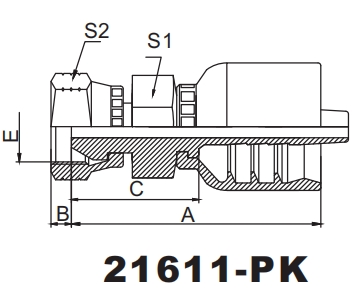

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	C	S1	S2
21611-04-04PKAST	NPSM 1/4″X18	6	04	44	5	22	14.29	19
21611-06-06PKAST	NPSM3/8″X18	10	06	53	6.5	24.5	17.46	22
21611-08-08PKAST	NPSM 1/2″X14	12	08	59	7.8	25	24	27
21611-12-12PKAST	NPSM3/4″X14	20	12	69	10.5	29.9	27	32
21611-12-16PKAST	NPSM 3/4″X14	25	16	76	10.5	31.2	35	32
21611-16-16PKAST	NPSM 1″X11.5	25	16	78	11	33.2	35	41
21611-20-20PKAST	NPSM 1.1/4″X11.5	32	20	83	11.5	36	47	50

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.
