Metric female multi-seal threaded fittings, available in straight, 45°, and 90°types. Topol Power hose fitting can be applied in many hydraulic fluid applications, they are usually available in standard thread sizes such as 1/4″, 3/8″, and 1/2″.

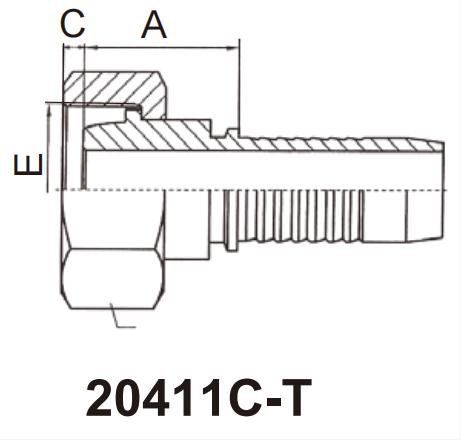

| PART NO. | THREAD E | HOSE BORE | TUBEO.D | DIMENSIONS | |||
| DN | DASH | A | C | S2 | |||
| 20411C-12-04 | M12X1.5 | 6 | 04 | 6 | 19.5 | 3.5 | 17 |
| 20411C-14-04 | M14X1.5 | 6 | 04 | 8 | 20.5 | 3.5 | 19 |
| 20411C-16-04 | M16X1.5 | 6 | 04 | 10 | 21 | 3.5 | 22 |
| 20411C-16-05 | M16X1.5 | 8 | 05 | 10 | 21 | 3.5 | 22 |
| 20411C-16-06 | M16X1.5 | 10 | 06 | 10 | 21 | 3.5 | 22 |
| 20411C-18-06 | M18X1.5 | 10 | 06 | 12 | 22.5 | 3 | 24 |
| 20411C-22-06T | M22X1.5 | 10 | 06 | 15 | 23.5 | 4.5 | 27 |
| 20411C-22-08 | M22X1.5 | 12 | 08 | 15 | 24 | 4.5 | 27 |
| 20411C-26-10T | M26X1.5 | 16 | 10 | 18 | 27 | 4 | 32 |
| 20411C-30-10T | M30X2 | 16 | 10 | 22 | 26.5 | 7 | 36 |
| 20411C-30-12 | M30X2 | 20 | 12 | 22 | 27 | 7 | 36 |
| 20411C-30-14 | M30X2 | 22 | 14 | 22 | 27 | 7 | 36 |
| 20411C-36-16 | M36X2 | 25 | 16 | 28 | 29 | 6.5 | 41 |
| 20411C-45-20T | M45X2 | 32 | 20 | 35 | 33 | 7 | 55 |
| 20411C-52-24T | M52X2 | 40 | 24 | 42 | 34 | 8 | 60 |
