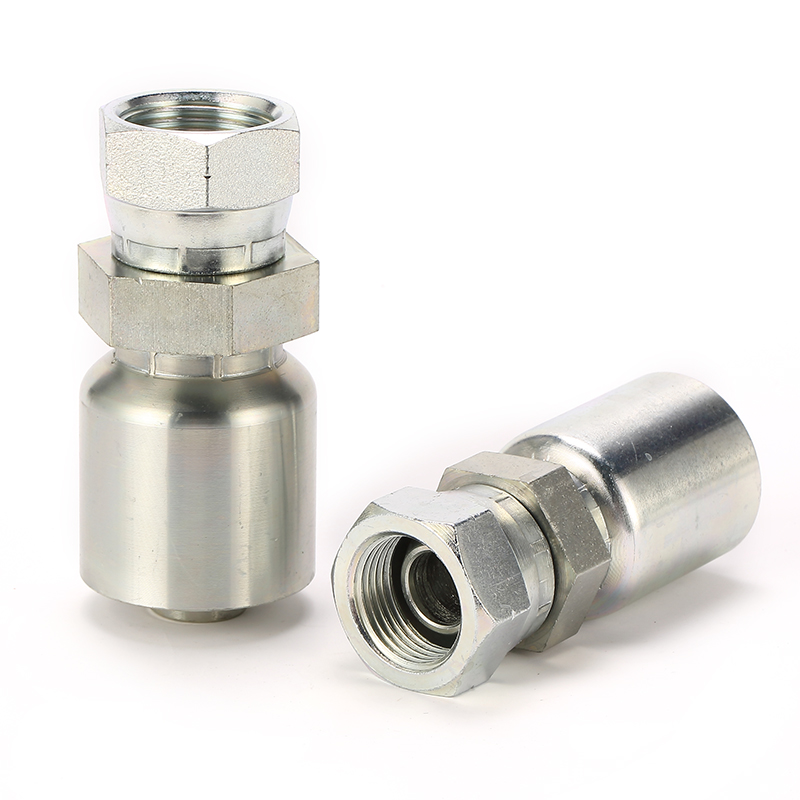

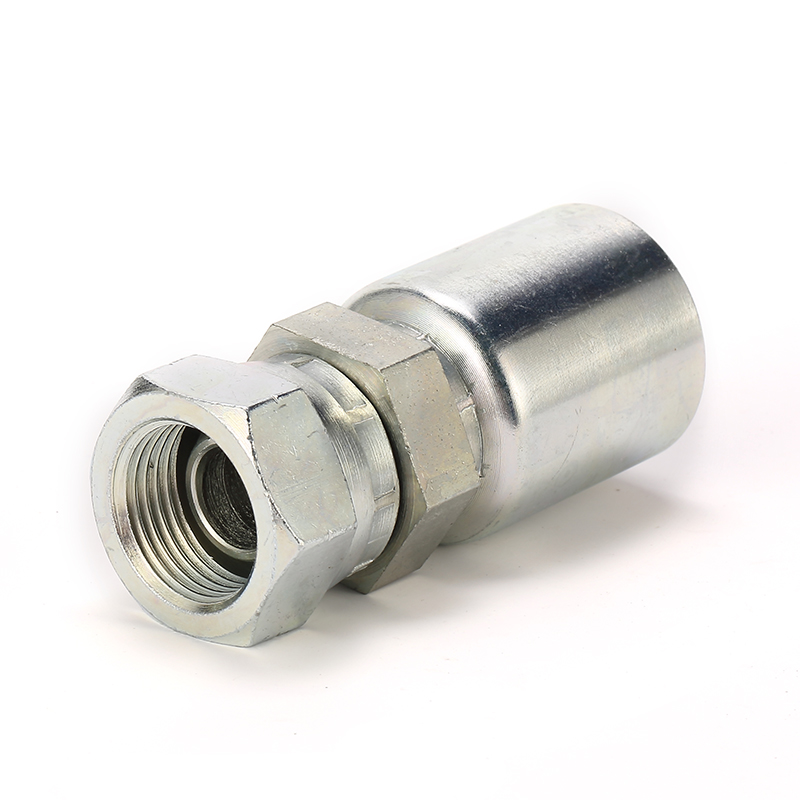

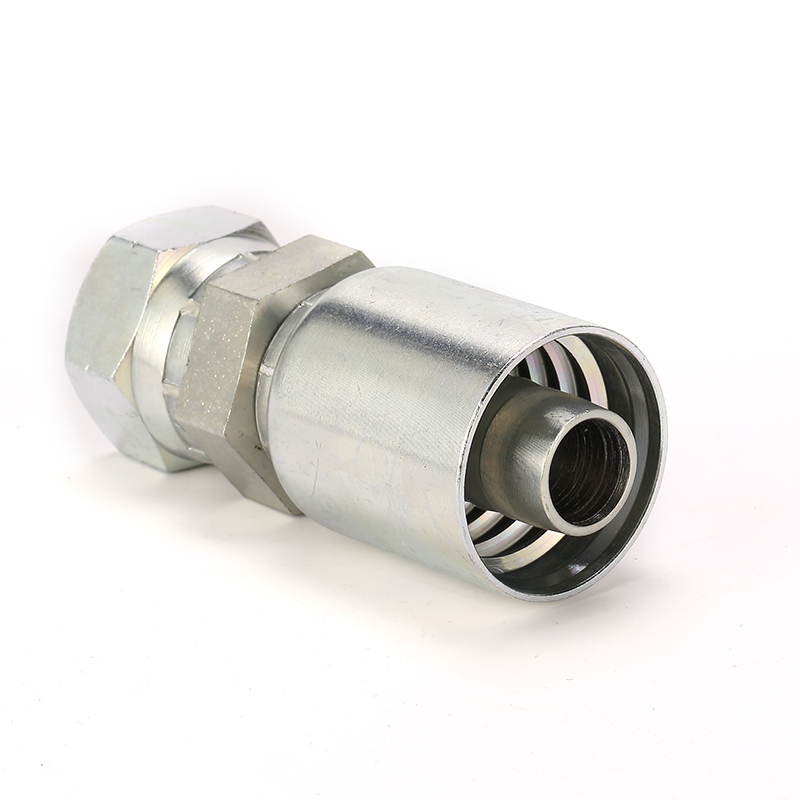

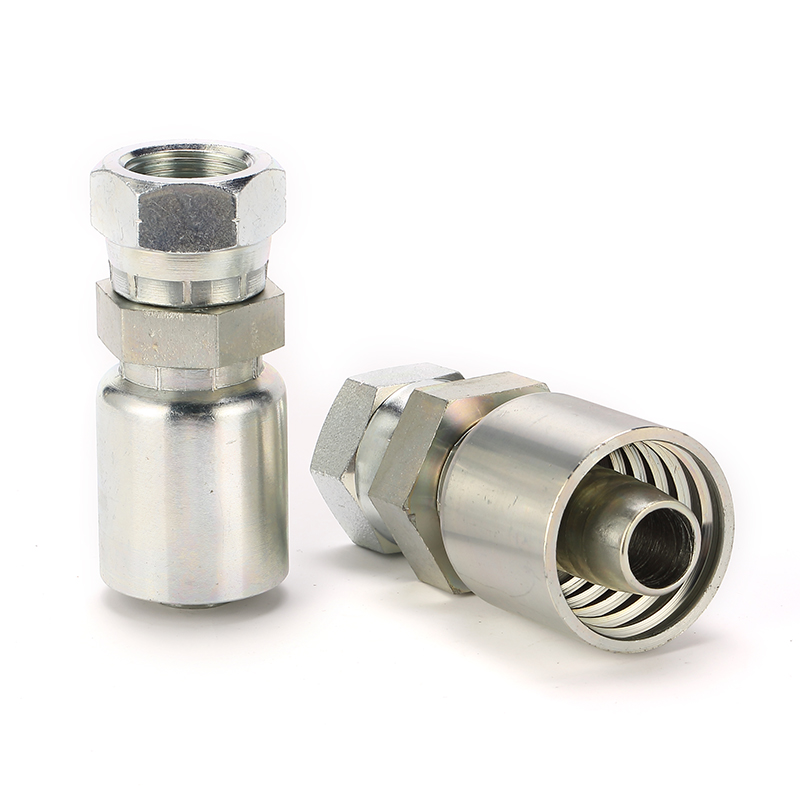

22611DPK Female 60° Cone Hose Fittings

Description:

The 22611D pk female BSP 60° cone fittings are available in one-piece construction for applications ranging from hydraulic industry standards, constant working pressure, high temperature, and low temperature. Our fittings can suit with different standard hoses,such as Parker, Eaton, Gates hydraulic hose, and so on.

Category: One Piece Fittings Tags: One Piece, 60° Cone, Carbon Steel, BSP

Description
Package& Shipping

Description

TOPOL POWER is Topol is the one-stop solution for connection problems in hydraulic systems. It provides the production, testing and delivery of hydraulic fittings, adapters, hydraulic hoses assembly, quick coupling, ,hose clamps.

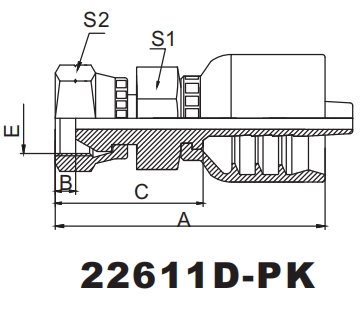

PART NO	THREAD E	HOSE BORE		DIMENSIONS
PART NO	THREAD E	DN	DASH	A	B	C	S1	S2
22611D-04-04PK AST	G1/4″X19	6	04	53	5	31	19	19
22611D-06-06PKAST	G3/8″X19	10	06	62	6.5	33.5	22	22
22611D-08-08PKAST	G1/2″X14	12	08	71	7.8	37	27	27
22611D-10-10PKAST	G5/8″X14	16	10	77.5	9	38.7	30	30
22611D-12-12PK AST	G3/4″X14	20	12	82	10.5	42.9	36	36
22611D-16-16PKAST	G1″X11	25	16	95	11	50.2	41	41

Package& Shipping

Package:

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.

Delivery Time:

It depends on the order volume and if we have them in stock or not. If we have the hose fittings you are looking for in stock, we can ship it within 25-35 day. If we don’t have no in stock, normally it takes 35-55 days for production that depends on the order volume.

22611DPK Female 60° Cone Hose Fittings

Package:

Delivery Time:
